Waveshare RP2040-One 4MB Flash MCU Board Based On Raspberry Pi RP2040 Microcontroller Chip, Pico-like MCU board Onboard USB-A Plug, Support C/C++, MicroPython

• RP2040-One, a Pico-like MCU board based on Raspberry Pi RP2040, Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

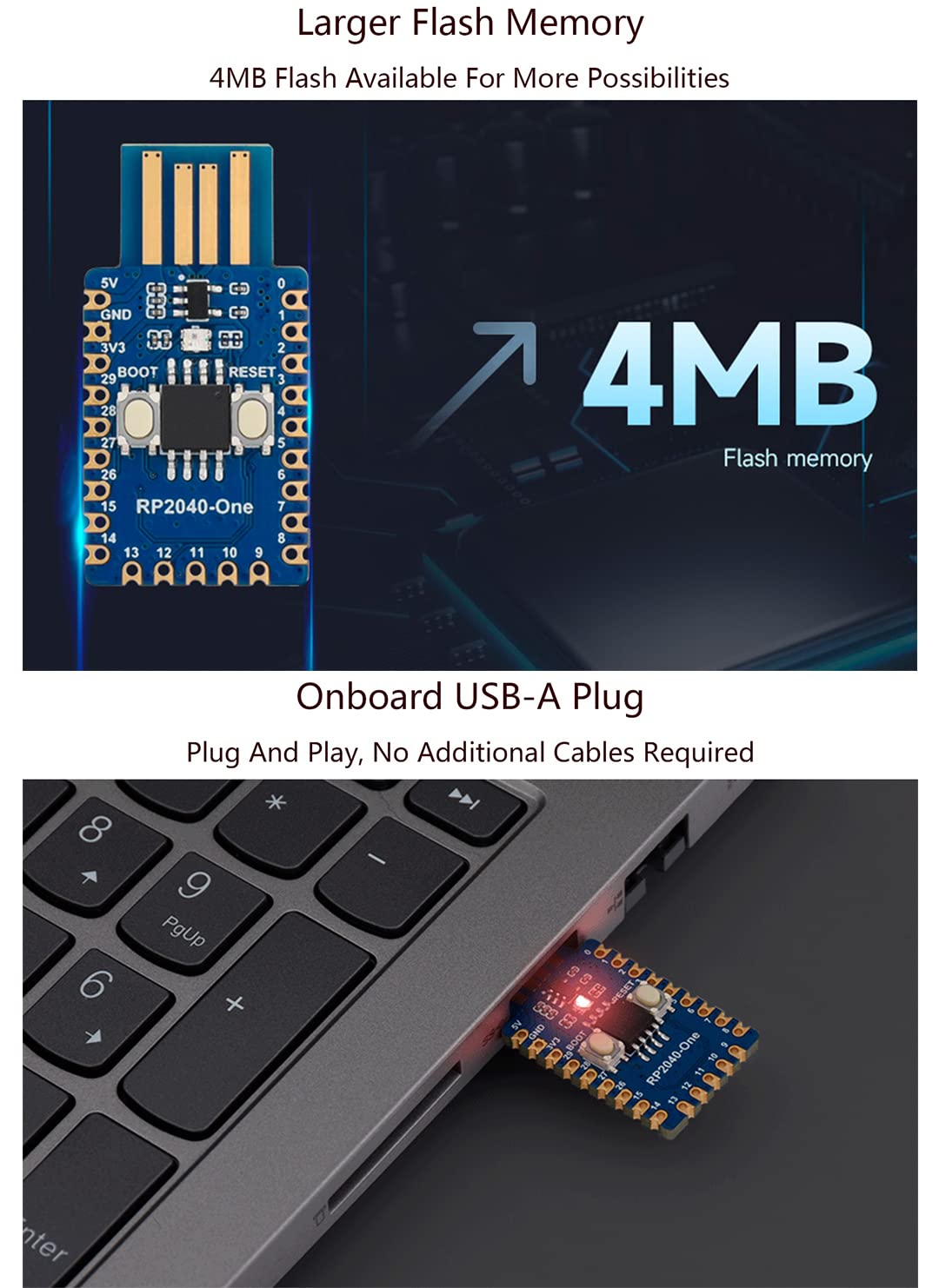

• 4MB Flash RP2040-One MCU board, larger flash memory available for more possibilities
• Mini RP2040 development board onboard USB-A plug, plug and play, no additional cables required

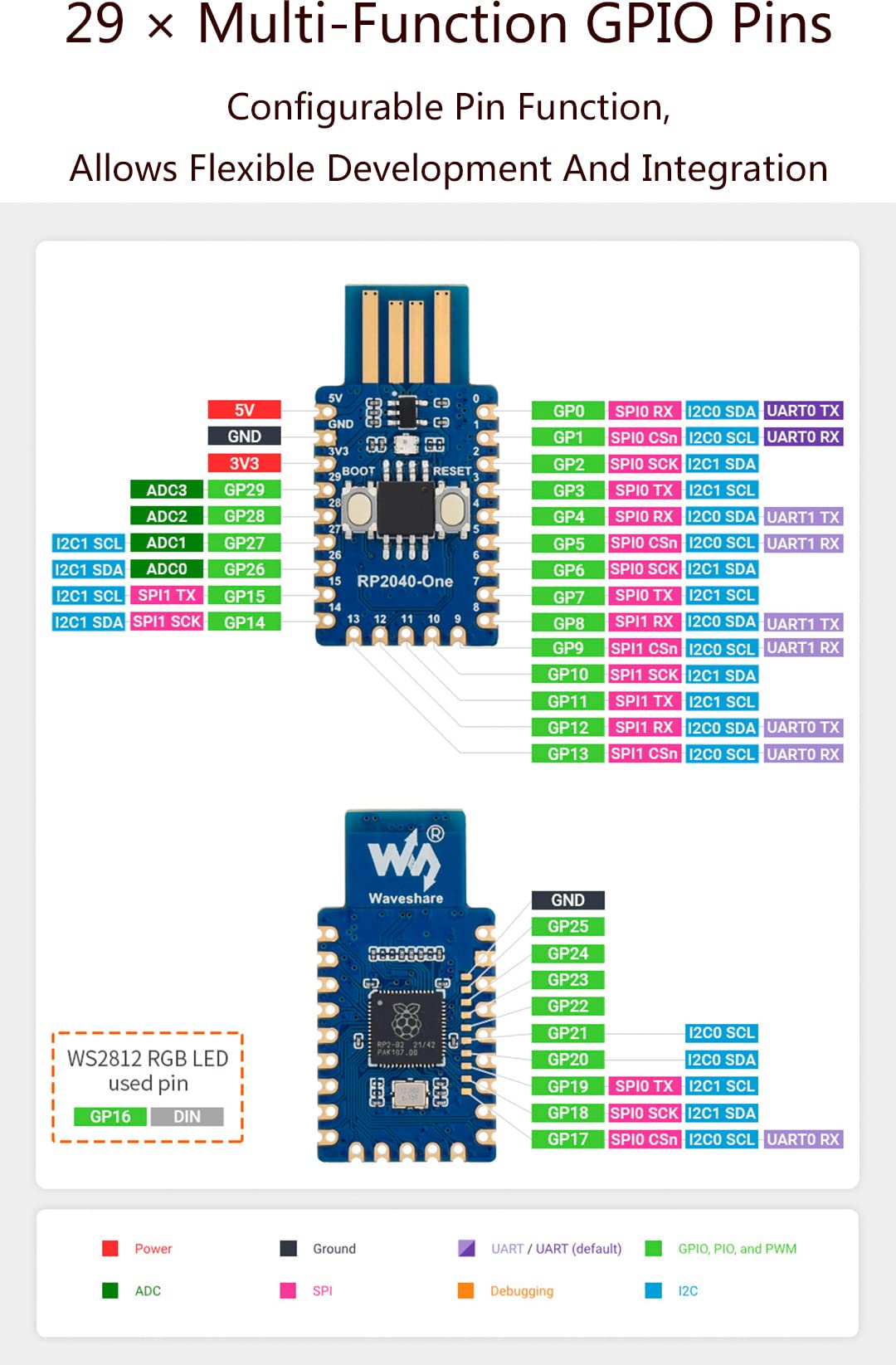

• 29 × multi-function GPIO pins, configurable pin function, allows flexible development and integration
• Support C/C++, MicroPython, provide Online User Manual with comprehensive SDK, dev resources, tutorials to help you easily get started
• RP2040 Pico Like MCU Board 4MB Flash Raspberry Pi RP2040 Development Board RP2040 Microcontroller RP2040 One 4MB Flash MCU Board Mini RP2040 Expansion Board

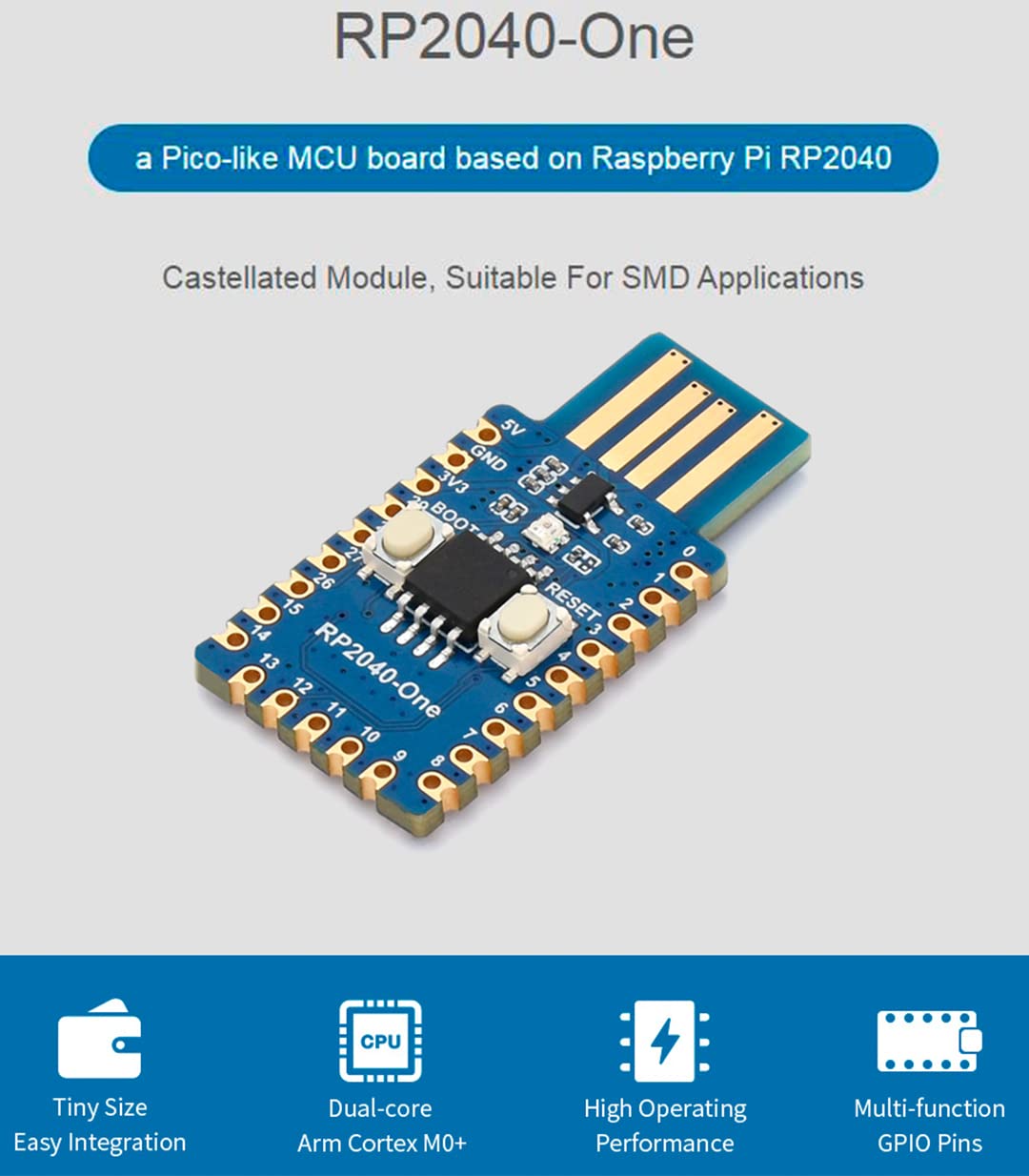

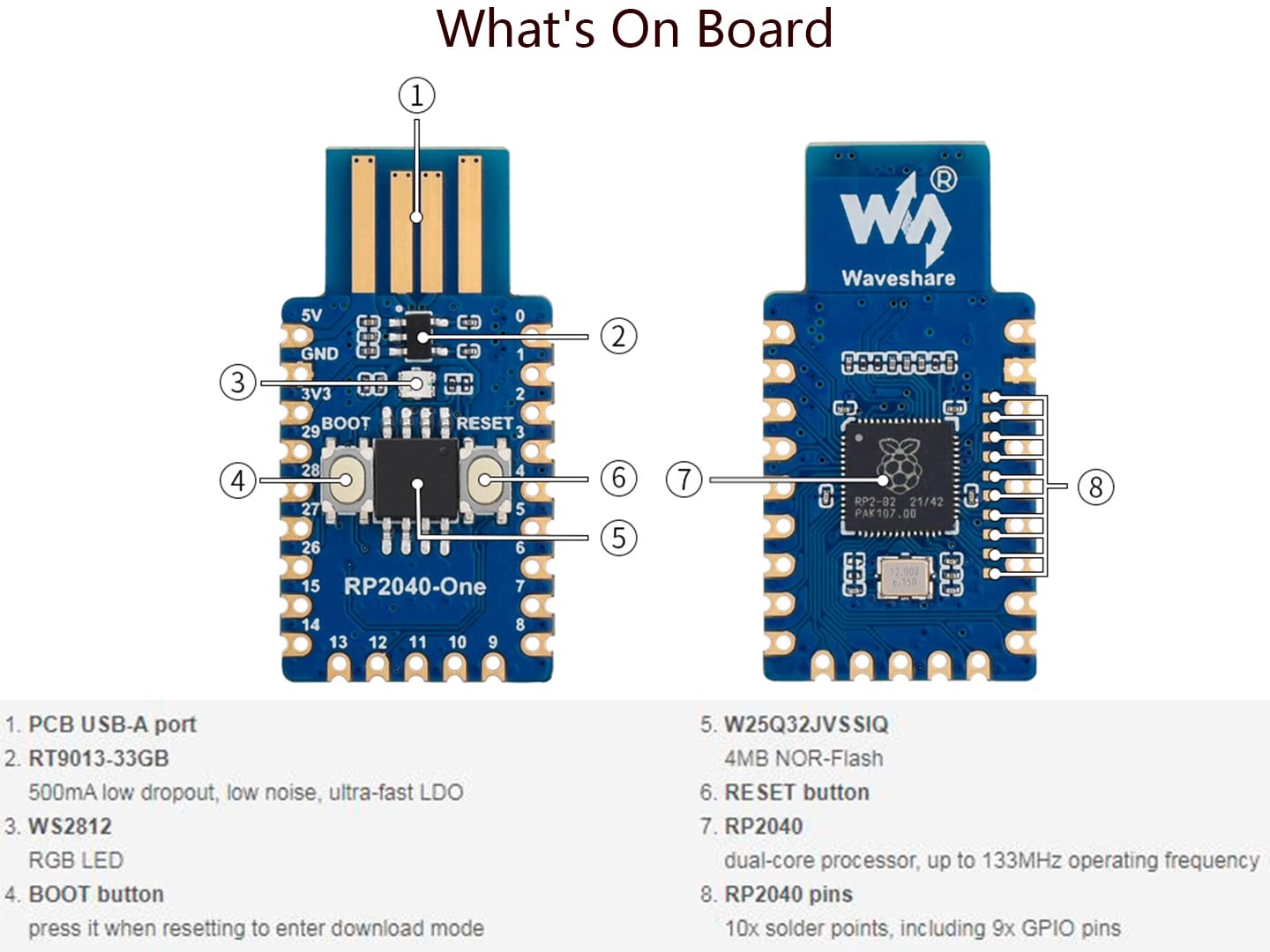

Overview RP2040-One is a mini RP2040 development board. The onboard PCB USB-A connector makes it plug-and-play instantly. Mini body, 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points), and the edge of the PCB adopt the castellated design, which can be easily and quickly integrated into your project. Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133MHZ 246KB of SRAM, and 4MB of on-board Flash memory The castellated module allows soldering direct to carrier boards USB1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 29 x multi-function GPIO pins (20x via edge pinout, others via solder points) 2 x SPI, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 x Programmable I/O (PIO) state machines for custom peripheral support Package Content RP2040-One x1 NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
