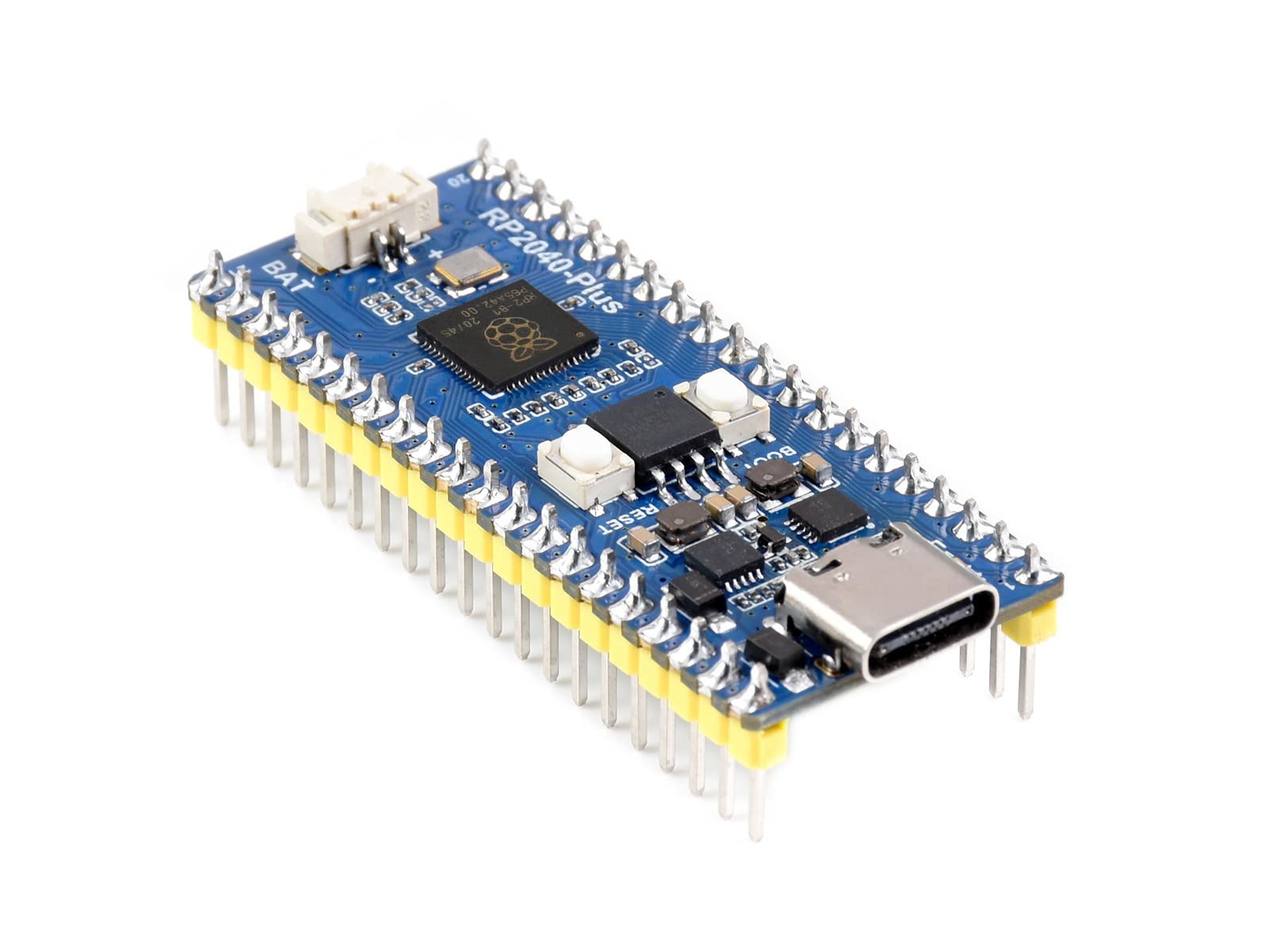

Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi RP2040 Chip, with Pre-soldered Header, 4MB Flash, USB-C Connector, Compatible with Most of Raspberry Pi Pico Add-on Modules

• Waveshare RP2040-Plus MCU board based on Raspberry Pi RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins
• 264KB of SRAM, and 4MB of on-board Flash memory
• Onboard USB-C connector, Lithium battery recharge/discharge header, and DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch

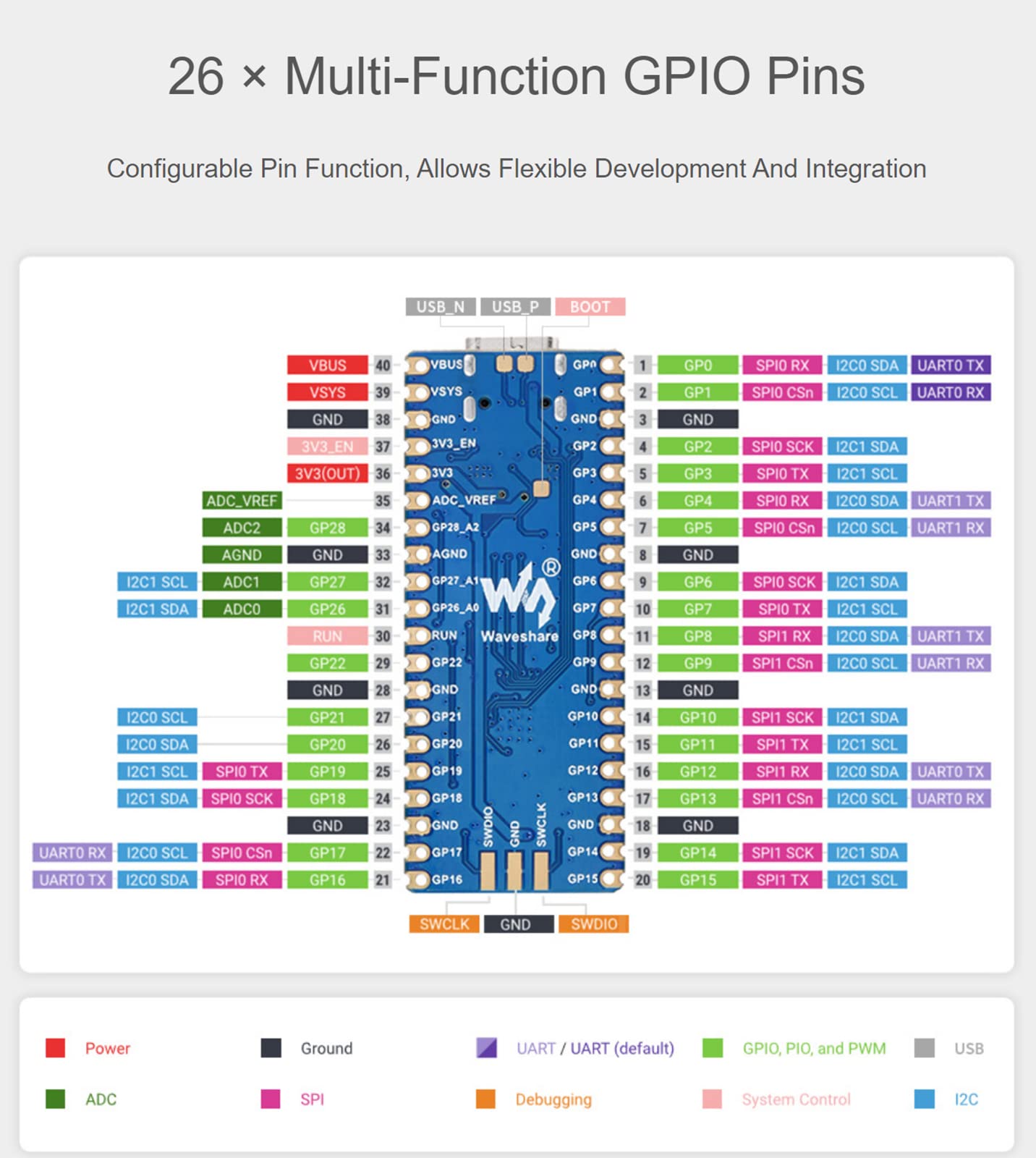

• 26 × multi-function GPIO pins, configurable pin function, allows flexible development and integration
• Support C/C++，MicroPython, comprehensive SDK, dev resources, tutorials to help you easily get started

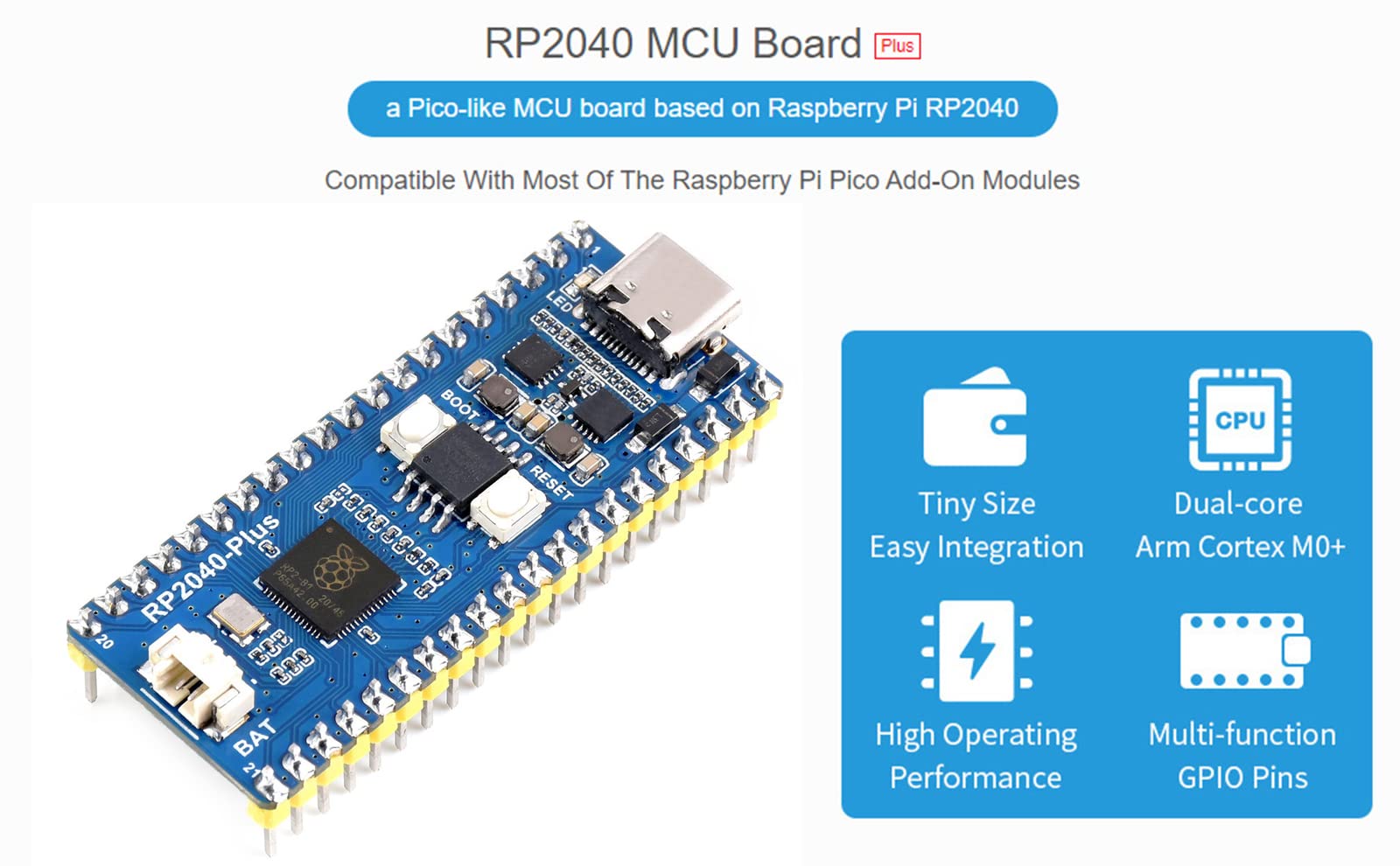

Overview Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All there problems are solved by our RP2040-Plus now. What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. RP2040-Plus, a low-cost, high-performance Pico-like MCU board based on Raspberry Pi microcontroller RP2040, compatible with most of the Raspberry Pi Pico add-on modules. Key features include: 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 4MB of on-board Flash memory 4. USB-C connector, keeps it up to date, easier to use 5. Lithium battery recharge/discharge header, suitable for mobile devices 6. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch 7. Castellated module allows soldering direct to carrier boards 8. USB 1.1 with device and host support 9. Low-power sleep and dormant modes 10. Drag-and-drop programming using mass storage over USB 11. 26 × multi-function GPIO pins 12. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels 13. Accurate clock and timer on-chip 14. Temperature sensor 15. Accelerated floating-point libraries on-chip 16. 8 × Programmable I/O (PIO) state machines for custom peripheral support Development Resources www.waveshare.com/wiki/RP2040-Plus?Amazon Package Content RP2040-Plus with pre-soldered header x1
