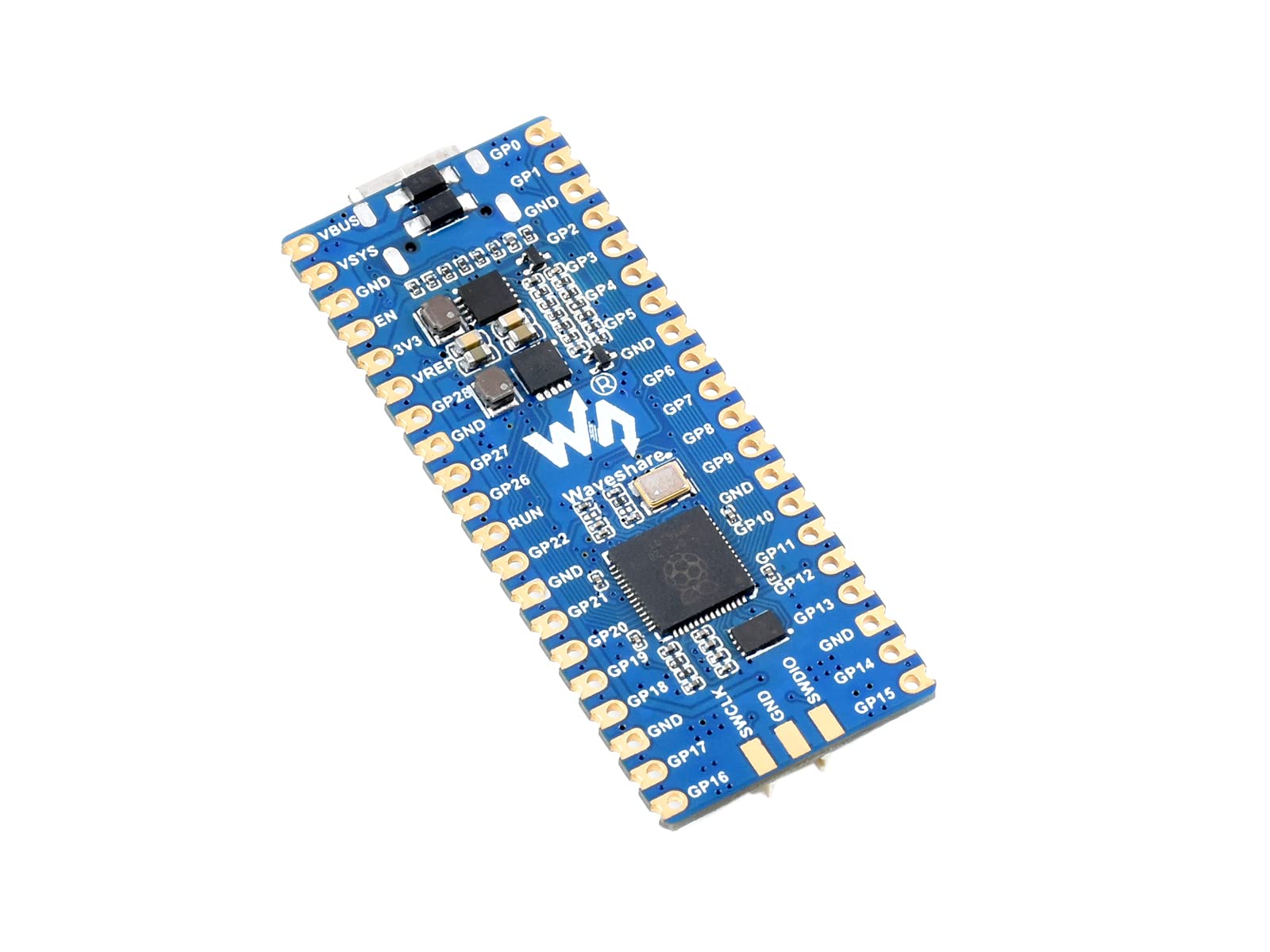

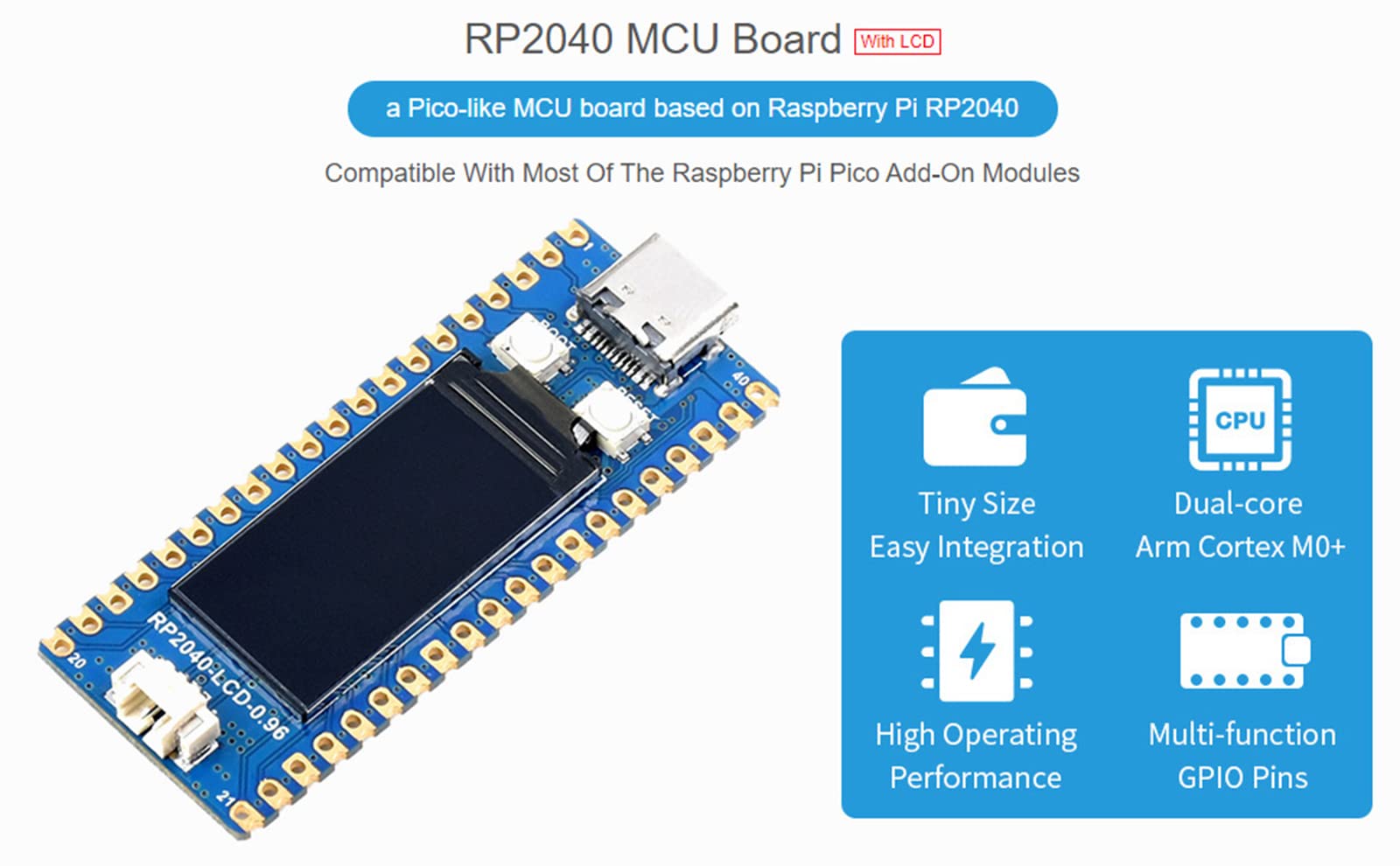

Waveshare RP2040-LCD-0.96 Based on Raspberry Pi RP2040, Pico-like MCU Board with 0.96inch LCD, Support MicroPython, C/C++, Compatible with Most of Raspberry Pi Pico Add-on Modules

• ★【Based on Raspberry Pi's RP2040 chip】RP2040-LCD-0.96 incorporates Raspberry Pi's RP2040 microcontroller chip, dual-core arm cortex M0+ processor, flexible clock running up to 133 MHz, high operating performance
• ★【Onboard 0.96 inch LCD Display】0.96inch 160×80 pixels 65K colorful IPS LCD display

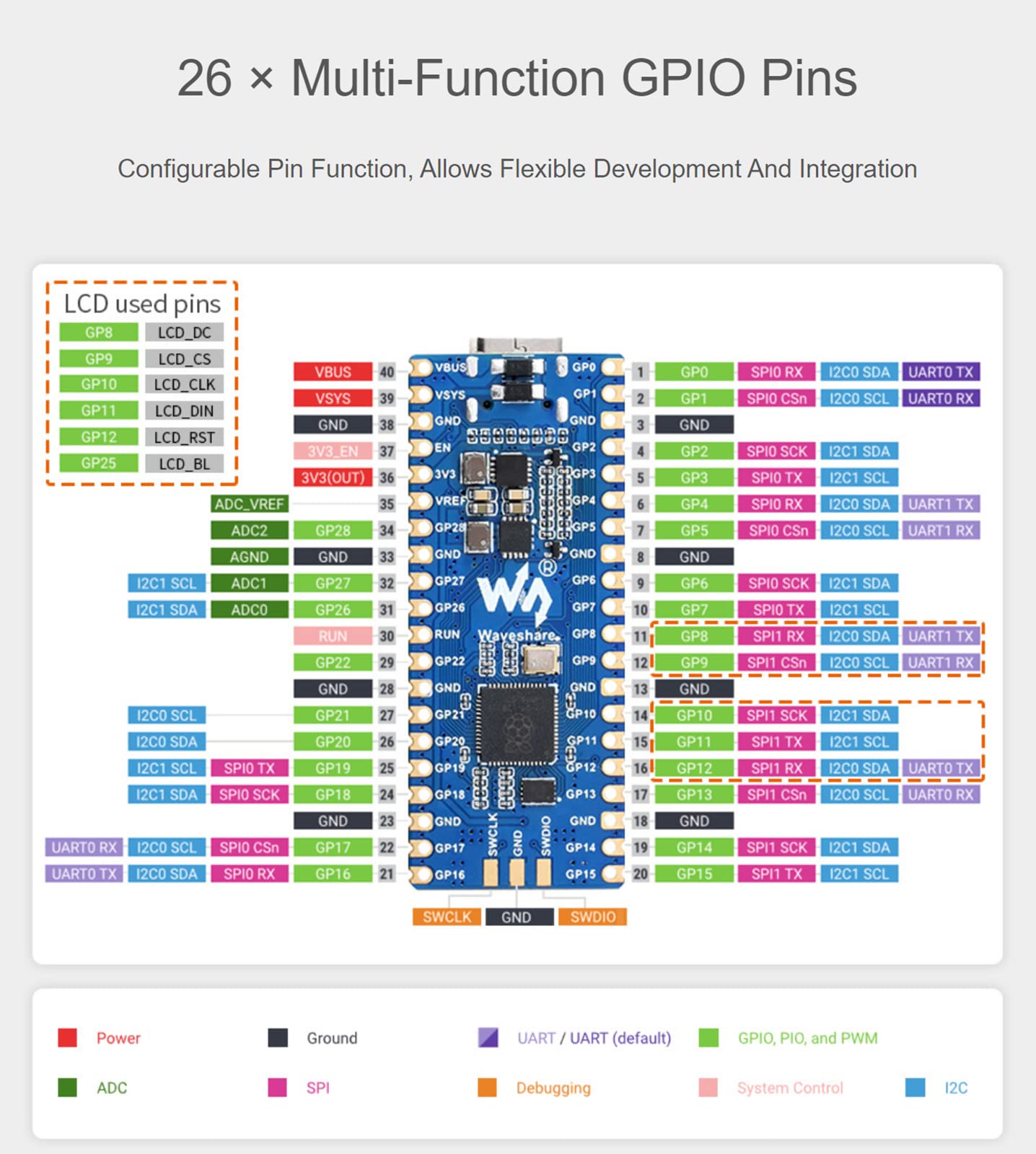

• ★【26 × multi-function GPIO pins】Configurable pin function, allows flexible development and integration
• ★【Tiny size, easy integration】264KB of SRAM, and 2MB of on-board Flash memory, onboard Lithium battery recharge/discharge header, high efficiency DC-DC buck-boost chip, USB-C connector
• ★【C/C++, MicroPython support】Either C/C++ SDK, or MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly

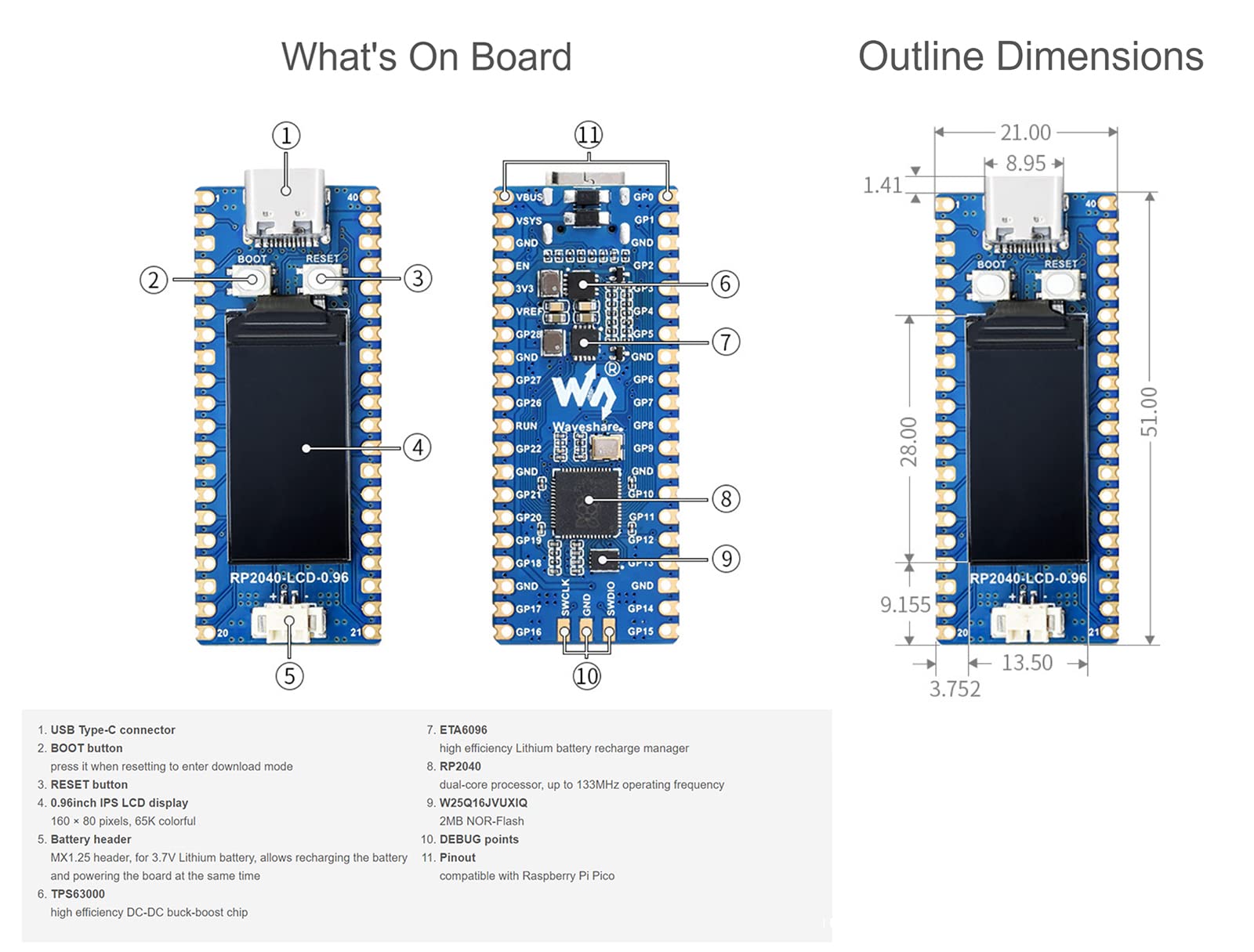

Overview RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2040 microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. Key features include 1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom 2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 3. 264KB of SRAM, and 2MB of on-board Flash memory 4. USB-C connector, keeps it up to date, easier to use 5. 0.96inch 160×80 pixels 65K colorful IPS LCD display 6. Lithium battery recharge/discharge header, suitable for mobile devices 7. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch 8. Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components) 9. USB 1.1 with device and host support 10. Low-power sleep and dormant modes 11. Drag-and-drop programming using mass storage over USB 12. 26 × multi-function GPIO pins 13. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels 14. Accurate clock and timer on-chip 15. Temperature sensor 16. Accelerated floating-point libraries on-chip 17. 8 × Programmable I/O (PIO) state machines for custom peripheral support Development Resources https://www.waveshare.com/wiki/RP2040-LCD-0.96?Amazon Package Content RP2040-LCD-0.96 x1
