NFHK SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Adapter for Mainboard Replace Intel SSD 750 p3600 p3700

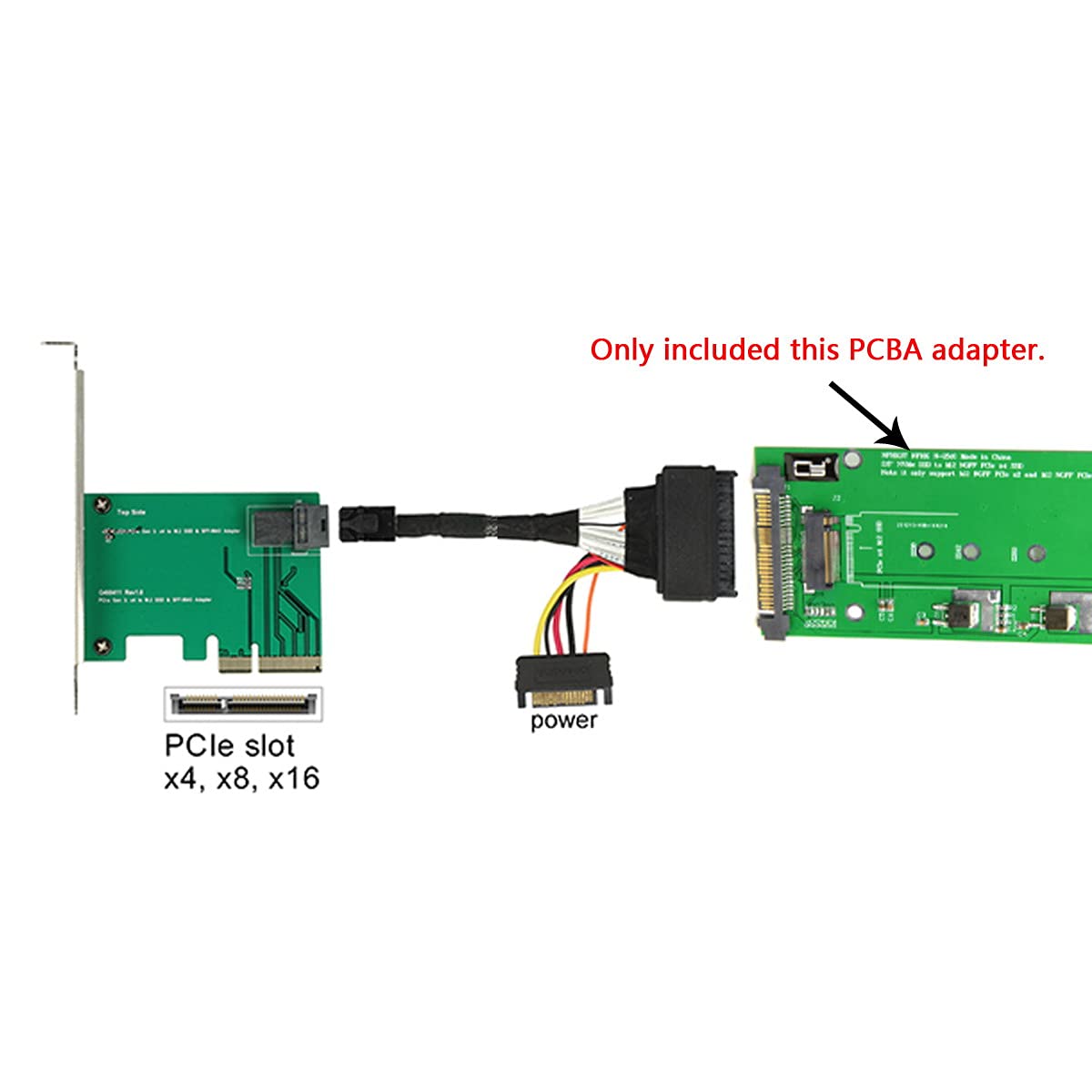

• PCI-E 3.0 x4 Lane to U.2 U2 Host Adapter Kit SFF-8639 for Intel Motherboard and PCIe 750 NVMe SSD This PCI Express card from CY extends the PC with a SFF-8639 interface.
• This PCI Express card from CY extends the PC with an SFF-8639 interface.
• It can be connected for example the Intel 750 Series 2.5″ NVMe SSD.
• Nvme M Key & Intel 750 SSD to PCIe X4 Adapter

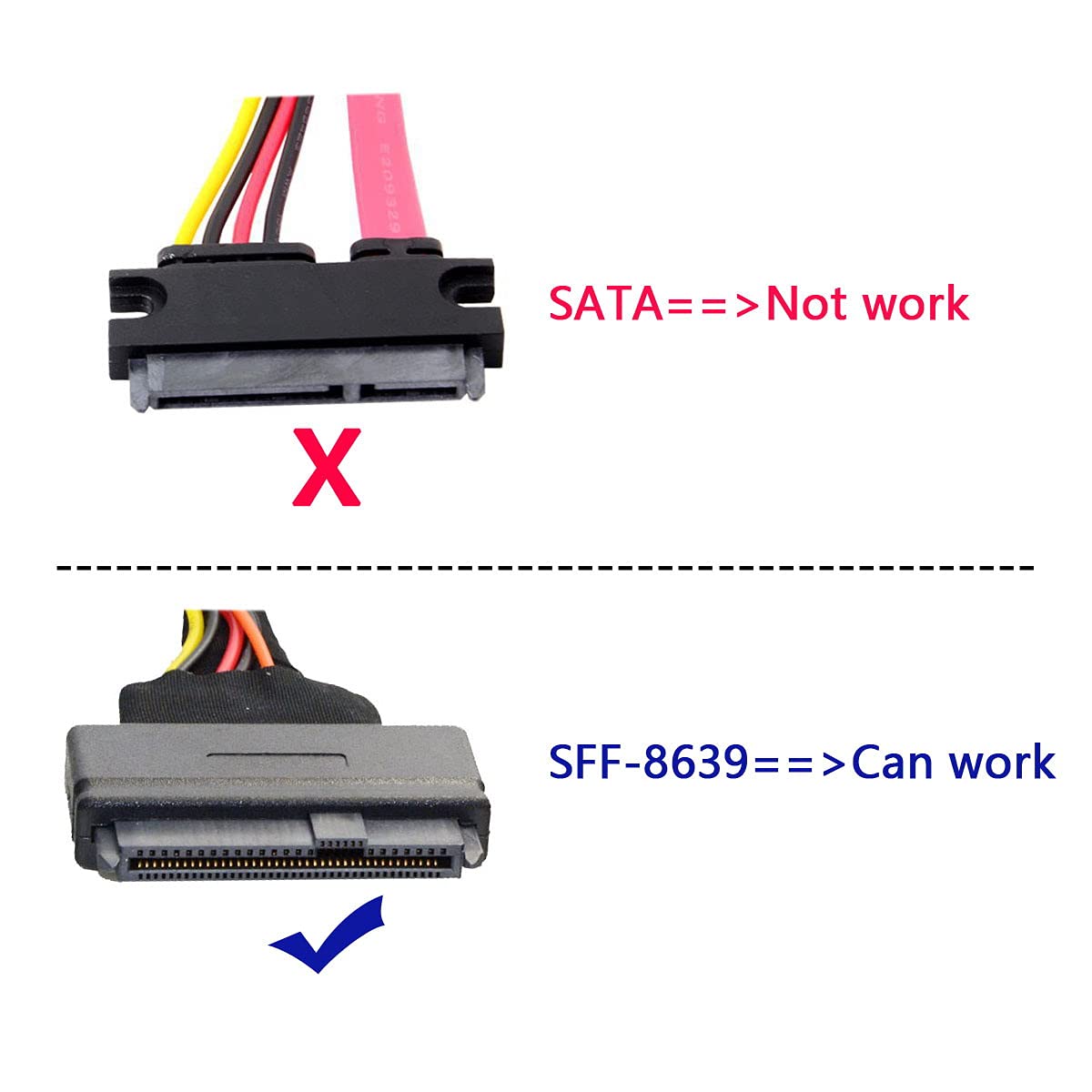

• The SATA 22pin on the board only for power supply, no data transfer.

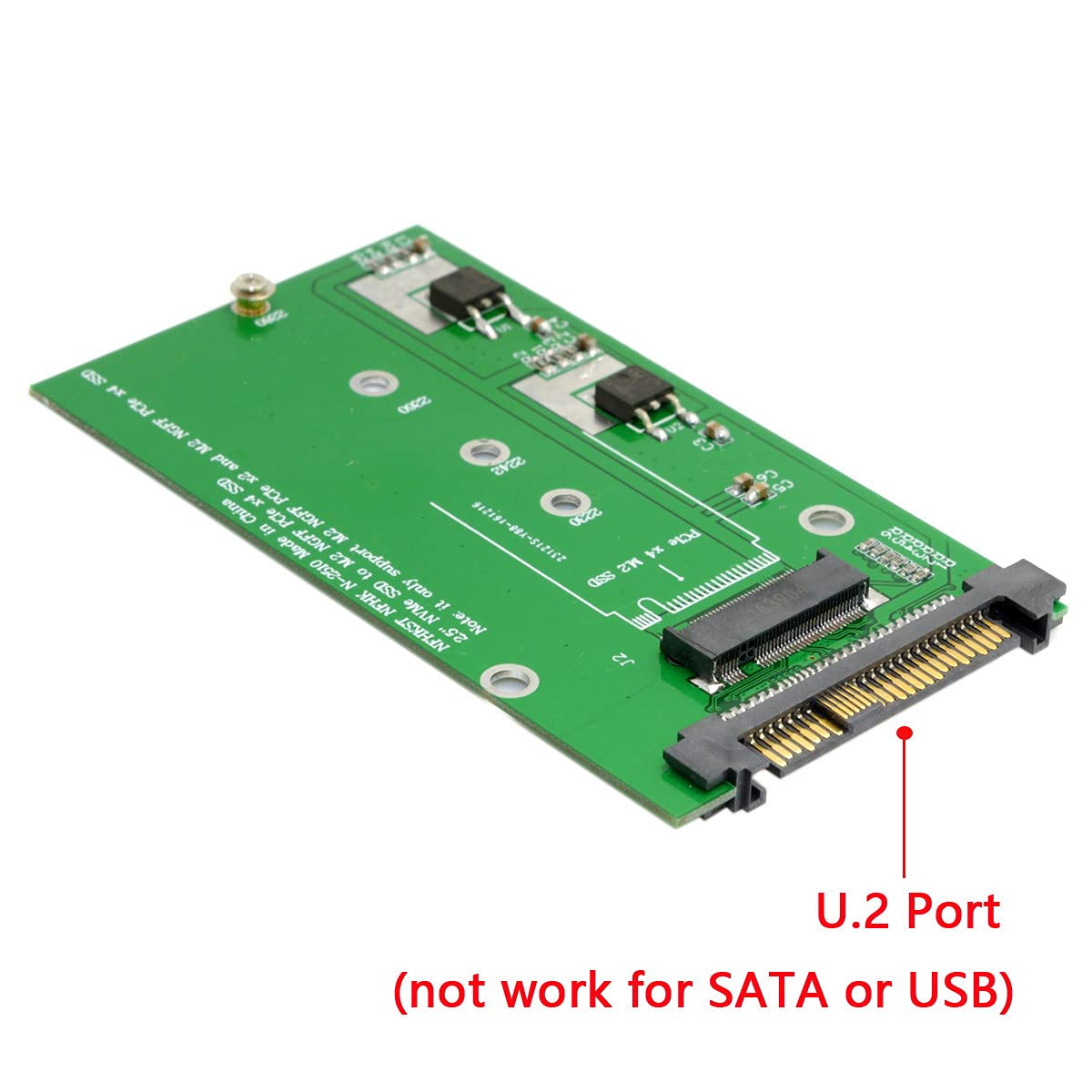

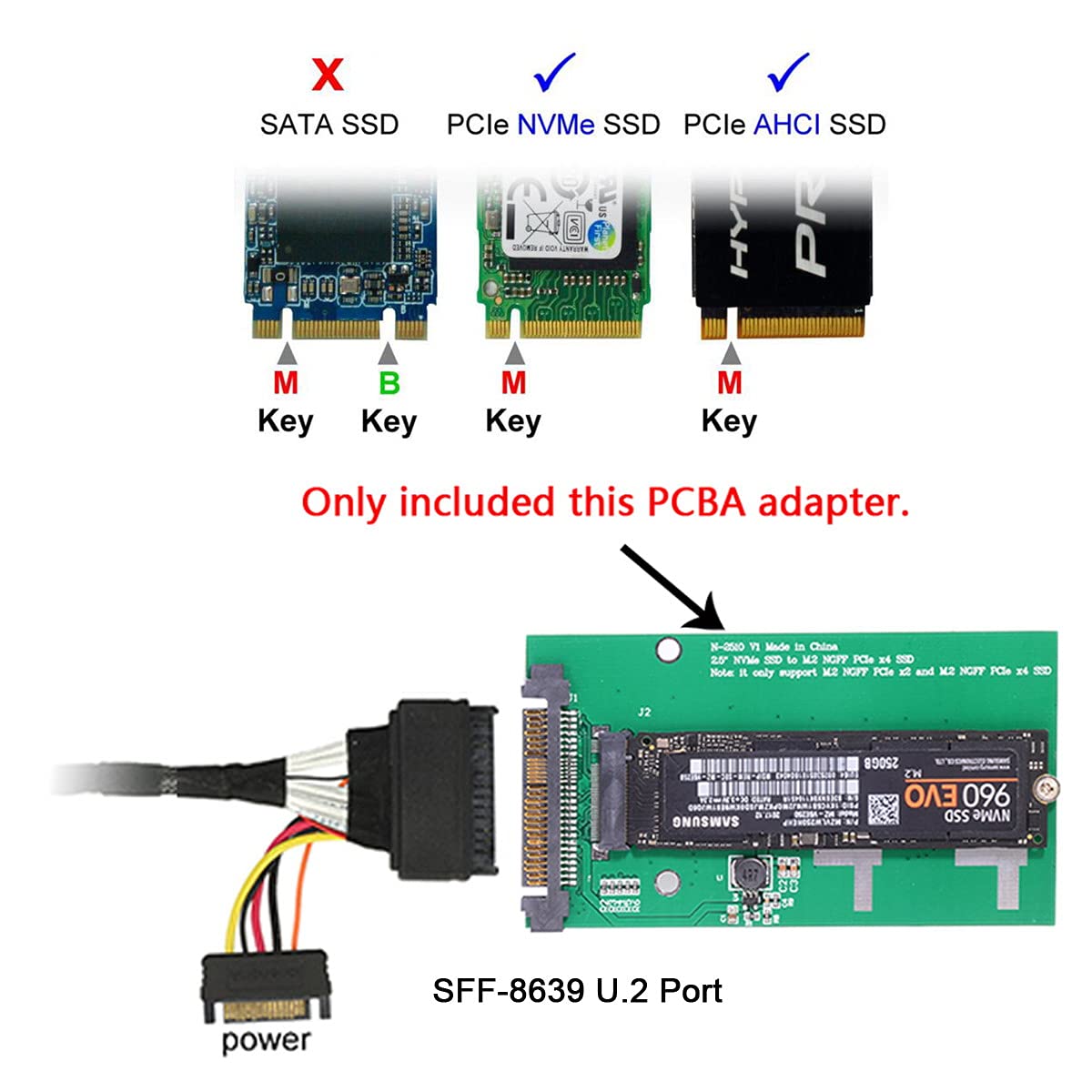

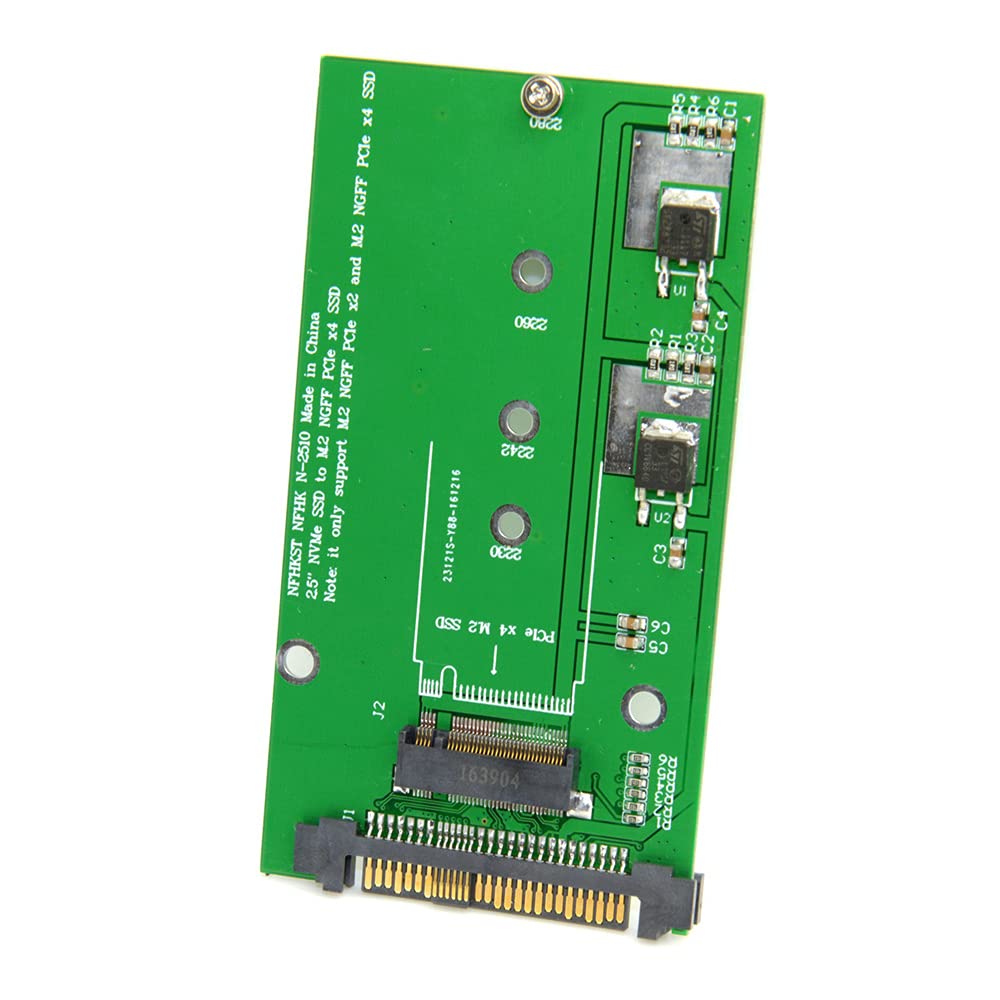

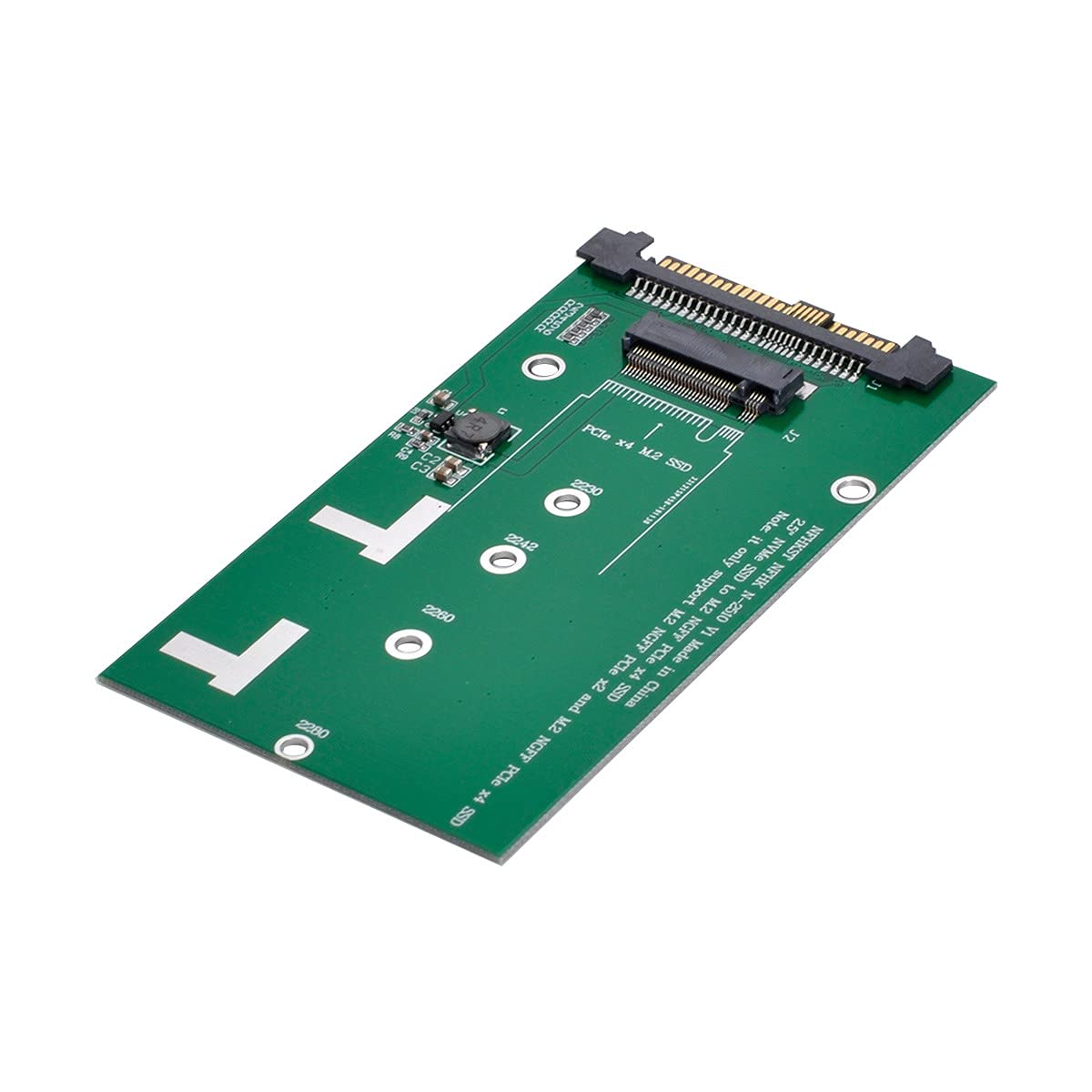

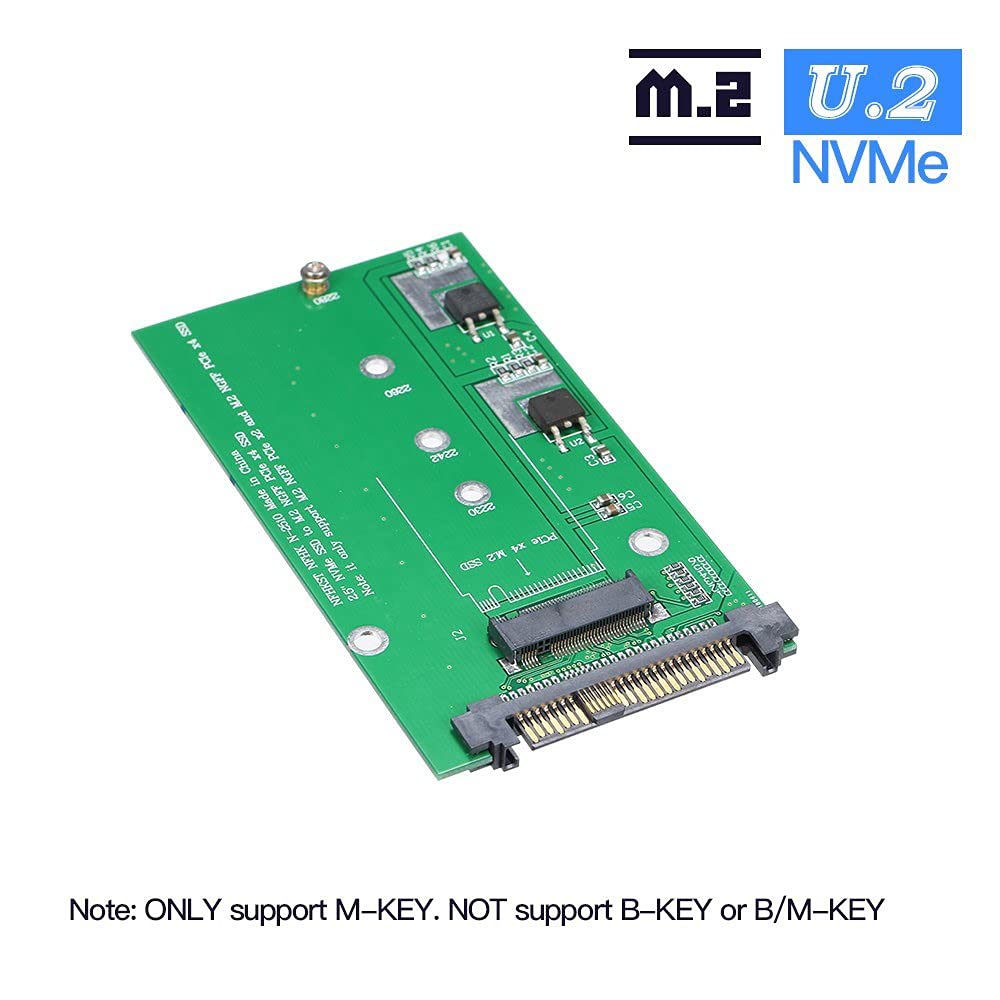

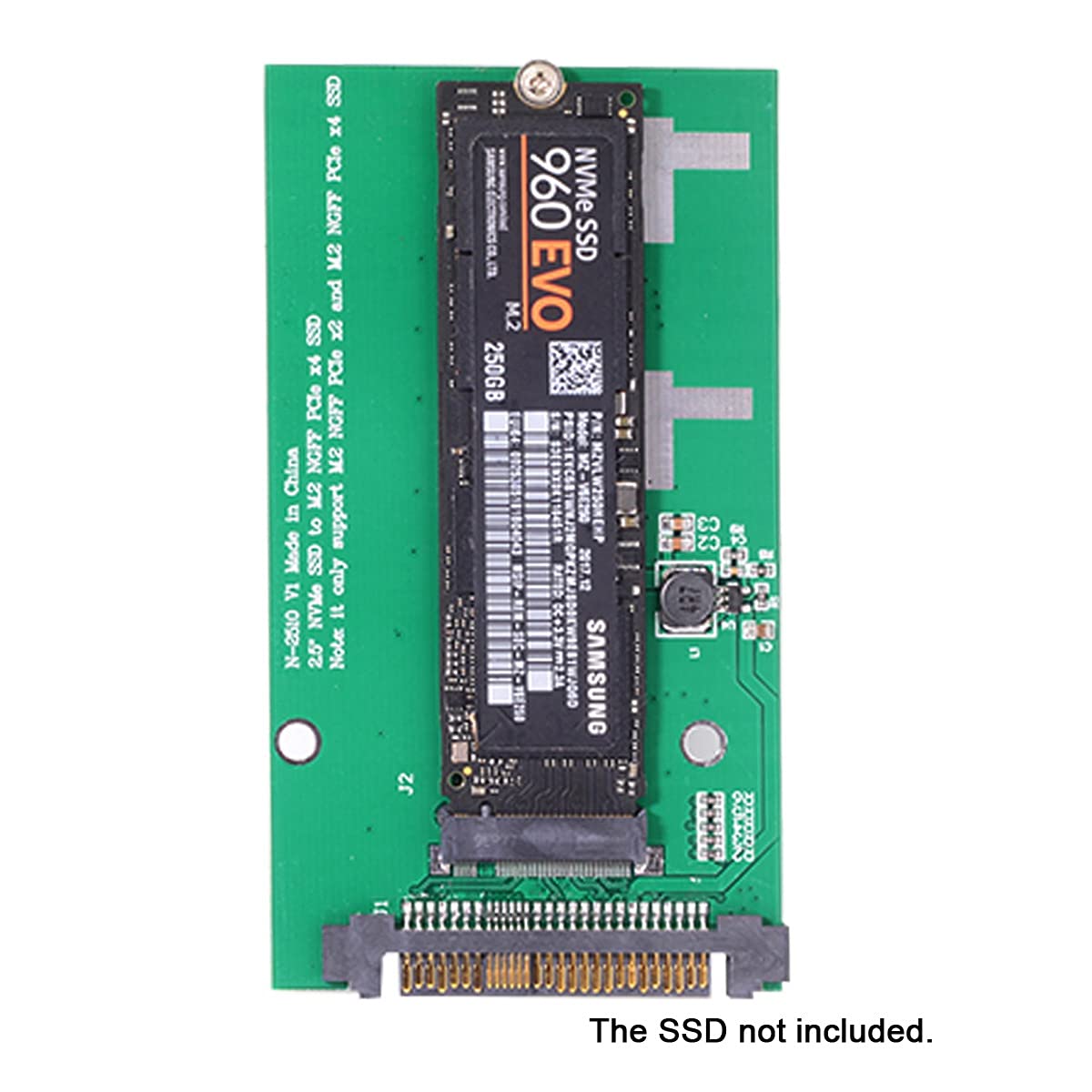

SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Motherboard Adapter Replaces Intel SSD 750 p3600 p3700 This converter allows the connection of an M.2 NGFF SSD in the format 2280, 2260, 2242 and 2230. Need M-key or NVME SSD, B-key or B/M-key SSD cannot work. The converter can be installed inside your system via the U.2 68-pin interface. Connector: U.2 SFF-8639 Male and 67 Pin M.2 NGFF Key M Slot Supports M.2 NGFF modules in 2280, 2260, 2242 and 2230 format with M key. Maximum height of components on the module: 1.5 mm. Application of supported double-sided assembled modules. System Requirements: Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16 Free U.2 SFF-8639 interface or SFF-8643 interface. Note: For M-key or NVME SSD, please update to add native driver support in NVM Express in Windows 7 and Windows Server 2008 R2. https://support.microsoft.com/en-us/kb/2990941
