NFHK SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Case Enclosure for Mainboard Replace Intel SSD 750 p3600 p3700

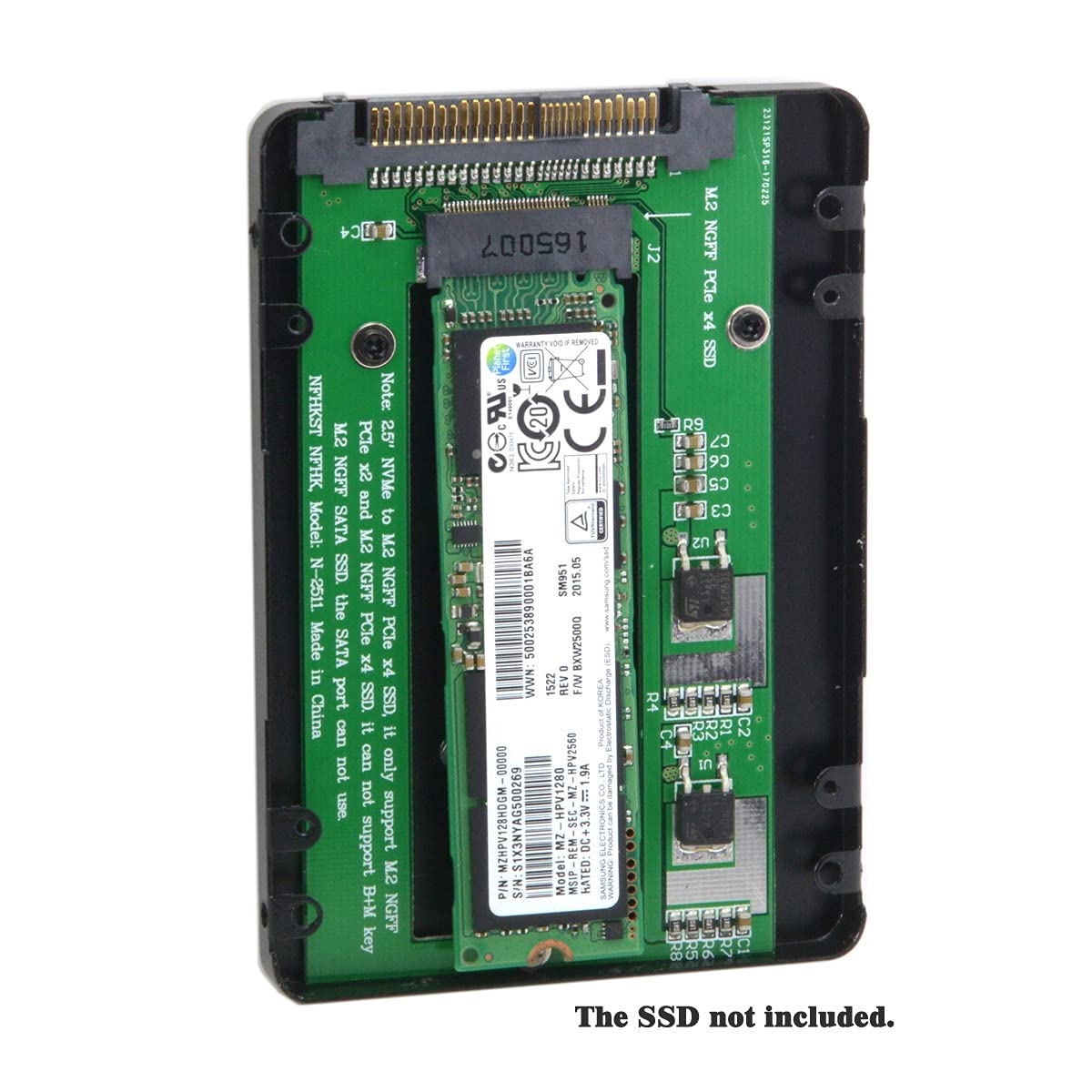

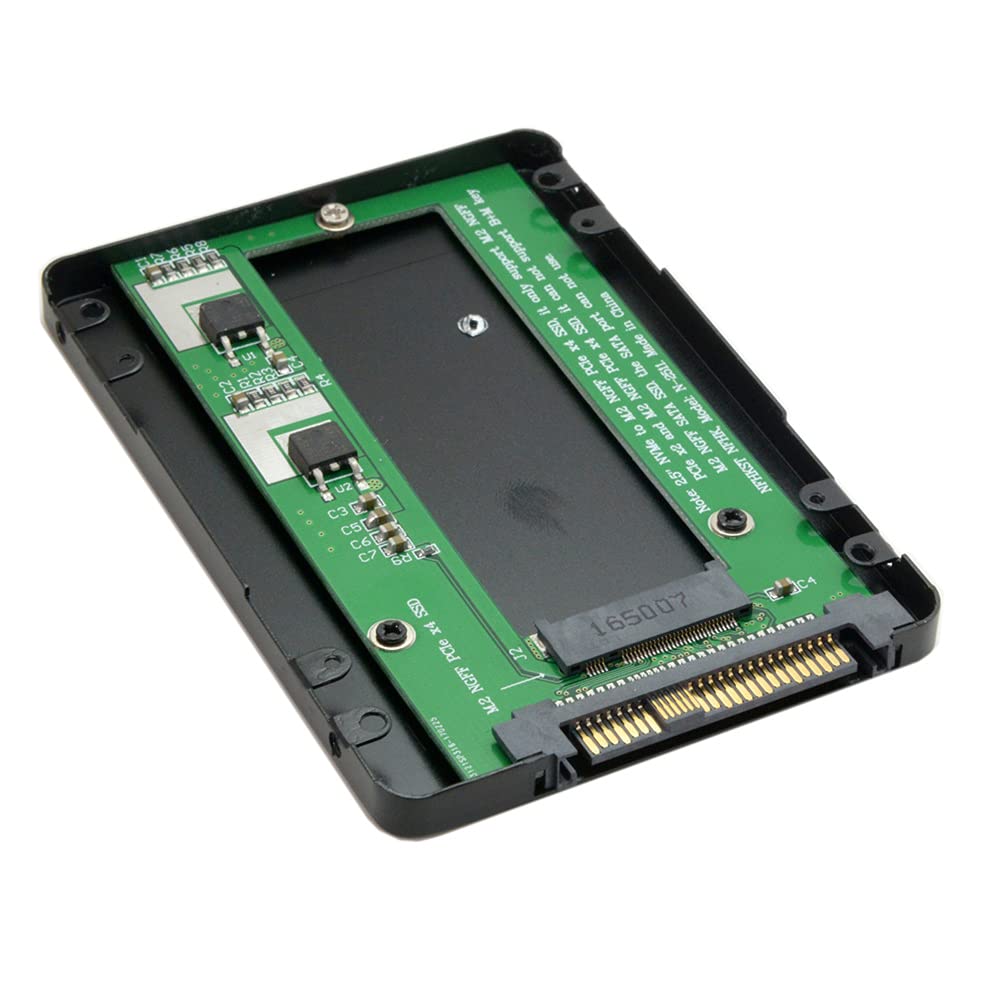

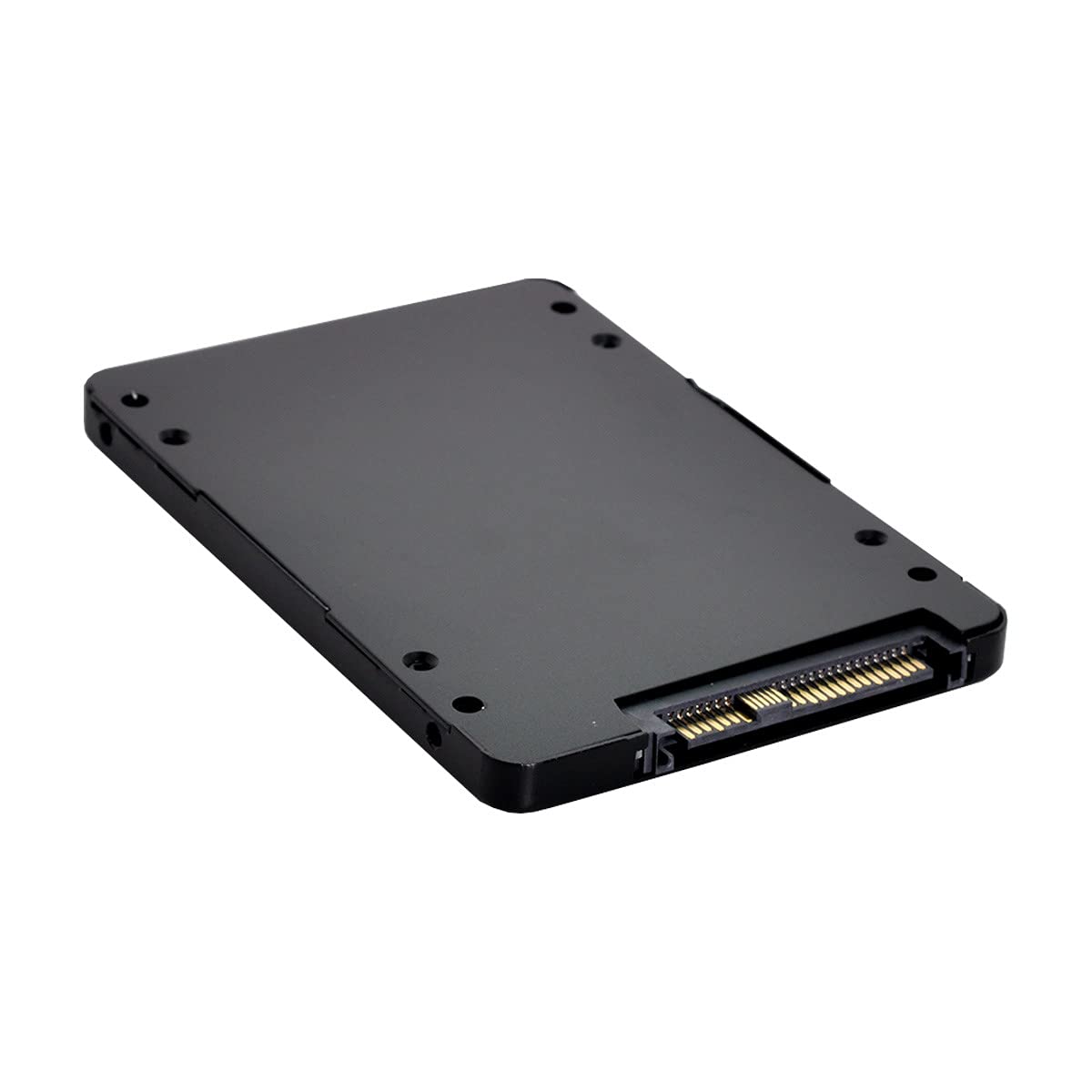

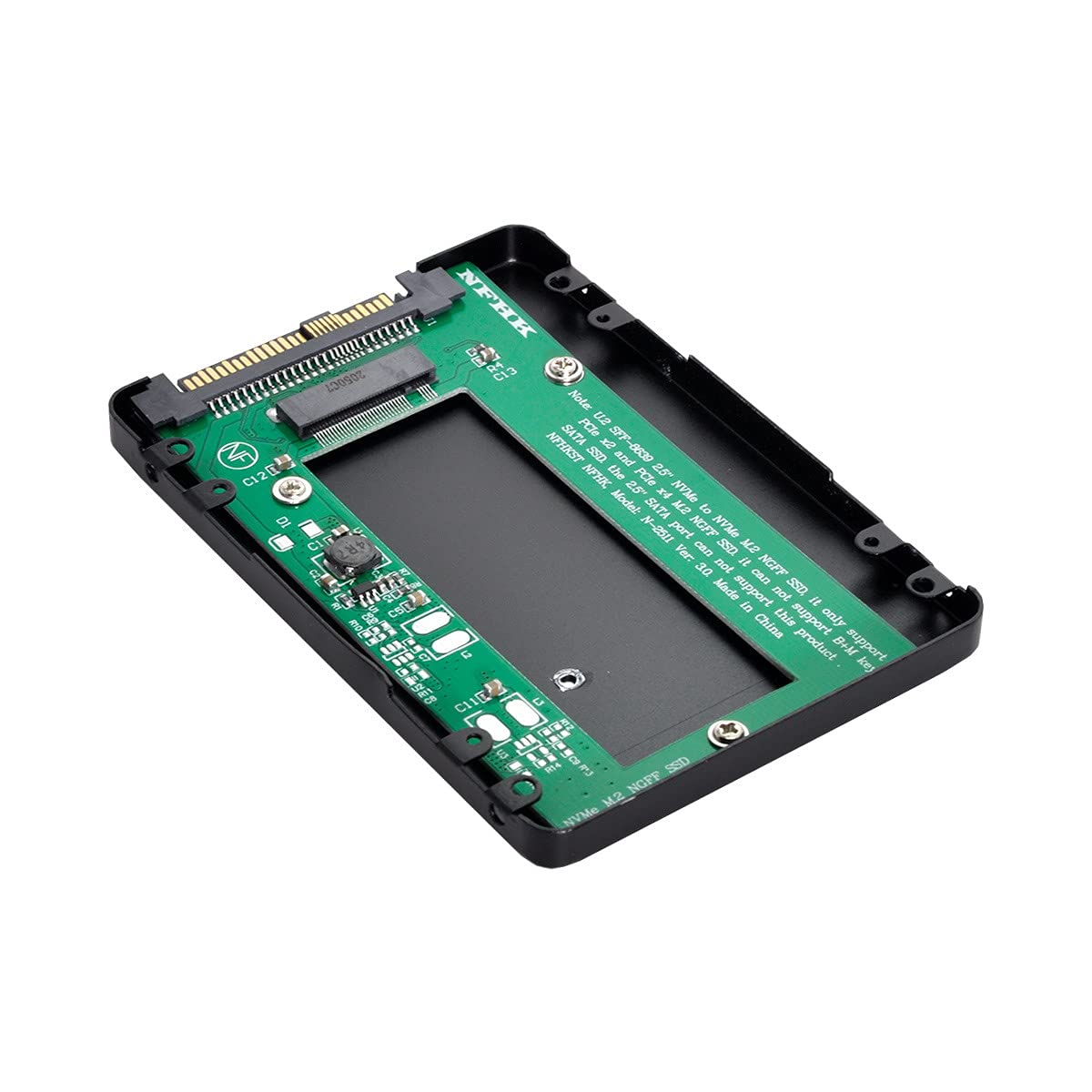

• SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Adapter for Mainboard ************************************************************* Intel SSD 750 p3600 p3700, With Black Case Enclosure, This converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format.

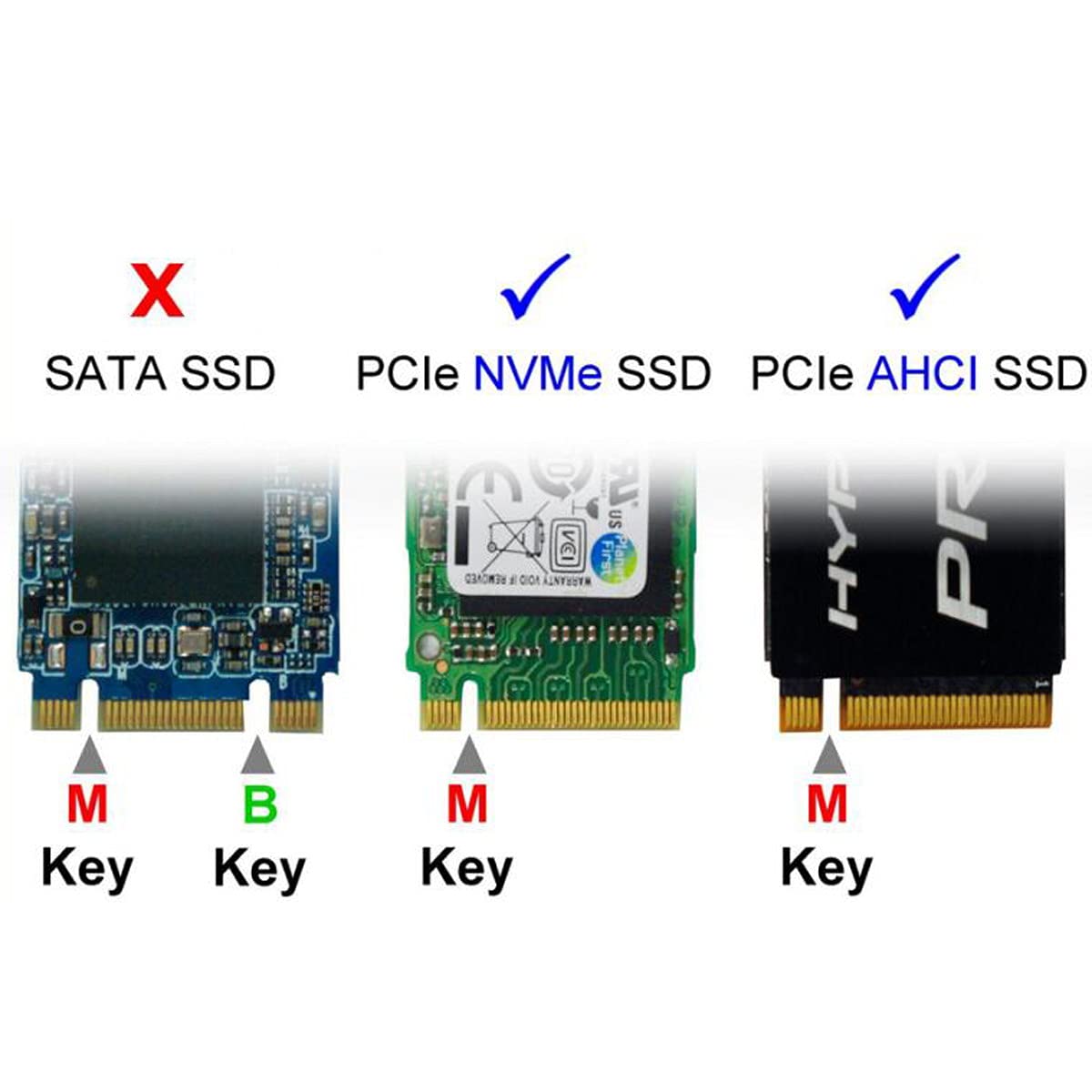

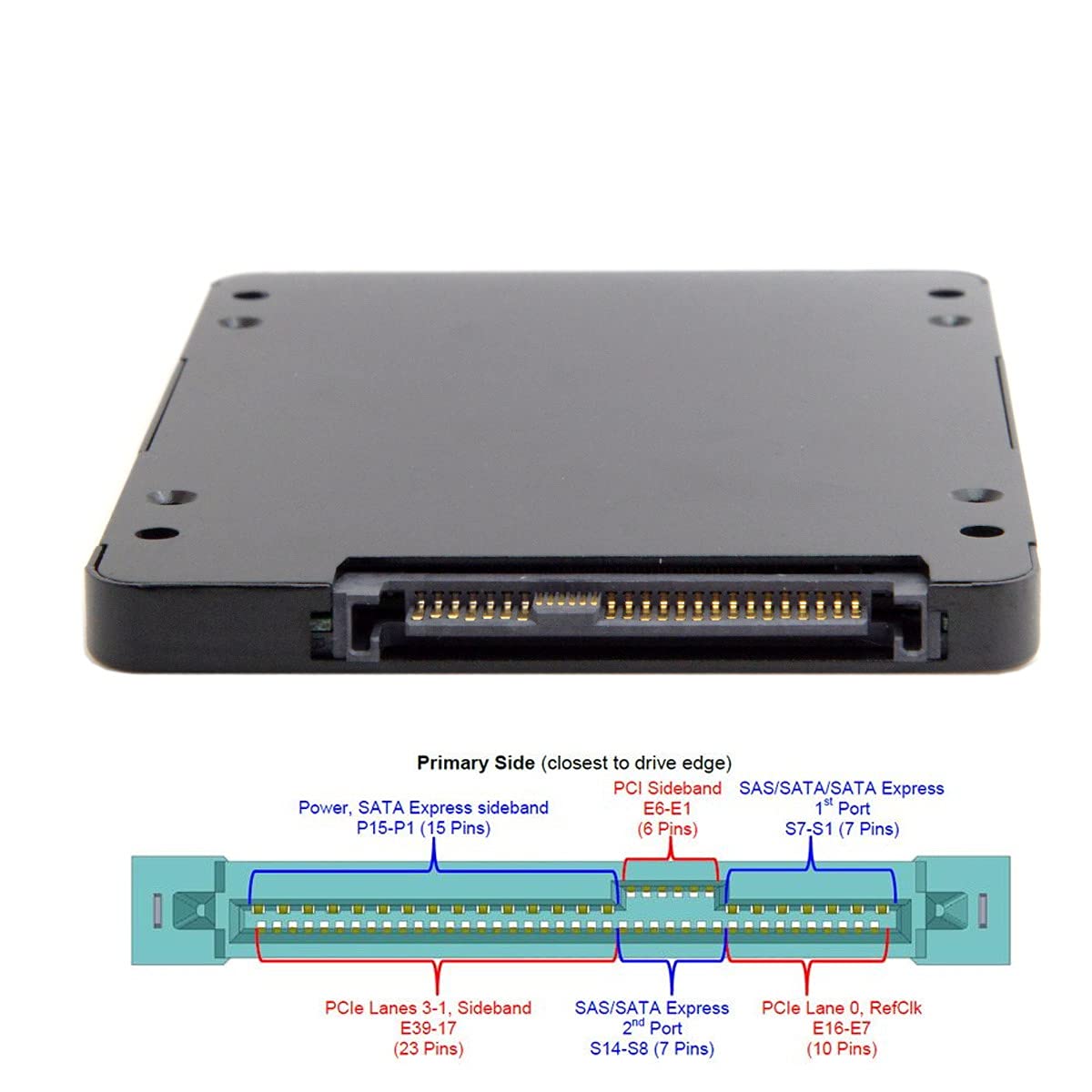

• Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work. The converter can be installed into your system internally through the U.2 68 pin interface. Connector: U.2 SFF-8639 male & 67 pin M.2 NGFF key M slot
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M, Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• System requirements: Windows 8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16 ,A ************************************************************* U.2 SFF-8639 interface or A ************************************************************* SFF-8643 interface

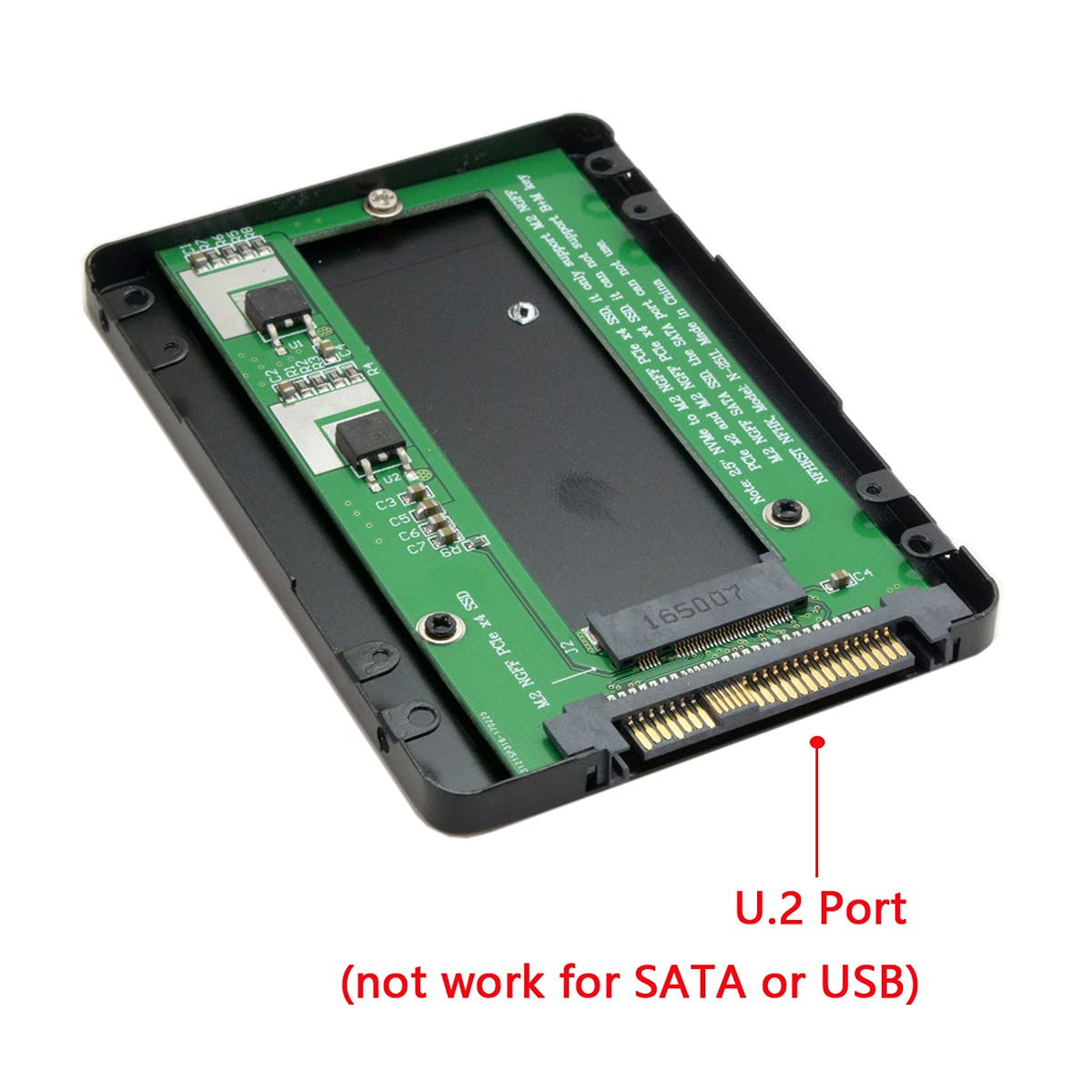

• It does not work for SATA port.

SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Motherboard Adapter Replaces Intel SSD 750 p3600 p3700 With black case This converter allows the connection of an M.2 NGFF SSD in the format 2280, 2260, 2242 and 2230. Need M-key or NVME SSD, B-key or B/M-key SSD cannot work. The converter can be installed inside your system via the U.2 68-pin interface. Connector: U.2 SFF-8639 Male and 67 Pin M.2 NGFF Key M Slot Supports M.2 NGFF modules in 2280, 2260, 2242 and 2230 format with M key. Maximum height of components on the module: 1.5 mm. Application of supported double-sided assembled modules. System Requirements: 1. Windows 8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16 2. Free U.2 SFF-8639 interface or SFF-8643 interface. 3. It does not work for SATA port.
