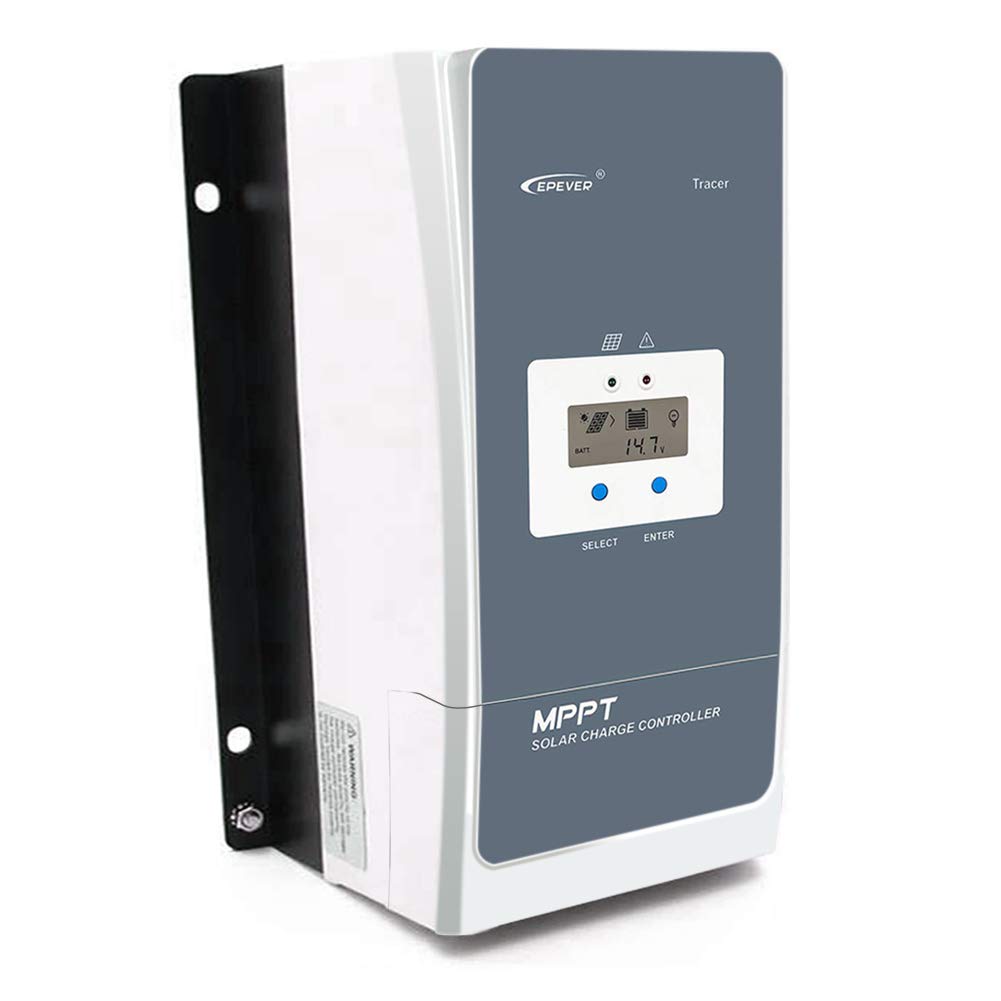

EPEVER 100 Amp MPPT Solar Charge Controller 150V PV Input Negative Ground Work with 12/24/36/48V Battery System Tracer 10415AN Series with MT50 Remote Meter

• Negative Ground150V PV Input, Compatible with 12/24/36/48V Batteries (Lead Acid) Charging. Only Solar Panel and Battery Connector Available
• 100ampere Charging Current Max with big heat sink, Max. PV input power: 1250W/12V battery, 2500W/24V battery , 3750W/36V battery, 5000W/48V battery system,Max input Voltage:150V
• Dual RS485 Port (RJ45 Connector), it can be paralleled up to 8 units together linked by 8pin ethernet cable to make the data monitoring easy and accurate.
• Support 4 charging options: Sealed, Gel, Flooded and User define, Battery temperature compensation will make the charging progress efficiently.
• Standard Modbus communication protocol with RS485 interface , to monitor or set the parameters by using the phone Apps, MT50 Meter and PC software

Specification : System: 12/24/36/48VDC Auto Rated charge current and discharge current: 100A Max. PV open circuit voltage: 150V Rated charge Power: 1250W-5000W (1250W/12V, 2500W/24V, 3750W/36V, 5000W/48V) Grounding: Common Negative Battery Input:8V～68V Battery Type: Sealed(Default) / Gel / Flooded / User Temperature compens:－3mV/℃/2V(Default) Ambient temperature range: -25℃～+60℃(Derate above 45℃) LCD backlight time: 60S(Default) Recommended cable: 35mm2 (2AWG) Dimension:394×242×143mm Weight: 7.4kg Feature: 1.High quality & low failure rate components of ST and Infineon to ensure the product's life 2.Advanced MPPT technology & ultra-fast tracking speed is up to 99.5%. 3.Maximum DC/DC transfer efficiency is as high as 98.7% 4.Auto control system to limit the charging power & current go over the rated value. 5.Real-time energy recording and statistical function 6.Battery temperature compensation function. 7.Isolated RS-485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol 8.Support up to 8 units in parallel to expand system Package List: 1 x Tracer 10415AN Solar Charge Controller 1 xMT50 Remote Meter 1 xRemote Temperature Sensor (RTS) 1 xPC Monitoring Cable RS485 USB Adapter 2 x Use English Manual
