Outdoor Gigabit PoE Passthrough Switch, 1 POE in 4 POE Out Extender, IEEE802.3af/at/bt Powered 90W, 10/100/1000Mbps Ethernet, Wall Mount Waterproof Plug and Play

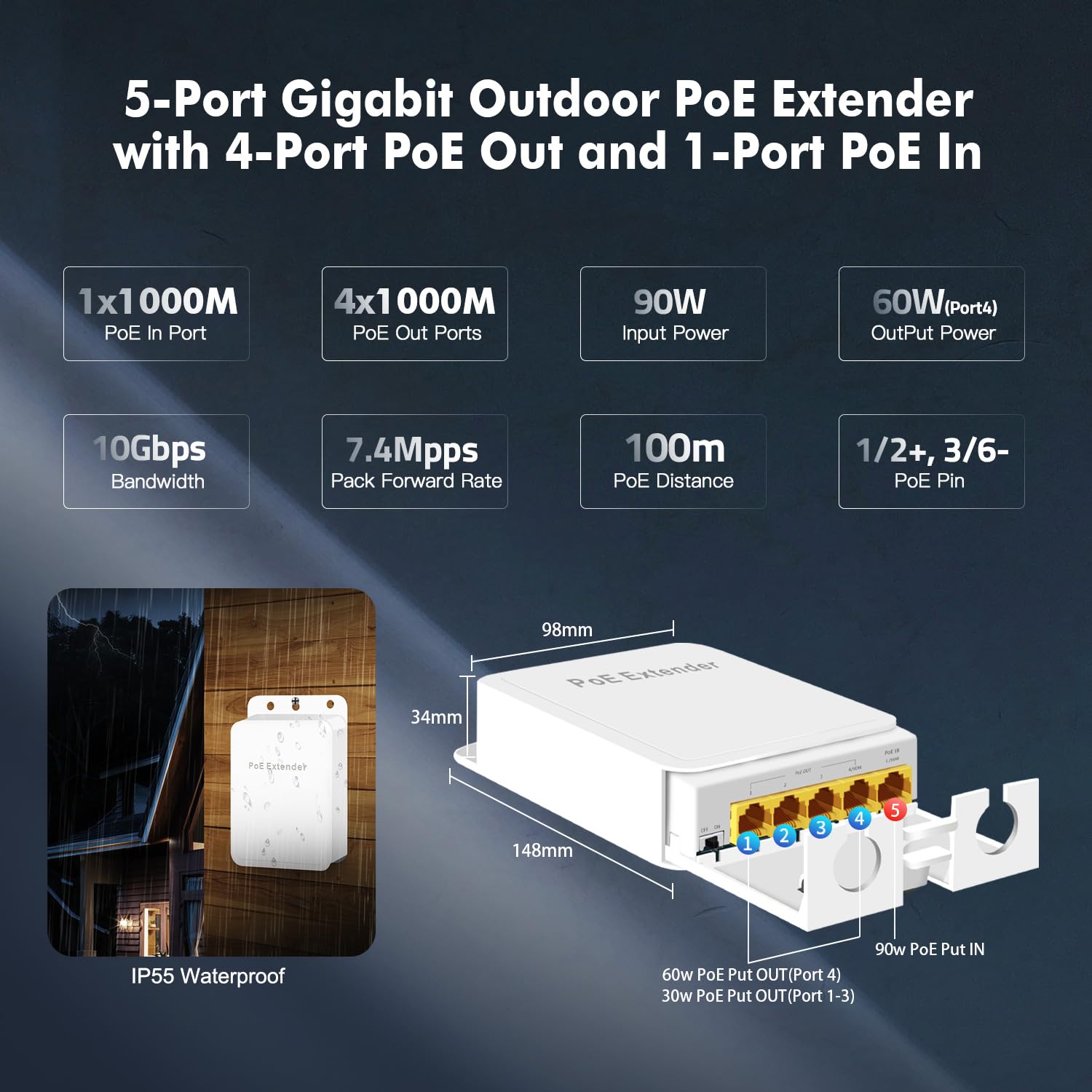

• 【Gigabit PoE Gateway】Includes 1 PoE input and 4 PoE outputs on Gigabit ports, 10/100/1000Mbps throughput. Powered by PoE network, no AC power required

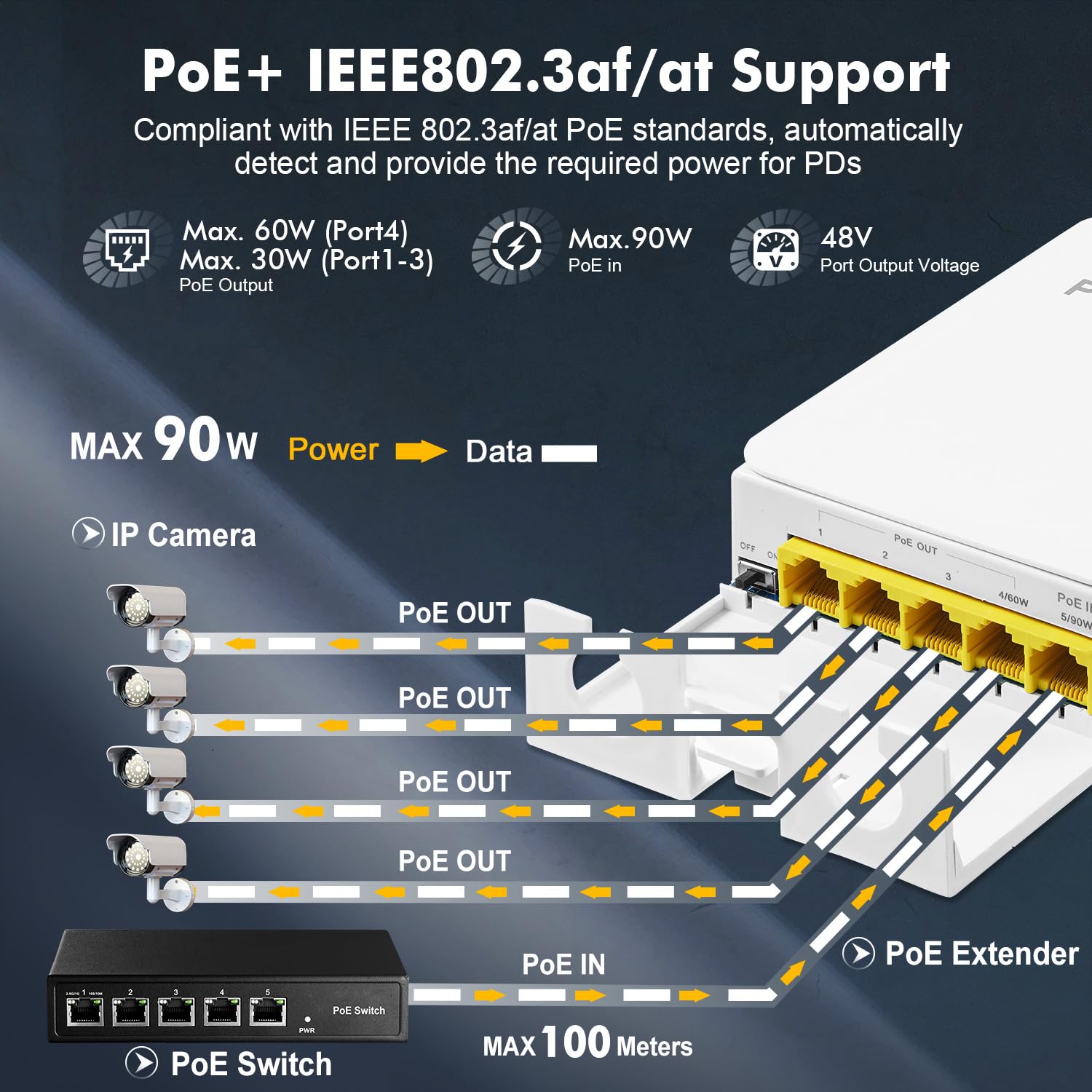

• 【IEEE 802.3 af/at/bt】 Supports PoE standard, max input 90W IEEE802.3bt, port 1-3 output max 30W (IEEE802.3at), port 4 output 60W (IEEE802.3bt). PoE Voltage 44-57 Vdc. PoE-Pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 1-3: 1/2 (+), 3/6 (-); Output Port 4: 1/2 (+), 3/6 (-),4/5(+), 7/8(-)
• 【Weatherproof for Outdoor Use】 Industrial ABS polymer material, all cable interfaces are protected within the housing, with a better waterproof, dustproof, and snowproof effect, better suited for outdoor use; also suitable for complex indoor environments, such as warehouses, computer rooms, garages, attics, etc.

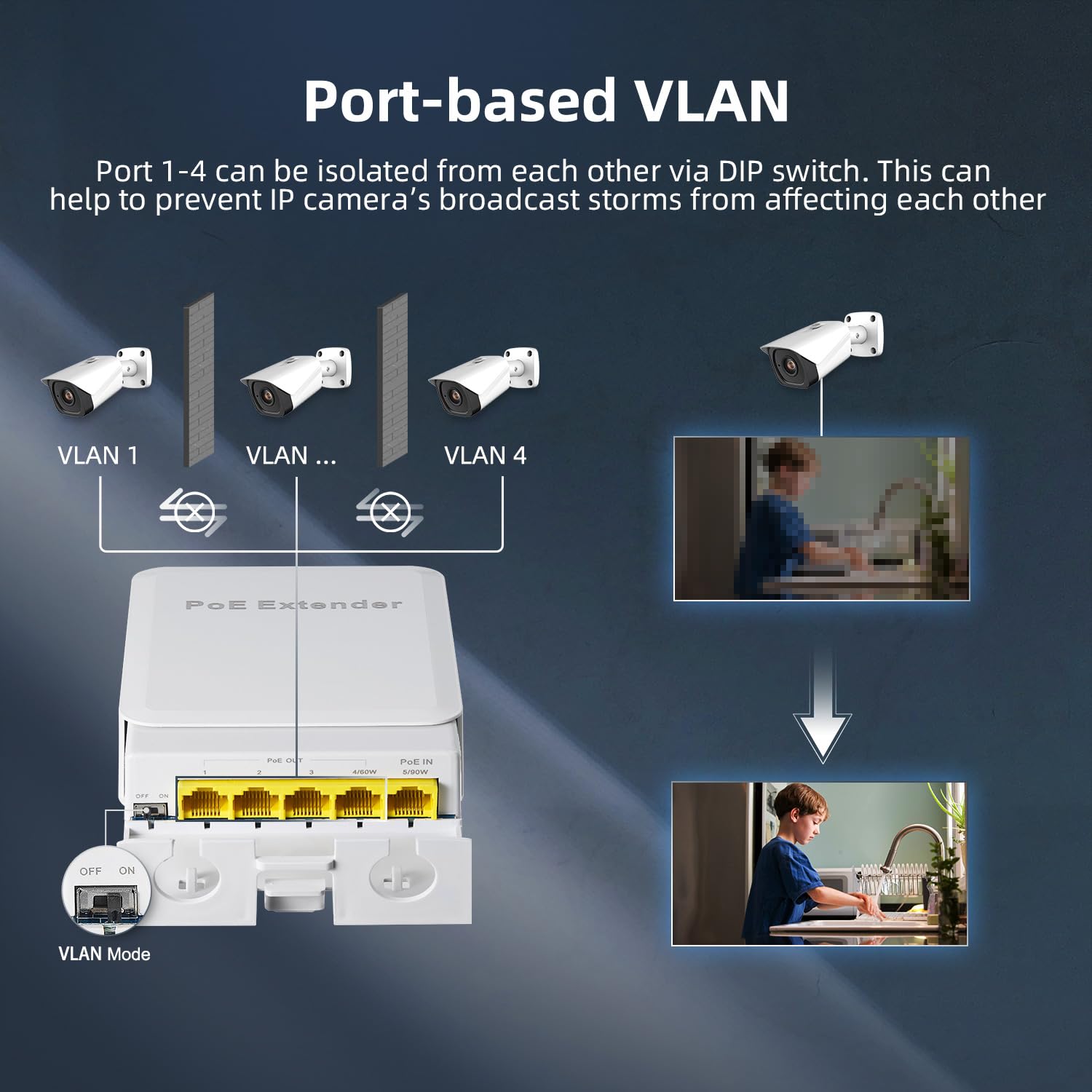

• 【Plug & Play】 Supports automatic device detection, just plug in the Ethernet cable, connect directly to the device, the LED indicator shows the port status, no configuration required. *Please note that 24V Passive PoE is not supported. Support for VLAN mode, controlled by dip switch

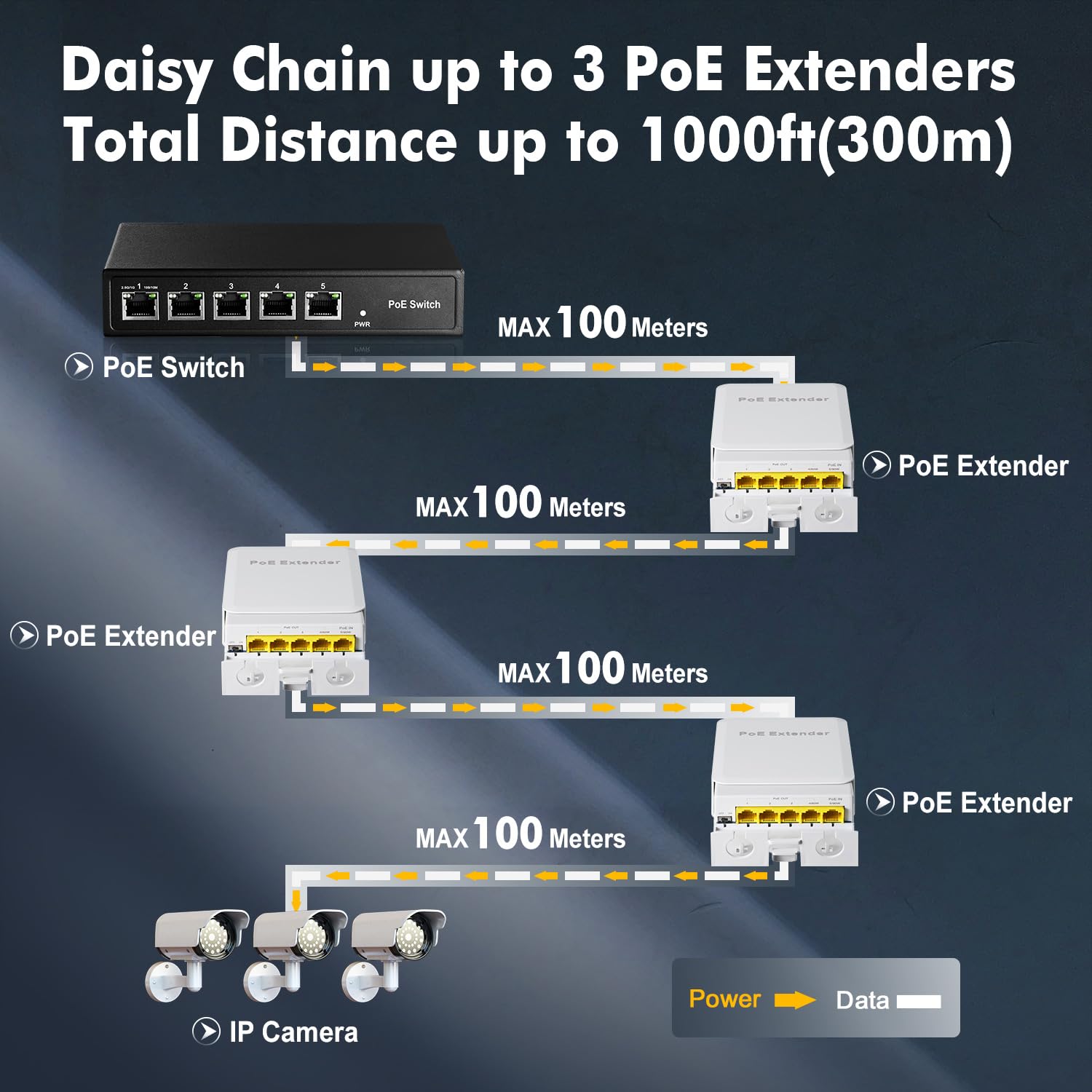

• 【Easy to Install】 Supports wall mounting, smaller size saves space, suitable for many locations. Supports 3-level cascading, can connect PoE access points, cameras, phones, and other POE devices, extends low-cost POE coverage

Outdoor Gigabit PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 10/100/1000Mbps Ethernet, Wall Mount Waterproof Plug and Play
