RKURCK 12V - 48V DC 80 Amp Surface Mount & Panel Mount Circuit Breakers with Yellow Manual Reset Button Waterproof 80A

• Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)，"Trip Free" design cannot be held "ON" during fault current condition
• 80A DC Surface Mount circuit breaker combines switching and circuit protection into a single device，Terminal Size: 5/16"-18
• Housing is thermalplastic UL rated 94V0, "Trip Free" design cannot be held "ON" during fault current condition
• Max voltage: 48V DC, Interrupt capacity: 5000A @12V, 3000A @ 24V, 1500A @ 42V
• Manual Reset Circuit Breaker,can also be used as an on/off button switch for the battery Boat Marine RV Yacht Battery Trailer Bus Truck Solar

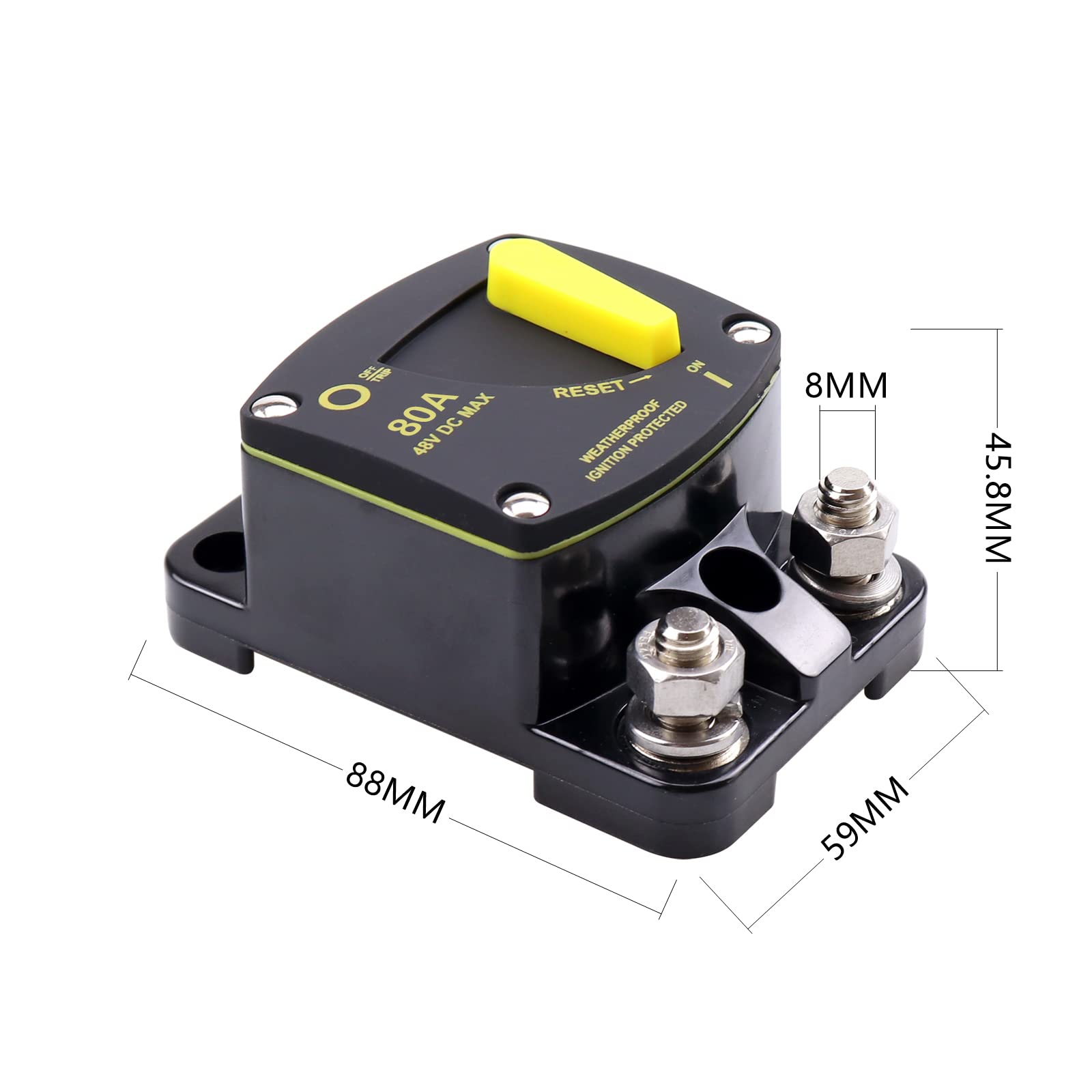

Specifications: Power Rating: 80A Voltage: DC 12V - 48V (Max) Stud Size: 5/16"-18 Size:88mm x 59mm x 45.8mm Net weight: 191.5g Operating Temperature: -32 °c to 82 °c (-25 °f to 180 °f) Storage Temperature: -34 °c to 149 °c (-30 °f to 300°f) Package Includes: 1 x 80A surface mount Circuit Breaker Application: Suitable for car audio/video system, automobiles, yachts and Amps protection and in trucks, boat, RVs, marine, buses, Caravan, Winch, Tractor and ATV applications ect; Also used in battery charges and DC sound amplifier system.
