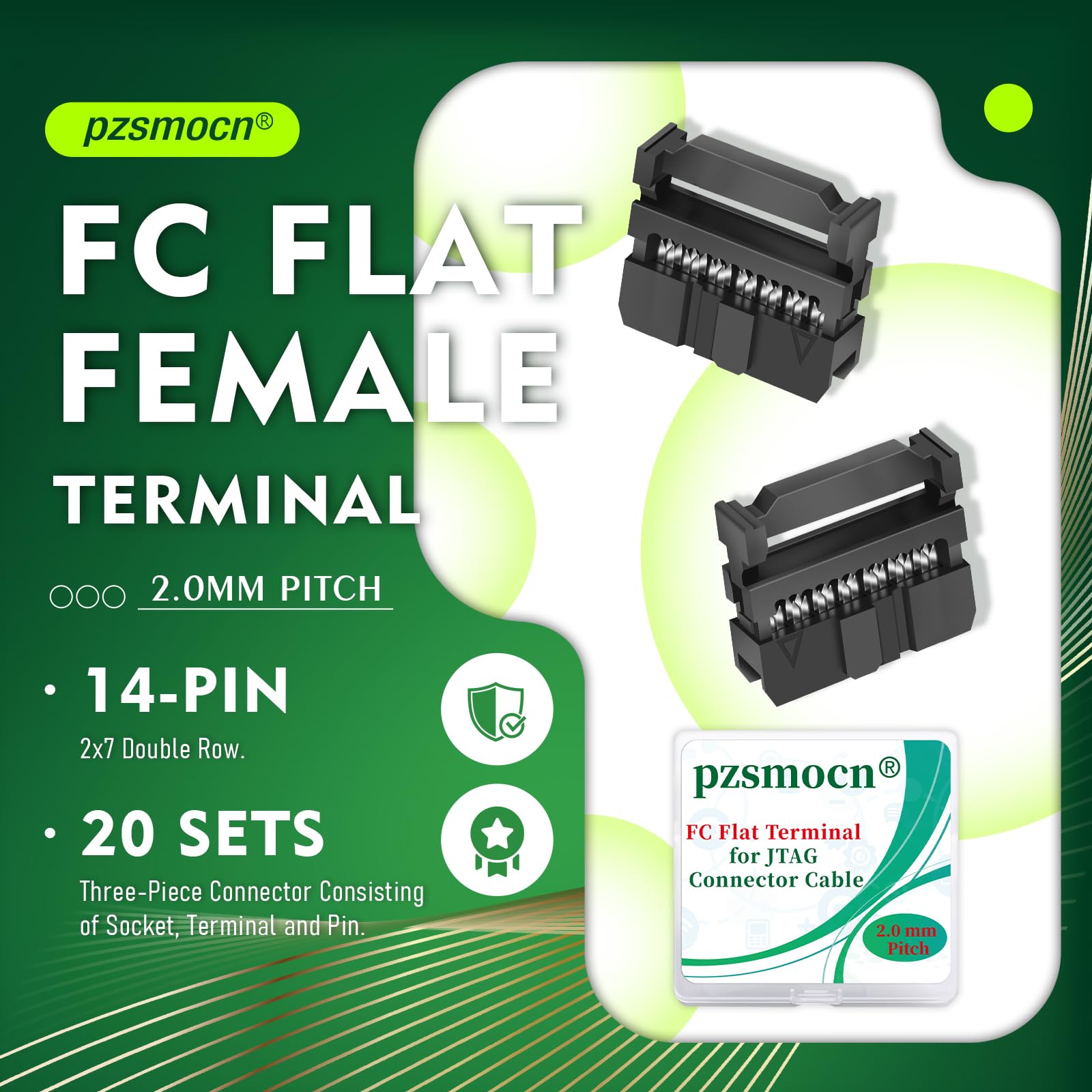

Pzsmocn 20 Sets IDC 2 * 7 Double Row Rectangular Socket Adapter FC Black Crimp Wire Head Three-piece Kit 2.0mm Pitch, 14 Pin FC-Female Terminal Connector, for JTAG Flat Ribbon Cable.

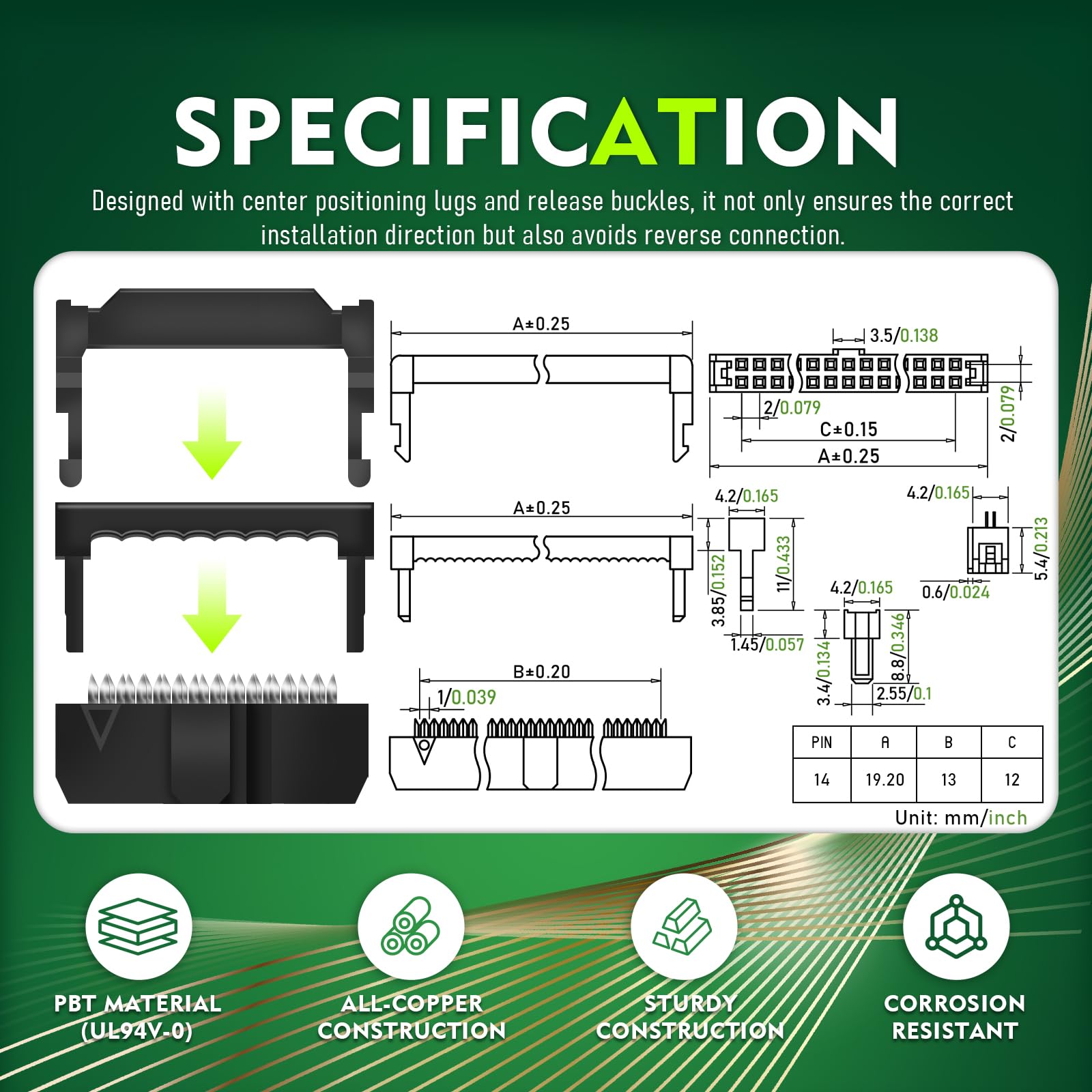

• IDC connectors are made of high-quality plastic and metal for durability and corrosion resistance. Features a central lug and train release socket for proper installation orientation for easy access.
• Can be used with standard 2.0 mm (0.079 inch) PCB headers or male IDC connectors.
• Insulation displacement (IDC) contacts on these connectors allow them to be quickly and easily crimped onto flat ribbon cables.

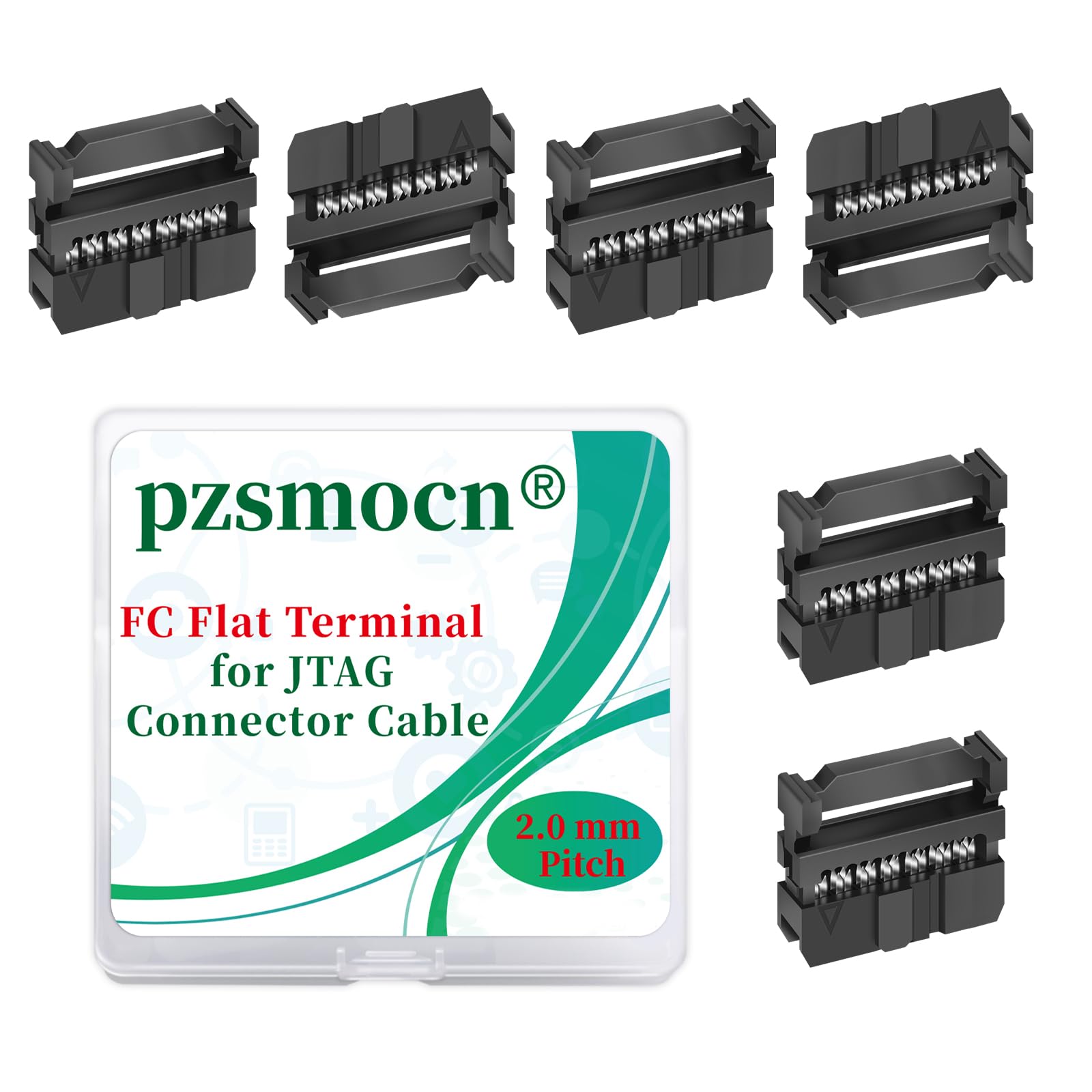

• 20 sets IDC 2*7 double row 14 pin rectangular socket connector FC flat female terminals 3 piece set 2.0mm pitch.
• Packed in a PP material organizer box, it not only helps you organize these connectors quickly, but you can also carry these small accessories with you.

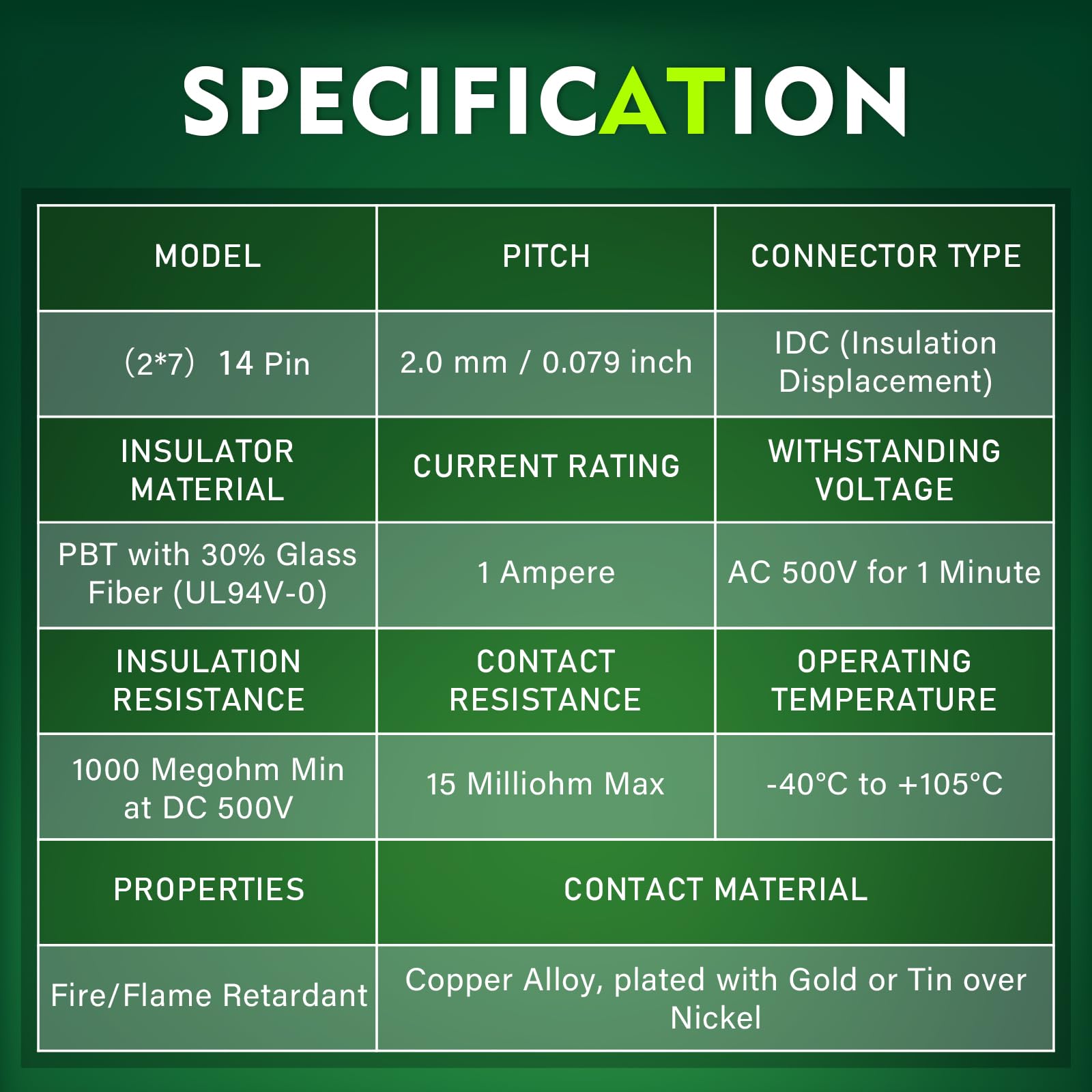

A terminal connector is an accessory product used to achieve electrical connection. It builds a bridge of communication between blocked or isolated circuits in a circuit, enabling current to flow and the circuit to achieve a predetermined function. Terminal connectors are an indispensable part of electronic equipment. Look along the path of the current and you will always find one or more connectors. The FC flat terminal connector is a very simple to use internal wiring device. It is composed of three parts: hole seat, terminal and pin seat. It is sturdy and durable, acid-resistant and corrosion-resistant. The high-quality FC terminal connector can transmit control signals and weak current to the PCB board. The FC flat terminal is essentially a terminal, its function is the same as SH, MX, PH, etc., and it is also the connection with the relevant connecting line. Widely used in CNC machine tools, mining equipment, instrumentation, security, intelligent access control, communications, automotive industry, artificial intelligence and other fields. SPECIFICATION Type: FC-2*7 Pin Female Terminal Pitch: 2.0 mm / 0.079 inch Connector Type: IDC Insulator Material: PBT+30%glass fiber (UL94V-0) Contact Material: Copper alloy with gold or tin over nickel plated Current Rating: 1 Ampere Withstanding Voltage: AC 500V for 1 minute Insulation Resistance: 1000 megohm minimum at DC 500V Contact Resistance: 15 milliohm maximum Operating Temperature: -40 degrees celsius to +105 degrees celsius Properties: Fire / Flame Retardant PACKING LIST 20 Sets 2.0 mm Pitch 14 Pin IDC FC Flat Shape Female Terminal Three-Piece Set Connector * 1
