Digital Automotive Multimeter & Signal Pick Up Inductive Clamp Set, Smart Multimeter for AC/DC Voltage, Current, Dwell Angle, Pulse Width, Gasoline Tachometer 600~12000 RPM, Ideal for Car, Home Use

• 【Versatile Multi-function Automotive Multimeter】SURLABA XF-770K digital multimeter can accurately measure AC/DC voltage (DC: 600mV-1000V; AC: 600mV-750V), AC/DC current (60mA~20A), resistance (600Ω~60MΩ), capacitance (9.999nF ~ 99.99mF), Dwell Angle 4/5/6/8 Cylinder, pulse width (1.0~10.0ms), frequency (9.999Hz ~9.999MHz), temperature (-20-1000℃), continuity, test diodes. This smart multi tester can diagnose automotive, industrial and household electrical issue.

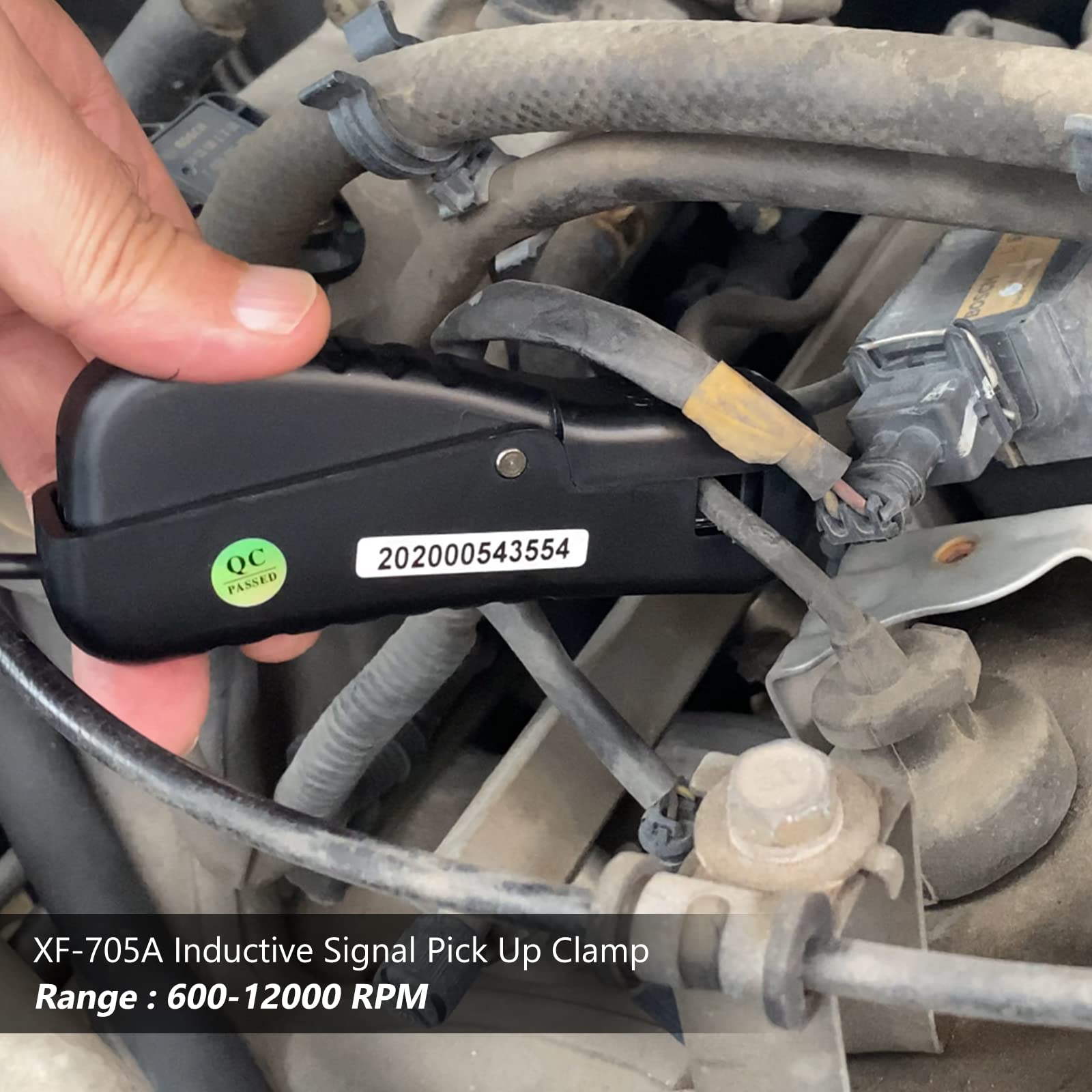

• 【RPM Measuring Tool Included】A signal pick up inductive clamp (XF-705A) is included, it can perfectly work with XF-770K multimeter or oscillograph for tach RPM measurement. This gasoline tachometer measurement range is 600~12000 RPM, suitable for spark plug ignition gasoline engine.

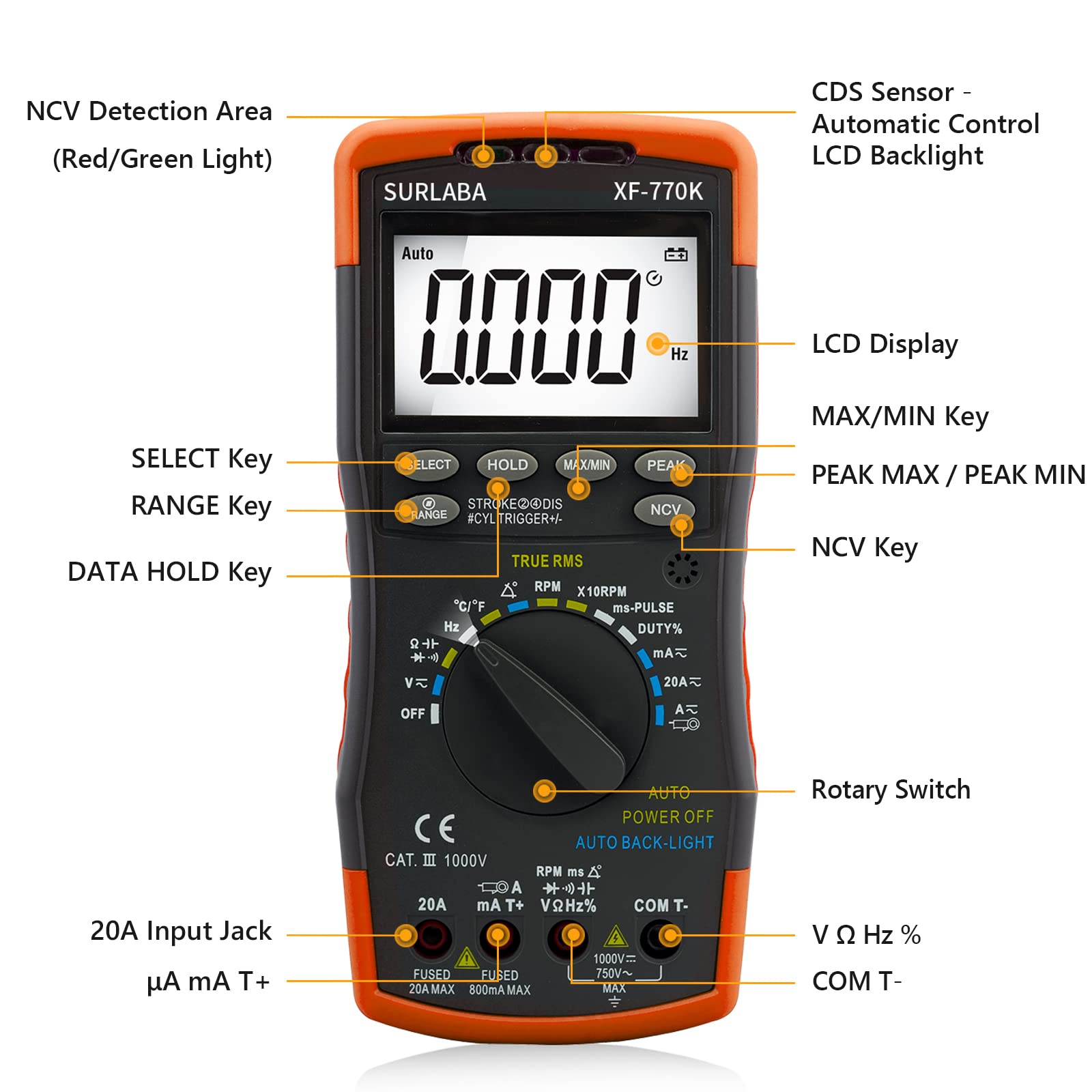

• 【Humanized Design】This automotive multimeter is equipped with LCD backlight, it will automatically light on or off for easy visibility in dim area. Built-in buzzer for easy circuit continuity detection.

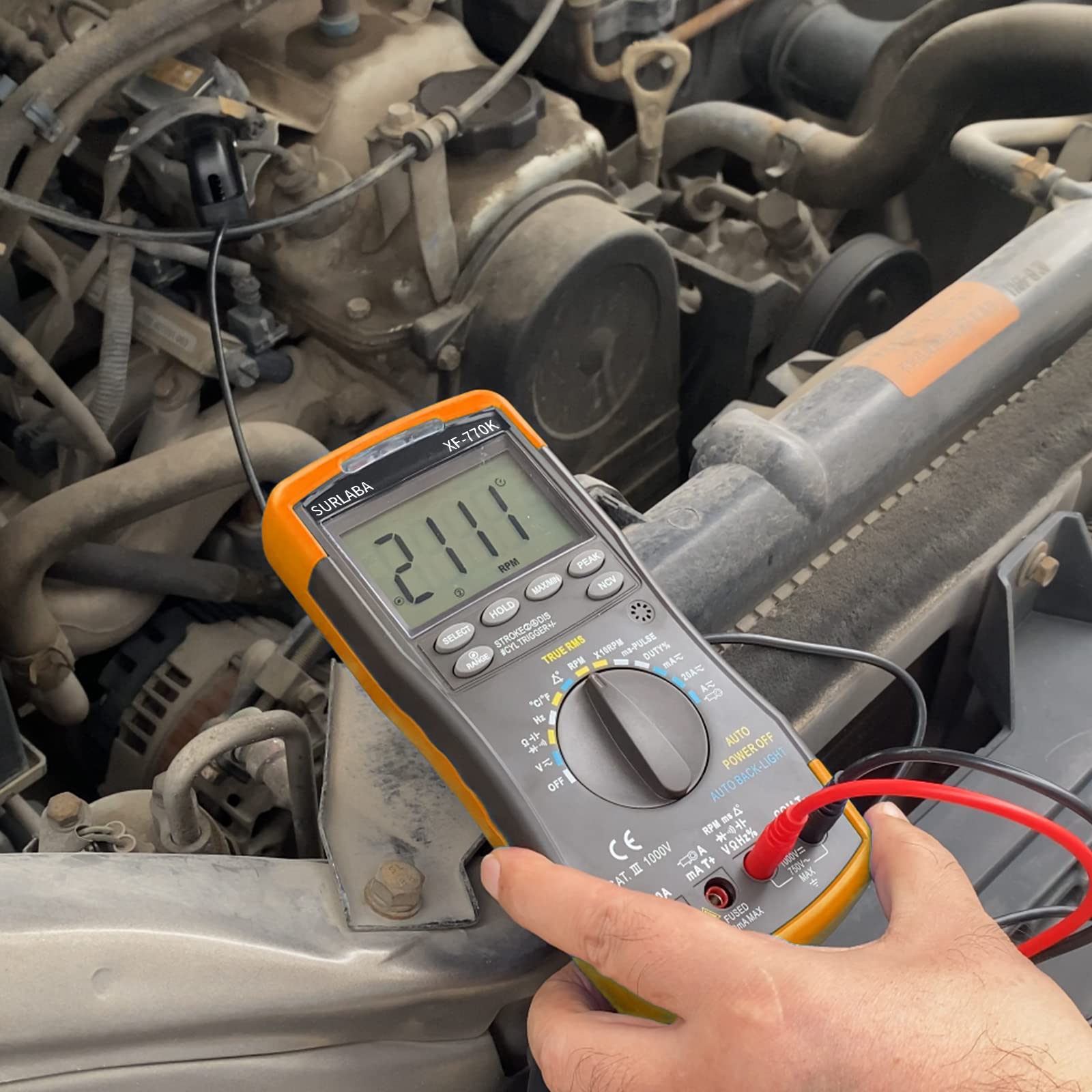

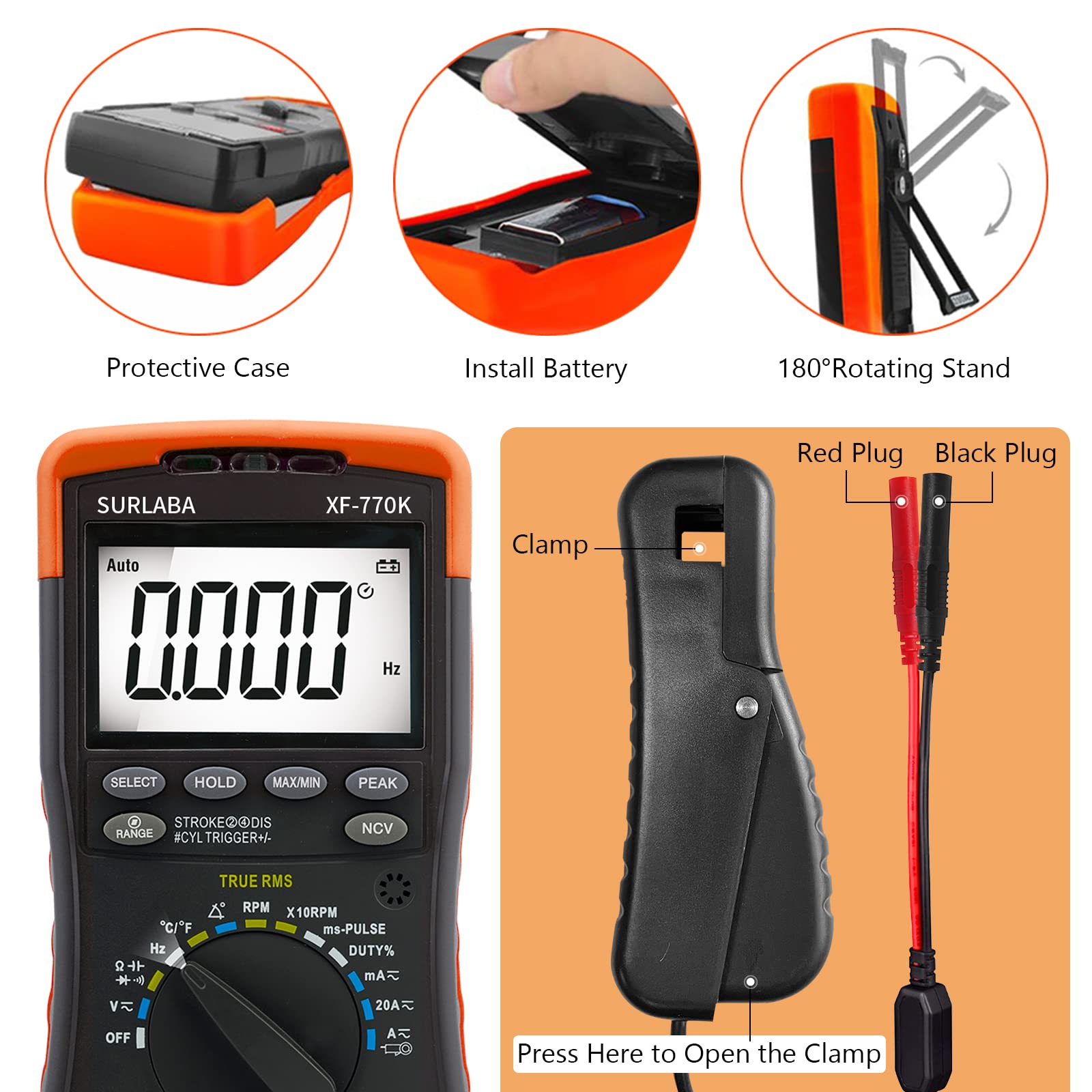

• 【Easy to Use】Clamp the signal pick up inductive lead to spark plug wire, connect the plugs of inductive lead to the input terminals of the automotive meter. Set the automotive multimeter in corresponding measuring range. Read the value on the LCD display.

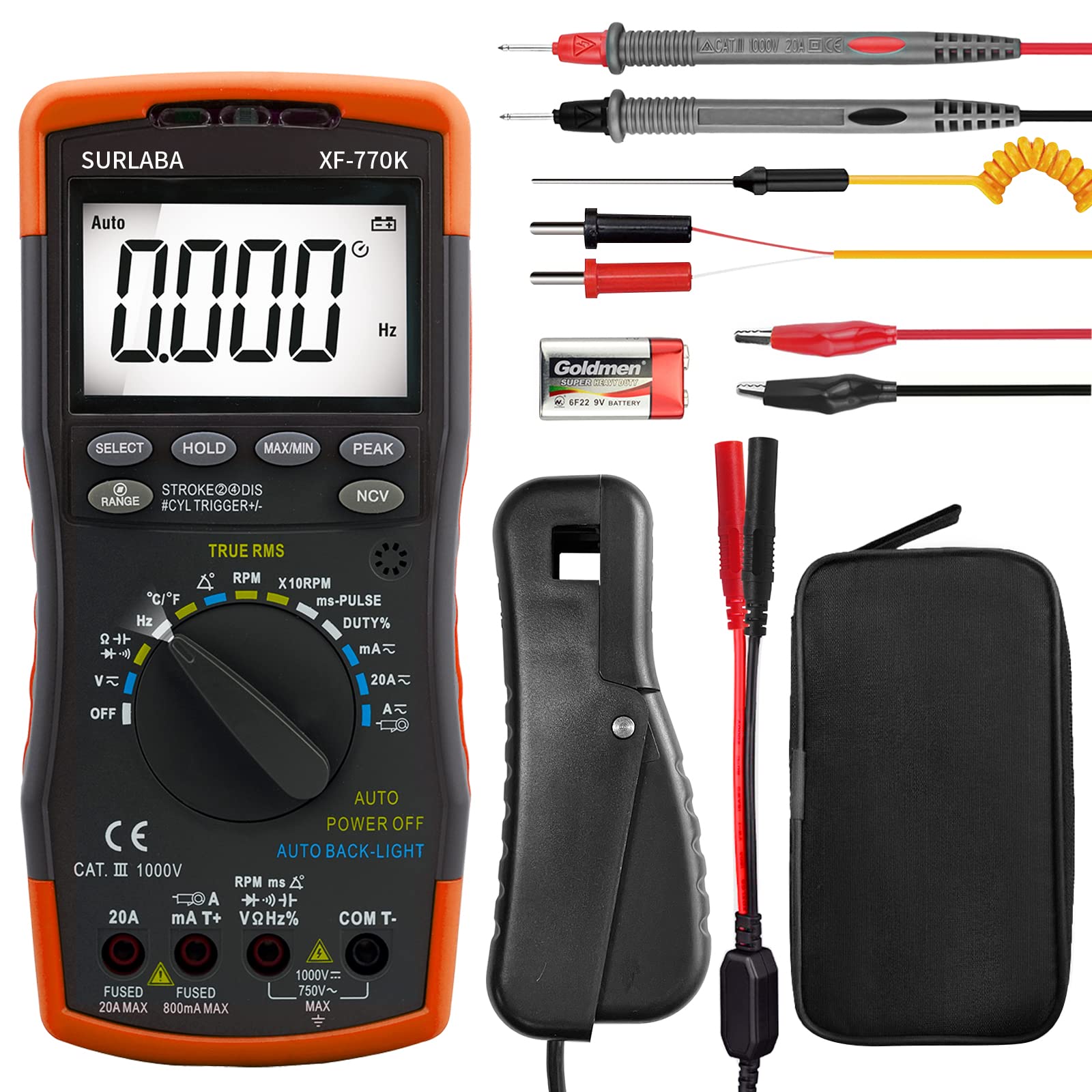

• 【What You get】1* XF-770K Automotive Multimeter, 1* XF-705A Signal Pick Up Inductive Clamp, 1 pair of Test Leads, 1* Temperature Probe, 2* alligator clip, 1* Storage Bag, 1* English User Manual. We provide one year after sale service and lifetime technical support. Please feel free to contact us if you have any concerns.

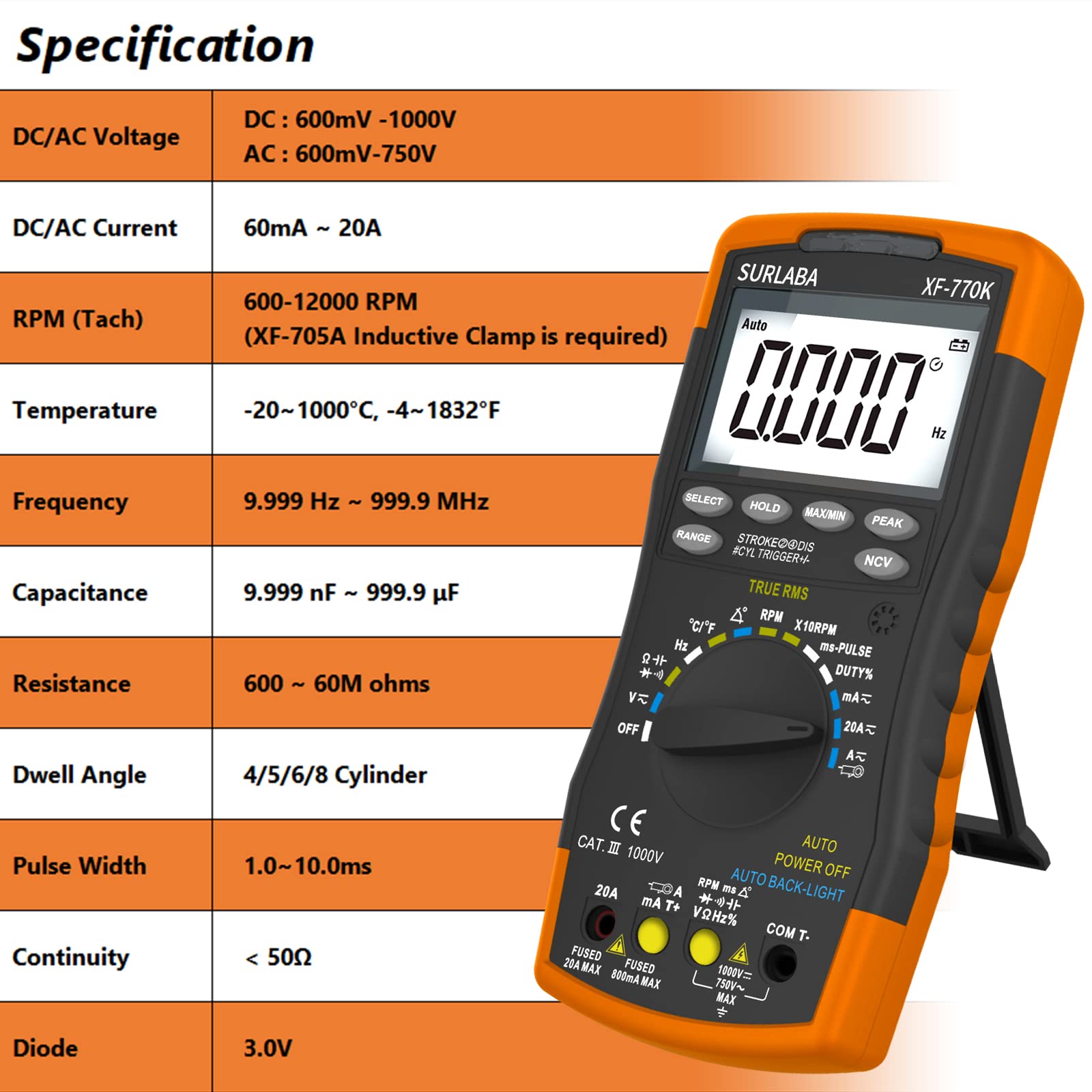

Specification: DC/AC Voltage DC: 600mV -1000V AC: 600mV-750V DC/AC Current 60mA ~ 20A Resistance 600 ~ 60M ohms Capacitance 9.999 nF ~ 999.9 μF Frequency 9.999 Hz ~ 999.9 MHz Dwell Angle 4/5/6/8 Cylinder RPM (Tach) 600-12000 RPM (XF-705A Inductive Clamp is required) Continuity <50Ω Pulse Width 1.0~10.0ms Temperature -20~1000℃, -4~1832℉ Diode 3.0V Duty Cycle 1.0-99.0％ Package List: 1* XF-770K Automotive Multimeter 1* XF-705A Signal Pick Up Inductive Clamp 1 pair of Test Leads 1* Temperature Probe 2* alligator clip 1* Storage Bag English User Manual.
