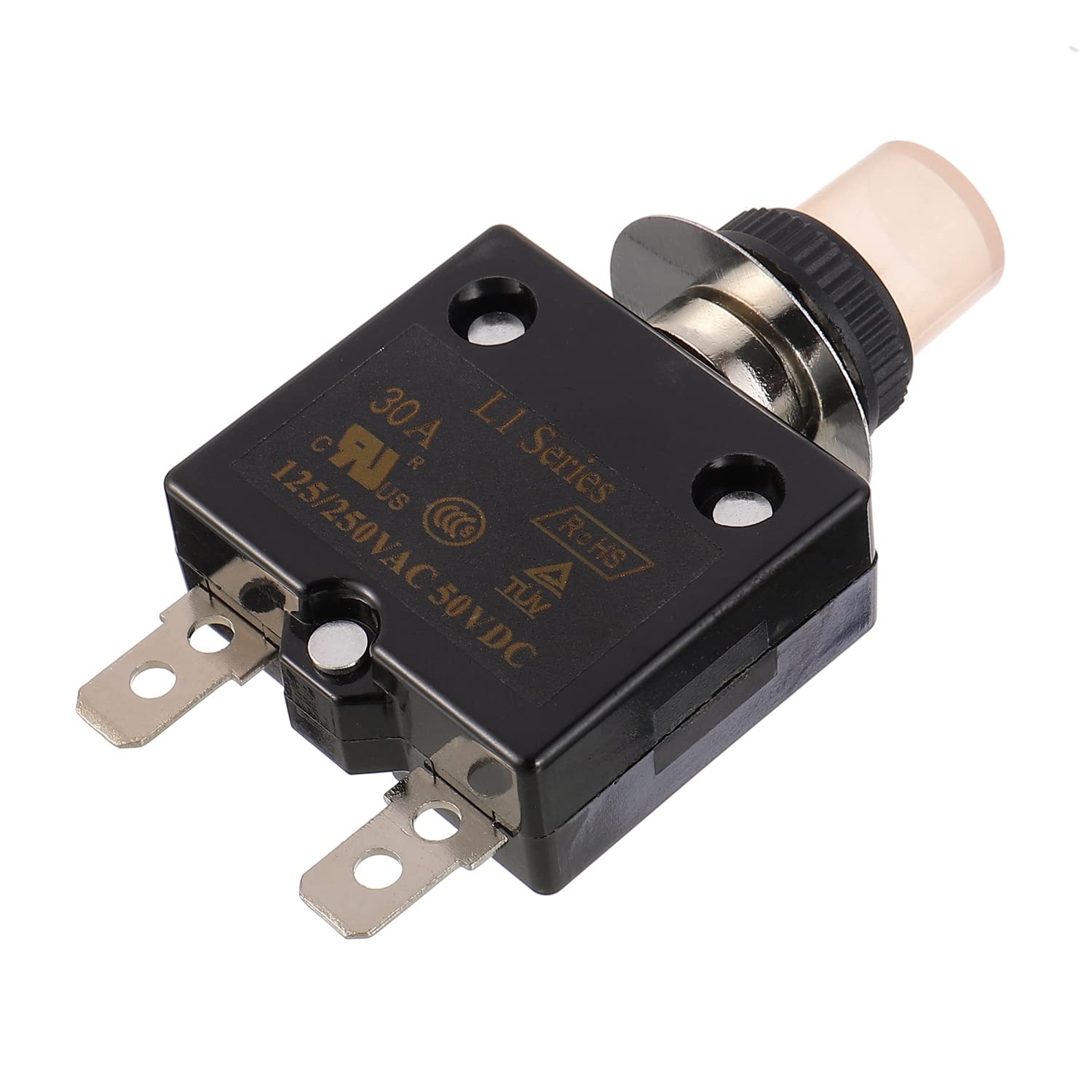

EPLZON 30A Manual Reset Push Button Circuit Breaker 125/250V AC 50V DC Thermal Overload Protector with Quick Connect Terminals and Waterproof Button Caps Assortment Kit(pack of 2 pcs)

• Product Name: Manual Reset Push Button Switch Thermal Circuit Breaker; Rated Voltage DC50V, AC125-250V; Rated Current: 30A

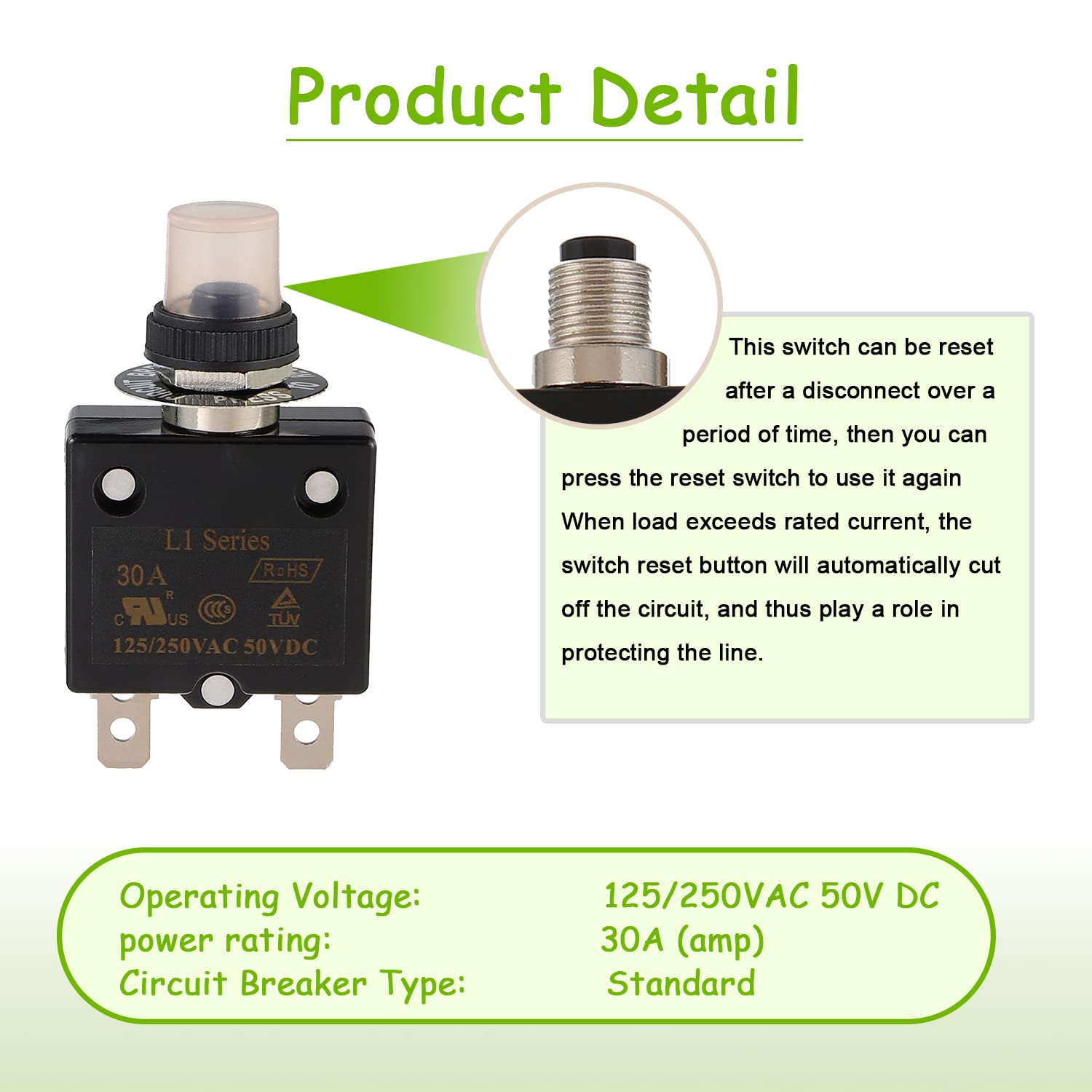

• How it works: This switch can be reset after being disconnected for a period of time, and then press the reset switch again to use it again. When the load exceeds the rated current, the switch reset button will automatically cut off the circuit, thus protecting the circuit.
• Each package comes with quick connect terminals and the circuit breaker comes with a waterproof button cap. A circuit breaker with a waterproof button cap protects against bad weather. The compact design enables high-density circuit protection configurations.

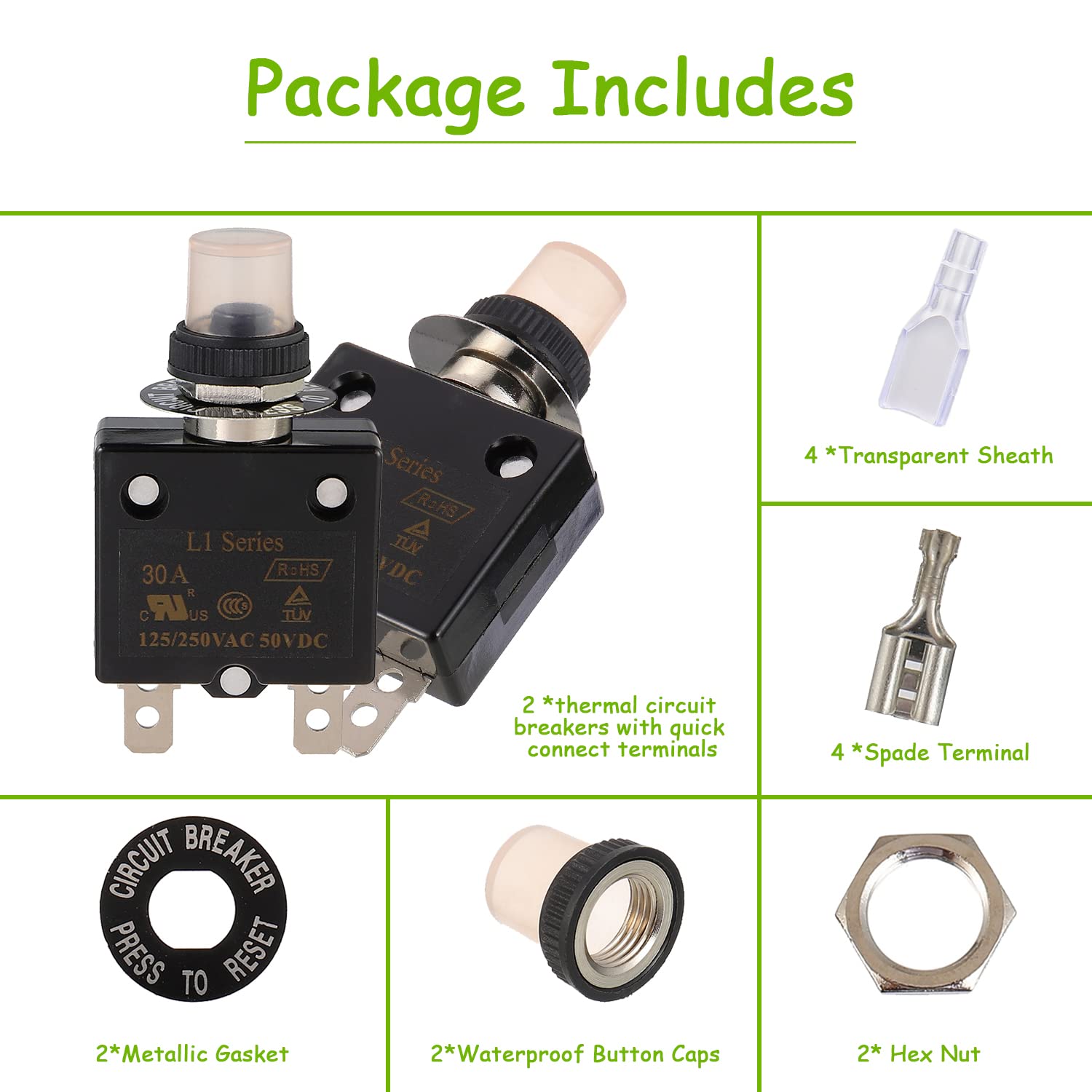

• Package List: 2 * Button Type Thermal Circuit Breakers + 2 * Hex Nuts + 2 * Gaskets + 2 * Waterproof Button Caps + 4 * 6.3MM Female Spade Terminals + 4 * 6.3MM Insulation Sleeves
• Widely used in household and commercial appliances, small generators, air compressors, automobiles, electric vehicles, power tools, extension cords, industry, transportation, ships, communications, power panels, audio-visual, medical, power supplies, etc.

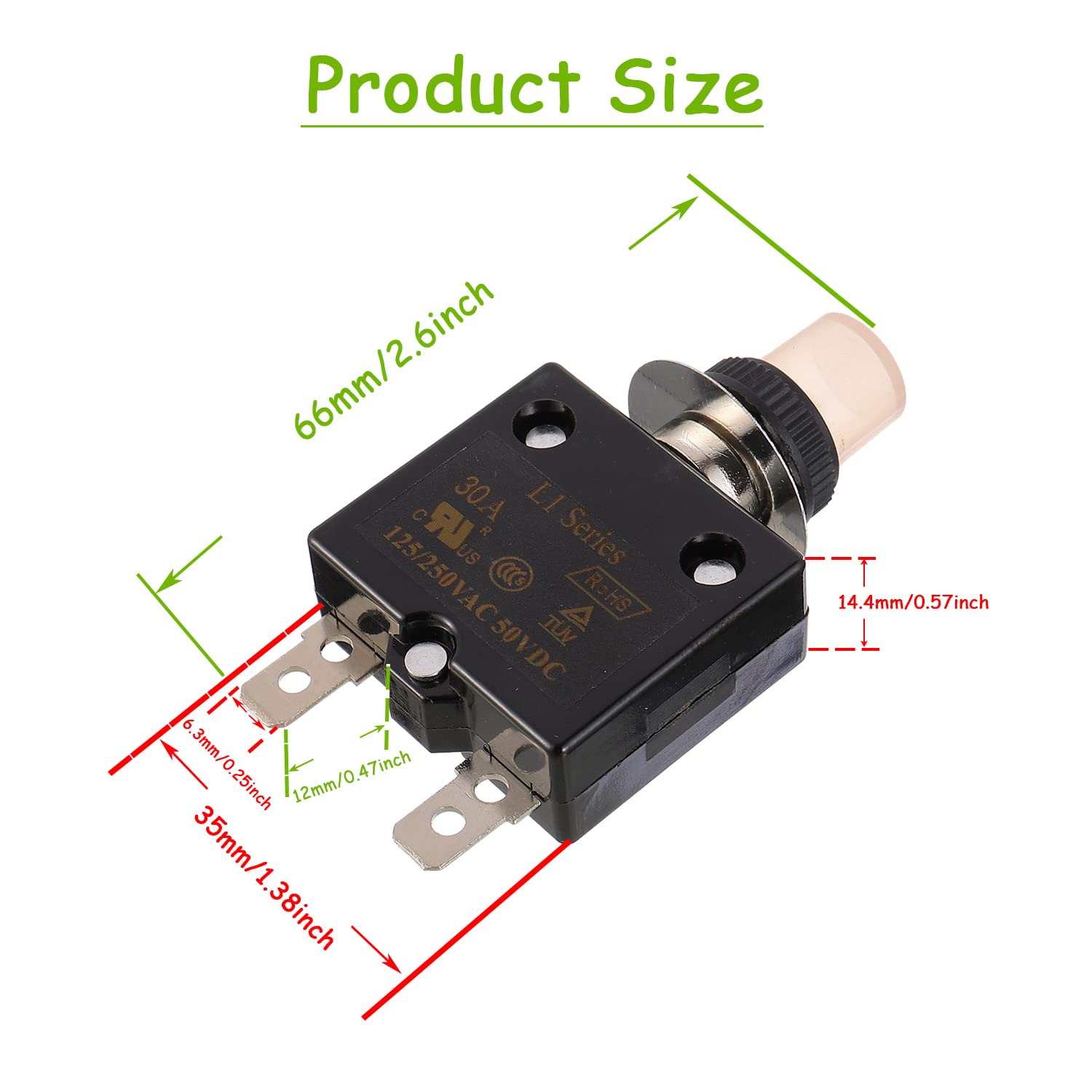

EPLZON 30A Manual Reset Push Button Circuit Breaker with Quick Connect Terminals and Waterproof Button Caps Assortment Kit ⭕How it works: This switch can be reset after being disconnected for a period of time, and then press the reset switch again to use it again. When the load exceeds the rated current, the switch reset button will automatically cut off the circuit, thus protecting the circuit. Specification: 🔹Shell material: plastic, high mechanical performance, good insulation; metal sheet, good stability 🔸Colour: Black 🔹Dimensions: 56 x 31 x 14 mm / 2.2 x 1.22 x 0.55" 🔸Current: 30A 🔹Rated voltage DC50V, AC125-250V 🔸Rated current: 30A 🔹Reset type: manual reset 🔸Operating temperature: -10℃ to ~ 60℃/ 14℉ to 140℉ 🔹Interruption Capacity: 1000 Amps 🔸Installs in 3/8" (10mm) round hole Package Contents: 2 pcs x push-button thermal breakers 2 pcs × Waterproof Button Caps 2 pcs x spacers 2 pcs x Hex Nuts 4 pcs × 6.3MM Female Spade Terminals 4 pcs × 6.3MM insulating sleeve
