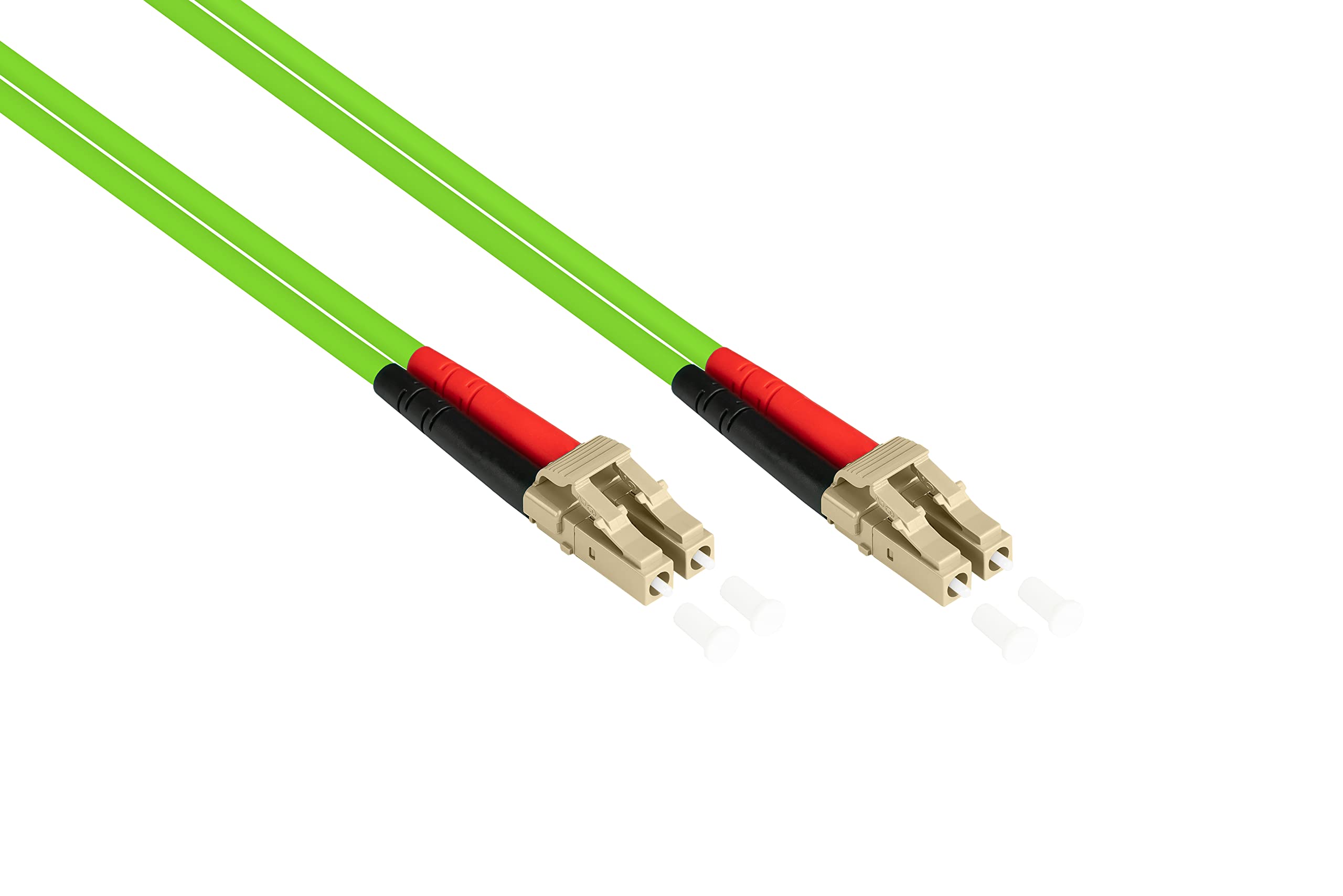

Good Connections Cable Duplex Male SC to SC Fibre Optic Cable

• Colour: lime green. Length: 0.5 m / 50 cm

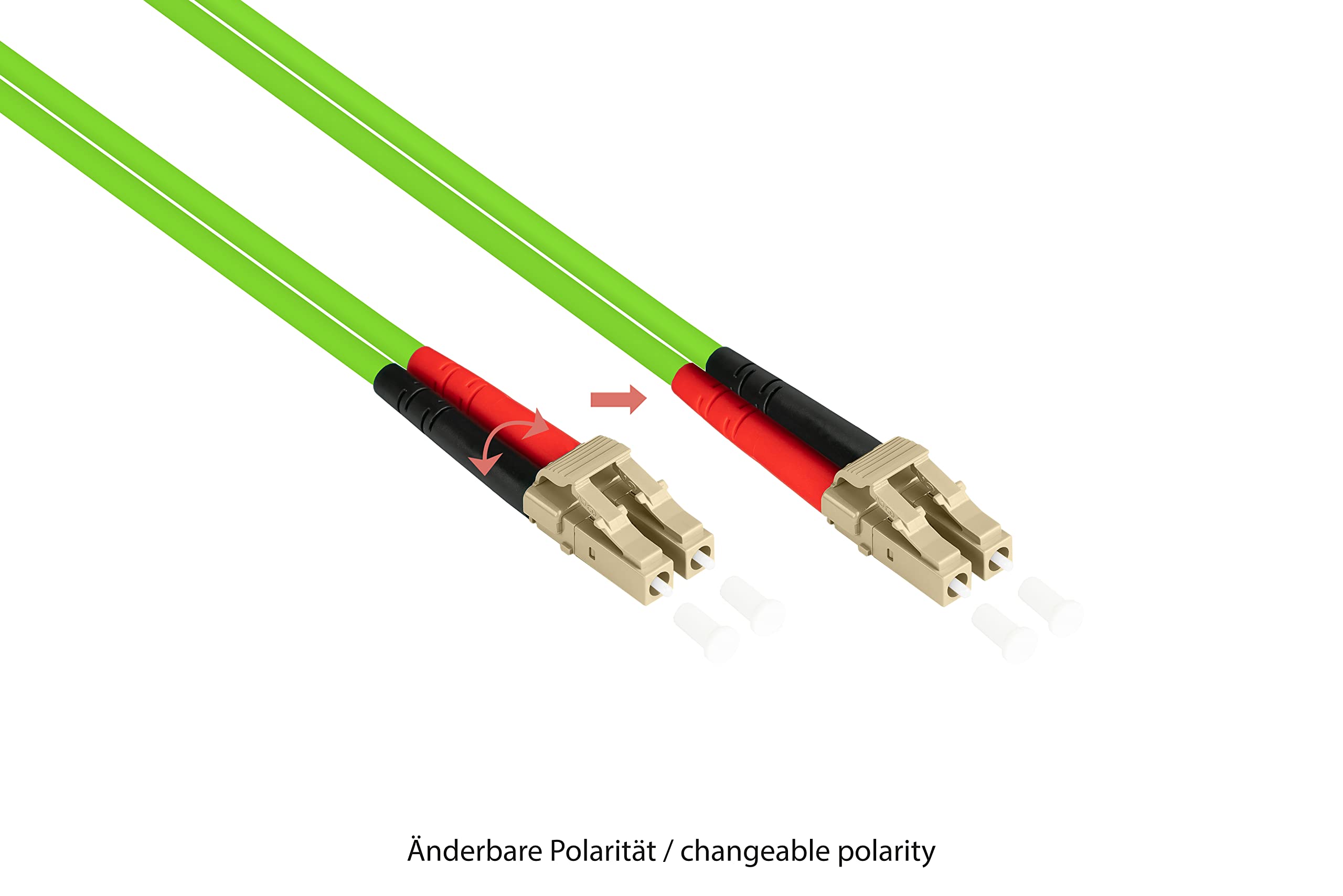

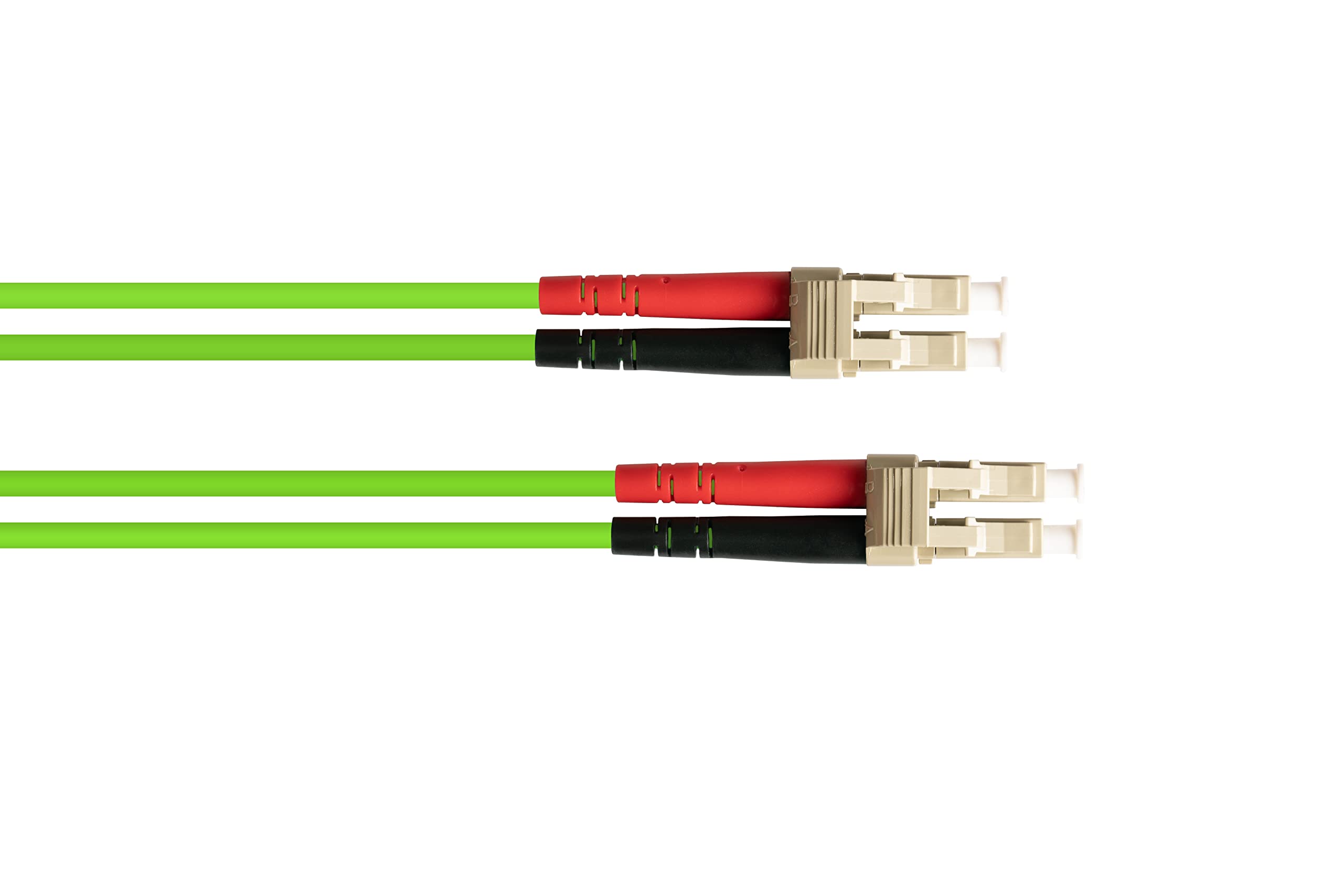

• Connectors: LC duplex plug to LC duplex male, duplex clamp removable
• Quality: Each cable comes with its own measurement/test protocol

Technical specification: - Connectors: LC duplex plug to LC duplex plug - duplex clamp detachable - fibre quality: OM5 - core/fibre: 50/125 microns - multi-mode - quality class multi-mode: A - quality: each cable comes with its own measurement/test protocol - cable type: GJFJH - halogen-free (LSZH) and flame retardant - maximum tensile force: 1. 50 N - max. Bending radius (static): 30 mm - max. Bending radius (dynamic): 60 mm - Working temperature: -10 to 60 °C - Storage temperature: -10 to 70 °C - Insertion loss 850 nm: = 0.3 dB Added value of OM5 technology OM5 technology offers a number of improvements over previous quality classes. Previous multimode fibres are optimised for an optical window or a wavelength range of 850 nm. Outside this window, the signals are greatly attenuated, so Ethernet signals must be transmitted over multiple multimode fibers connected in parallel. For example, for 10-Gigabit Ethernet two fibers are required (one fiber for transmission = transmit, one for receiving = receive). For 40 or 100 Gigabit Ethernet applications, the signals are split across eight fibers (2x four fibers with 10 or 25 gigabit/s) or 20 fibers (2x ten fibers with 10 gigabit/s). The OM5 technology therefore uses a broadband optimised multimode fibre (WBMMF) (Wideband Multimode Fiber WBMMF). In conjunction with SWDM (Short Wave Division Multiplexing) technology, a wider optical window can be used. Therefore, four different wavelengths from 850 nm to 950 nm can be used. Each individual wavelength can work at data rates of 25 Gbps. Thus, the number of fibres is reduced by four times compared to OM4. Instead of more elaborate multi-fibre connectors such as the MPO plug, simpler and more cost-effective fiber duplex plugs can be used. Compatibility: the OM5 fibre optic patch cables from Good Connections are fully backwards compatible with previous versions (OM2, OM3 and OM4). So one can easily integrate into existing installations.
