CQRobot 600 Pieces Standard Computer Jumper Caps Header Pin Shunt Short Circuit 2P Connector Open Top 2.54mm. Suitable for Arduino Raspberry Pi PCB PC DVD HDD Motherboard Shorting and Other Items.

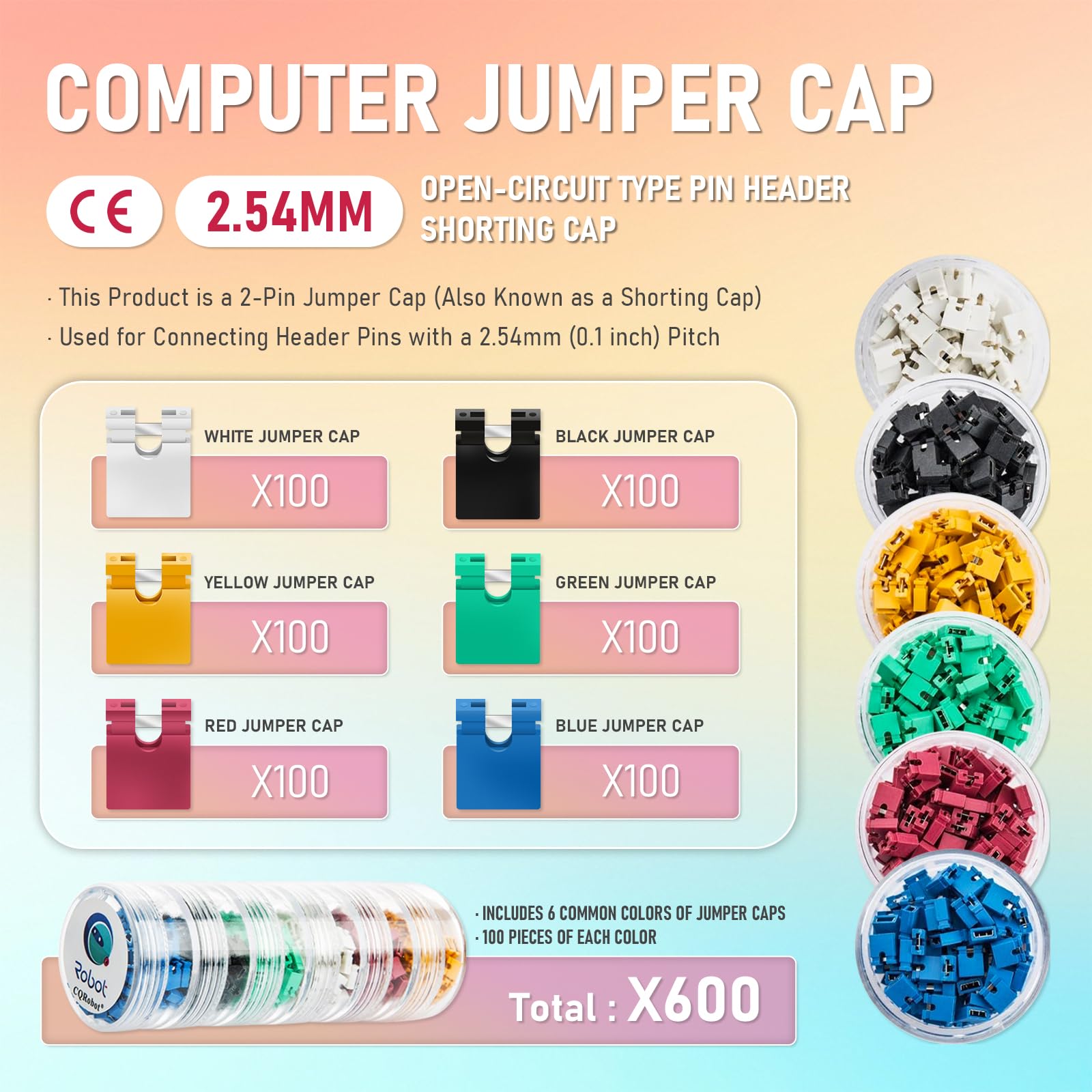

• Red, Blue and Black standard computer jumper caps header Pin shunt short circuit 2-Pin connector open top 2.54mm.(300 Pieces)
• White, Green and Yellow standard computer jumper caps header Pin shunt short circuit 2-Pin connector open top 2.54mm.(300 Pieces)
• Suitable for Arduino Raspberry Pi PCB PC DVD HDD Motherboard Shorting and Other Items.

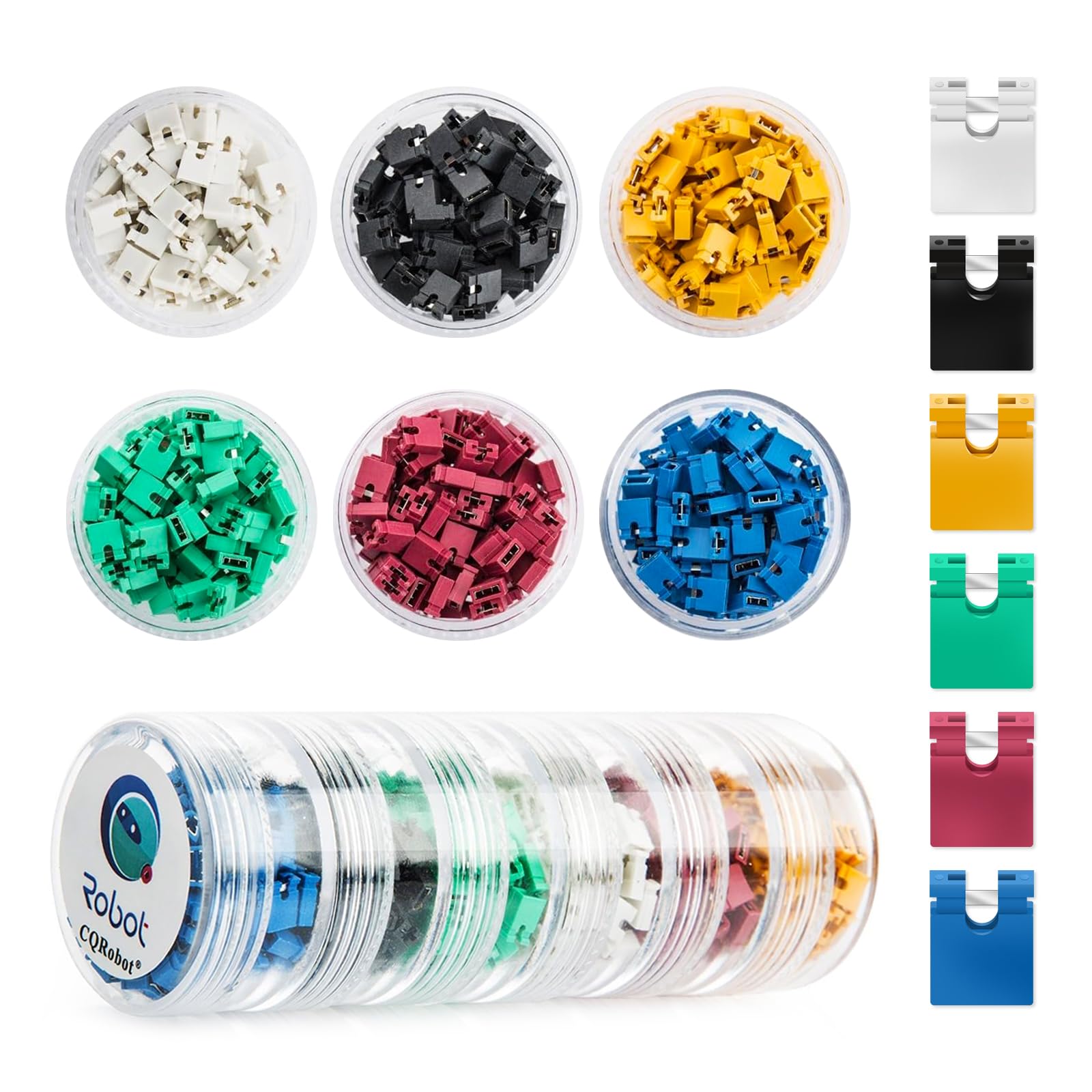

• 600 pieces, 6 colors, 6 layers storage room superimposed.

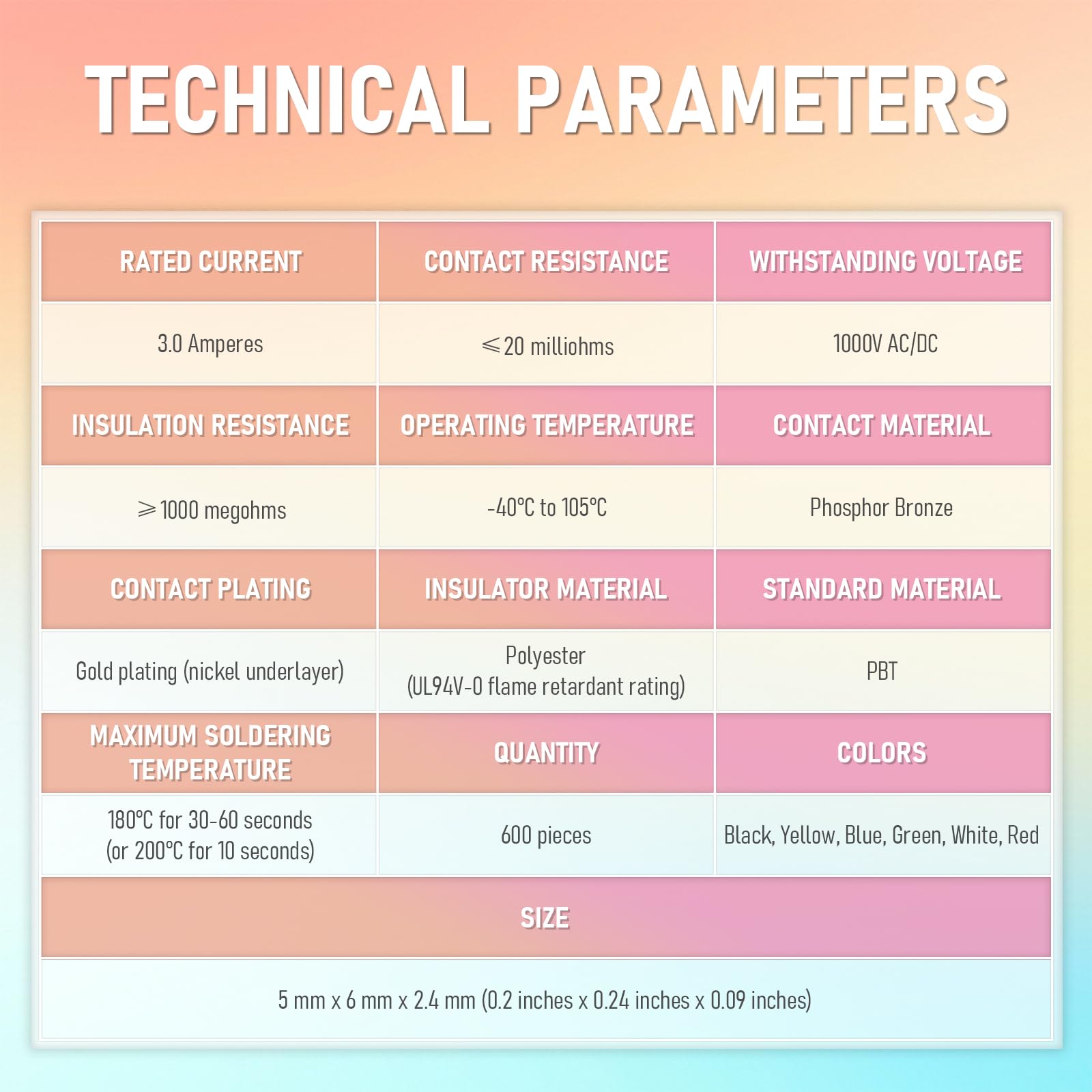

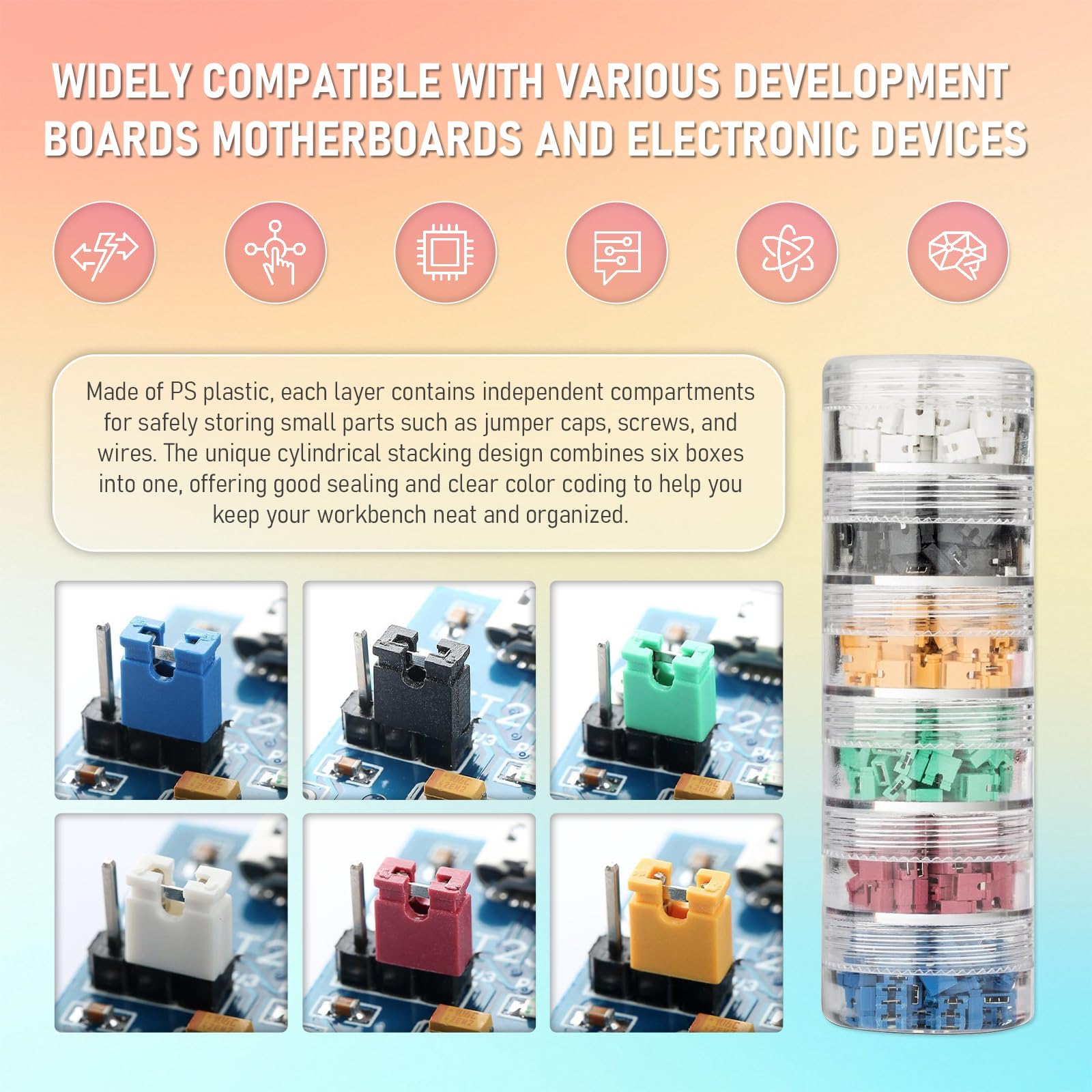

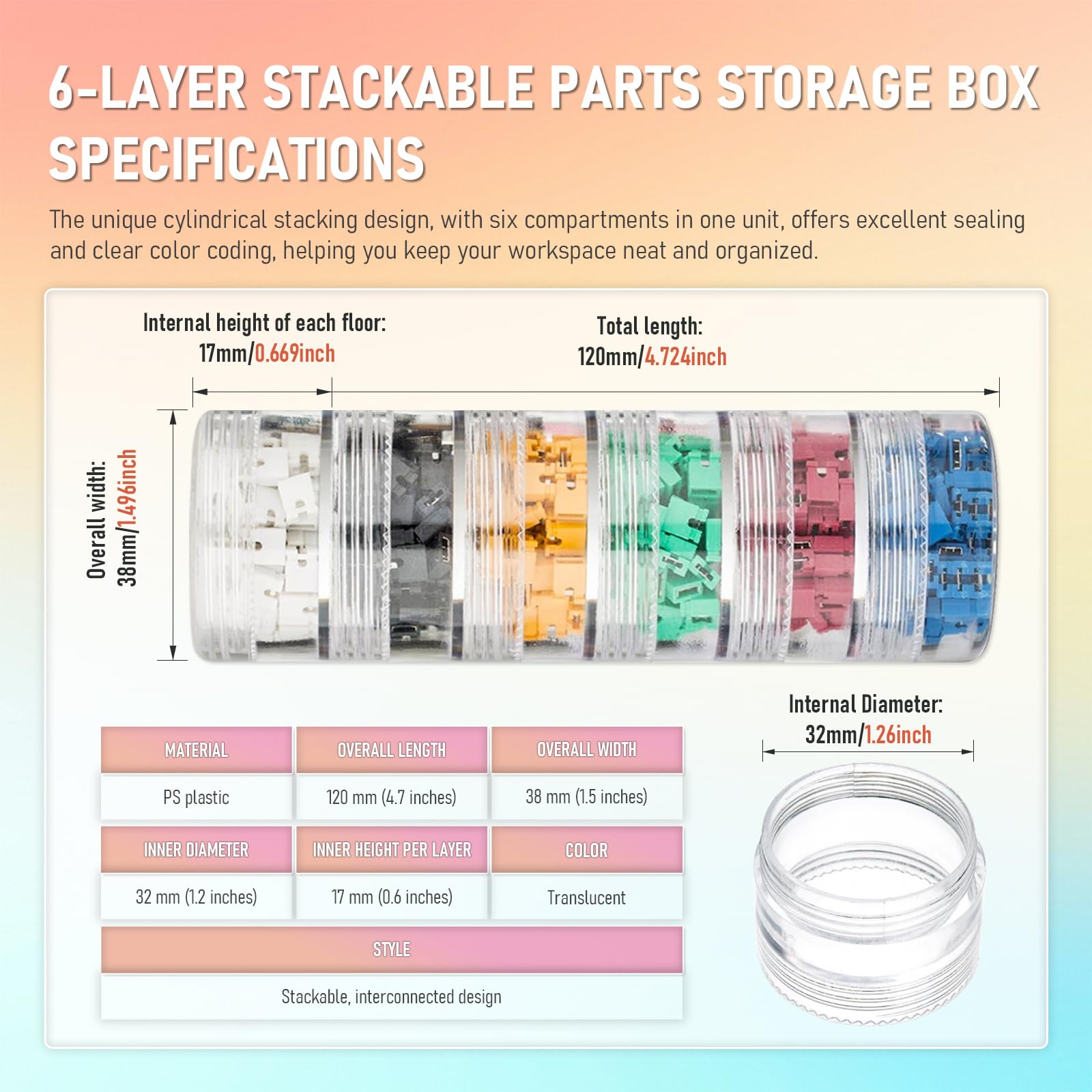

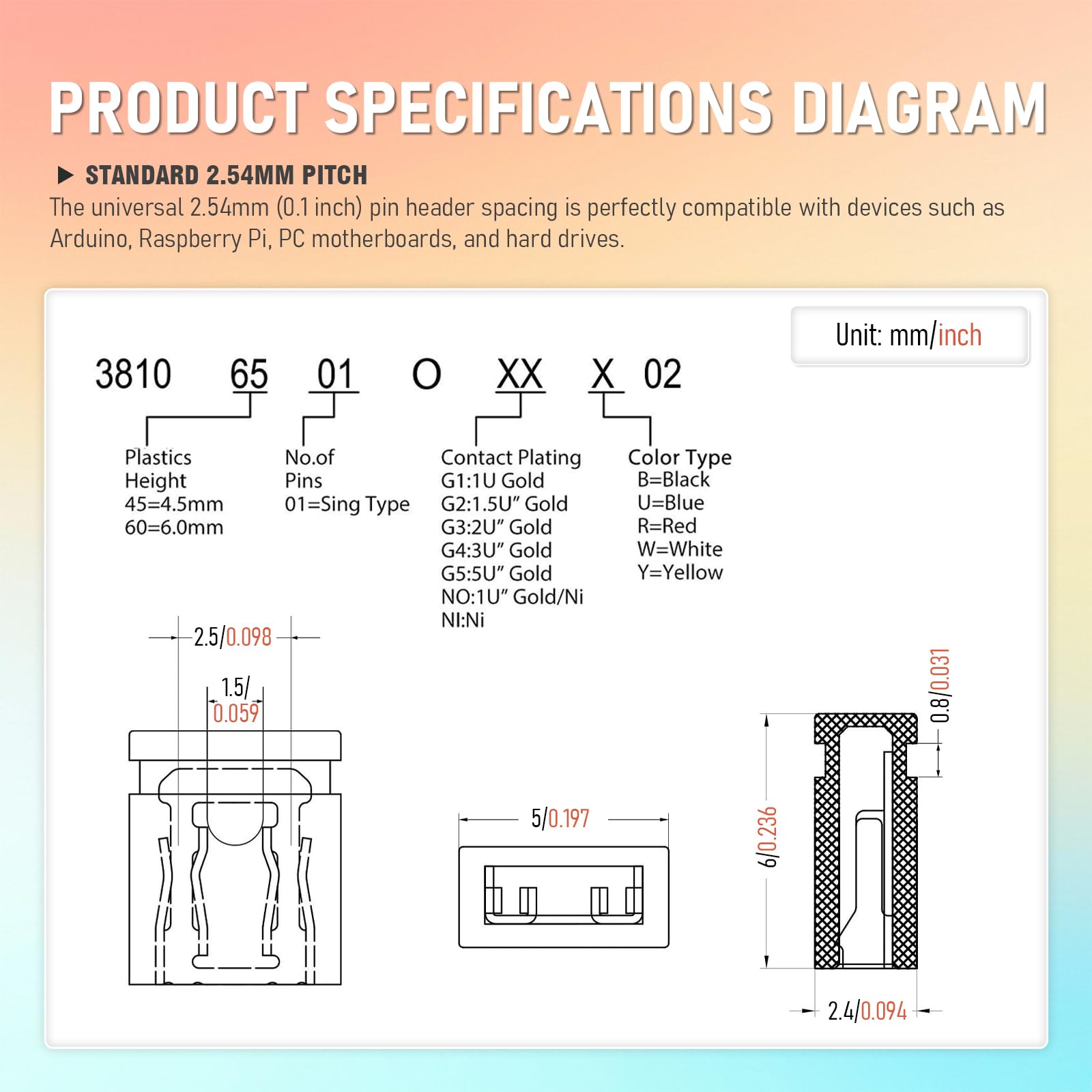

INTRODUCTION These are two pin jumpers (also called shunts) that will create an electrical connection for the 2.54 mm (0.1 inch) male pin headers. Commonly used to modify settings on a board or device. 6 Layer Superimposed Parts Box for securely holding electronic components, screws, wires and any small parts in individual compartments. Unique design, six containers build as one cylinder, six-in-one is more closed and easier to distinguish the tiny parts. It's a great tool to keep your desk or workshop organized, so that you can find your components easily. SPECIFICATION Colorful Jumper CAP - Rated current: 3.0 amp. - Contact resistance: 20 m. Max. - Withstand Voltage: 1000V AC/DC - Insulation resistance: 1000 Min. - Operation Temperoture: -40°C to 105°C - Contact Moteriol: Phosphor Bronze - Coneact Plating: Au Over Ni - Insulator Material: Polyester (UL94V-0). - Standard: PBT - Max.Processing temp: 180°C for 30 - 60 seconds (200°C for 10 seconds). - QTY: 600. - Colour: Black, Yellow, Blue, Green, White, and Red. - Size: 5 mm x 6 mm x 2.4 mm (0.2 inches x 0.24 inches x 0.09 inches). 6 Layer Superimposed Parts Box - Material: PS plastic. - Overall length: 120 mm (4.7 inches). - Overall Width: 38 mm (1.5 inches). - Internal diameter: 32 mm (1.2 inches). - Inner height / per layer: 17 mm (0.6 inches). - Style: Connected. - Colour: translucent. SHIPMENT 100 x Red Jumper (Plus/Minus 2). 100 x blue jumpers (plus/minus 2). 100 x black jumpers (plus/minus 2). 100 x white jumpers (plus/minus 2). 100 x green jumpers (plus/minus 2). 100 x yellow jumpers (plus/minus 2). 1 x 6 layer superimposed parts box.
