RIVERWELD Bridge Cam Gage Test Ulnar Welding Inspection Gauge Checks Depth of Undercut and Pitting Fillet Weld Throat Size and Length Angle of Preparation Misalignment

• Angle of Preparation, 0° to 60° and Excess Weld Metal (capping size)
• Depth of Undercut and Depth of Pitting
• Fillet Weld Throat Size and Fillet Weld Length
• Misalignment (High-Low)
• Made of stainless steel, available in both metric and inch

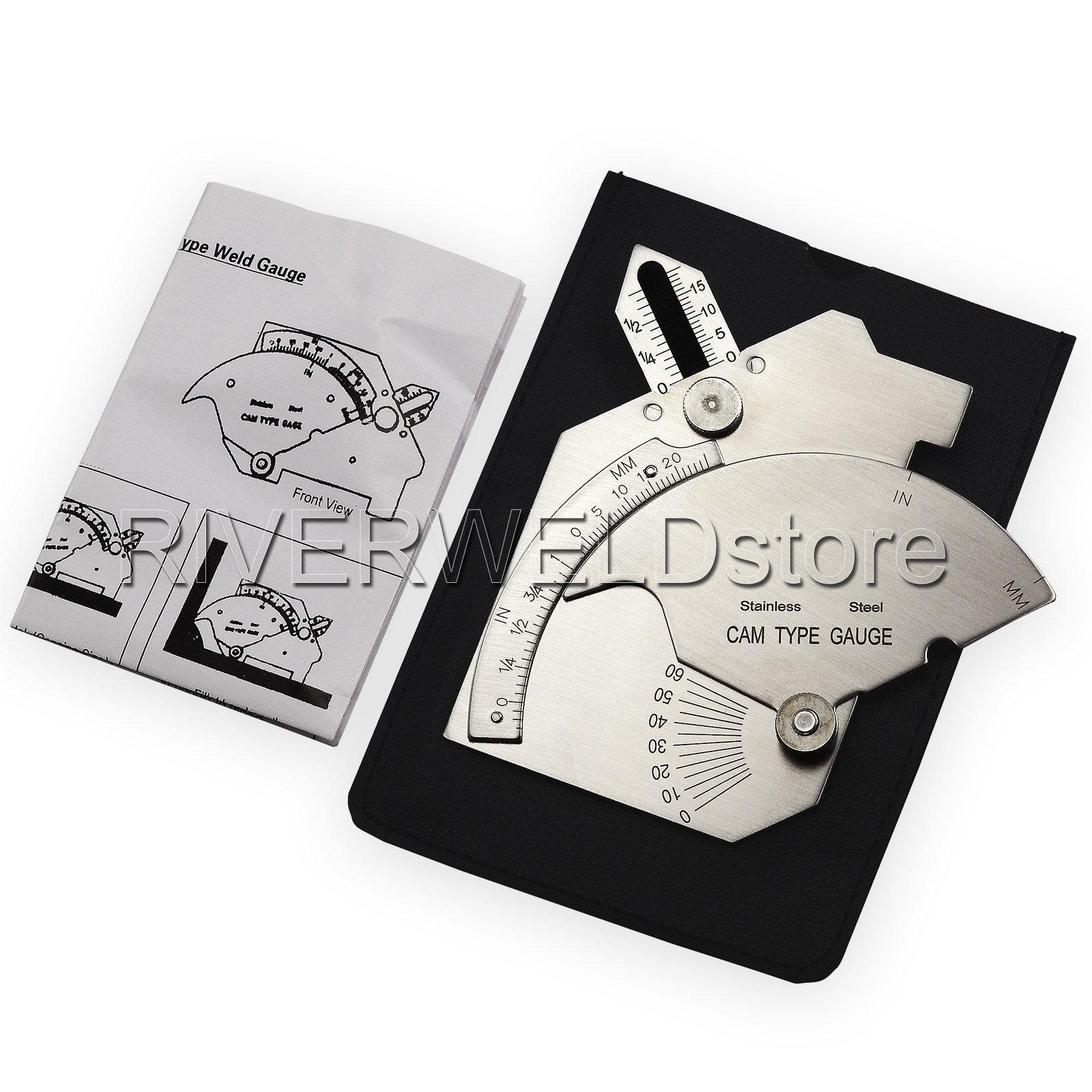

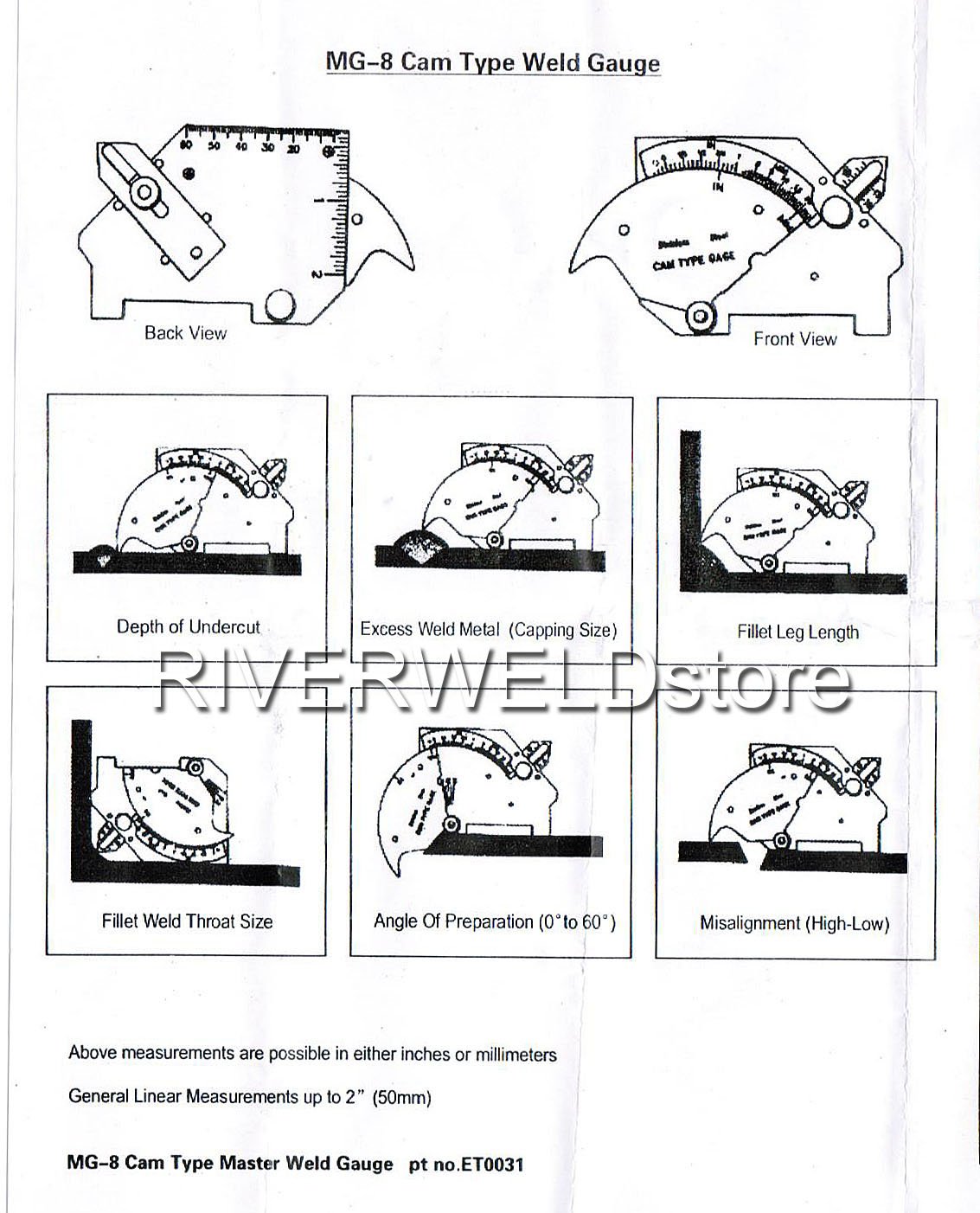

C50 Type Welding Gauge Measurements if possible in either inches or millimeters General Linear Measurements up to 2"(50mm) Angle of preparation excess weld metal Depth of undercut Depth of ptiiing fillet weld throat size fillet weld length outside misalignment
