zdyCGTime Solar Connectors Y Branch Parallel Adapter Cable Connector,FFM MMF PV Wire T Splitter photovoltaic connector,Y Branch 1 to 2 3-Way Connector Splitter Combiner.(1Pairs)
About this item
- Technical details:Our branch connectors can withstand temperatures from -40ºF to +125ºF. Shell material:PPO flame retardant material. Core material:Copper silver plated. Working current:<30A. Test voltage:DC6000V. Wiring specification:2.5/4/6mm. Plug resistance:Less than 1M. Connection method:Crimp.

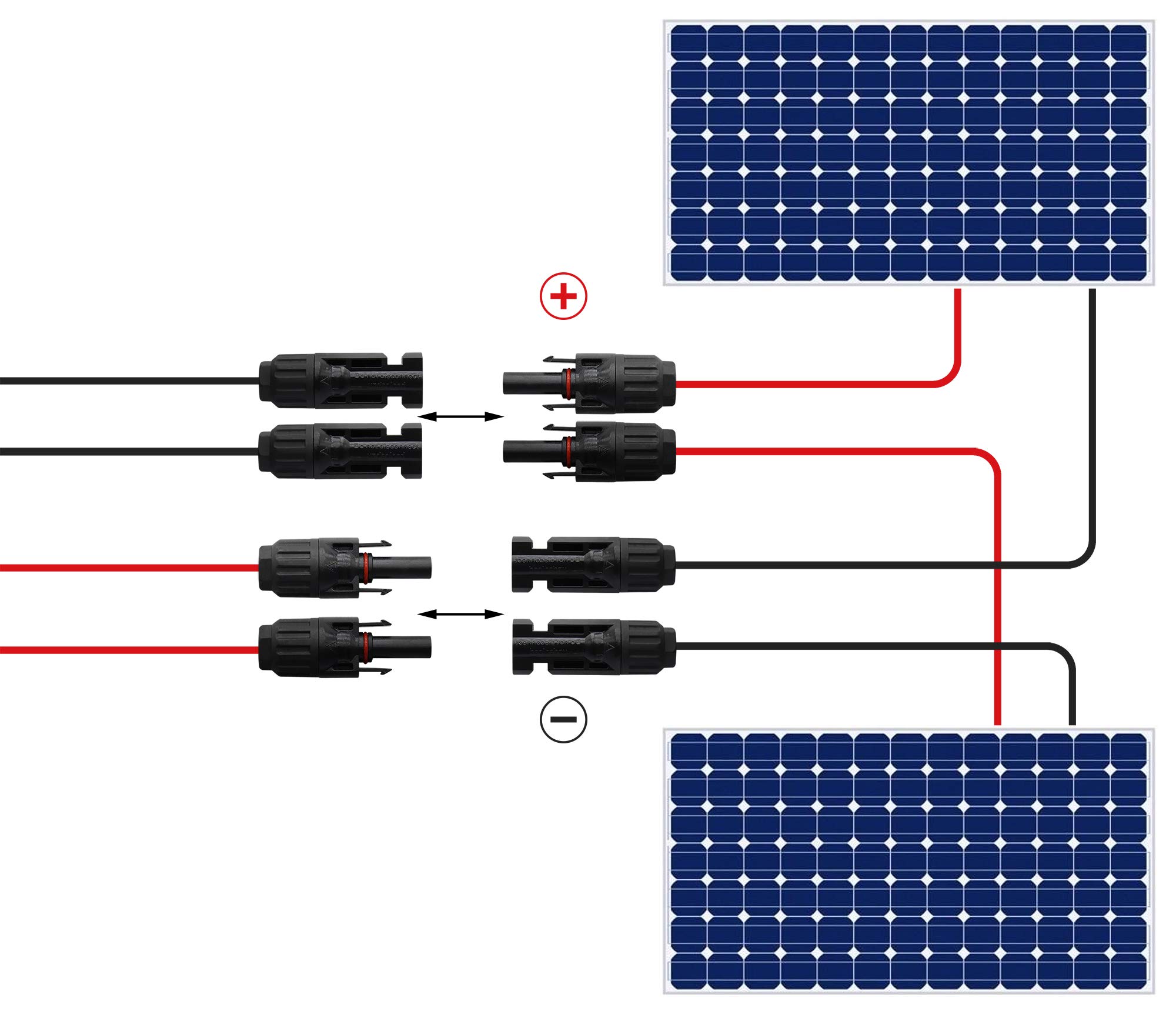

- Y Branch parallel Connector.(1 male to 2 female and 1 female to 2 male) Main Technical Specification:-Rated Current:20A -Rated Voltage:DC1000V. The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Suitable Single Core Cable Section:14-10AWG.(1.5mm² -- 6mm²)
- High quality:Our female and male connectors are made of high-quality materials and are not affected by bad weather (such as snow, heavy rain or extreme heat).The waterproof rating of the solar panel connector is IP67, and it is dust-proof.
- 1 Pairs/2Pcs branch Connectors Conductor pin is tinned Copper: made of PPO + PA material.It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion,Pro insulation material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain,snowstorm or heat for a long time.
- Y Branch connectors Rated voltage:Rated Current:30A;TUV 1000V DC / UL 600V DC;These connectors Hard plastic IP67 Waterproof and resist dust build up.Widely Operating Temperature range:-40℉ until 185℉,fireproof and Lower contact resistance.
Product description

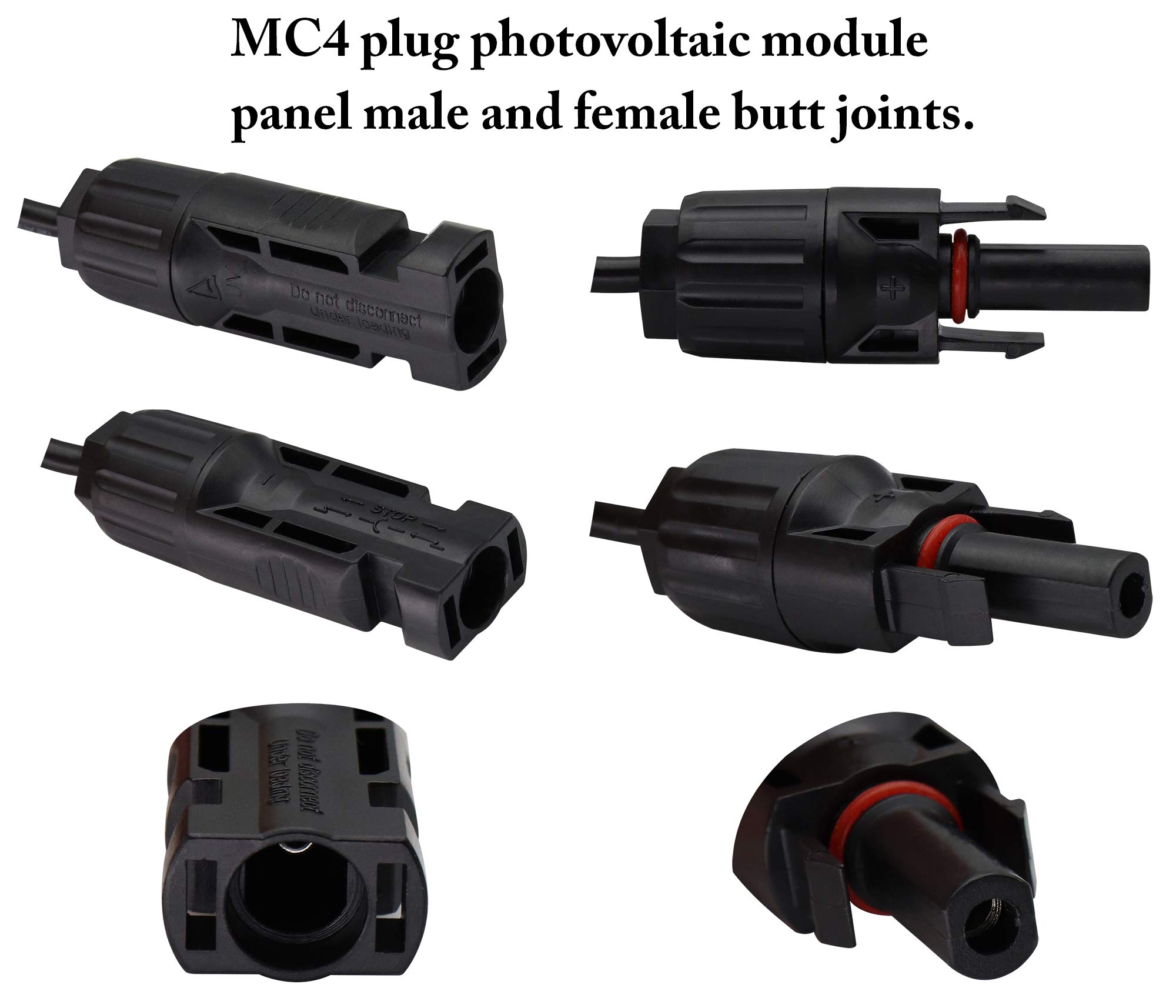

M-C-4 Solar Panel Connectors – Male and Female Connectors for Solar Panels – Double Seal Rings – IP67 Waterproof and Resistant to Extreme Temperatures – Heavy-Duty Design M-C-4 photovoltaic connectorY Branch 1 to 2 3-Way Connector Adapter Splitter Combiner Parallel Adapter Cable Wire Plug Tool Kit for Solar Panel. M-C-4 Solar Panel Connector: This connector is approved by CE,is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations. Why would you choose the M-C-4 Solar Panel Cable Connectors? Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy, impact,corrosion-resistant with a high igniztion point Ensure service life and safety performance. With excellent aging resistance and UV endurance, it can be used in harsh environment. Specification: Insulation Material:PPO. Rated Current:20A.(4mm²) Rated Voltage:DC1000V. Contact Resistance:≤5mΩ Insulation Resistance:>500mΩ Operating Temperature range:-40℃ until+90℃ Degree of Protection:IP67 Flame Class:UL94-V0 Safety Degree:Ⅱ Suitable Single Core Cable Section:1.5mm² -- 6mm².( include AWG14, AWG13,AWG12, AWG11,AWG10 ) Package included: 1 Pair M-C-4 Branch Connector.
