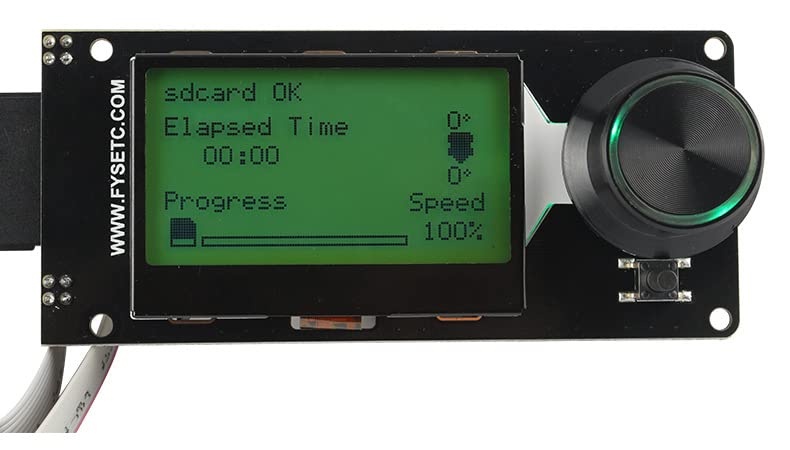

zalati MKS MINI12864 LCD Colors Display Panel with Knob Support MarlinDIY with SD Card Holder Accessories for 3D Printer

• The SD card slot is placed on the front, making it more suitable for the chassis design. After inserting the slice file into the SD card, select the corresponding file on the LCD to print.
• Comes with an encoder, which can achieve parameter adjustment and file selection printing!

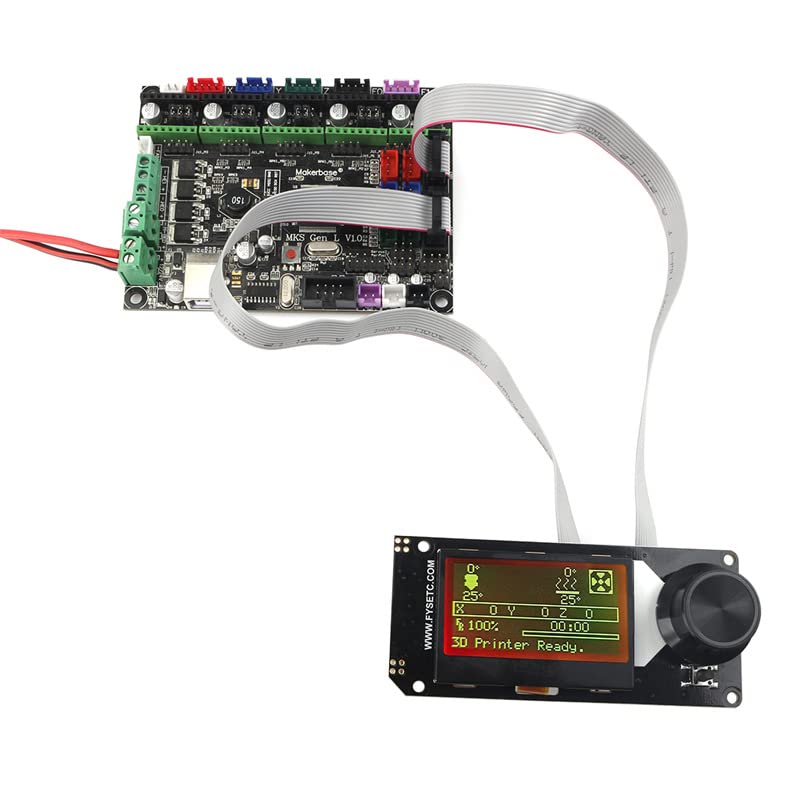

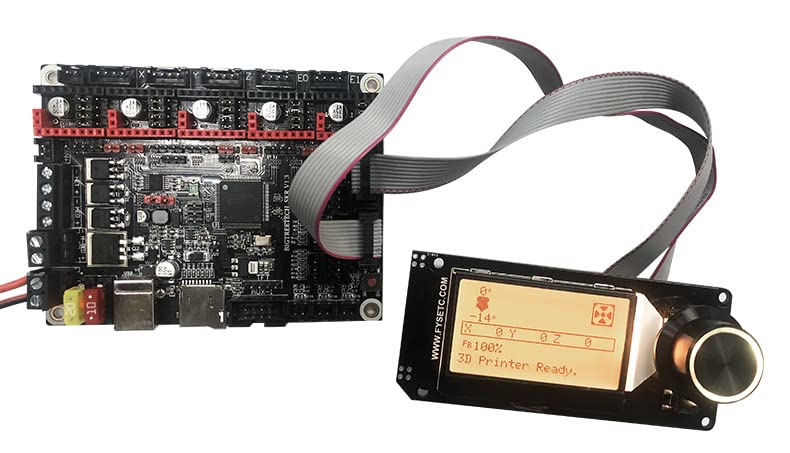

• Plug and Play on 2560 series motherboards, but firmware modifications are required to support it. (See pictures)
• Comes with a buzzer and operating tips
• Package content: MKS MINI 12864 LCD display * 1, Potentiometer knob * 1, FC flat cable * 2

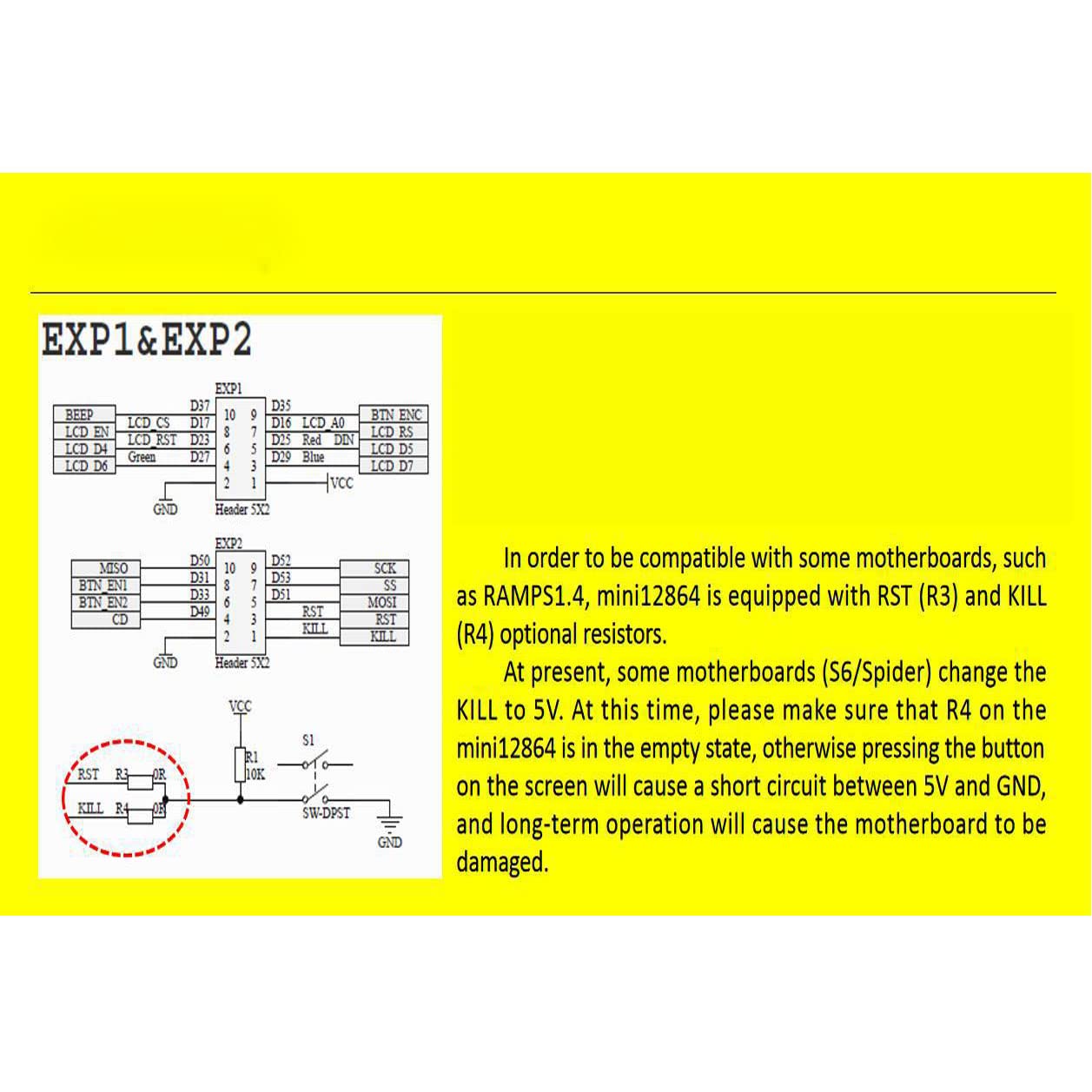

Description: In order to be compatible with some motherboards, such as RAMPS1.4,mini12864 is equipped with RST (R3)and KILL (R4]opticna resistors. At present, some motherboards (S6/Spider]change the KILL to 5V. At this time, please make sure that R4 on the mini12864 is in the empty state, otherwise pressing the button on the screen will cause a short circuit between 5V and GND, and long-term operation will cause the motherboard to be damaged. Size: 105 * 47 mm/ 4.1 * 1.9 inch Package: 1* zalati MKS MINI12864 LCD Colors Display Panel
