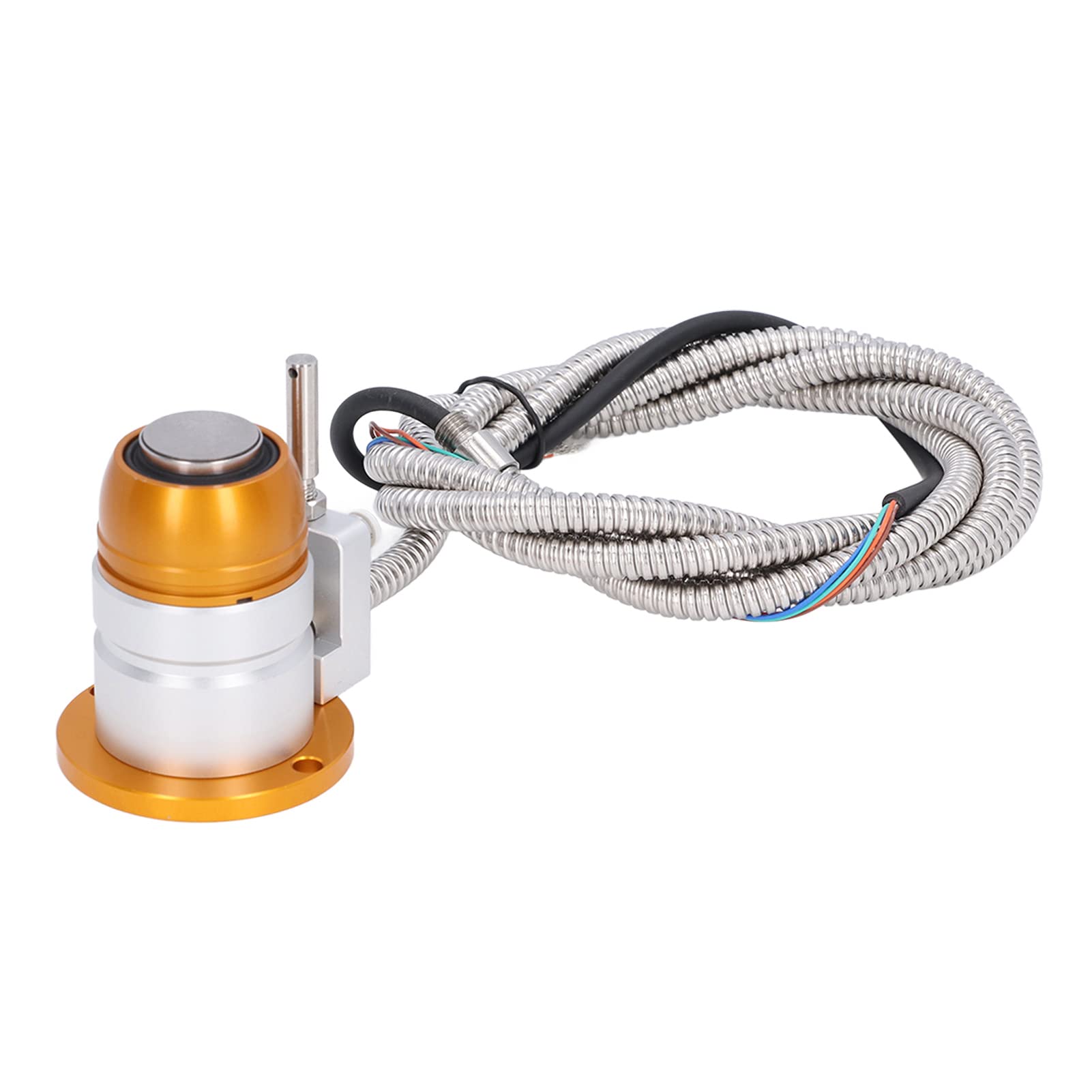

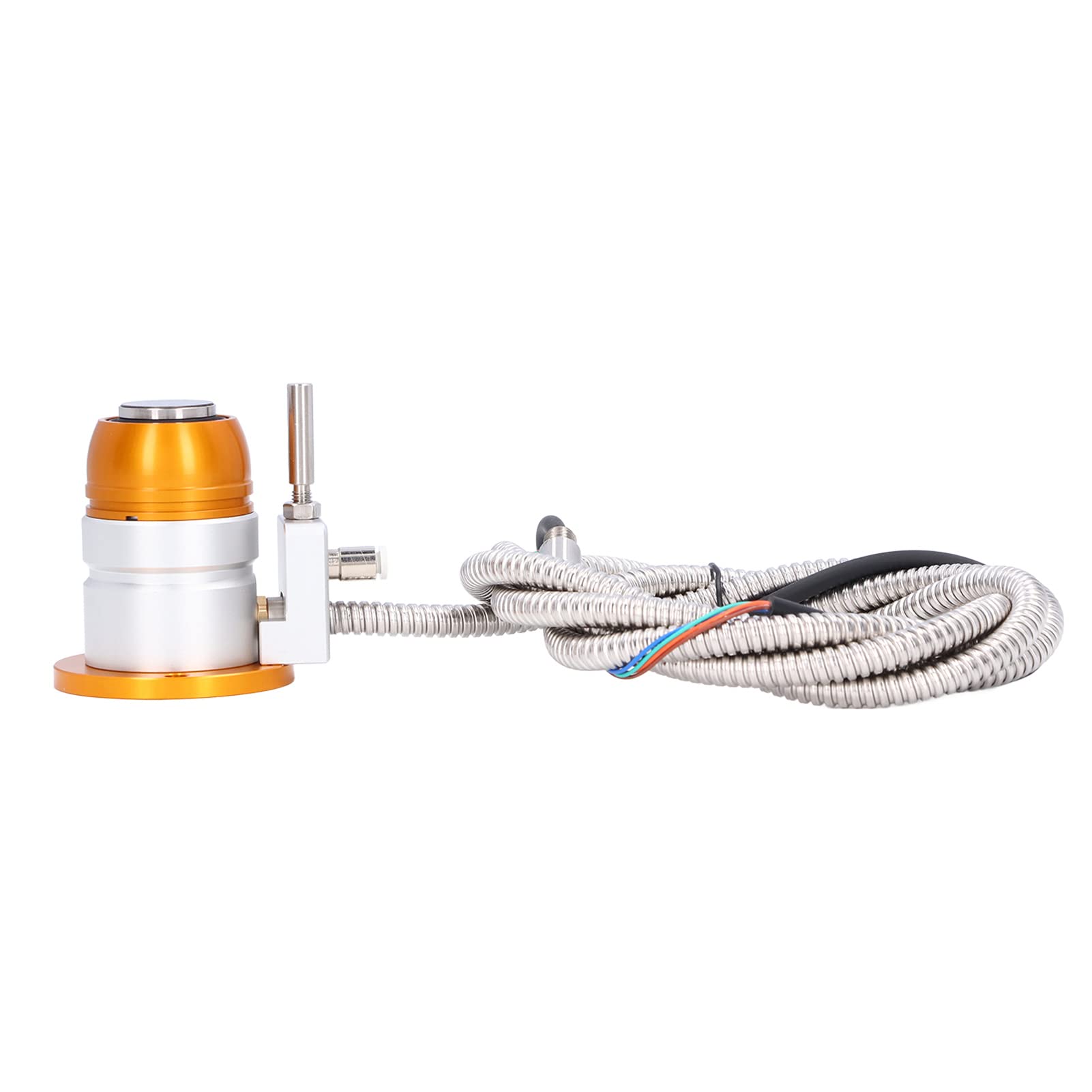

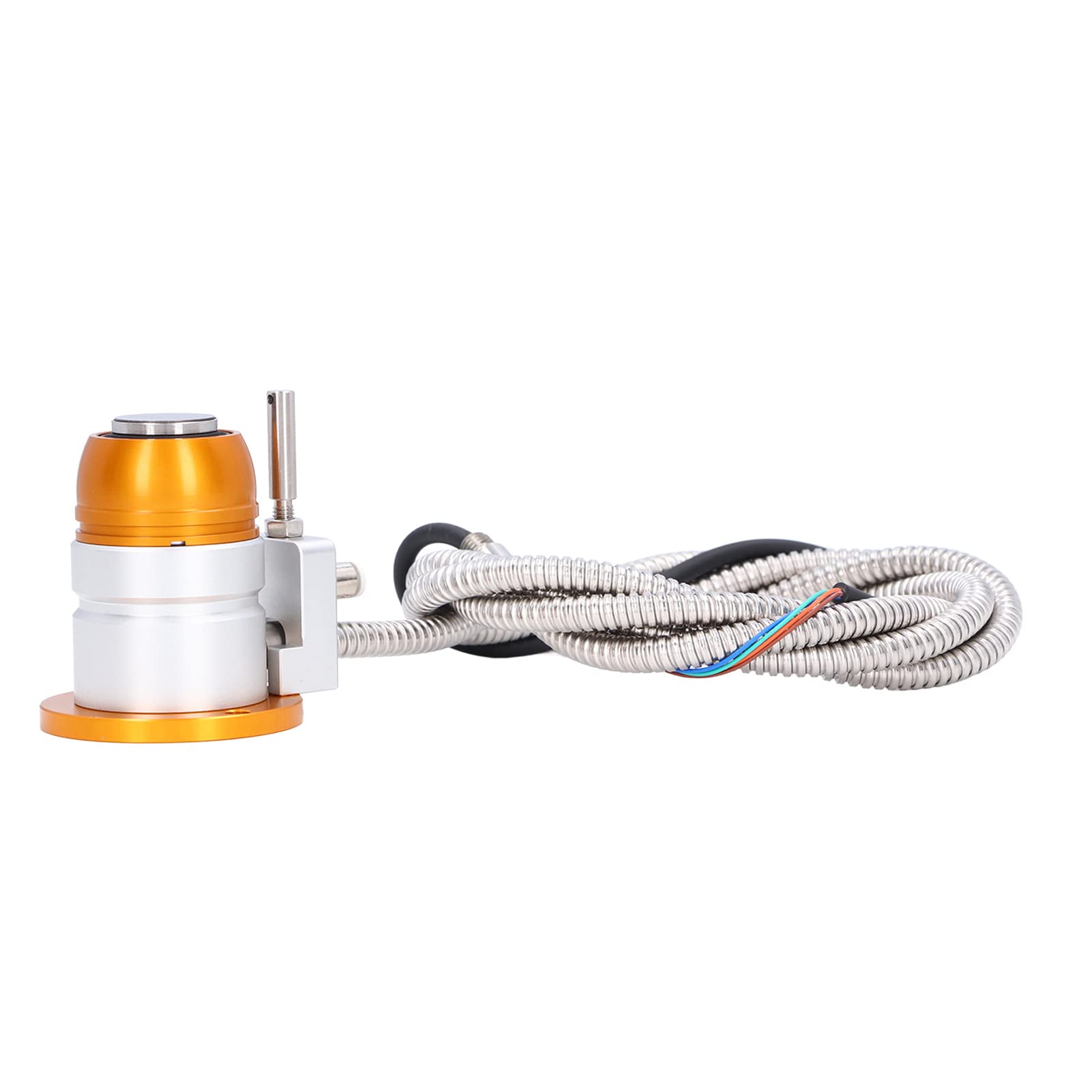

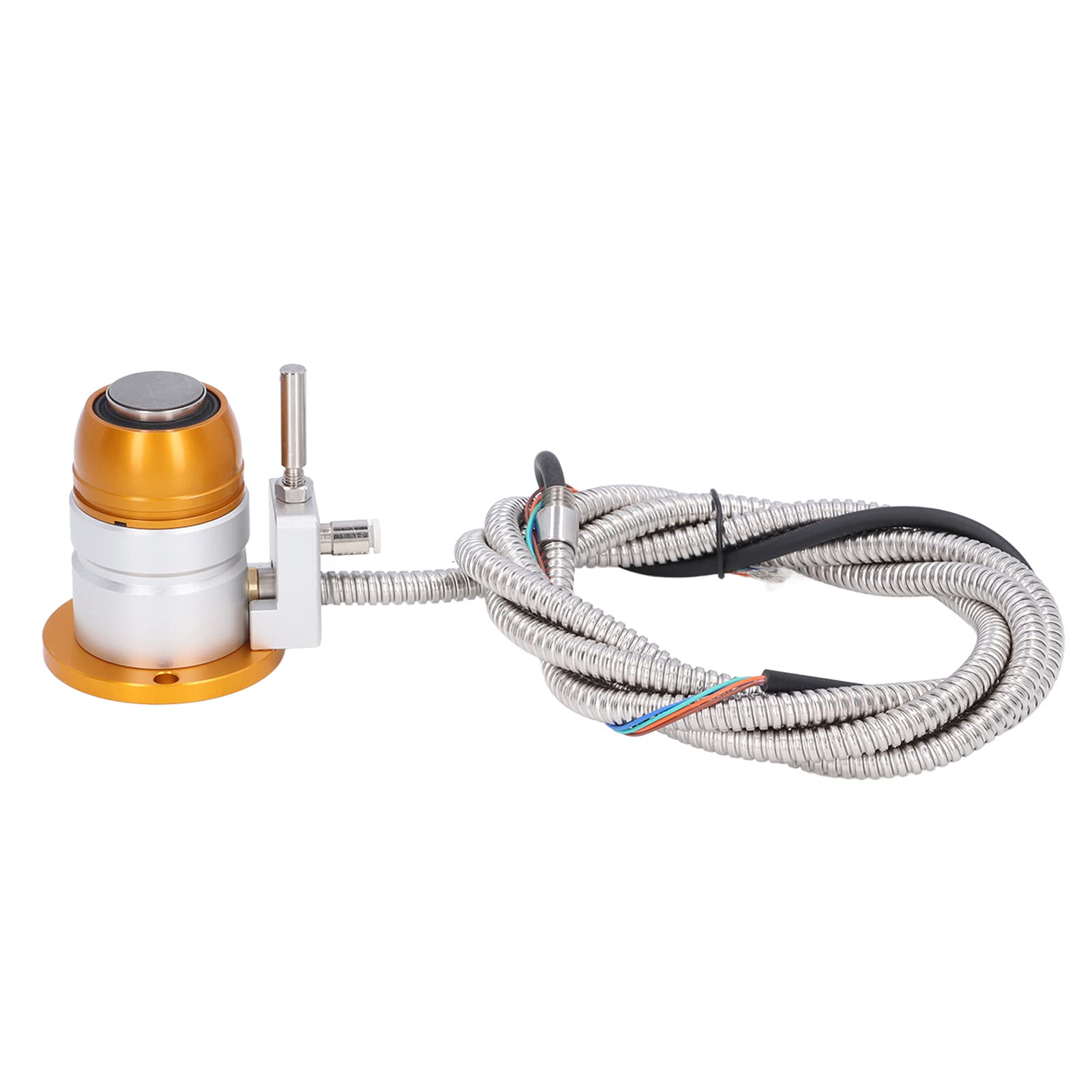

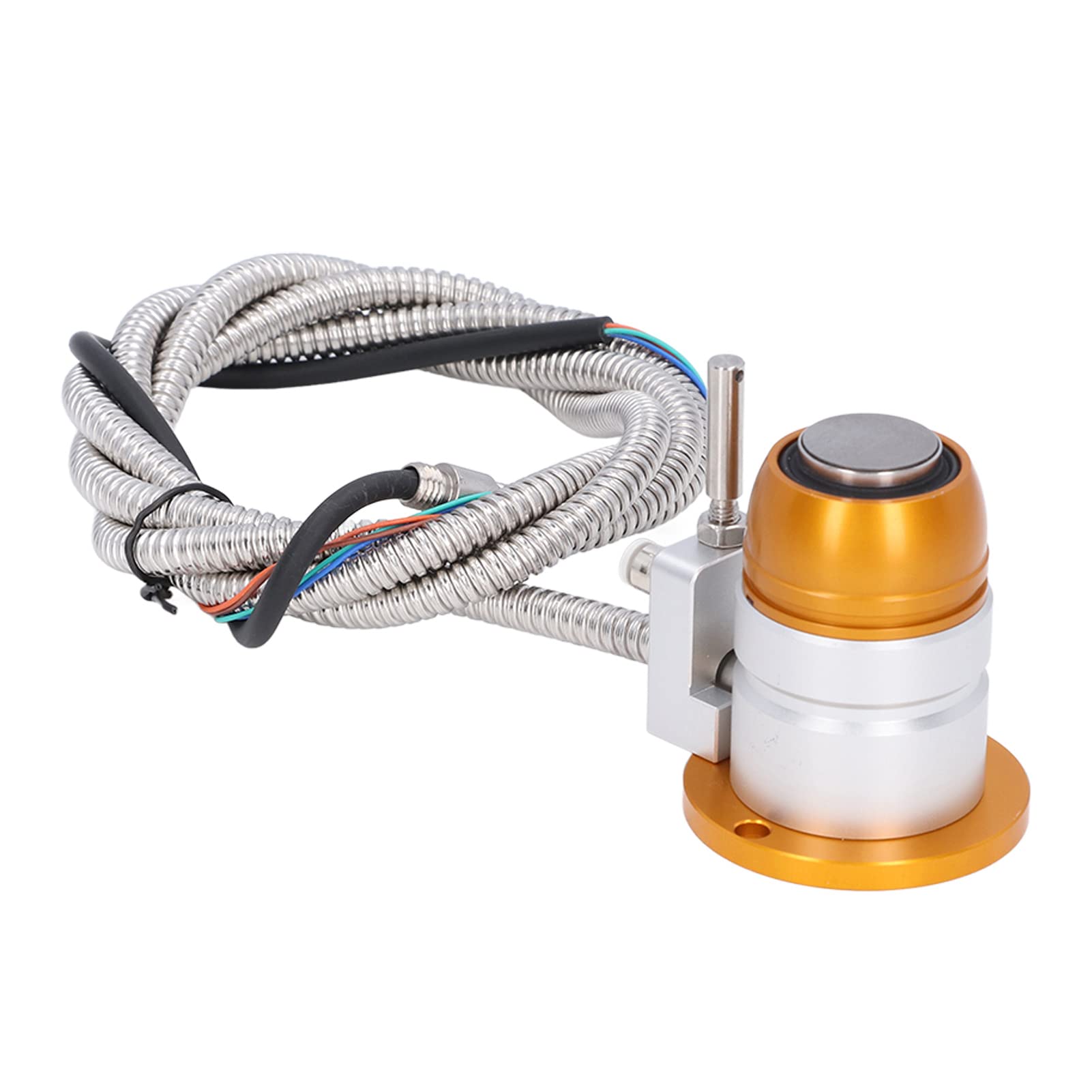

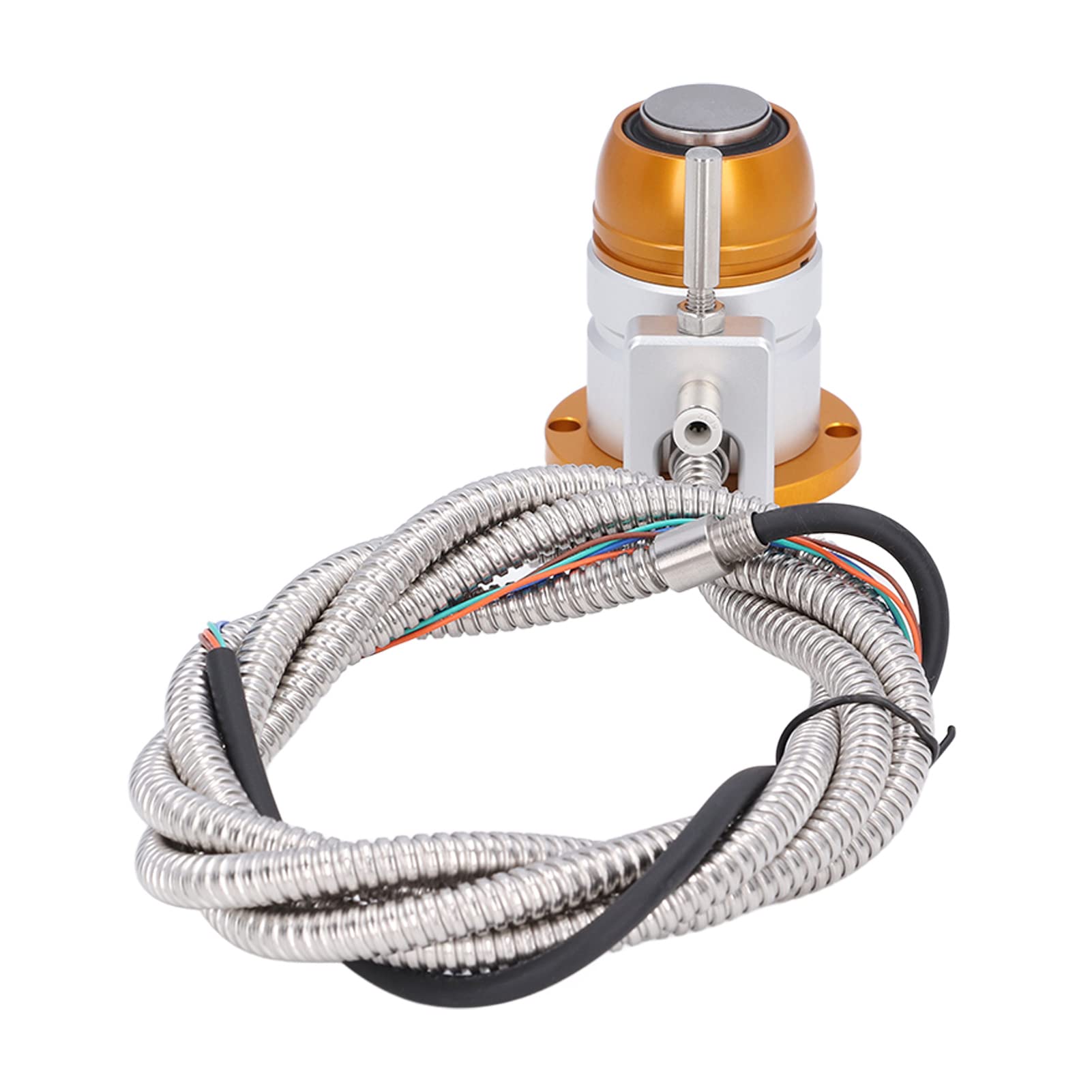

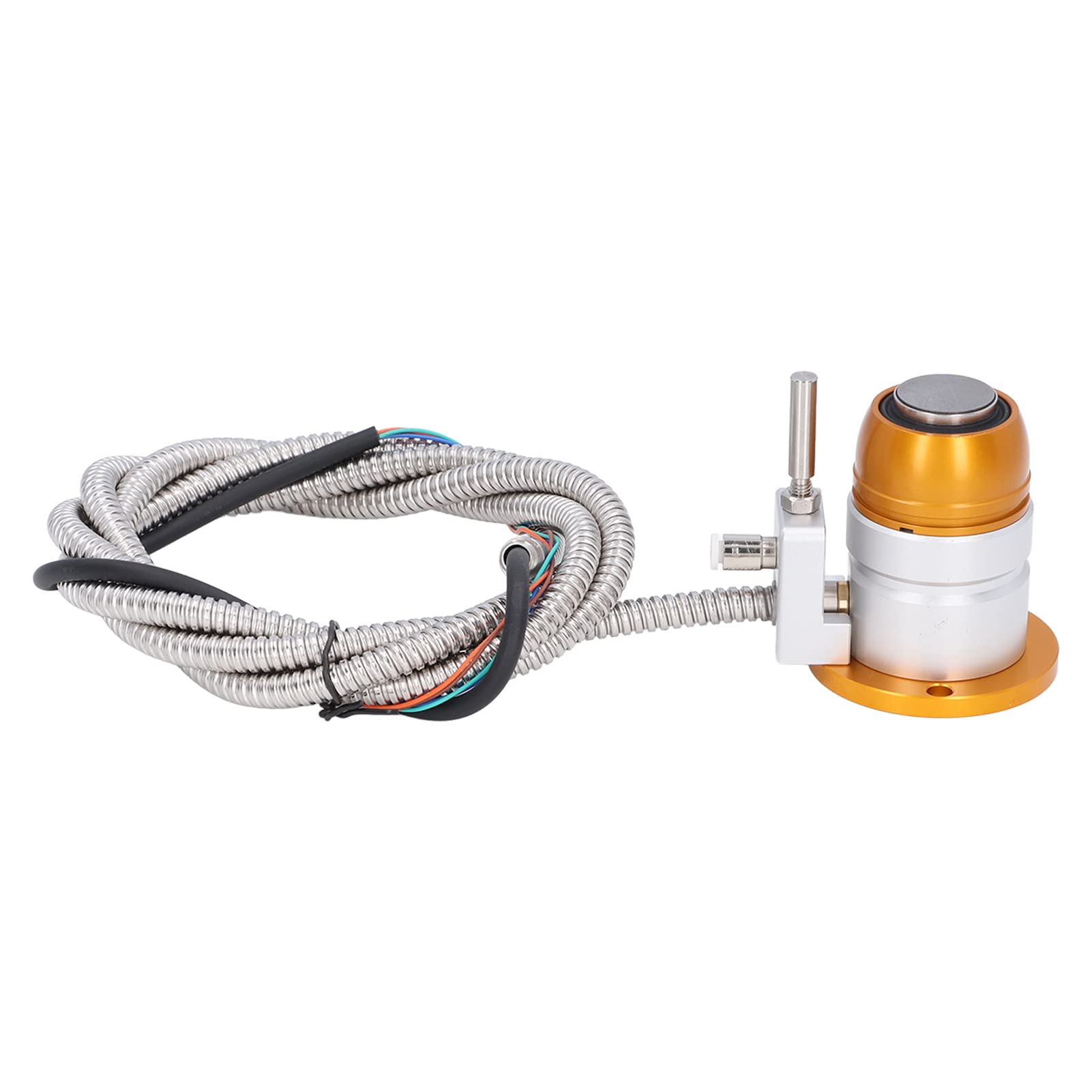

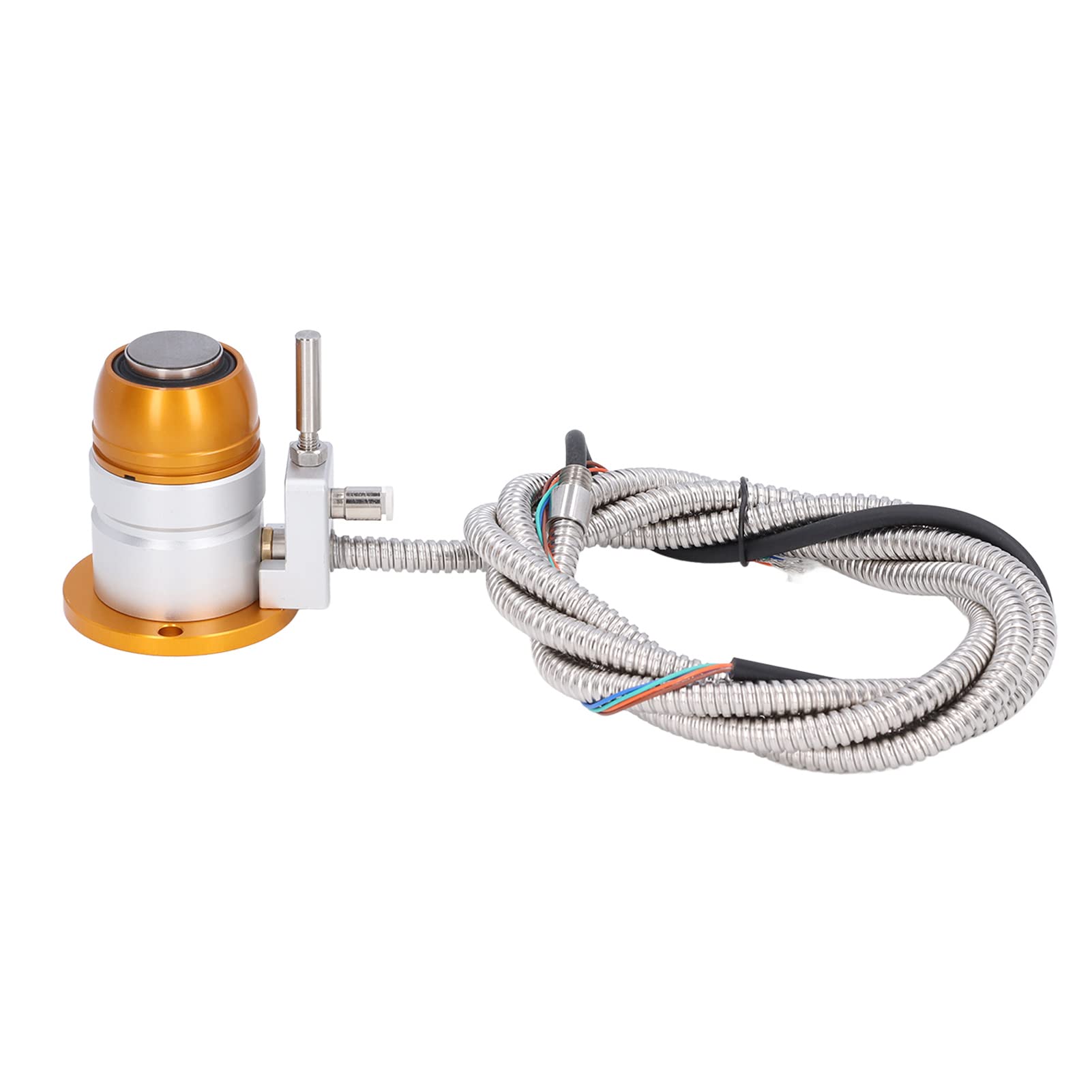

Z Axes Touch Tool Setter Normally Closed CNC Tool Setting Accessory High Accuracy Z Shaft CNC Engraving Accessory

• STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body.
• FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments.
• CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and against wear.
• FOR MOST CNC EQUIPMENTS: Z axes touch tool setter with normally closed output mode, with cable, and can be used with most CNC equipments.
• HIGH QUALITY MATERIAL: The tool probe is made of cemented carbide, with fine processing, hard.

Specification:Item Type: Touch Tool SetterProduct Material: Aluminum AlloyTool Head Material: Carbide AlloyProduct Model: MY20-20-2Voltage: DC 24VCurrent: 20MA (Maximum)Output Mode: NC (Normally Closed)Stroke: Approx. 5mm / 0.2inRepeat Positioning Accuracy: 0.001mmLife: 3 million timesContact Force: 1.5NTool Head Diameter: Approx. 20mm / 0.8inPackage List:1 x Tool SetterNote:1. Please control the tool setting speed at 50‑200mm/min.2. Ambient temperature range is 0‑80℃.3. Please control the voltage at DC24V and the current below 20MA.
