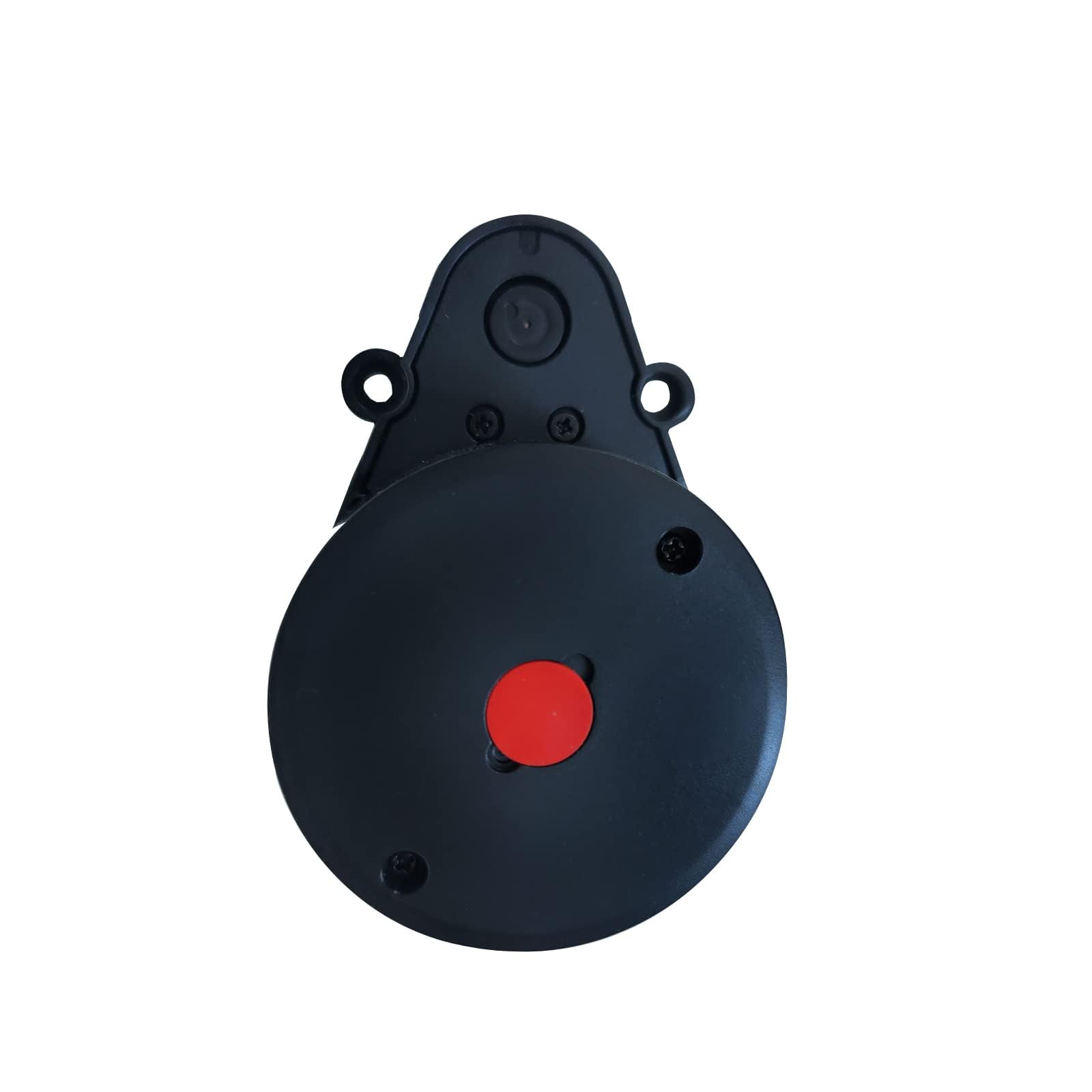

youyeetoo FHL-LD20 8 Meters 360 deg; Lidar Sensor, Provides Compatible with Raspberry Pi C/ROS1&2 Tutorial, triangulated LiDAR LD14P, Software Start-Stop Control (LD20 Lidar Kit)

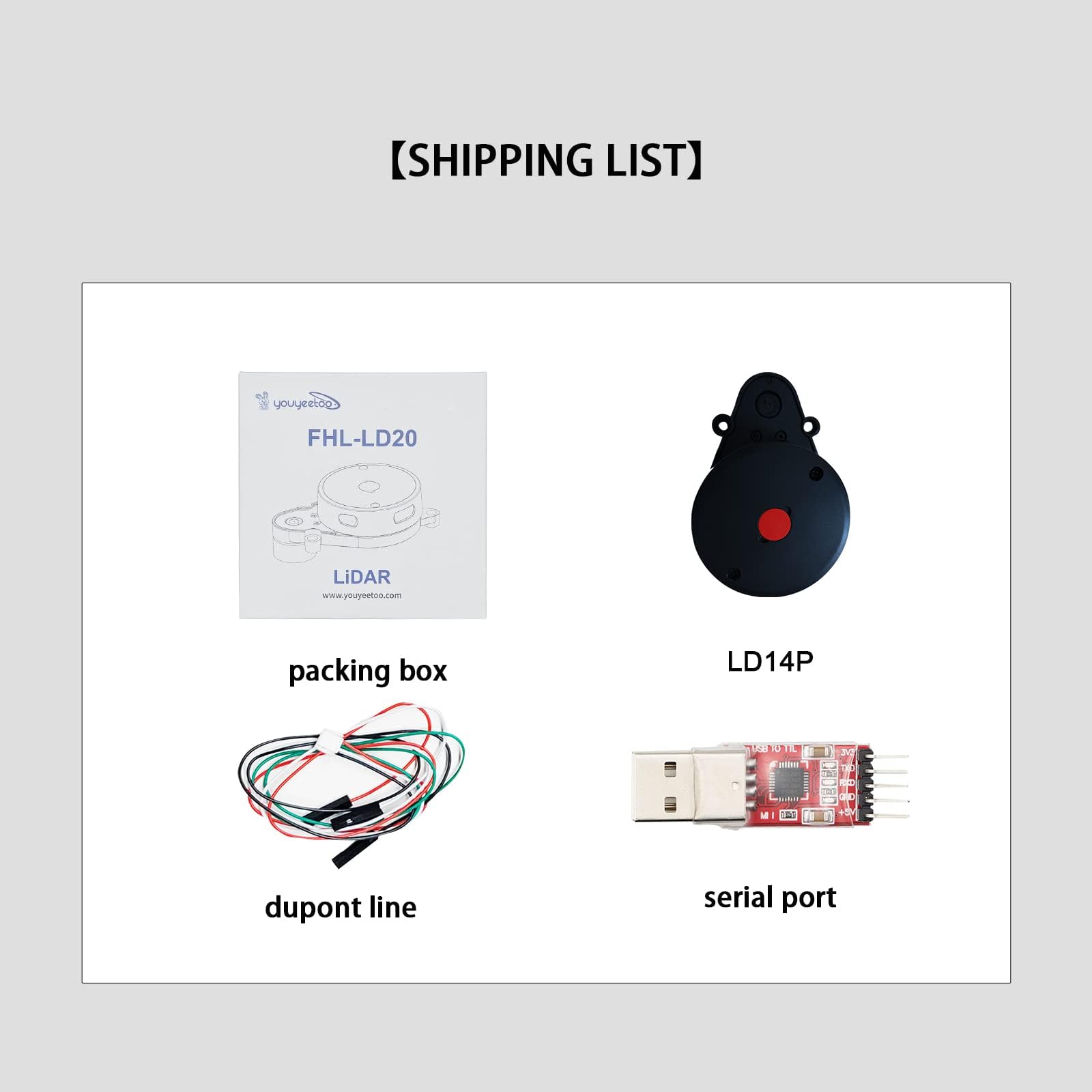

• [R&D kit is complete] The D200 lidar sensor kit comes with LD14P, USB TTL adapter and UART cable. Simplify use and development.
• [Thin, compact and stylish appearance] The LD14P lidar sensor has a thin and lightweight structure design, which simultaneously ensures performance, has a smaller size, lower power consumption and easier installation, and can be adapted to more types of robots and drones
• [8m radius range] The LD14 can capture the environment information in a larger area, which ensures the robot's ability to drive and map in a larger area and obtain more environment profile information
• Our LD14P lidar sensor supports a range frequency of 4000 Hz, making it easy to scan the outline of the scene within the range and realise fast and accurate mapping
• [wiki] wiki.youyeetoo.com/en/Lidar/LD14. If you have any questions, click on "youyeetoo" to ask them.

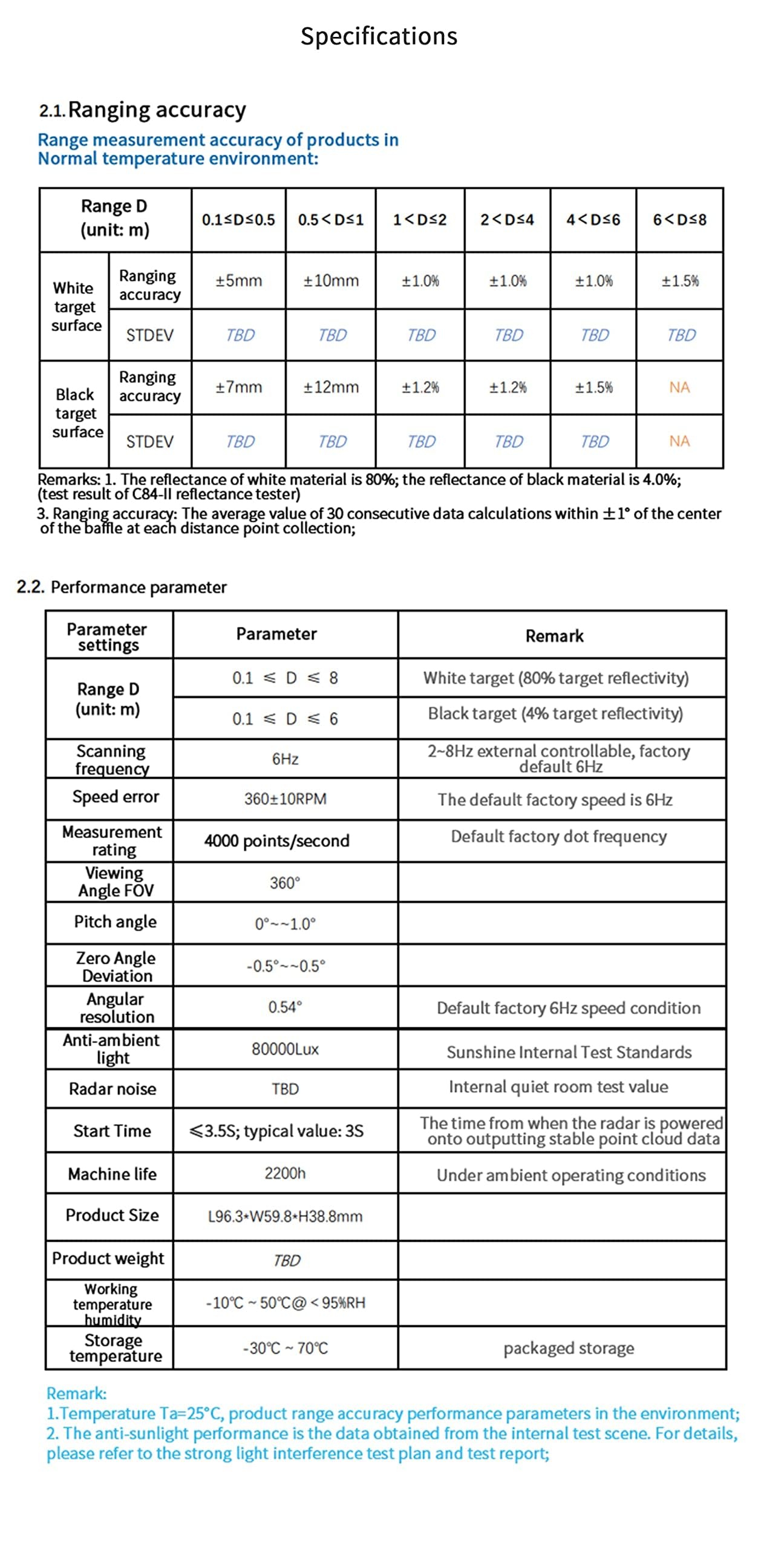

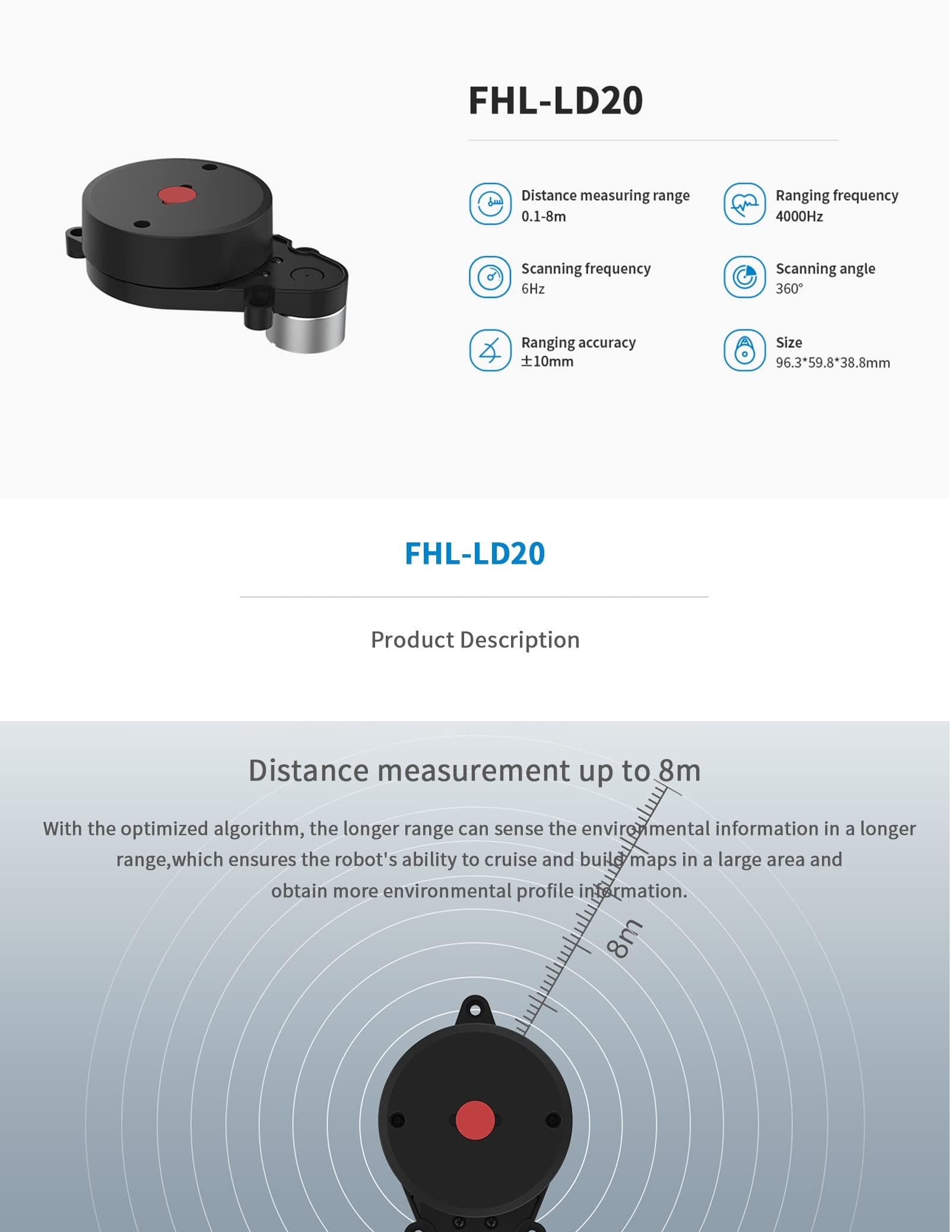

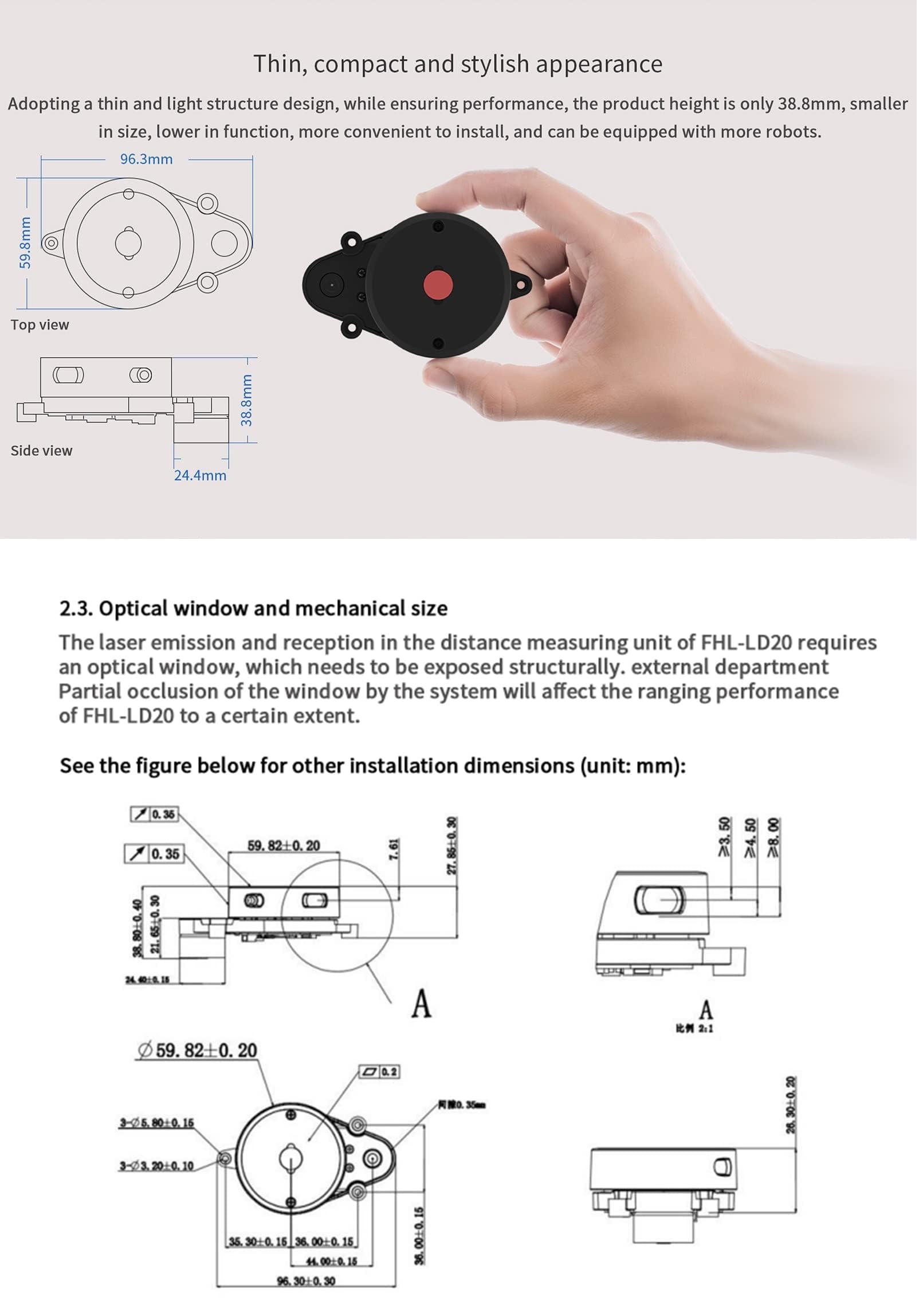

Specification: Model: LD20. Appearance: built-in belt, anti-tangle (hair, etc.) Size: 96.3 x 59.8 x 38.8 mm. Motor: brushed. Weight: 131g, compact and portable Scan frequency: 6 Hz. Range: 0.15-8 meters Range Frequency: 4000Hz Angle resolution: 1°. Scan angle: 360°. Laser safety class: FDAClass Box contents: 1 x triangulation LiDAR LD20. 1 x USB TTL adapter. 1 x serial cable.
