Young Wolf 10X RF U.FL IPEX IPX Mini PCI to SMA Female 4Inch 10cm Pigtail Antenna Cable RG-178 Coaxial Low Loss

• Plug Type: PEX/IPX to SMA Female (NO pin in center)

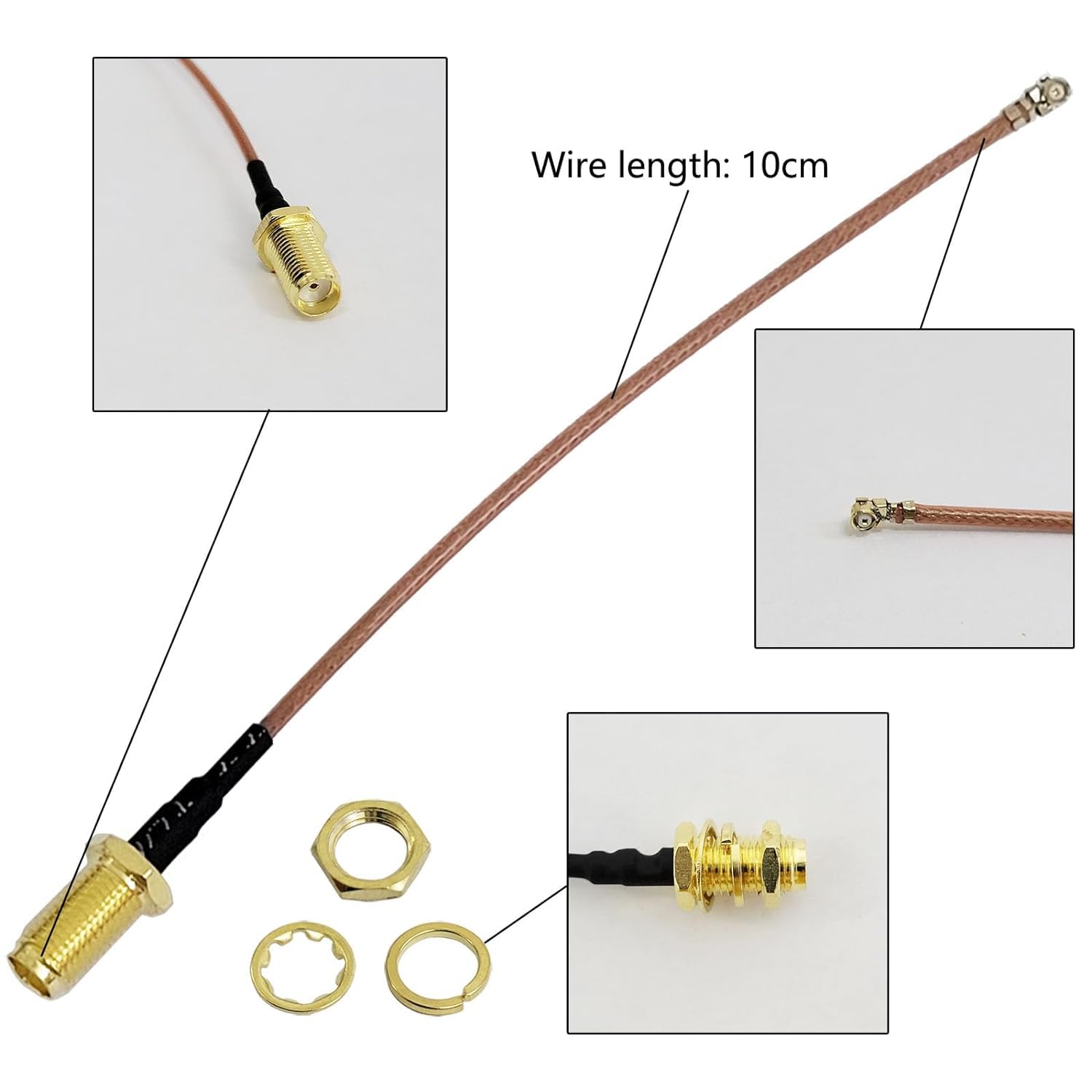

• SMA to IPX coaxial cable; Cable type: coax RG178; Connector material: pure copper; Cable length: 4inch(10cm); Impedance: 50 Ohm
• This product is widely used in Antenna Applications, lora module, Mini PCI, Bluetooth module, Wi-Fi Radios, GPS module, WiFi USB, wireless local area networks, PDA, drones, transmitters, electronic measuring instruments etc.
• Made of brass to ensure it's durability, recycling usage and good conductivity and signal transmission.
• Package includes 4pcs of U.FL Mini PCI to SMA Female Pigtail Coaxial Low Loss RG-178 Cable.

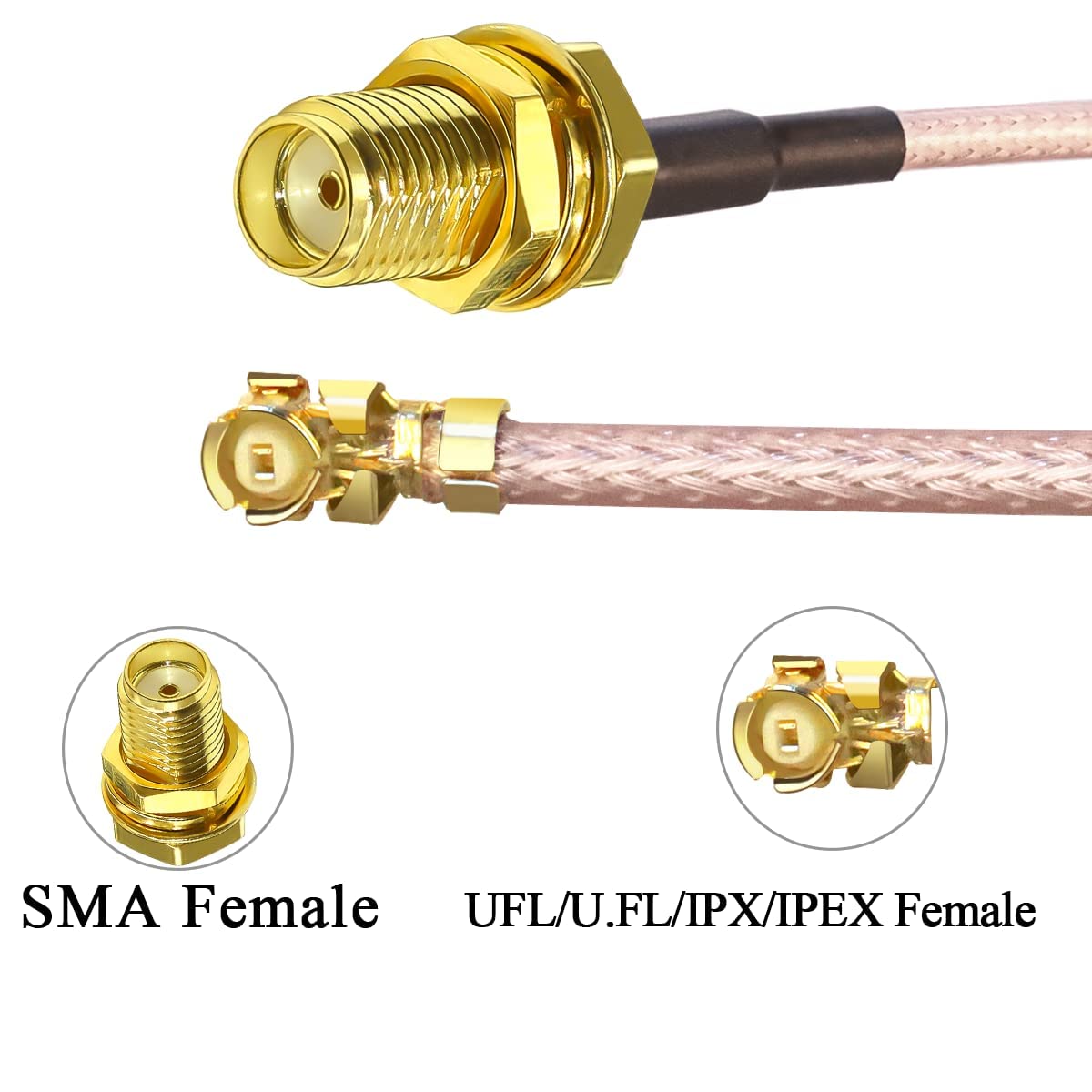

Specifications of SMA Female to UFL/U.FL/IPX/IPEX Extension Cable 10pcs of SMA Female to UFL/U.FL/IPX/IPEX coax cable 1: SMA Female connector 2: UFL/U.FL/IPX/IPEX connector Cable Type: RG178 coaxial cable Cable Length: 10cm Conductor Material: brass Frequency: DC-6GHz Impedance: 50 Ohm V.S.W.R.: ≤ 1.3 Voltage (breakdown):>500V Insulation Resistance: ≥ 500 M ohm Pull Test (Retention): ≥ 27 Kg (270N) Environmental Operation Temperature: - 40 °C ~ + 65 °C Storag Temperature: - 40 °C ~ + 80 °C
