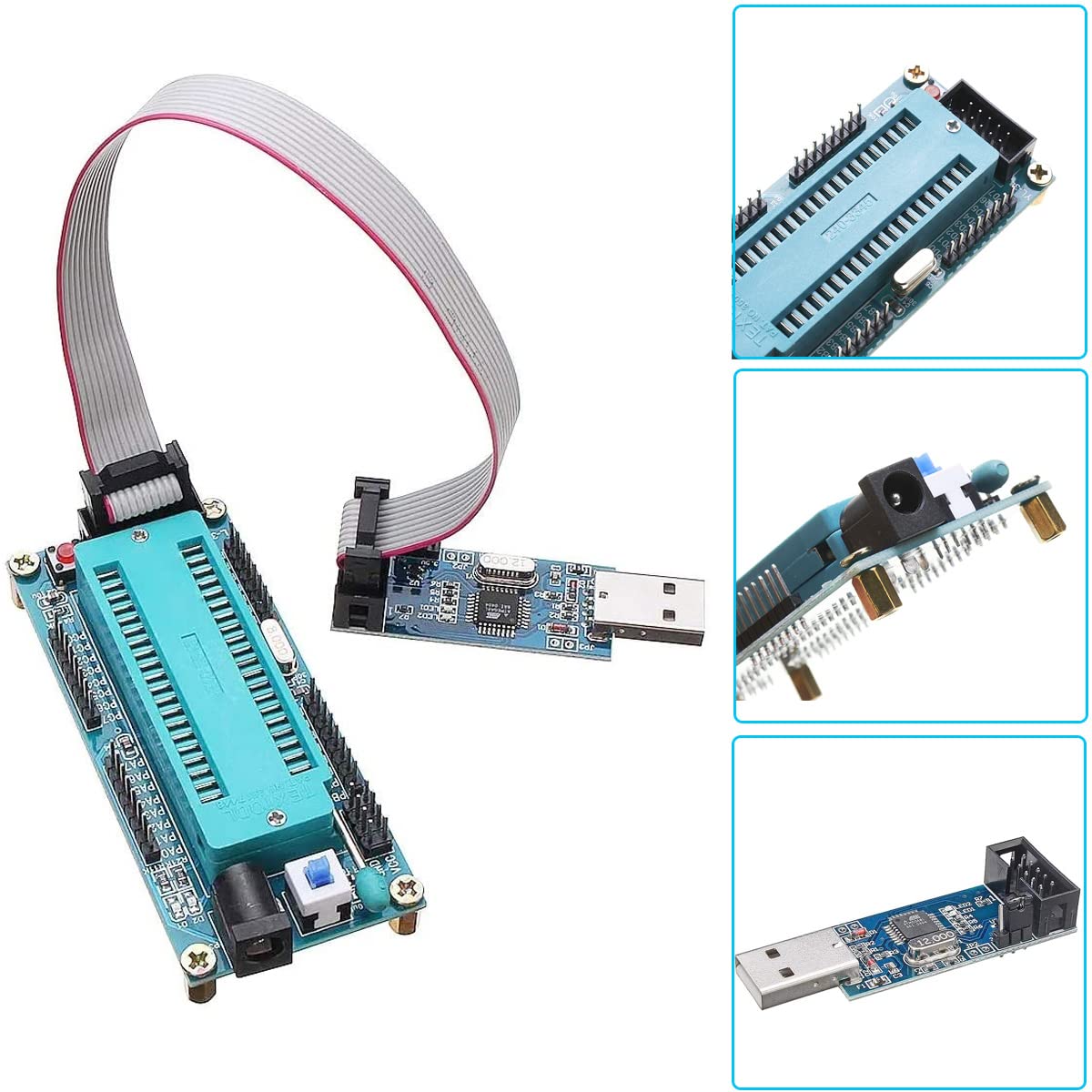

Youmile AVR ATMEGA16 Minimum System Board ATmega32 Development Board + USB ISP USBasp Programmer ISP ATTiny 51 Board with Download Cable DC male Cable for ATM

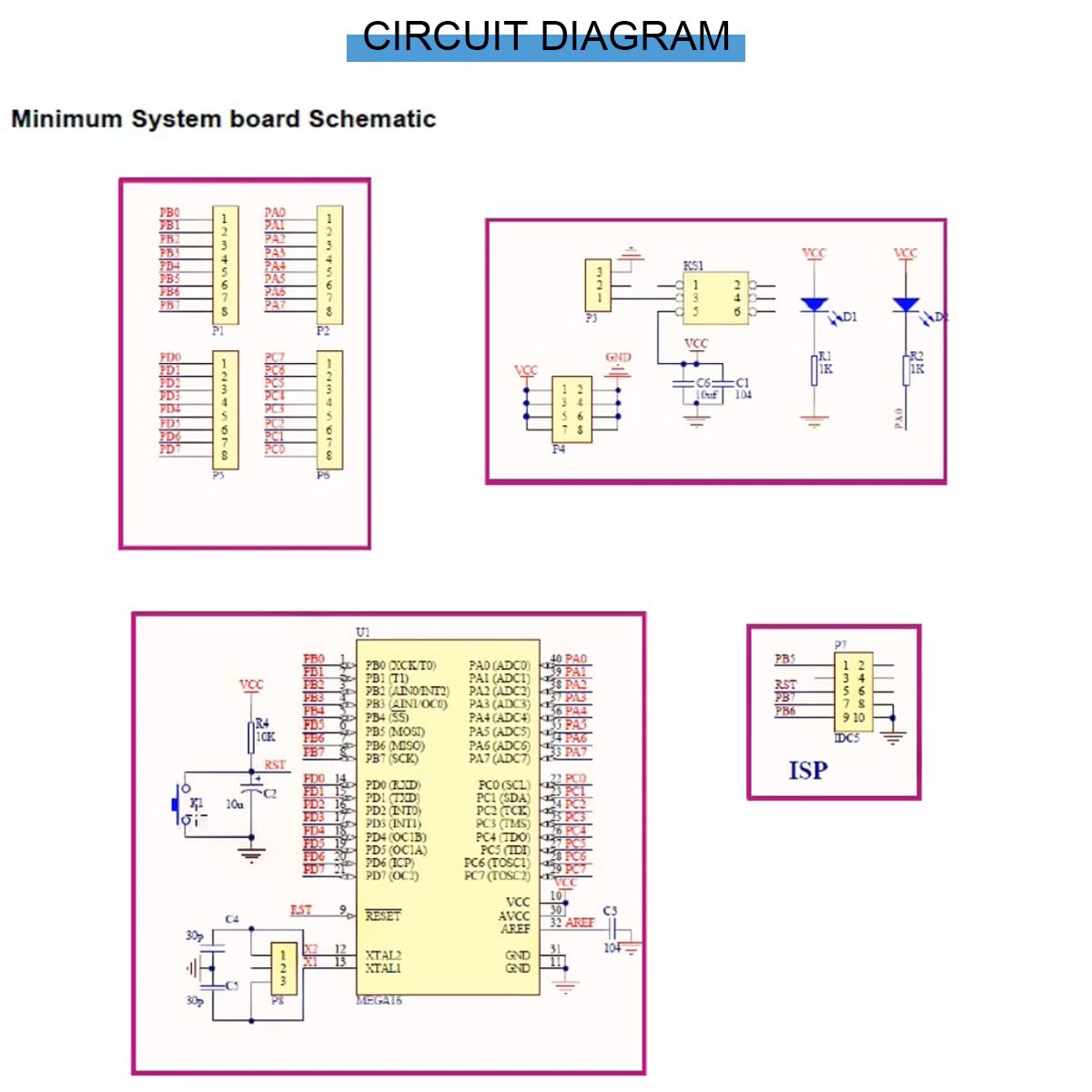

• 【No soldering】: Classic ATmega16 minimum system, eliminating the hassle of soldering.
• 【Protection】: The onboard over - current protection.The target board support 5 V and 3.3 V power supply
• 【Support chips】: ATmega16/ATmega32 and chip which pin-compatible.
• 【Power supply】: power adapter or external expansion pin power supply (not support ISP download interface power supply).
• 【Crystal】: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.

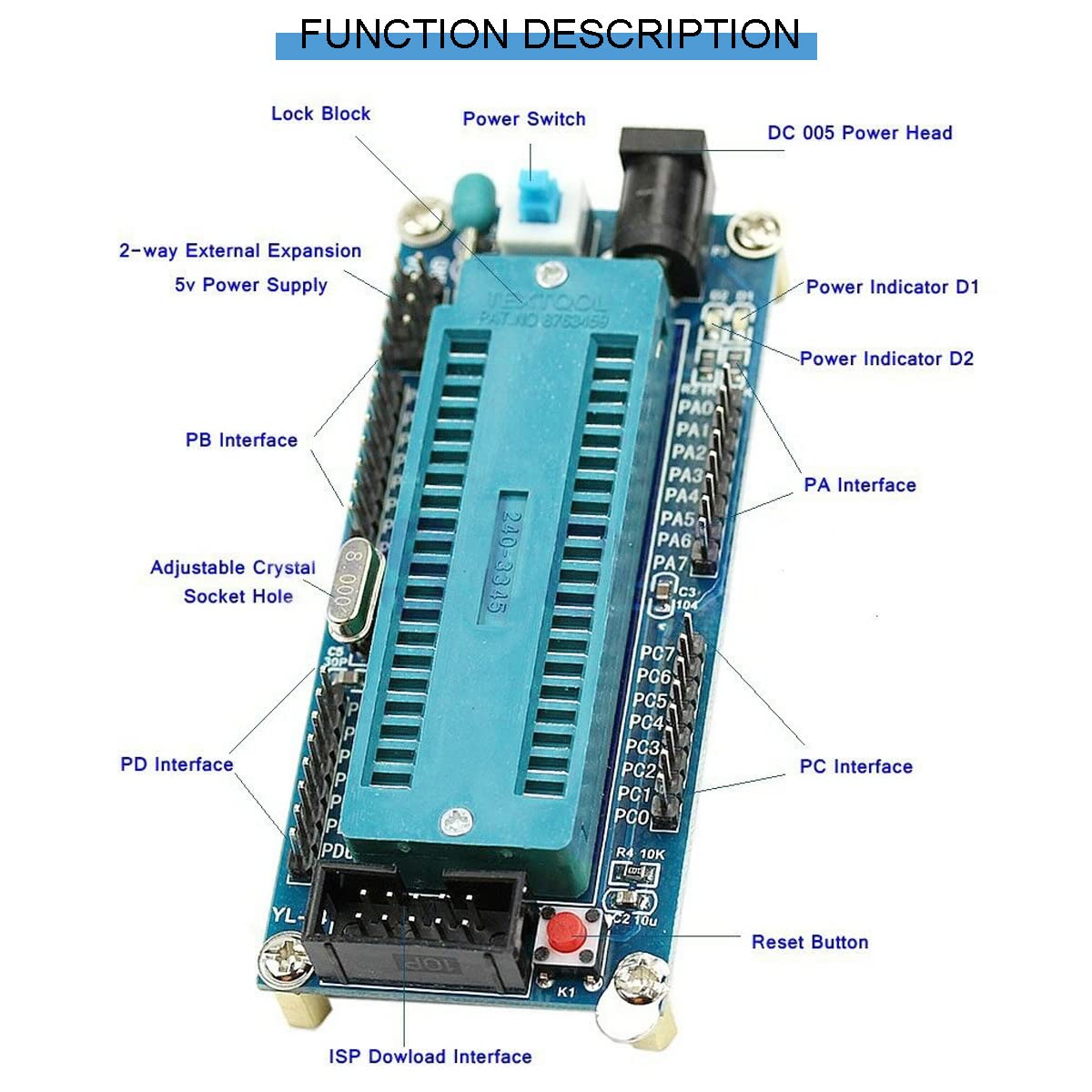

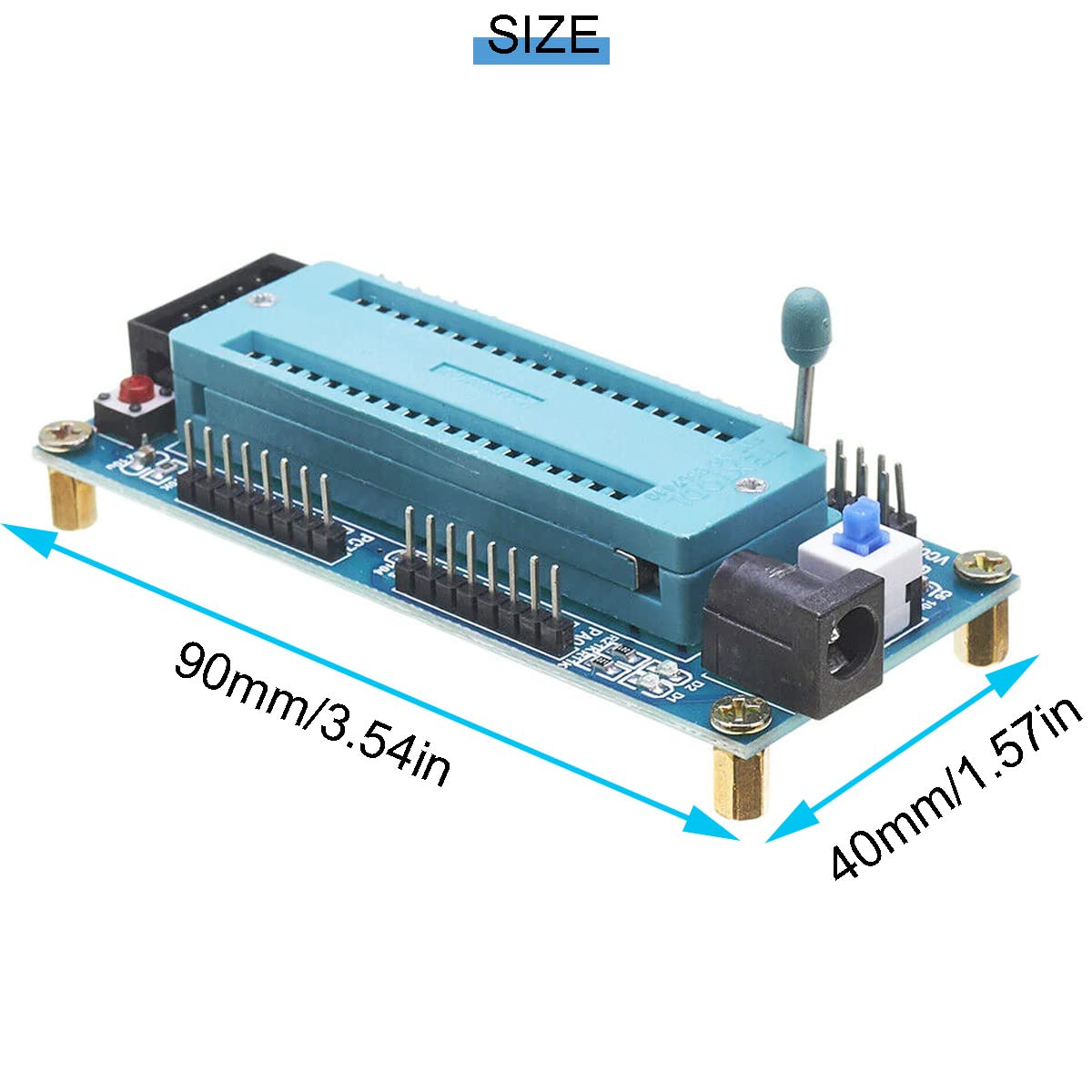

Product Description Description: 1. The onboard ATMega8 chip (L) 2. The onboard over - current protection 3. The target board support 5 V and 3.3 V power supply Specifications: 1. 32 I/O pin all the leads. 2. Classic ATmega16 minimum system, eliminating the hassle of soldering. 3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal. 4. Support chips: ATmega16/ATmega32 and chip which pin-compatible. 5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply). 6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm). 7. Expand outside 4 channel VCC, GND. 8. Reset: Power-on reset and reset button. 9. Power LED (D1) and the program run indicator (D2). 10. Standard ISP download interface. 11. Size: 88mmx38mm/3.47"x1.49"(inch) (approx) List of Supported Chips: 51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252 AVR Series: ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), etc. Package includes: 1 x AVR ATMEGA16 Minimum System Board 1 x USB ISP USBasp Programmer 1 x Download Cable 1 x DC male Cable
