Youmile 5PCS DC-DC Buck Converter 6-24V 12V 24V to 5V Car USB Charger Module 3A Step-Down Voltage Regulator Power Supply Module with 24AWG Wire

• Input voltage: DC 6-24V; Output voltage: 5.1-5.2V; Output current: 3A MAX (long time use 2.1A)
• Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%.
• With output overvoltage protection, There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device; Input with reverse polarity protection diode, will not damage when input connect incorrect; Output short circuit protection: Yes, but please do not short circuit for a long time.
• Provide a regulated 5V USB output to charge your for most of phones.
• Package Content:5 x DC-DC Buck Converter 6-24V 12V 24V to 5V, 1 x 19.6inch/50cm 24AWG Wire

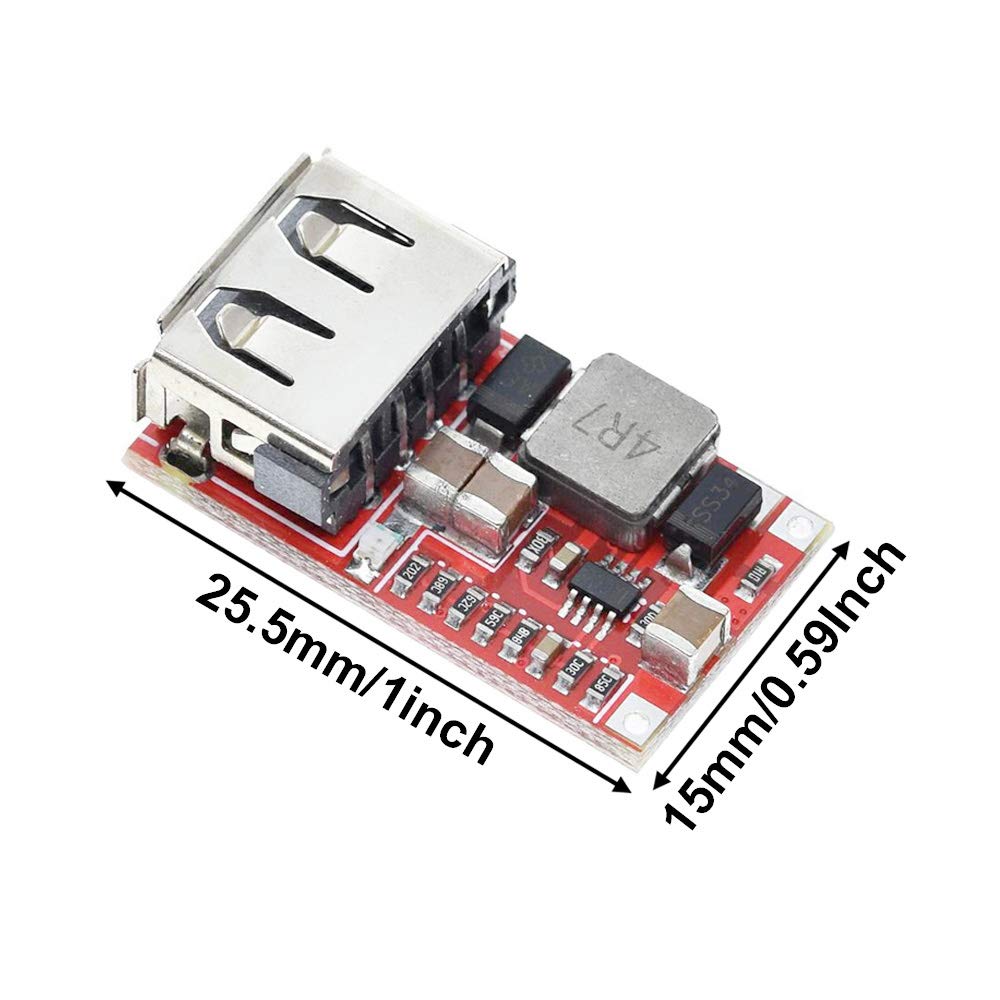

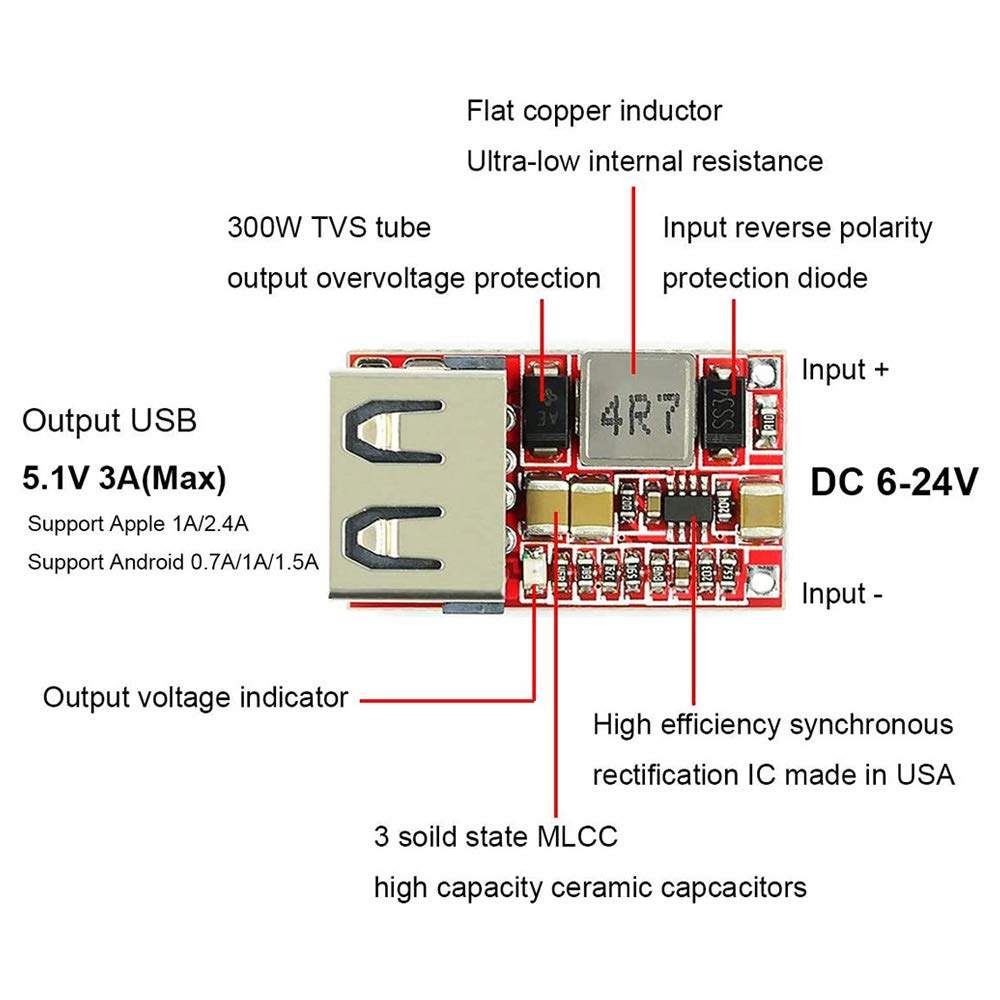

Description: 1.The max output current 3A, long time use 2.1A, enough use 2.New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple 3.Flat copper inductor, improve conversion efficiency 4.With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB devic 5.High quality USB port 6.Output voltage indicator (RED) 7.Small size, 26.4 (L) * 15 (W) * 7.4 (H) mm 8.Input with reverse polarity protection diode, will not damage when input connect incorrect 9.Ultra-low static current, 0.85 mA only. Do not need to add swith when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable. Parameters: Module Properties: non-isolated buck module (BUCK) synchronous rectification Input voltage: DC 6-24V Output voltage: 5.1-5.2V Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation. Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value) Switch frequency: 500KHz Output ripple: 10mV around (12V to 5V3A) 20M bandwidth Output indicator: Output voltage indicator is red Operating temperature: Industrial grade (-40C to + 85C) (the higher the ambient temperature, the lower the output power) Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection. Static current: 0.85 mA Dynamic response speed: 5% 200uS Output short circuit protection: Yes, but please do not short circuit for a long time Input reverse polarity protection: Yes, there is reverse polarity protection diode Output mode: USB Package Included: 5 x DC-DC Buck Converter 6-24V 12V 24V to 5V 1 x 19.6inch/50cm 24AWG Wire
