Youmile 5PACK piezoelectric ceramic vibration sensor piezo 3.3V/5V Module Analog Controller Electronic Components Supplies Sensor for Arduino with Dupont Cable

• Interface Type: Analog Output.

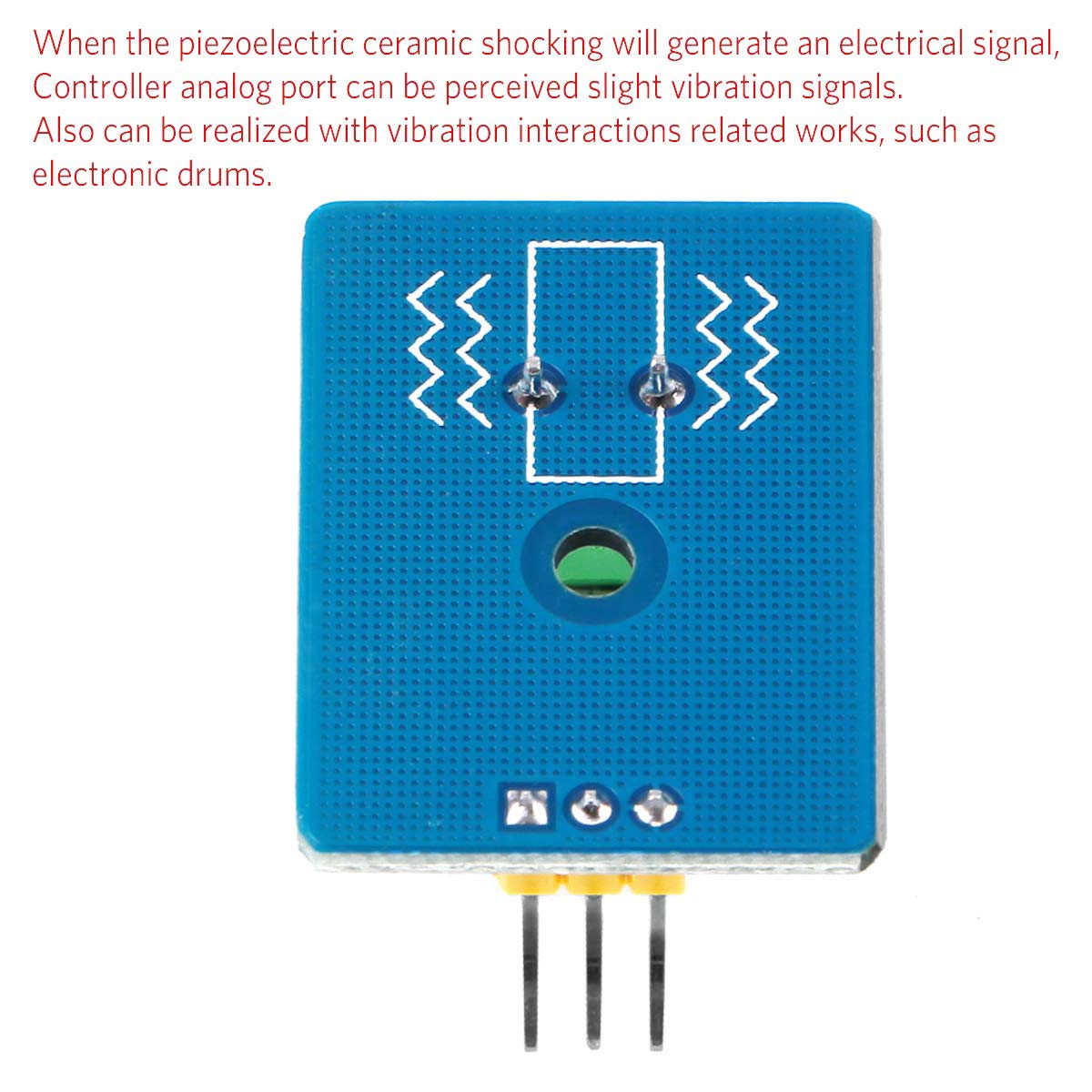

• When the piezoelectric ceramic shocking will generate an electrical signal, controller analog port can be perceived slight vibration signals, also can be realized with vibration interactions related works, such as electronic drums.
• Working Voltage: 3.3V or 5V. Working Current: 1mA.

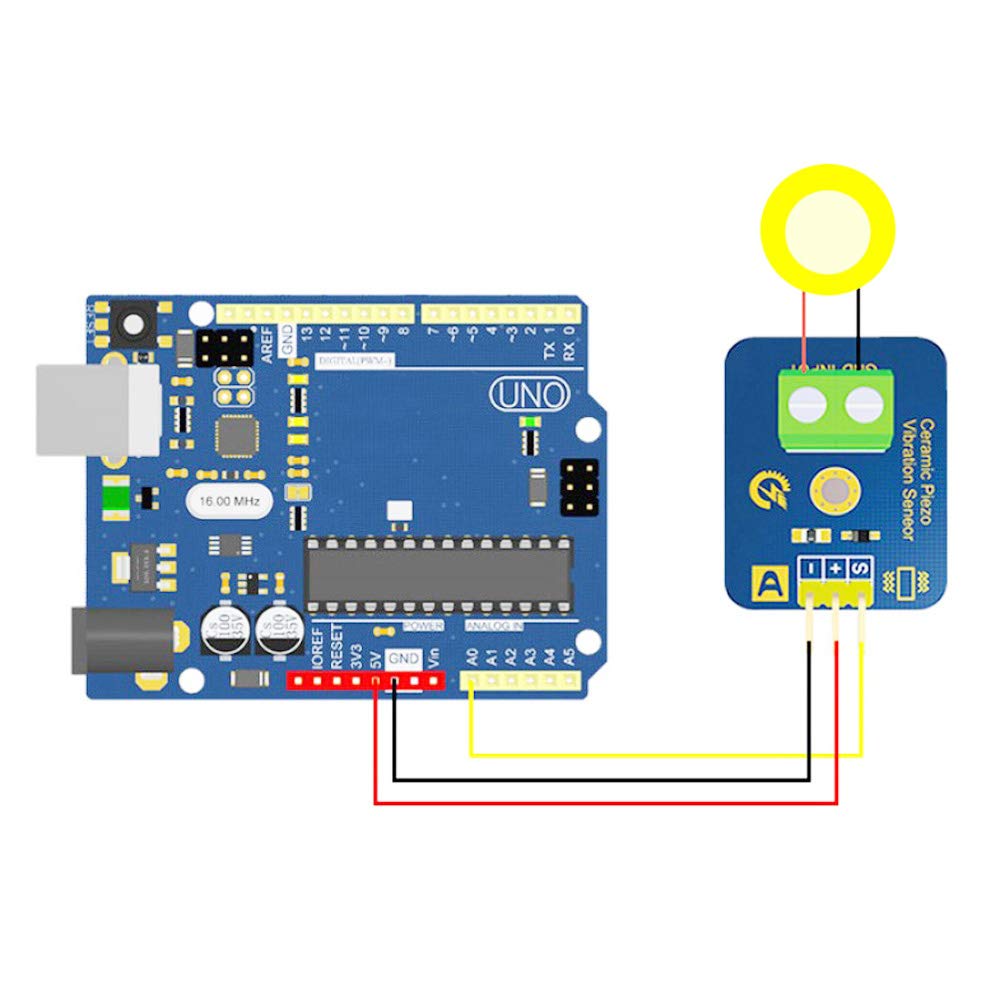

• Please connect analog voltage ceramic vibration sensor to the UNO controller's analog port A0 in accordance with the procedure, then observe the output value of serial port when the vibration degree is different, it can realize interactive works related to the vibration.
• This Ceramic Piezo Vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is proportional with the strength of vibration. So you can know the extent of vibration. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.

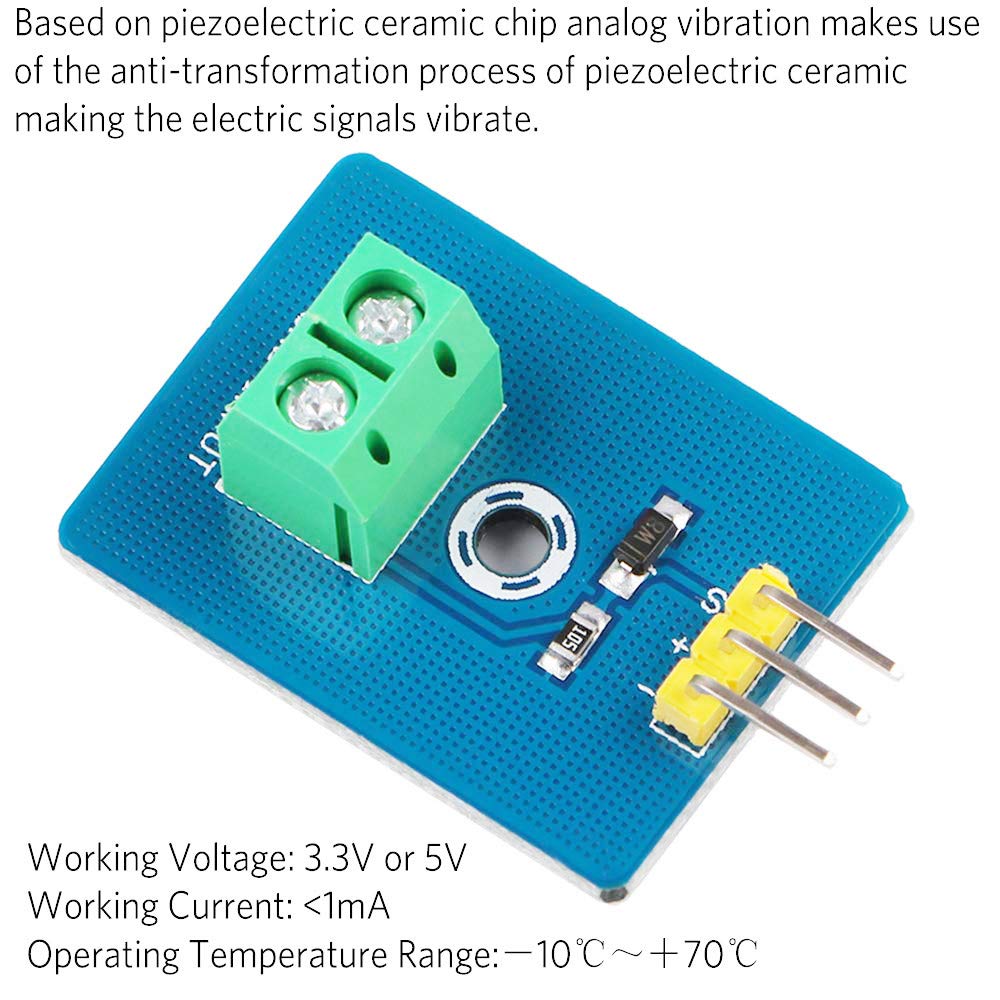

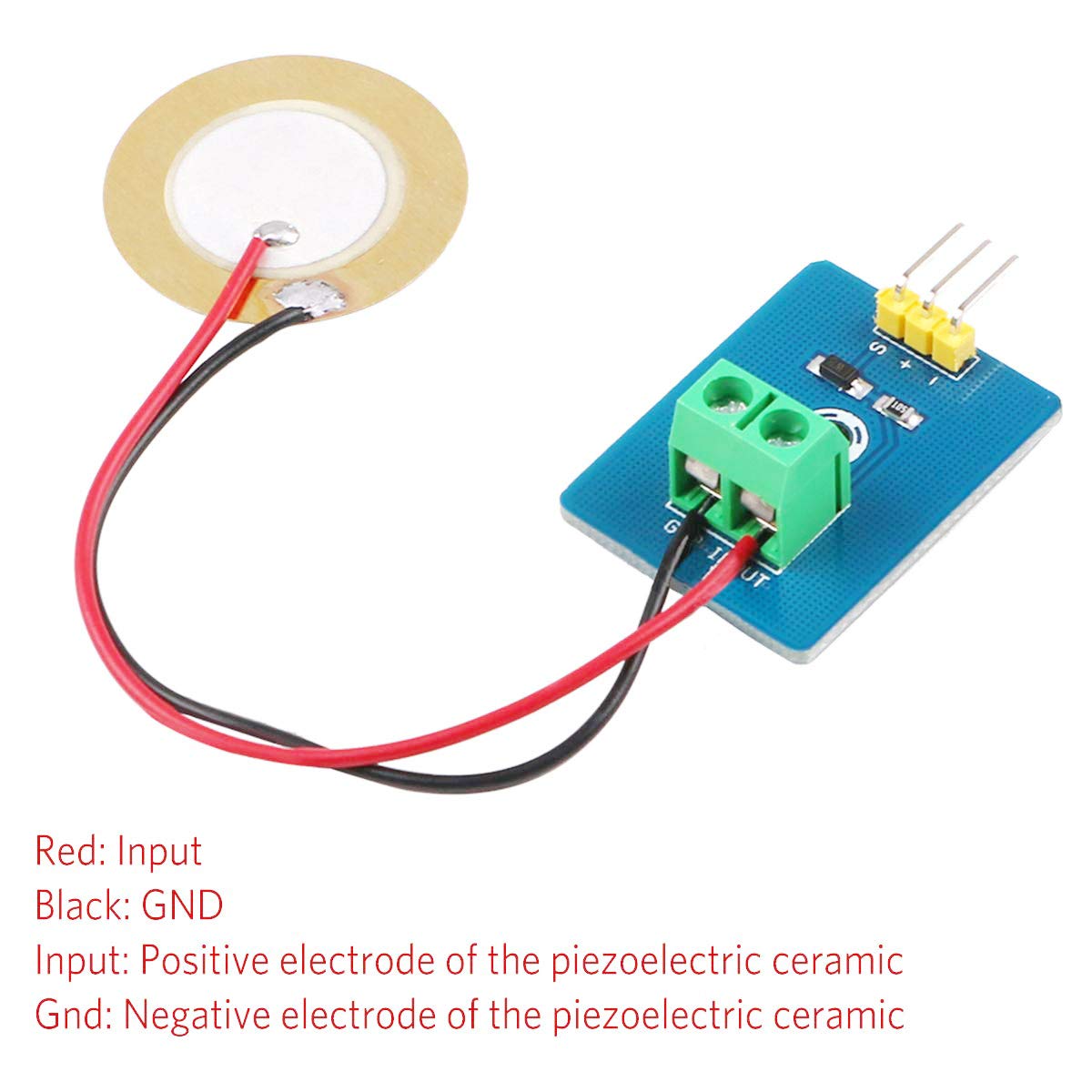

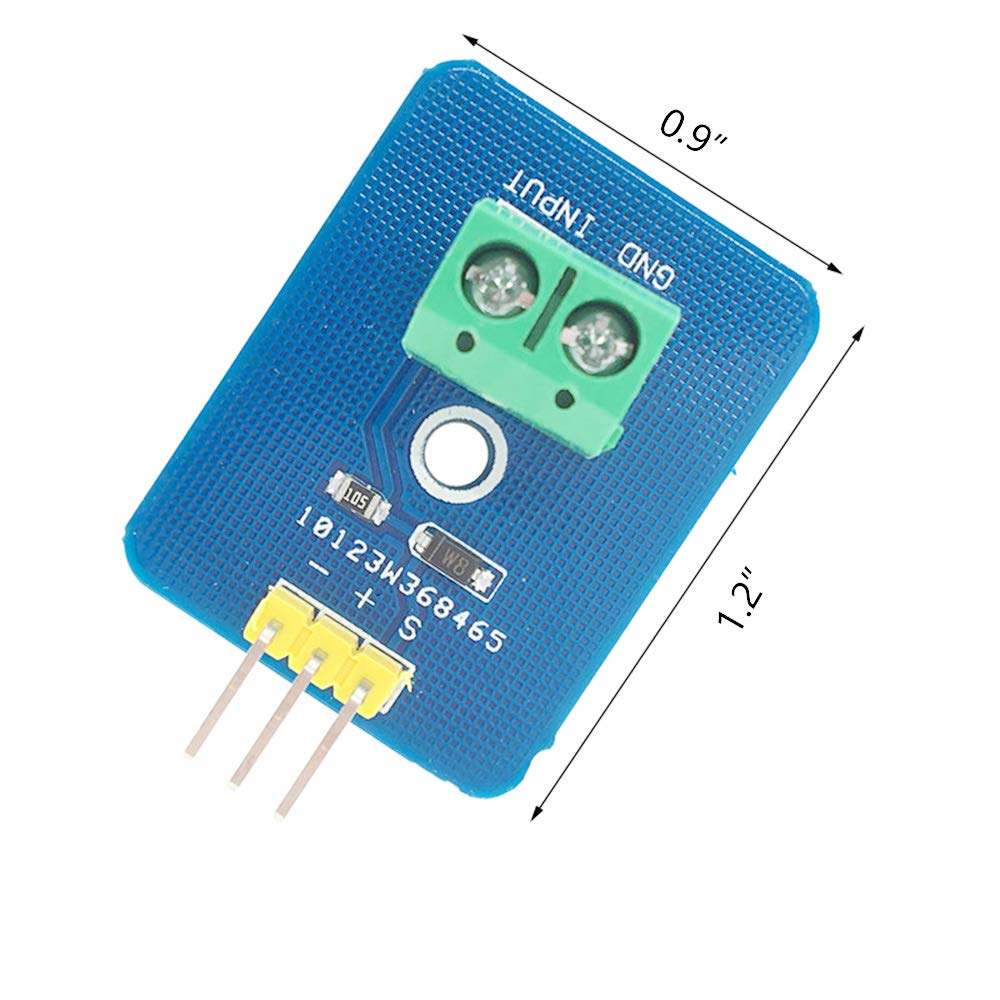

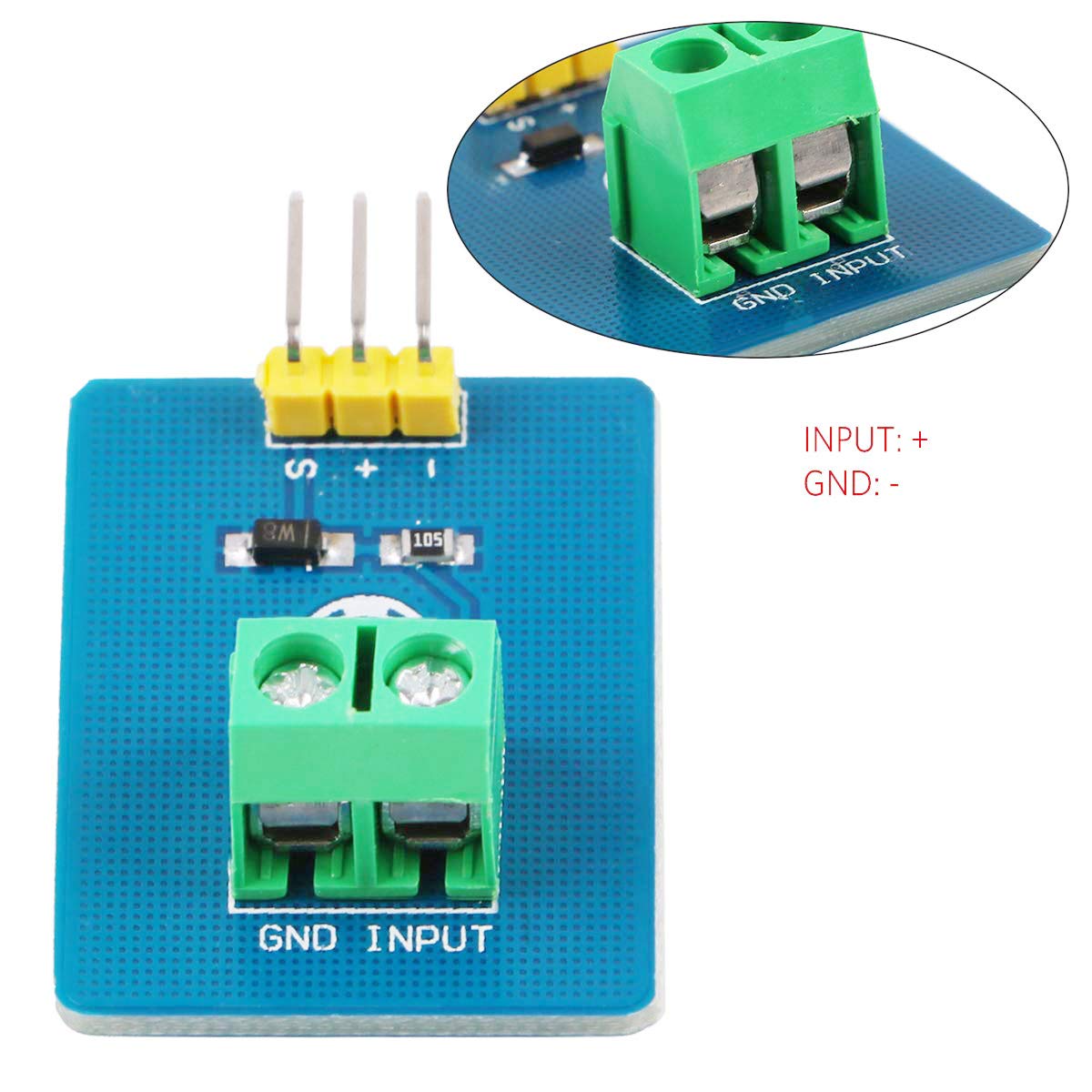

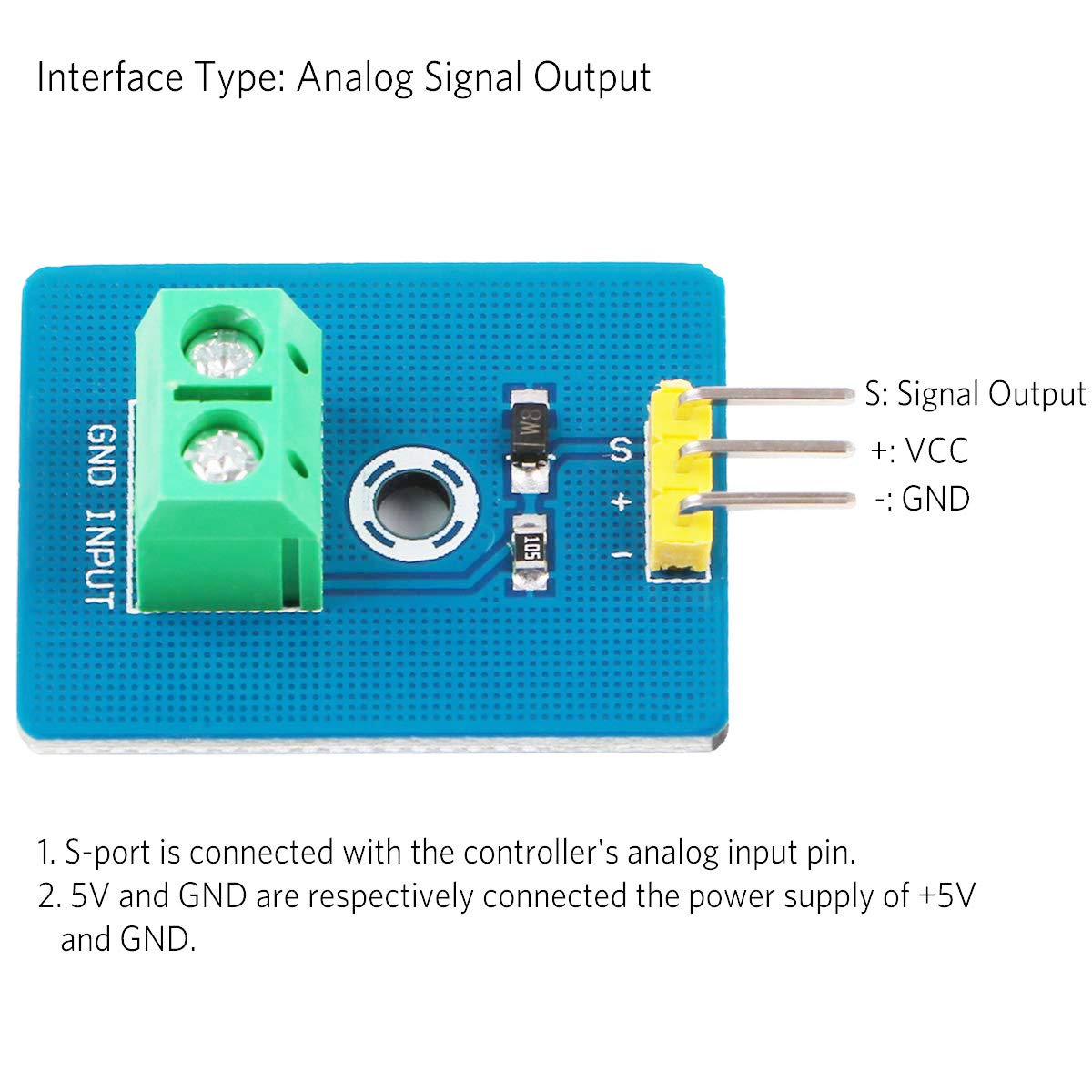

Description: Based on piezoelectric ceramic chip analog vibration makes use of the anti-transformation process of piezoelectric ceramic making the electric signals vibrate. When the piezoelectric ceramic shocking will generate an electrical signal, Controller analog port can be perceived slight vibration signals, Also can be realized with vibration interactions related works, such as electronic drums. Technical Parameter: Working Voltage: 3.3V or 5V Working Current: Less Than 1mA Operating Temperature Range:－10℃～＋70℃ Interface Type: Analog Signal Output Item Size: 1.1IN x 0.9IN GPIO: S; signal output, +; power supply (VCC), -; ground (GND) Input: Positive electrode of the piezoelectric ceramic Gnd: Negative electrode of the piezoelectric ceramic Features: 1. S-port is connected with the controller's analog input pin. 2. 5V and GND are respectively connected the power supply of + 5V and GND. 3. Input and Gnd are already connected with the piezoelectric ceramics' positive and negative. Package Included: 5 x Piezo Ceramic Vibration Sensor 1 x 11.8Inch Male-Female Dupont Cables 15 PIN
