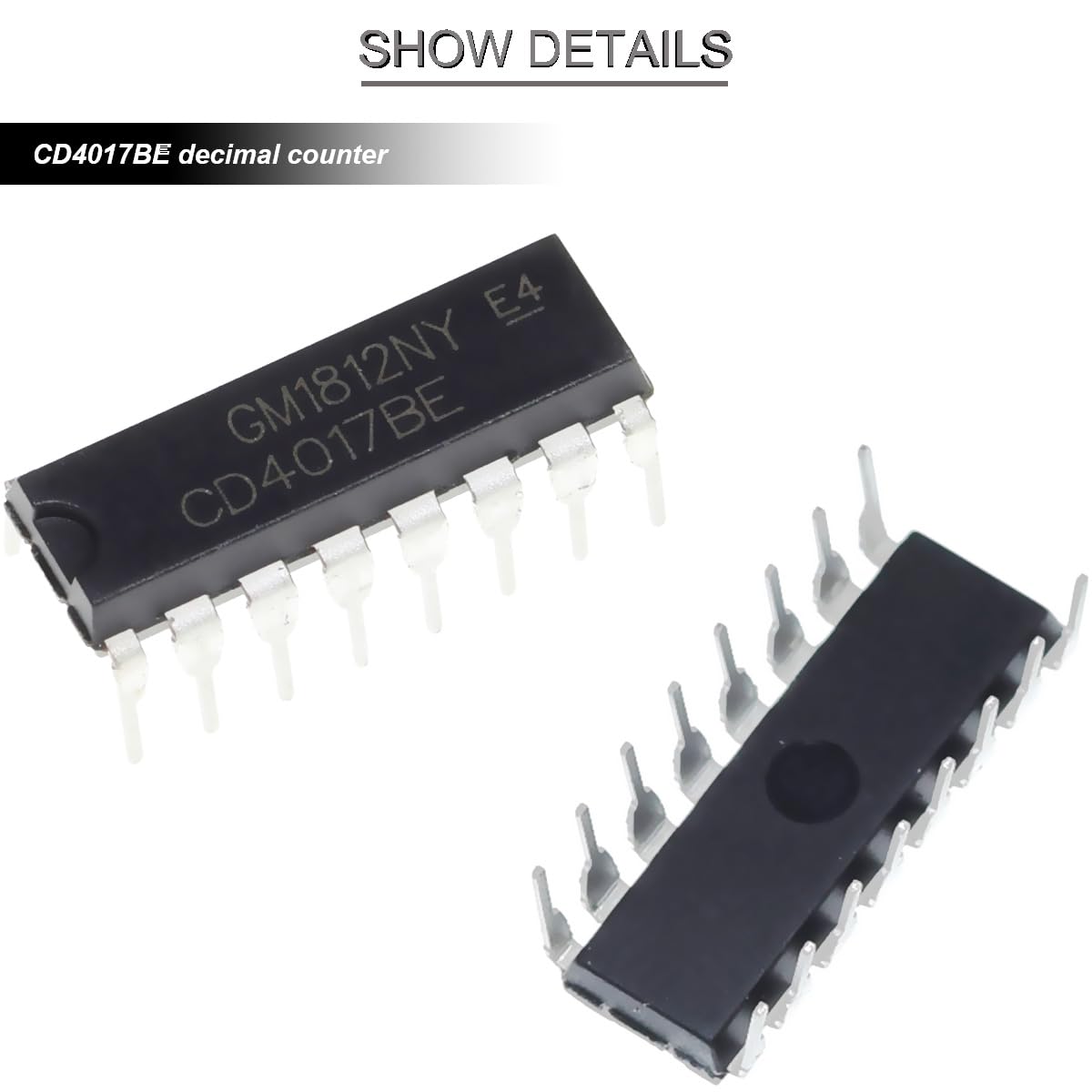

Youmile 20 pcs CD4017BE CD4017 CMOS Decade Counter with 20 Decoded Outputs Chip Socket Adaptor,for HEF4017BP TC4017BP DIP-16 CD4017 CD4017B HCF4017BE

• 【Voltage】: Wide Supply Voltage Range: 3.0V to 15V
• 【Action speed】: Medium speed Operation: 5.0 MHz (Typ.) With 10V VD
• 【Features】: Fully Static Operation, Standardized, Symmetrical Output Characteristics.
• 【High Noise Immunity】: 0.45 VDD (TYP.); 100% Tested for Quiescent Current AT 20 V
• 【Item Condition】: The module is 100% made of original electronic components, and the product is a brand new product, you can buy it with confidence

Product description CD4017: Compatible P/N: CD4017 CD4017B CD4017BE HCF4017BE HEF4017BP TC4017BP Features & Benefits: Fully static operation Medium speed operation 10 MHz (typ.) at VDD = 10 V Standardized, symmetrical output characteristics 100% tested for quiescent current at 20 V 5-V, 10-V, and 15-V parametric ratings Bits per Element: 6 Clock Frequency: 16MHz Function: Master Reset Trigger Type: Positive Edge Mounting Type: Through Hole Current: 6.8mA Operating Temperature Range: -55°C to +125°C Size: 19.2mm x 8.7mm x 7.3mm Chip Socket Adaptor: Easy Operation: Step 1: Solder the IC socket to the PCB circuit board. Step 2: Insert the chip into the IC socket, finish. The IC socket is the carrier between the chip and the PCB circuit board, the chip can be pulled and inserted directly without soldering to the PCB board. Package Includes: 20 x CD4017 20 x Chip Socket Adaptor
