Youmile 2 pcs DC 5V-36V Timer Module Digital LED Relay Board Trigger Cycle Delay Timer Switch Timer Delay Module with screwdriver Red and black cable

• 【High performance 】:Compared to normal electromagnetic relay modules, it has a longer service life.High performance control chip for high stability and low power consumption.

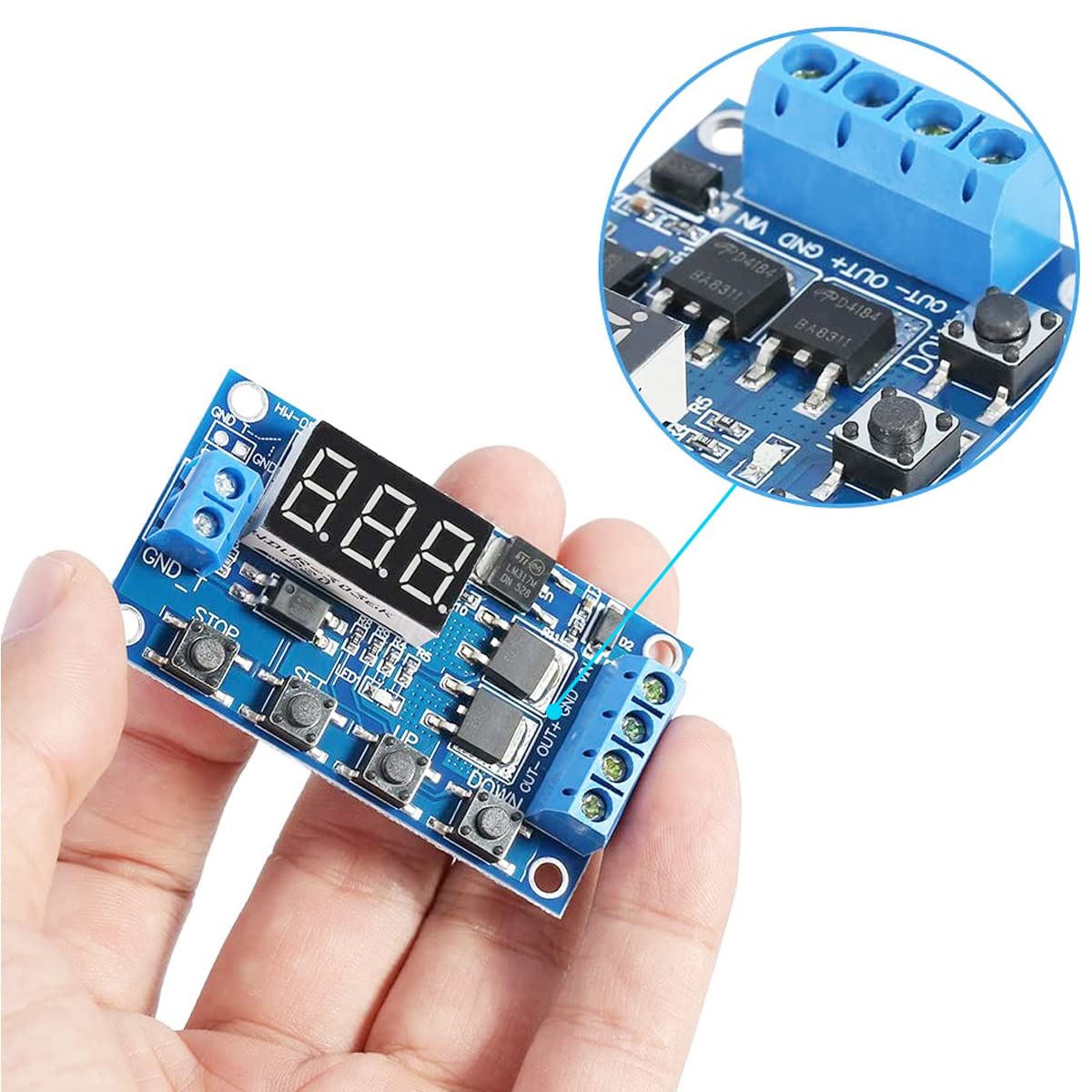

• 【High output】:Dual-MOS in parallel active output, lower inner resistance, larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment
• 【No noise 】:No noise was made during turning on/off, no spark, and no electromagnetic interference
• 【Switch multiple times 】:To achieve fast high frequency turn-on and off circuit, an unlimited number of switching times
• 【Applications】:Wide voltage input from 5V to 36V, normally used for controlling DC motors, lights, LED strips, micro-pumps, solenoid valves, etc.

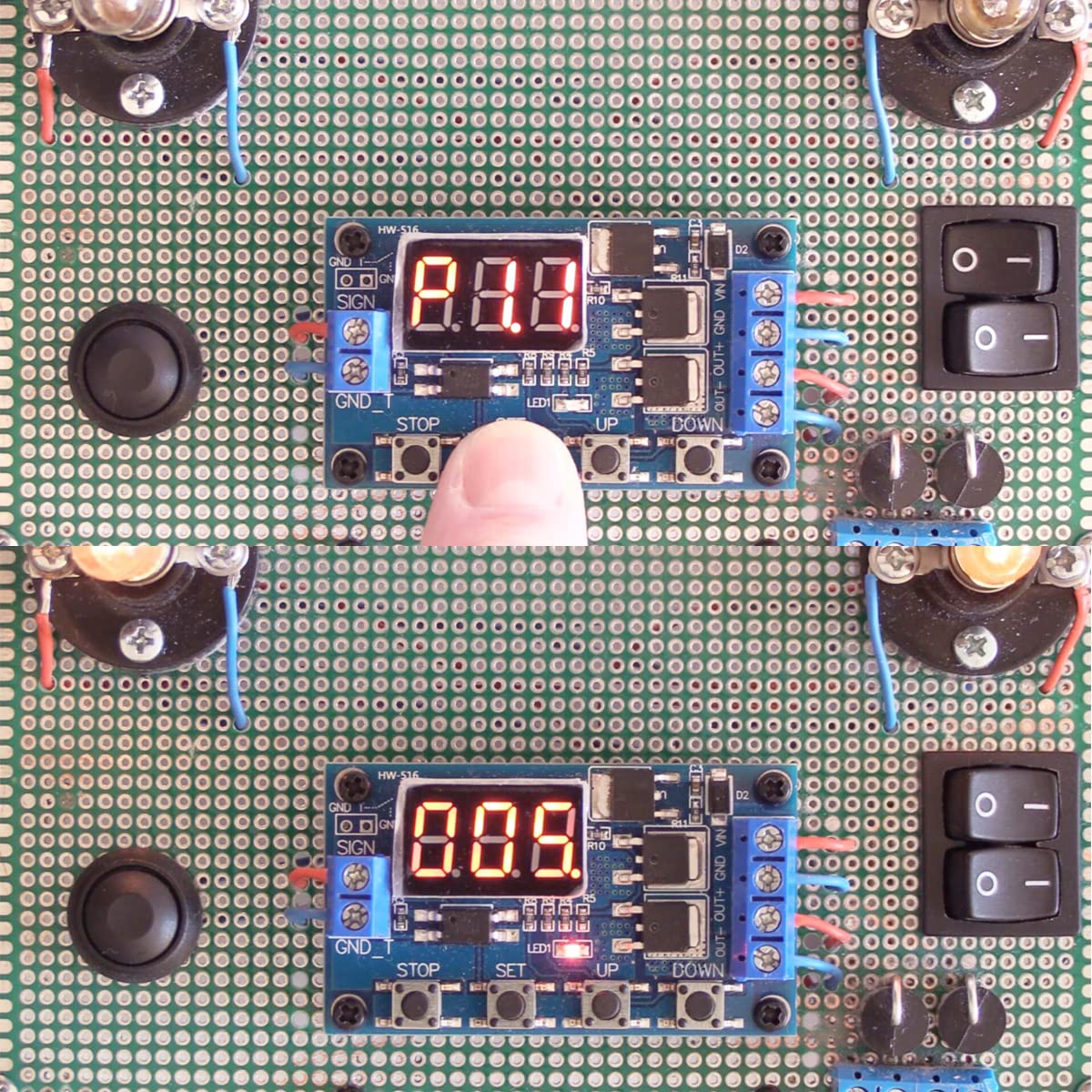

• 【Tutorial】: To watch the tutorial, please refer to the link: https://www.youtube.com/watch?v=3CGzlTM4Vxg&t=1s

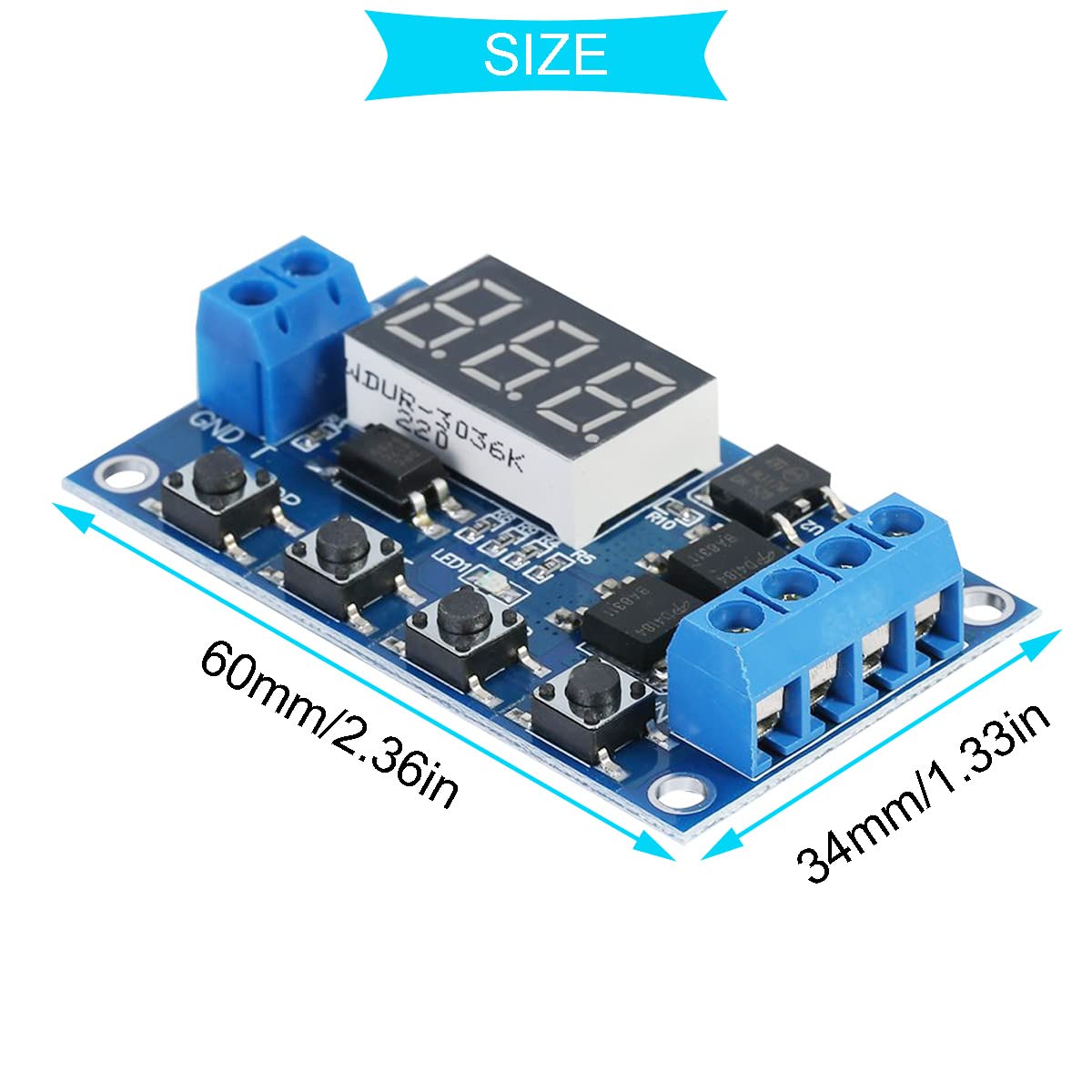

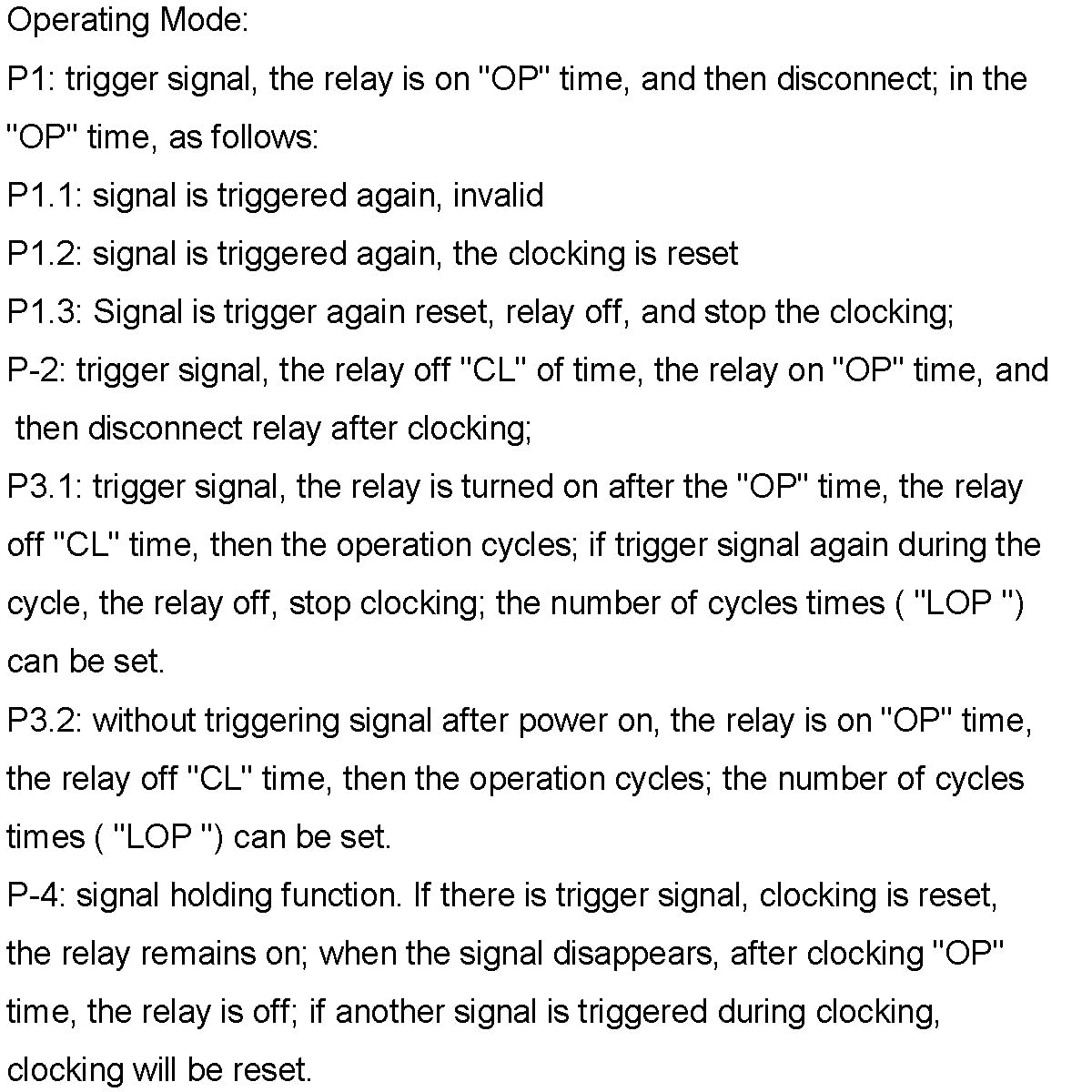

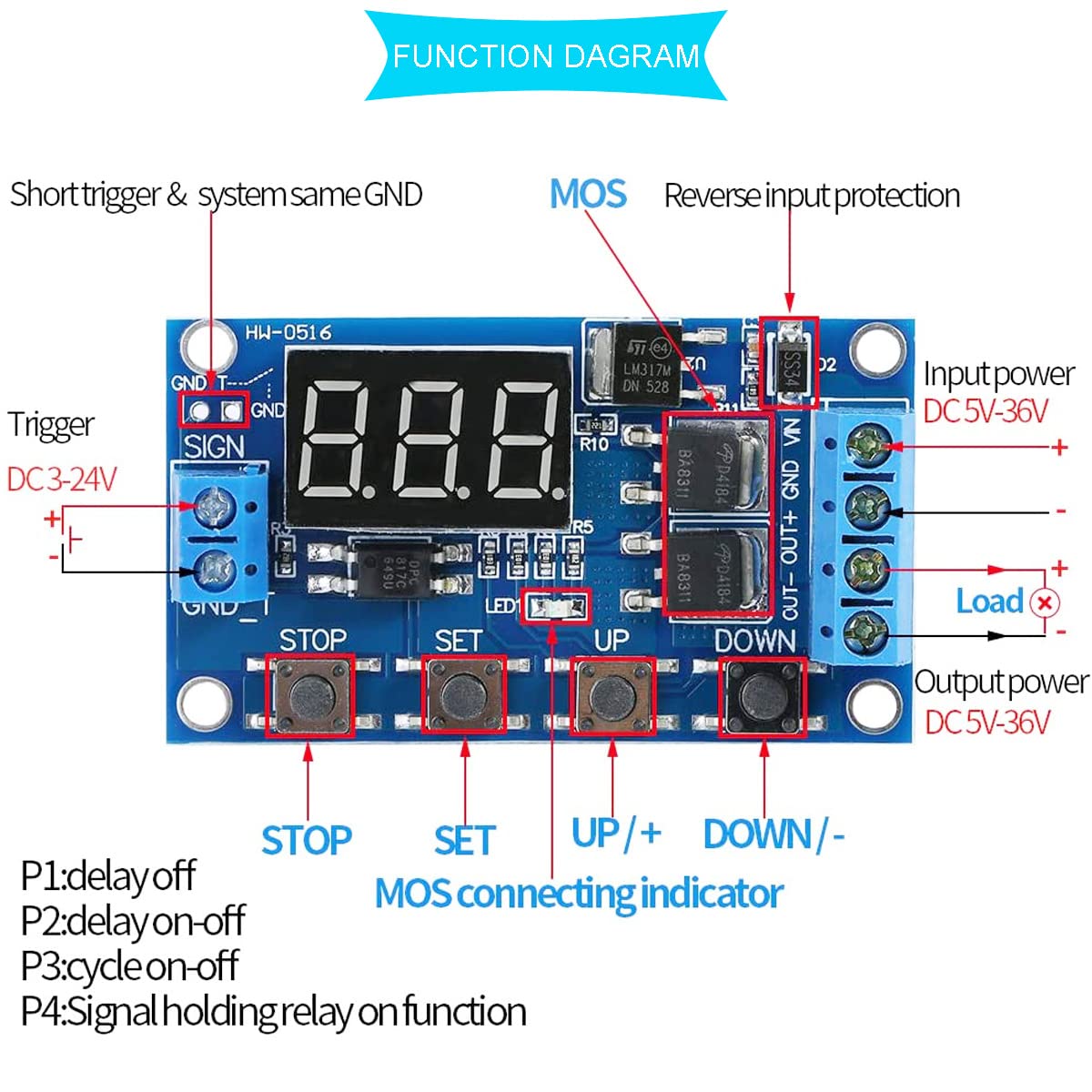

Product description This is a timer delay trigger module with LED display. The module has 5-36V wide voltage. At room temperature, its operating current is up to 15A, power up to 400W, so it can be used for most equipment. Besides, you can set different OP, CL, LOP parameters, and these parameters were independent of each other and saved respectively. Even when there is a power failure, all set parameters can be automatically saved. Specifications: Voltage: DC 5V~36V. Trigger Signal Source: High voltage level trigger (3.0V~24V), signal ground and system ground are not on common ground to improve the system's anti-jamming capability (you can also connect them on common ground). Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A. Quiescent Current: 20mA Operating Current: 50mA Working Temperature: -40℃~85℃ Timing range:0.1 seconds (min) to 999 minutes (max) continuously adjustable Size: 60×34×12mm / 2.36×1.33×0.47in Note: 1. The module is an active output, the output voltage equal to the input voltage. 2.'DC + 'and' load + ' are internally shorted(connected), but' DC- 'and' load - ' cannot be shorted, otherwise the load cannot be controlled on and off, which is equivalent to load being powered on always. Package Includes: 2×Timer Switch Module 1 x screwdriver 1 x Red and black cable
