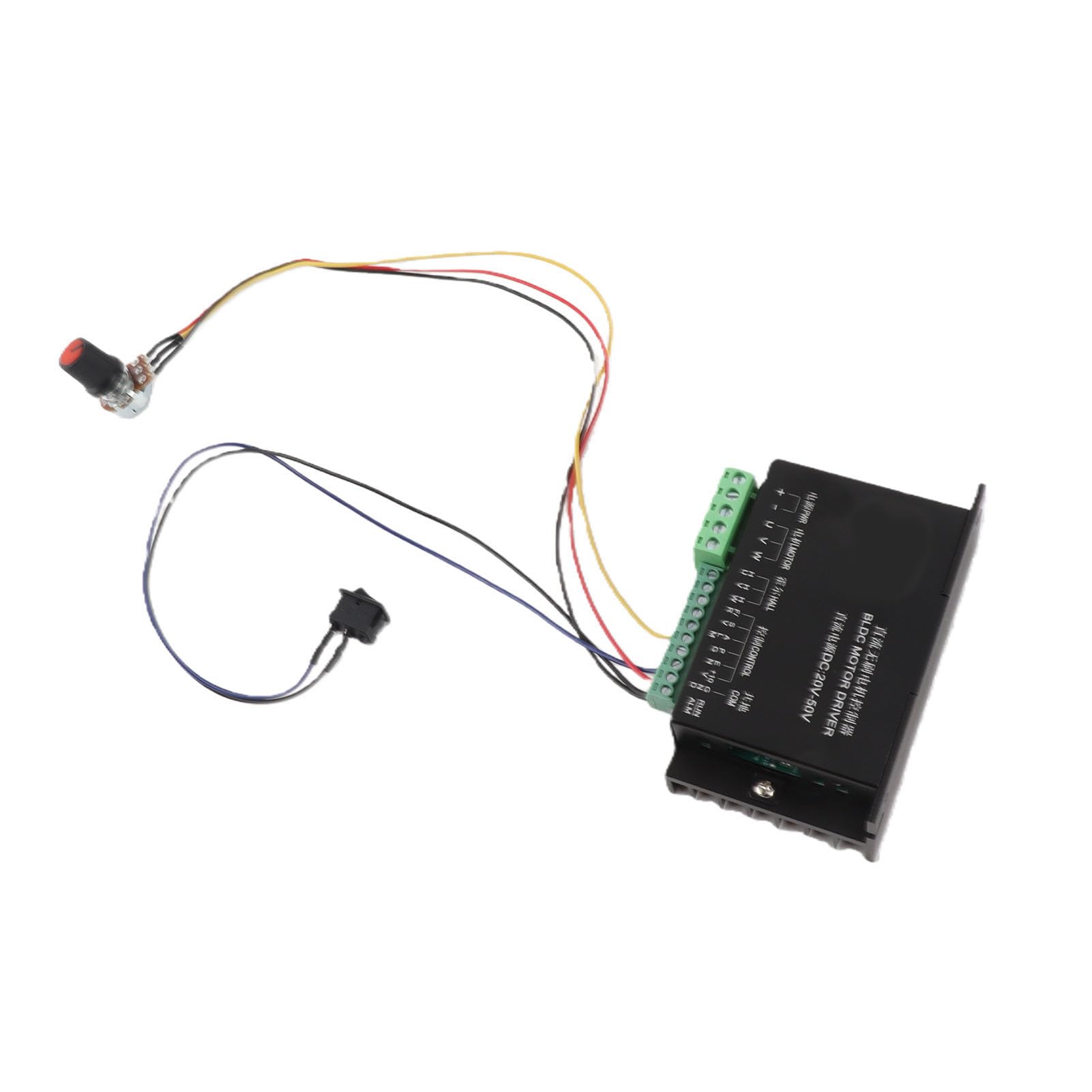

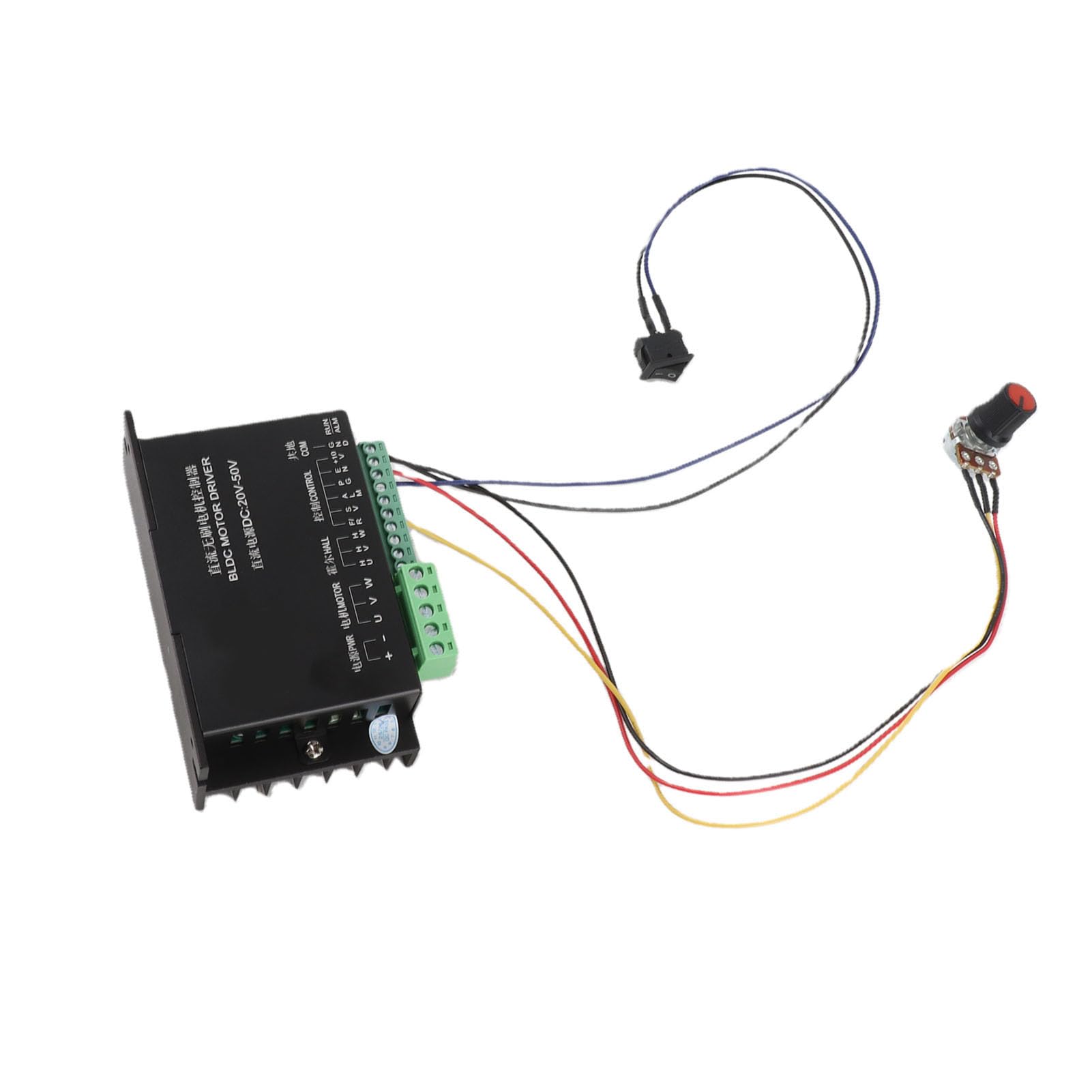

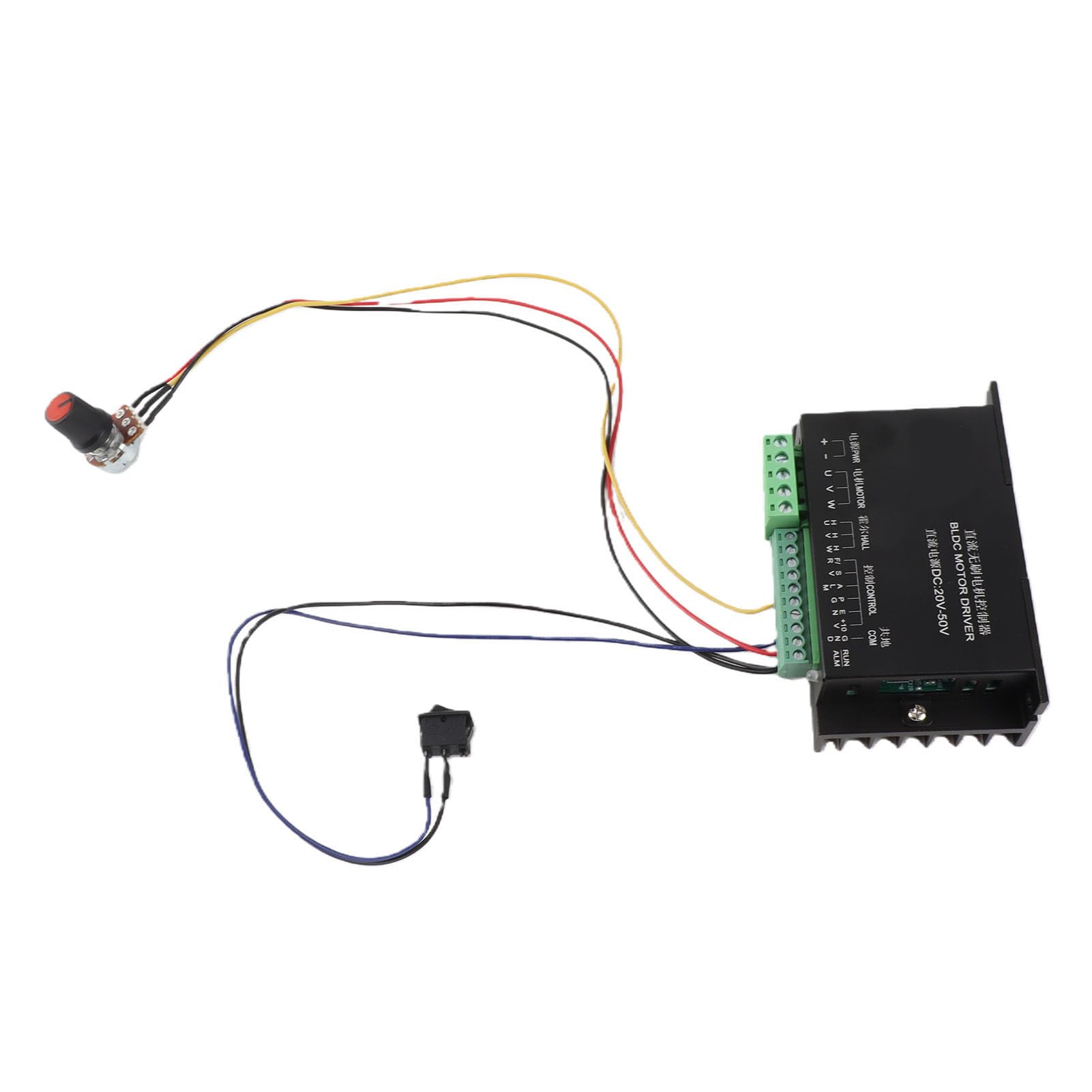

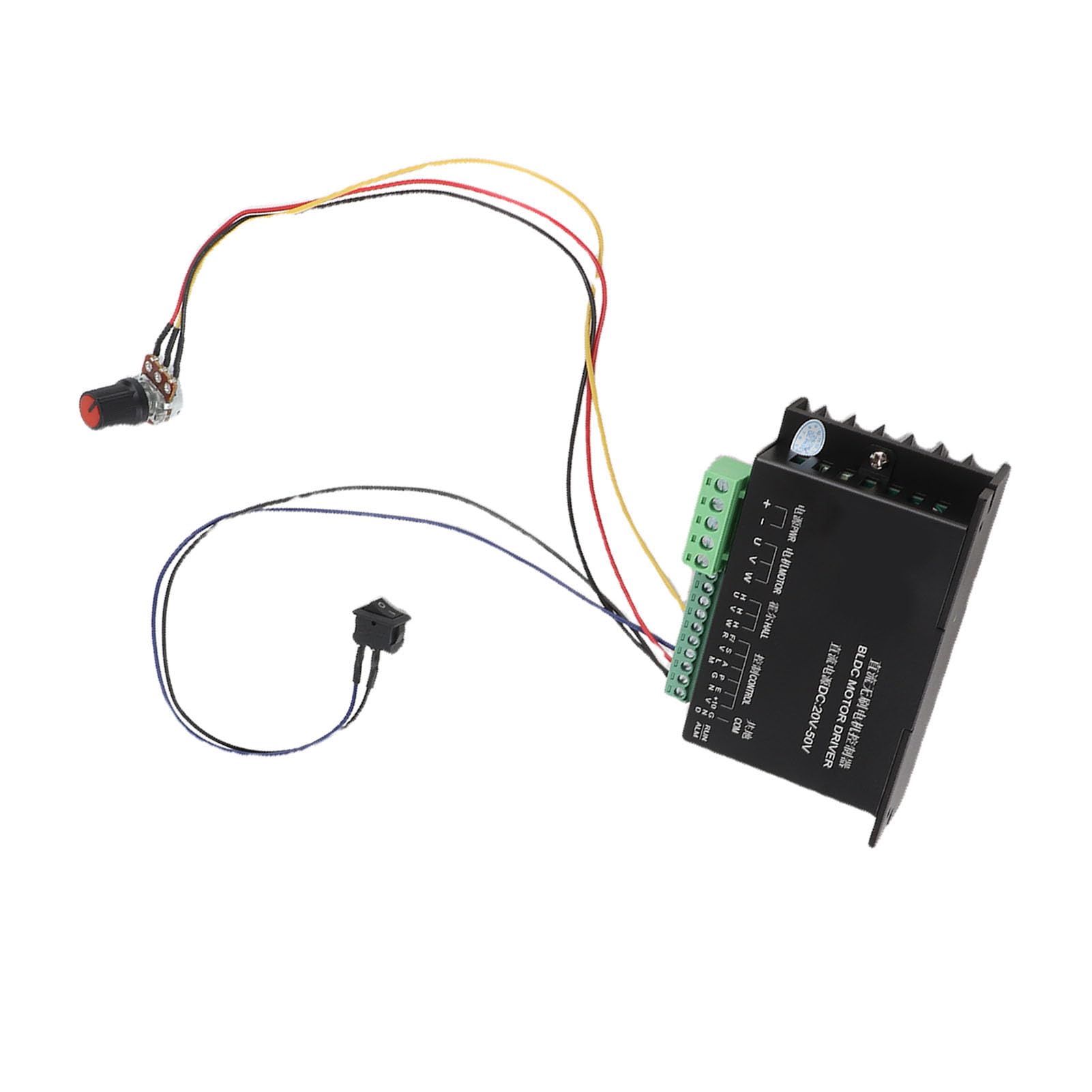

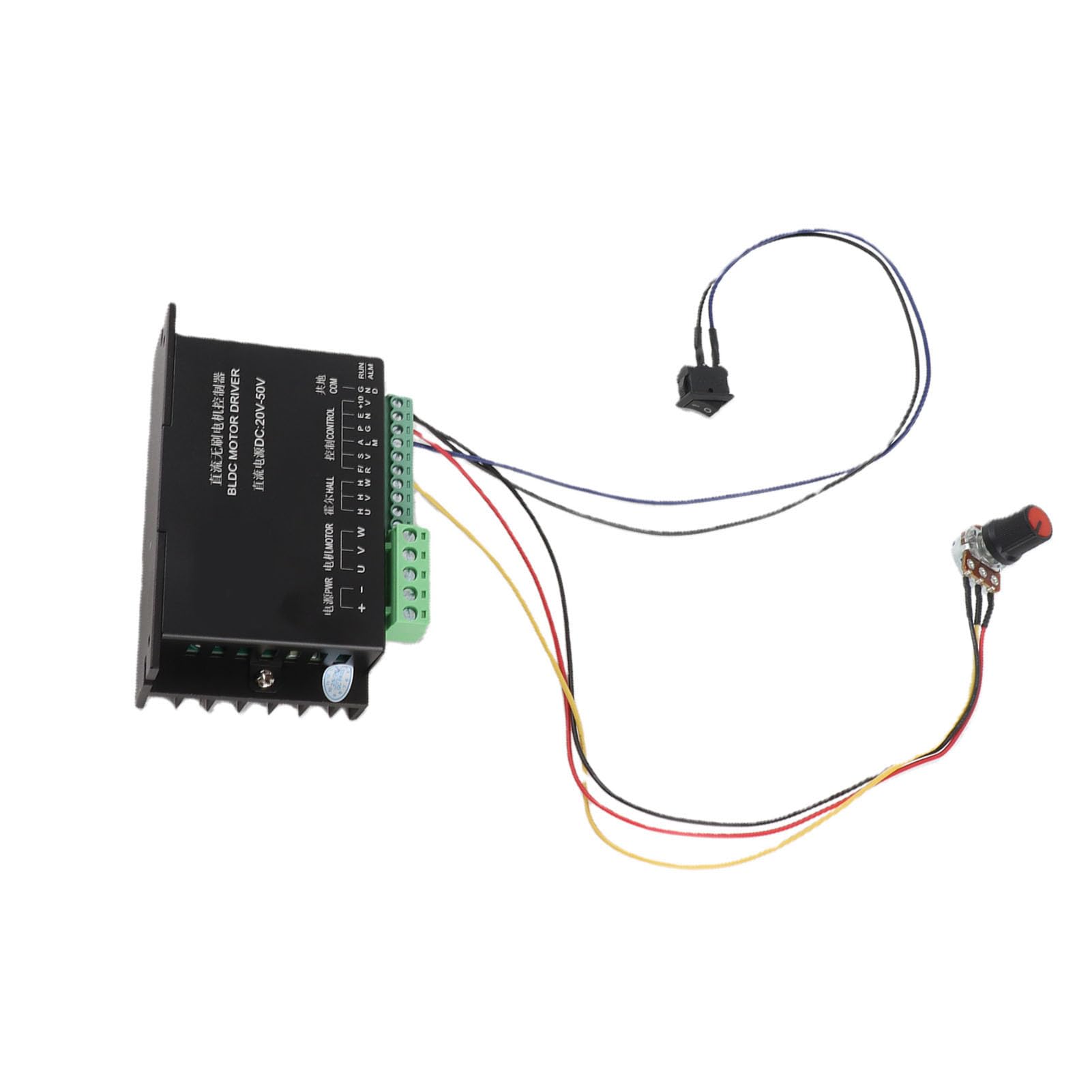

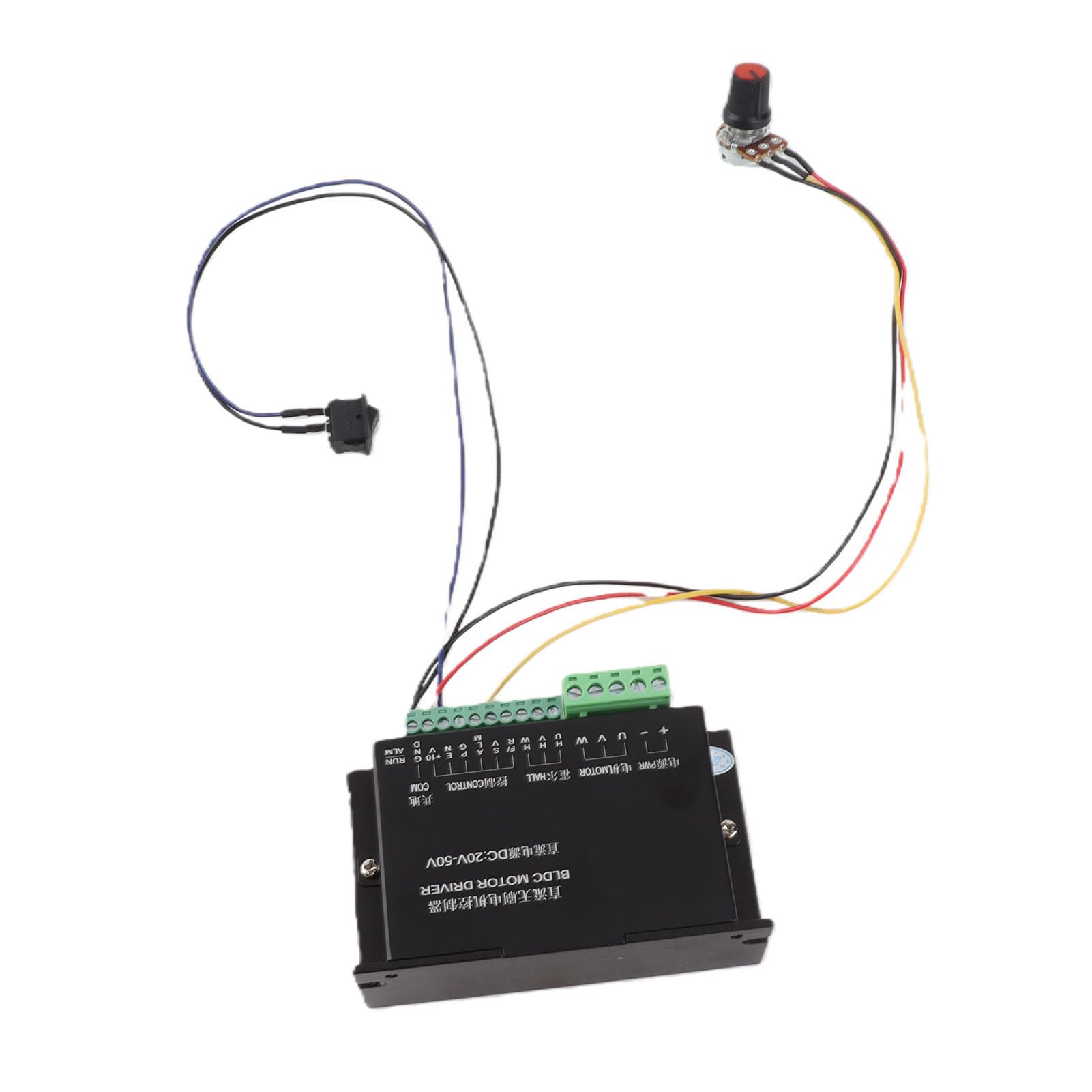

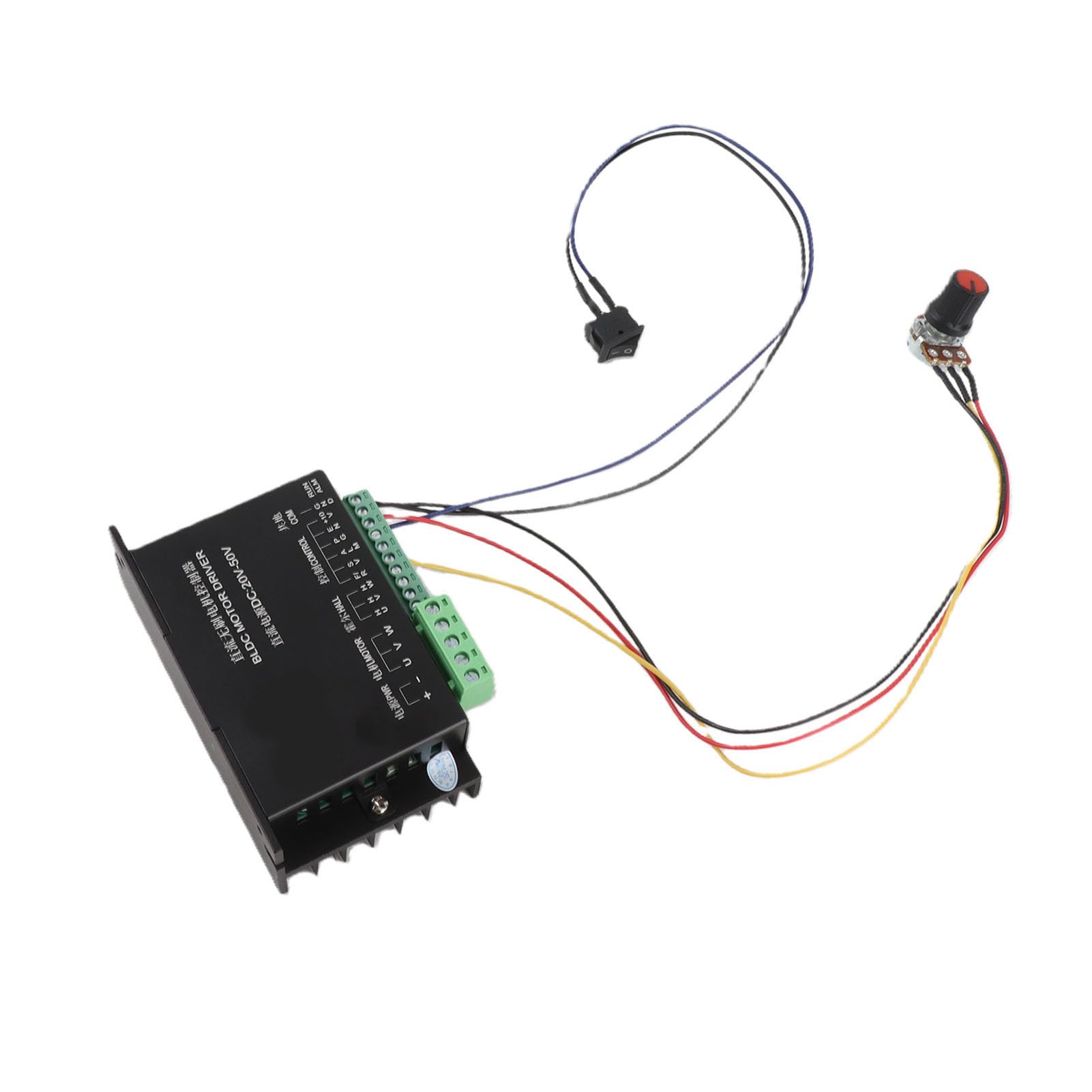

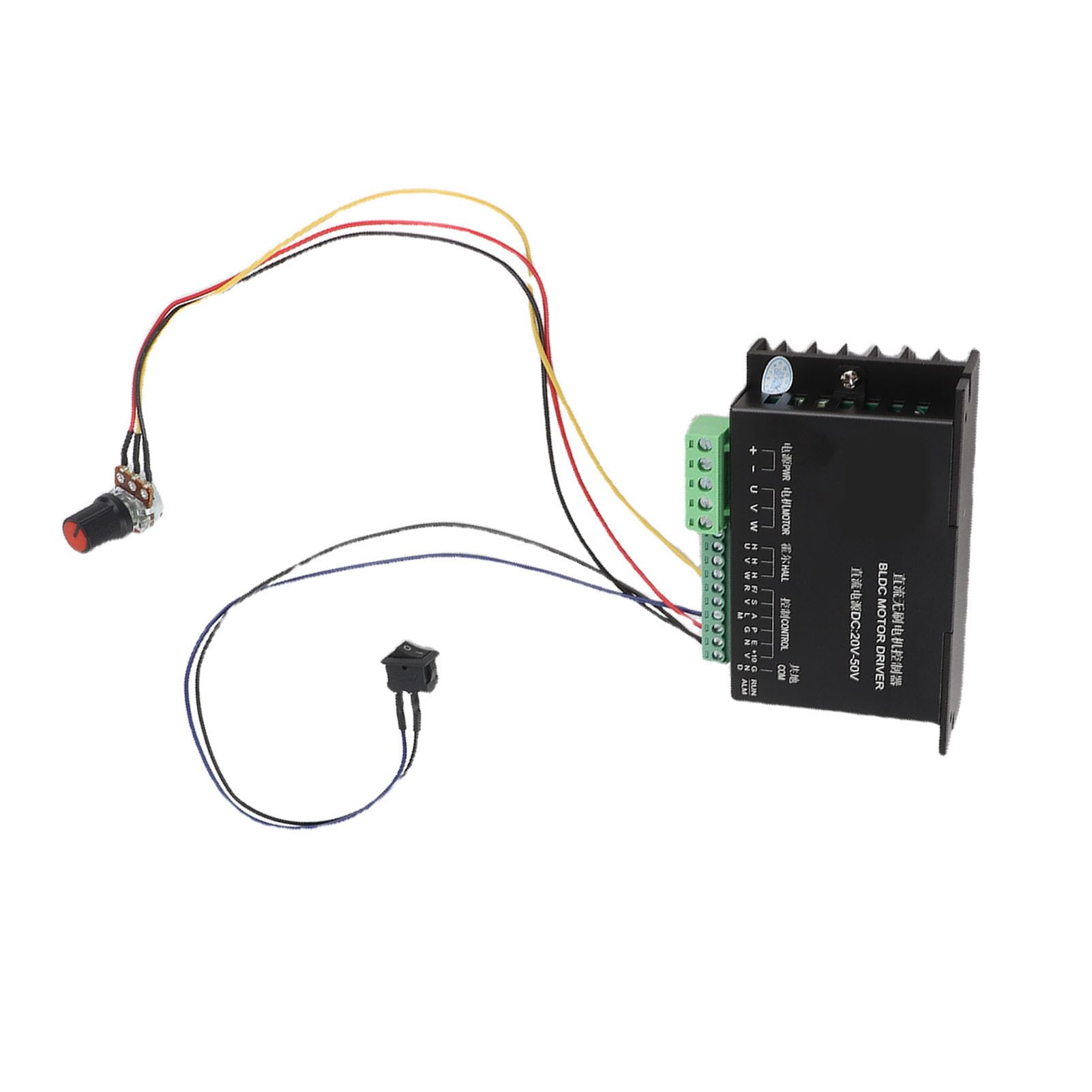

Yosoo BLDC Motor Driver Controller, 3 Phase, 48V 500W, WS55-220, Black, Controller, BLDC Motor Driver, YosooHC03093

• VERSATILE APPLICATIONS: The WS55-220 controller is suitable for a range of applications. From small equipment to electric power tools, exhaust fans, jade grinding machines, and vibrating motors, this controller offers excellent performance in a variety of settings. Discover its versatility and reliability in your specific application.
• HIGH PERFORMANCE CONTROLLER: Introducing our exceptional product, the WS55-220 3 Phase BLDC Motor Controller. This controller offers a high-performance solution, combined with cost-effectiveness. It operates within a voltage range of 20VDC to 50VDC, catering to a variety of applications.
• FLEXIBLE MOTOR COMPATIBILITY: Brushless DC Motor Driver is designed to drive both HALL and non-HALL sensor BLDC motors. This versatility allows you to easily integrate the controller into your system, regardless of the motor type. Experience seamless operation with our advanced technology.
• ADVANCED FEATURES: BLDC Motor Driver is equipped with advanced technology, delivering impressive benefits. Experience high speed, high torque, low noise, and low vibration operation. The controller also provides various protection mechanisms, including over-current protection, overload protection, phase line protection, and alarm output, ensuring the safety and longevity of your system.
• EXTERNAL CONTROL OPTIONS: DC Motor Driver supports both external potentiometer control and external voltage control. This flexibility allows you to choose the control method that best suits your needs. Enjoy the convenience and adaptability of our WS55-220 3 Phase BLDC Motor Controller.

Technical data: Rated voltage: 20 to 50 VDC. Rated current: 12 A. Current limit: 15 A. Maximum RPM: 20000 rpm (the specific speed depends on the motor itself and the load) Storage temperature: -20 ℃ ~ + 65 ℃. Use environment: avoid direct contact with dust, fumes and corrosive gases. Temperature: 0-45℃ Humidity: <80%, no frost, frost-free. Shock: 5.9 m. Storage humidity: 0 ~ 95% RH. Size: 9.5 x 6 x 3.5 cm / 3.74 x 2.36 x 1.38 inches. Weight: 258 g Detail: 1. Two modes of speed control: External potentiometer: through this speed control of the potentiometer; External voltage: external 10VDC voltage speed control; Note: the two speed control can not be used at the same time 2. Speed output PG signal: A pulse with 5V rotation is output between the terminal and the earth. The output frequency is set to P (Hz), the logarithm of the engine class is N and the speed is F (rpm), then the output speed frequency is P = F * N/60. 3. Alarm output ALM signal: There is a 5V alarm pulse between port and ground. 4. Positive inversion function: F/R: Press the toggle switch on the corresponding side, the steering direction of the motor can be changed. For the toggle switch, the white part is up and down and then turns it up and down. With the toggle switch, the white part is horizontal and the twang horizontal. Package includes: 1 x motor driver control with cable.
