Y&H 10A Solar Panel Charge Controller for 12V 24V Lead acid/lithium Battery with Dual USB Backlight LCD Display and Timer Setting ON/Off Hours

• ❶This 10a charge controller compatibility with 12V 24V system.Fully 4-Stage PWM charge (Boost, ABS, Equalization,Float),the power MOSFET is used as and electronic switch without any mechanical switches and equipped with industrial-grade STM 8 microprocessor to prolong your battery life cycle.
• ❷Backlight LCD display PV/Battery/Load charge and discharge parameter.Dual USB can give your electronic product max 5V 2.5A.
• ❸This solar controller fit for lithium-ion/ lithium iron phosphate /Lead-acid batteries(OPEN,AGM,GEL,) with mutiple load timer(Load should be DC).It has a wide range of applicability and automatically identifies daytime/night.For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically.
• ❹PWM charge controller Protection:Dual MOSFET Reverse current /over heat /Under-voltage discharge discharge /short-circuit /open-circuit / over-load /over-charging protection.more safe for home, industrial,commercial etc.
• ❺12 months honor warranty from Y&H and 24hrs after service.Your satisfaction is our priority.

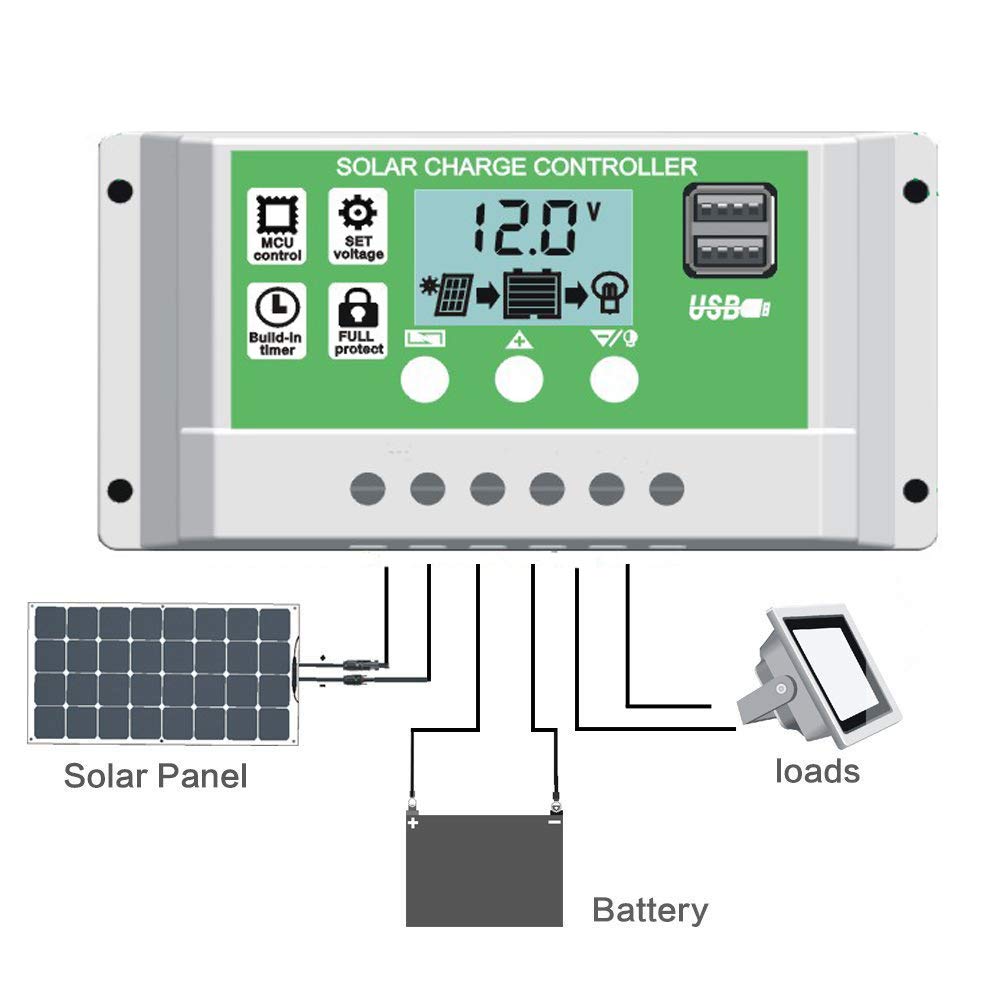

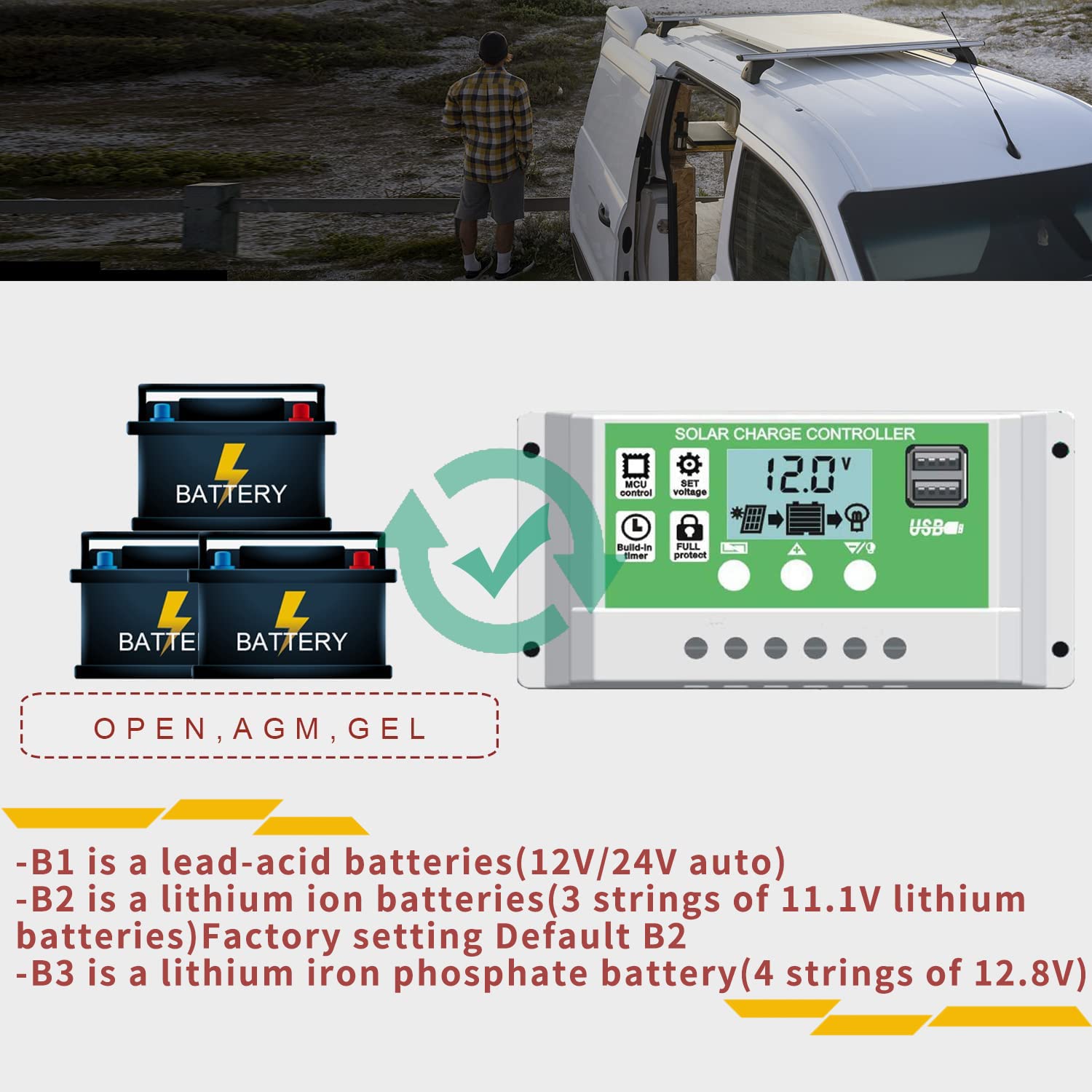

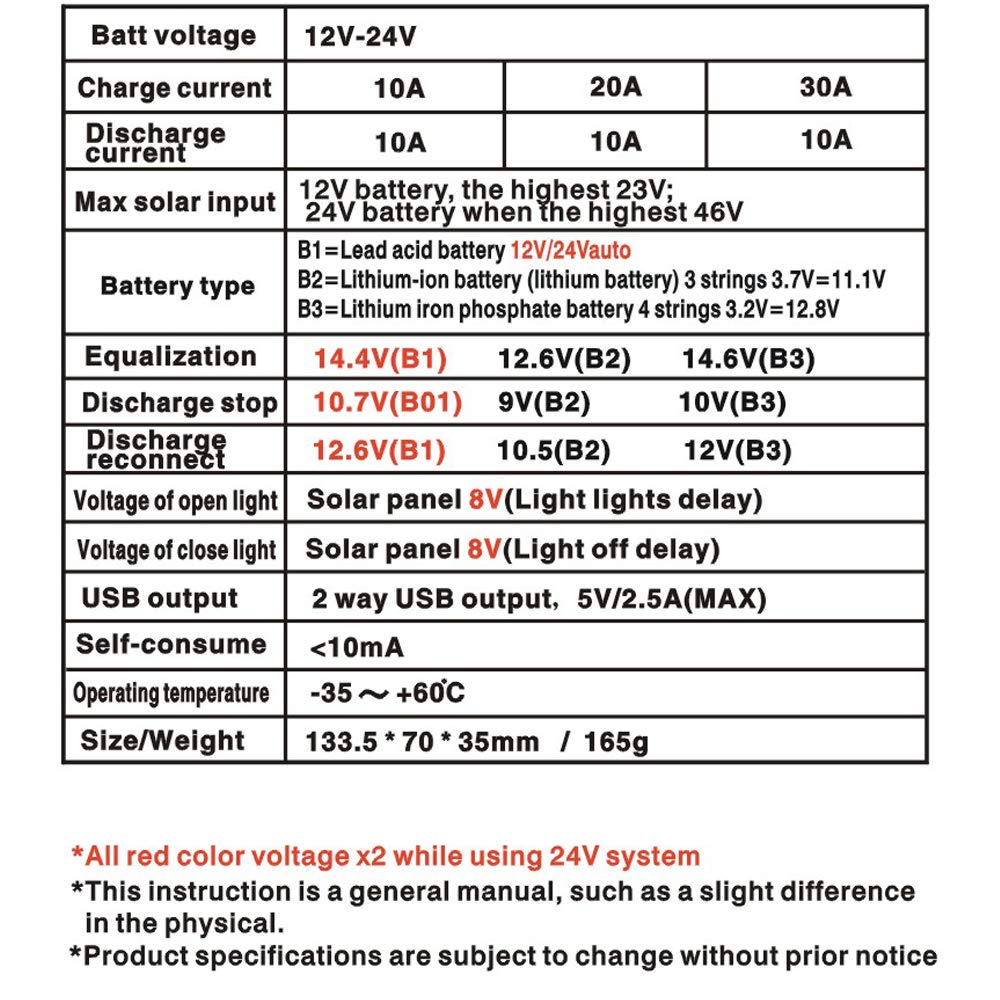

This Controller is suitable for 3 types of batterie. Battery type description: B1 is a lead-acid batteries(12V/24V auto) B2 is a lithium ion batteries(3 strings of 11.1V lithium batteries)Factory setting Default B2 B3 is a lithium iron phosphate battery(4 strings of 12.8V) System Voltage: 12V/24V Auto Charge current: 10A Max input power and voltage: 120W/24V(12V system); 240W/48V(24V system) USB output: Dual USB output, 5V/2.5A Equalization: 12.6V(defaul,) / Discharge reconnect voltage: 10.5V(defaul) /Discharge stop voltage: 9(defaul) Turn ON/OFF light voltage: Solar pannel 8V. Self-consume: <10mA Temperature: -35℃~ 60℃ Size/Weight:133.5mm*70mm*35mm/165g PACKAGE LIST:10A Solar Charge Controller,English User Manual Eight PWM Charge Controller Protection: -Dual MOSFET Reverse current -Over heat protection -Under-voltage discharge protection -Short-circuit protection -Open-circuit protection -Over-load protection -Over-charging protection -Power off memory protection Intelligent solar controller: The product can automatically manage the working of solar panel and battery in solar system. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically (LCD will be unavailable at the same time). Solar Controller System Connection: 1.Connect the battery to the charge regulator - plus and minus. 2.Connect the photovoltaic module to the regulator - plus and minus. 3. Connect the consumer to the charge regulator - plus and minus. NOTE: The reverse order applies when deinstalling! An improper sequence order can damage the controller!
