240W 30-60V to 24V DC-DC Buck Converter, 24V 10A Waterproof Voltage Step-Down Power Transformer Supply Module for Automotive, RV, Marine, Boat Dock, LED Lighting, Solar Panel, Off-Grid, Golf Cart

• High-Efficiency 30-60V to 24V DC Voltage Converter: Convert 30-60V DC input to stable 24V output (10A, 240W max) with 95%+ efficiency - perfect for heavy-duty trucks, RVs, solar power systems (photovoltaic), and marine applications. Features fixed output voltage for consistent performance in industrial and mobile applications.

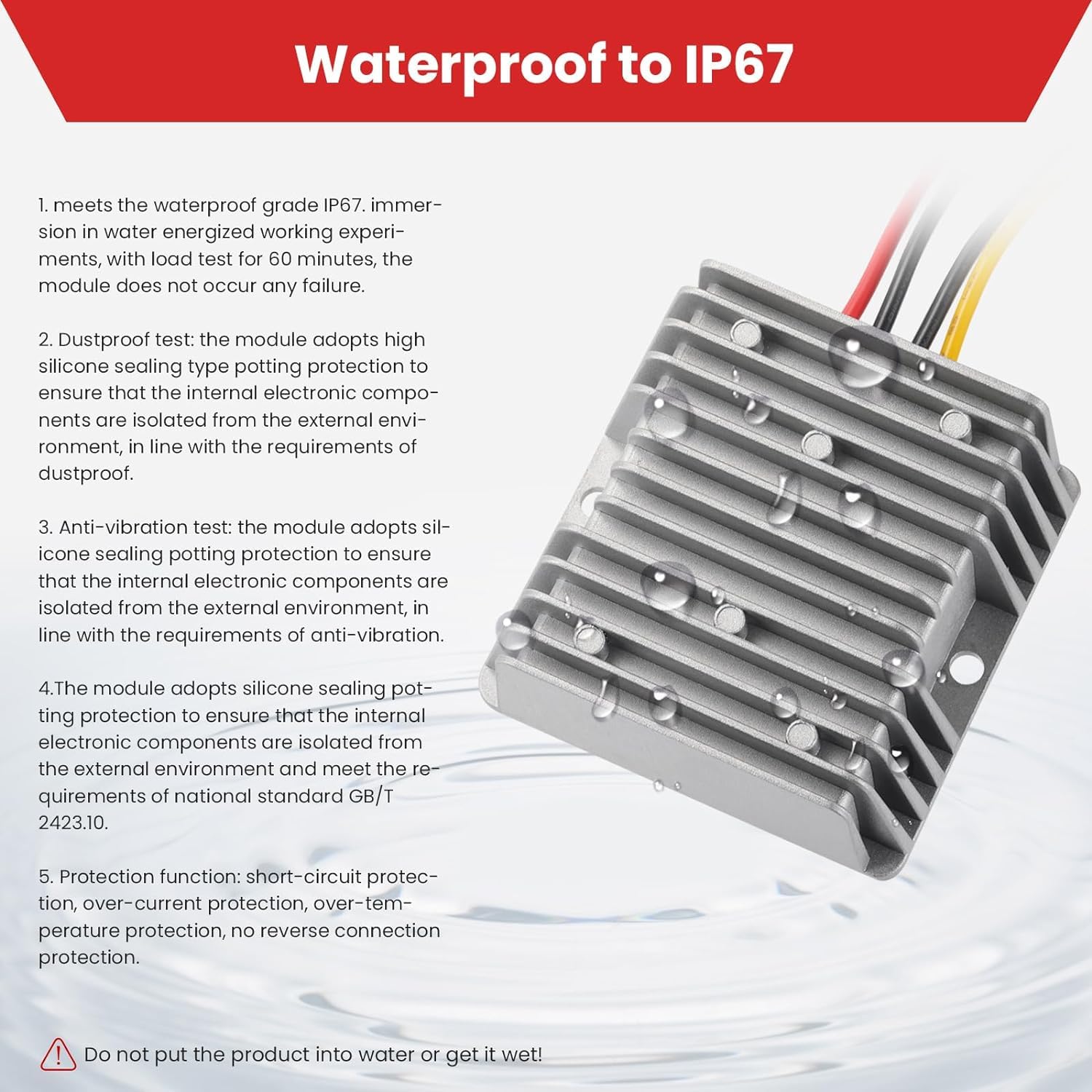

• IP67 Waterproof & Rugged Aluminum Housing: Fully potted with epoxy resin in durable aluminum casing for 100% waterproof, dustproof, and shockproof protection. Ideal for harsh environments including agricultural equipment, oilfield operations. Superior heat dissipation design ensures long-term reliability.

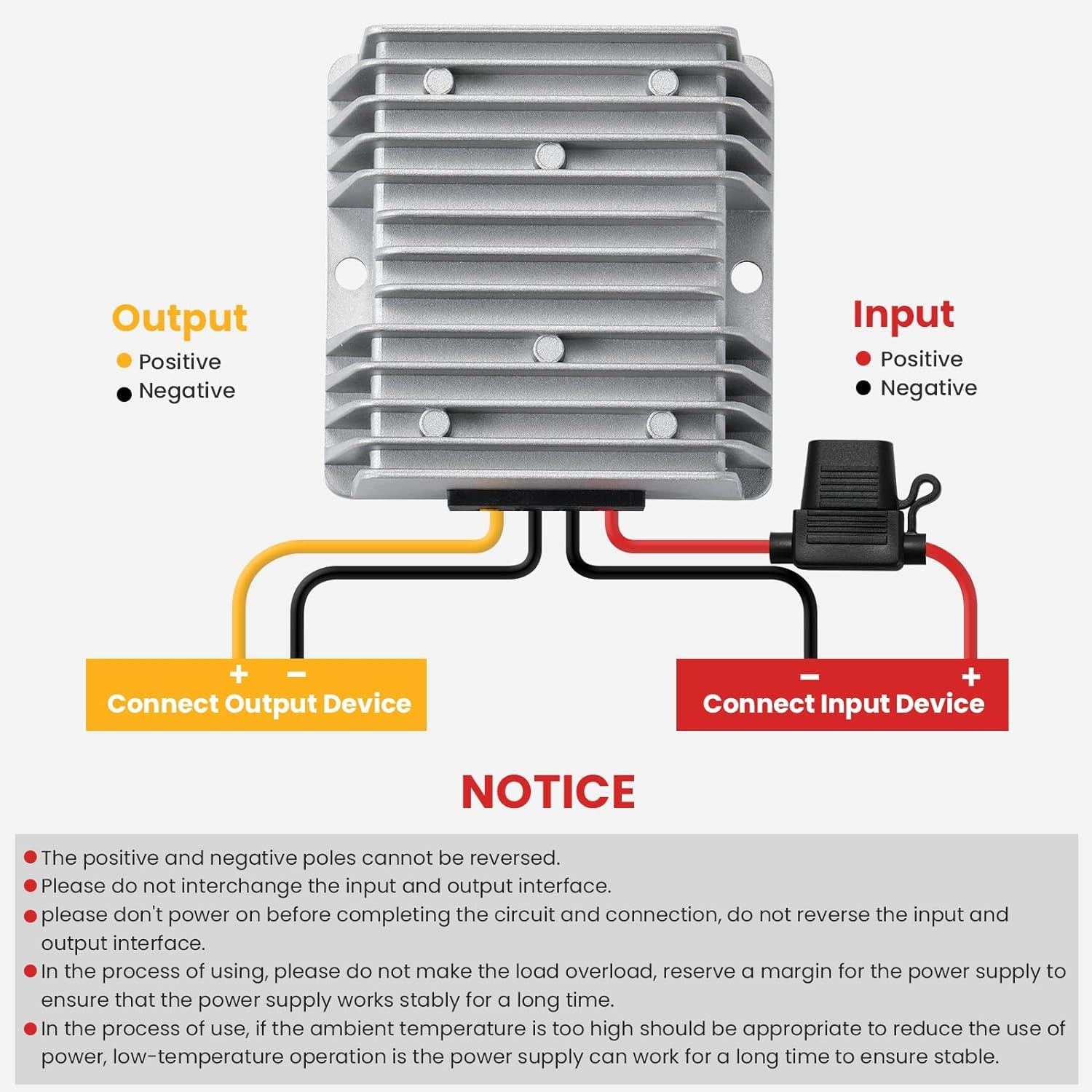

• Advanced Smart Protection System: Built-in intelligent chip provides comprehensive safeguards: overcurrent/overload/short circuit/overheat protection. Note: No reverse polarity protection - always verify correct +/- connections to prevent damage.
• Wide-Ranging Industrial & DIY Applications: Compatible with systems in forklifts, golf carts, surveillance, LED lighting , and amateur radio equipment. Excellent for food trucks, construction machinery, and renewable energy installations.

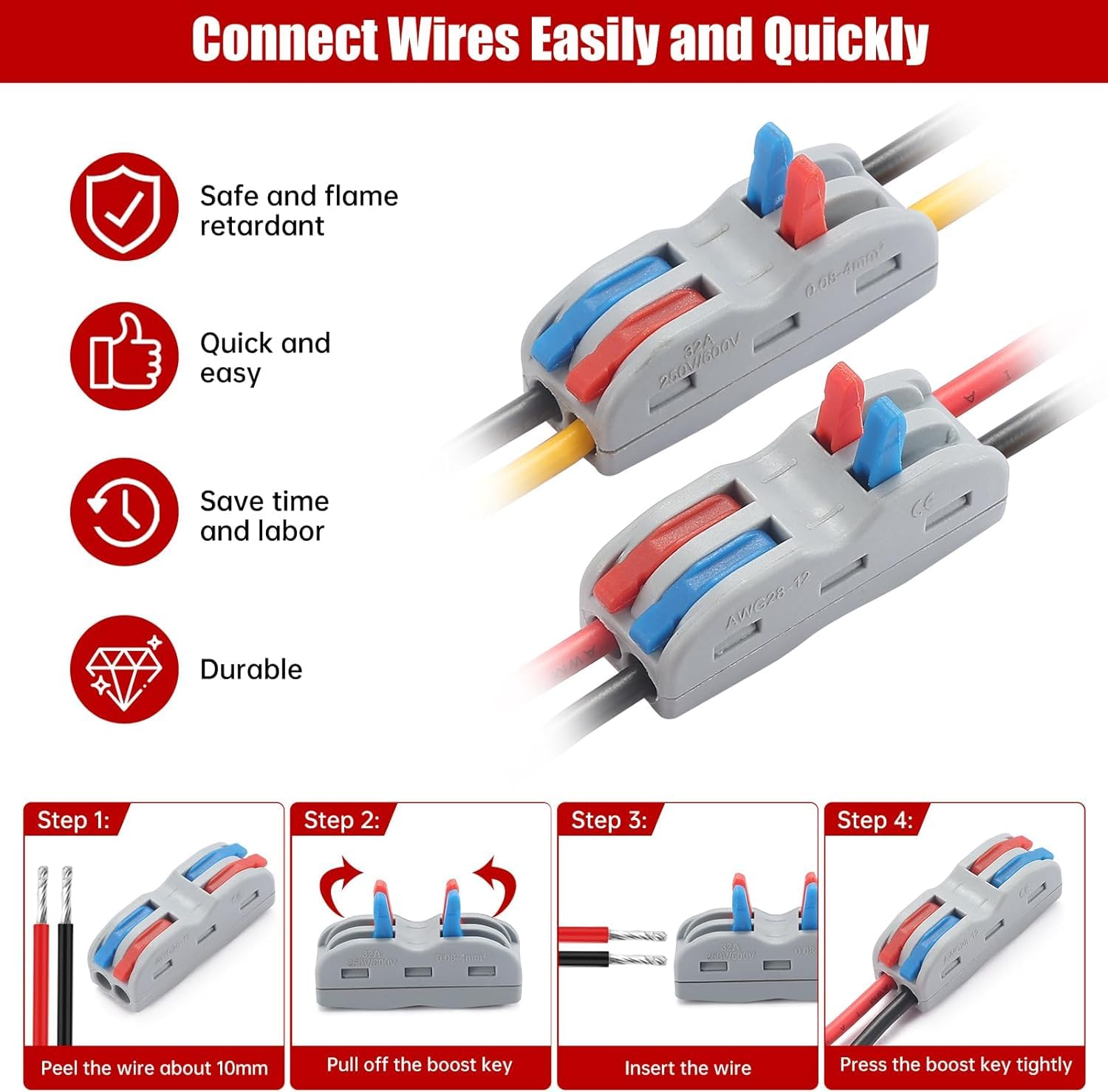

• Installation Guidelines & Safety Precautions: 1.Requires proper wire insulation (10mm) for safe installation 2.Maximum load capacity: 240W (exceeding may cause permanent damage) 3.Not for AC/220V input - DC power conversion only

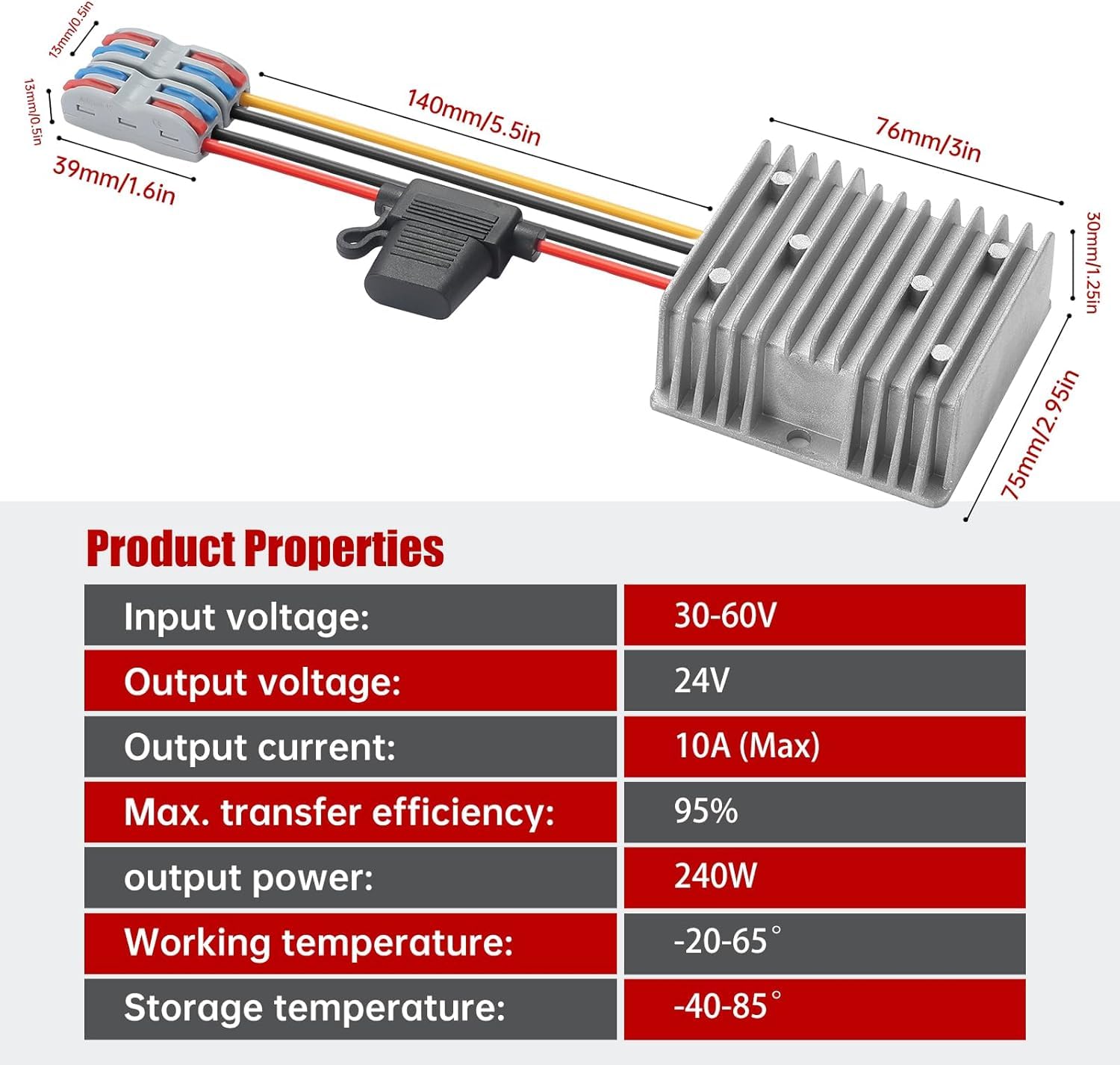

Verification of environmental conditions ★A. Unless otherwise specified, the tests specified in this specification shall be conducted under the standard weather conditions tested. ★B. temperature: 15℃~35℃. ★C. Relative humidity: 45%~75%. ★D. The accuracy of the measured voltage instrument shall not be less than 0,5 levels, and the internal resistance shall not be less than 10 KΩ/V. ★E. The accuracy of the current measuring instrument shall not be less than level 0,5. ★F. The accuracy of the instrument used for temperature measurement shall not be less than ± 1℃. Product parameters Input range: 30-60V Rated input voltage: 30V/36V/48V/60V transfer efficiency: 95% Input line: 15-16CM (R+ B-) Output voltage: 24V Output: 10A MAX Maximum output: 240W MAX Vacuum adjustment rate: 2% load adjustment: 3% at rest dissipation: ≤15MA Wavewave: 200mVP-P safety tests Do not use the device near a heat source (such as a fire or heater). Do not connect the input line to the electricity at 220V Do not put the product in the fire and do not heat it. Do not short-circuit the positive and negative poles of the product with wires or other metal objects. Non-professional personnel are prohibited from disassembling and repairing the product alone.
