XTVTX PICkit3 Programmer Debugger, For developing programs, Debugging and developing PC software and hardware

• PICkit3 is a development tool that can simulate and download PIC online! PICkit3 is an online simulation and download microchip development tool designed for beginners to learn, evaluate, and develop PIC series MCUs.

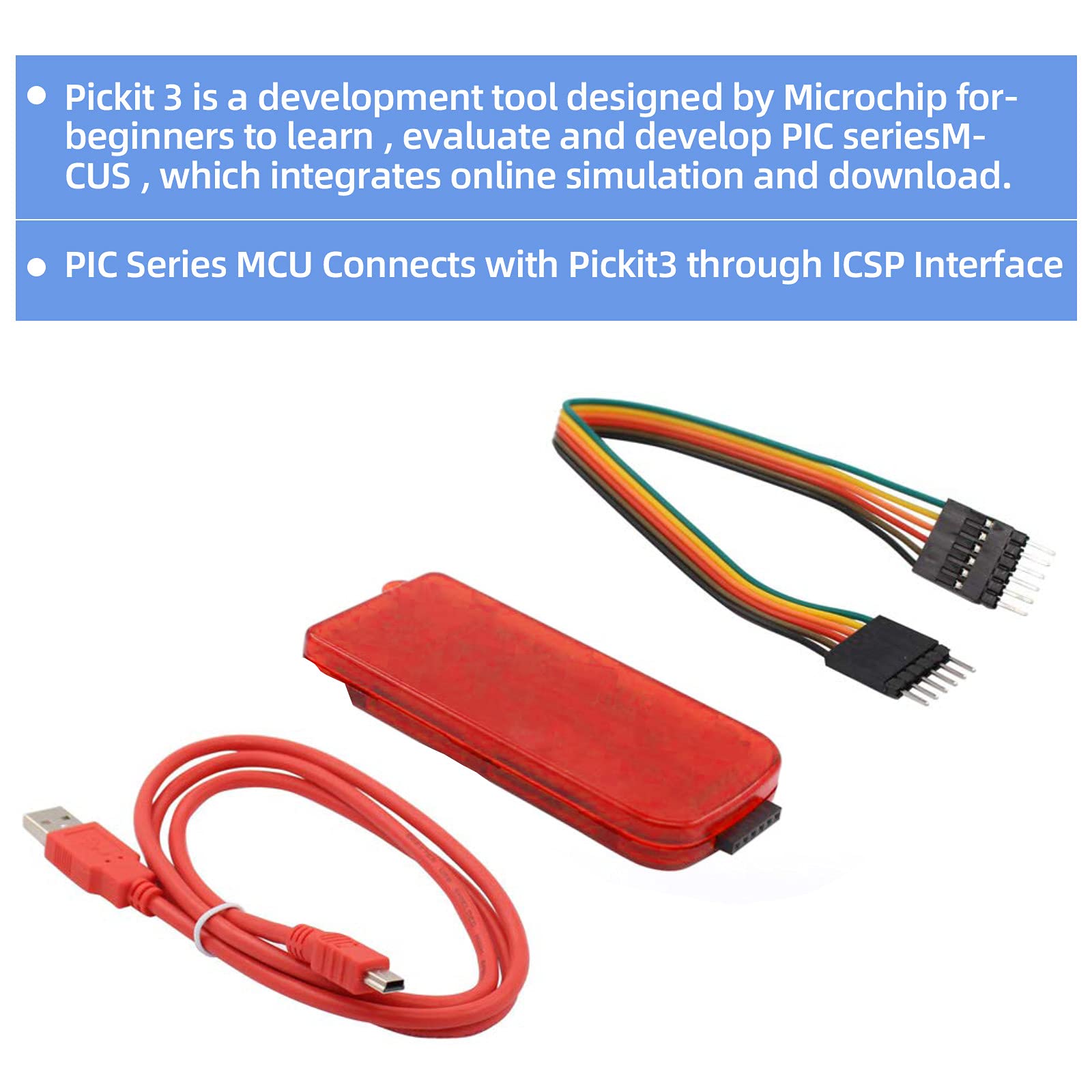

• PIC Series Microcontrollers Connect to PICkit3 via ICSP interface supported software
• Direct support for Microchip's official IDE (Integrated Development Environment Software) MPLAB supported devices: Supports all PIC series microcontrollers with ICSP interface
• Four functions: 1. Programming function: can burn Flash ROM, EEPROM, etc. 2. Simulation function: supports various debugging methods such as full speed, single step debugging and breakpoint debugging 3. Simulation performance: use the USB interface for simulation debugging, one-step debugging, breakpoint debugging, fast response. 4. Programming performance: via USB interface, ICSP download, download speed.

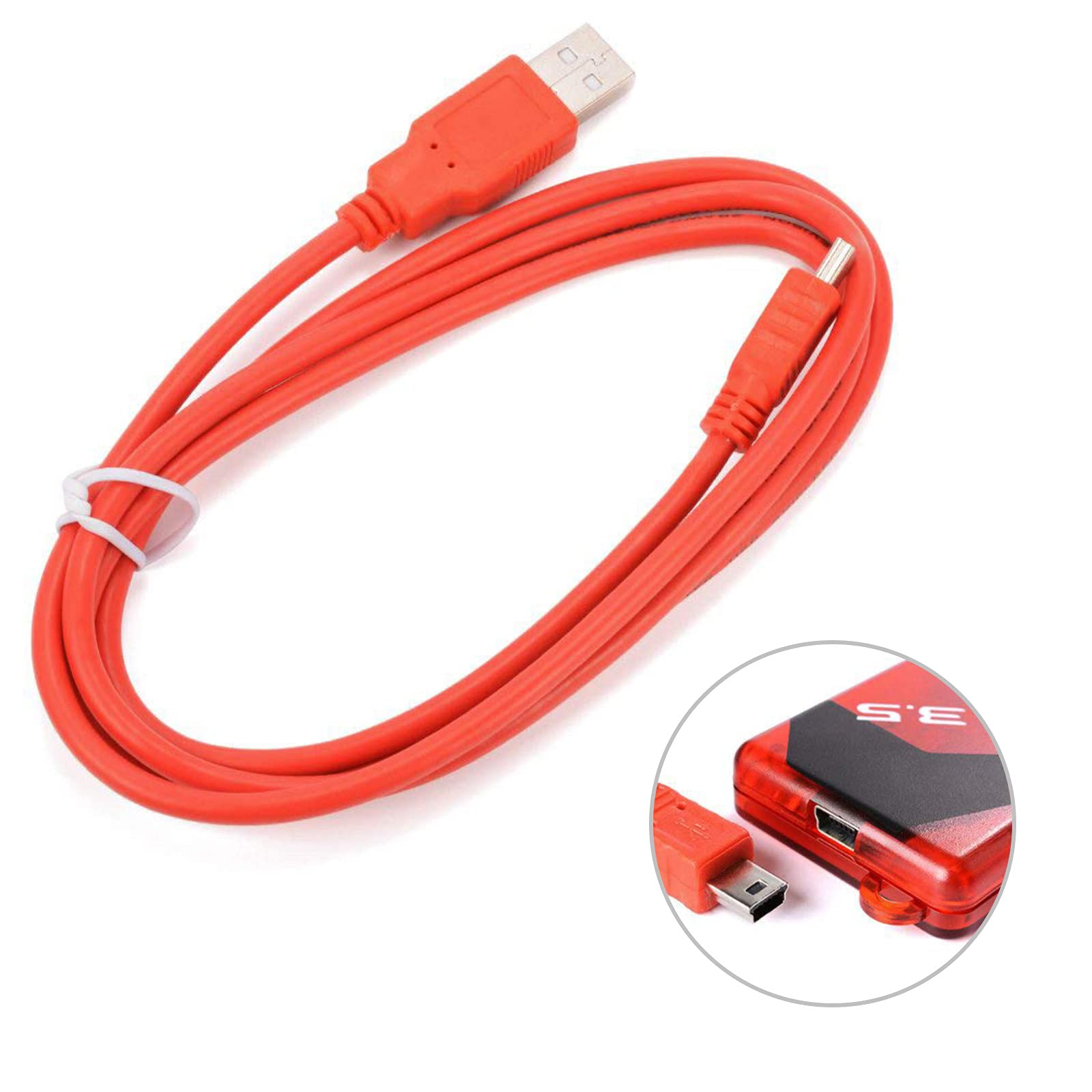

• Connect the PC to the USB interface: The PICkit3 development tool integrates drivers for high-speed USB communication. 6. Connection interface with the target disk: The ICSP standard interface is specified by PICkit3. Firmware Upgradeable: In the future, Microchip will introduce additional PIC models and add new device models to the ICSP device support list.

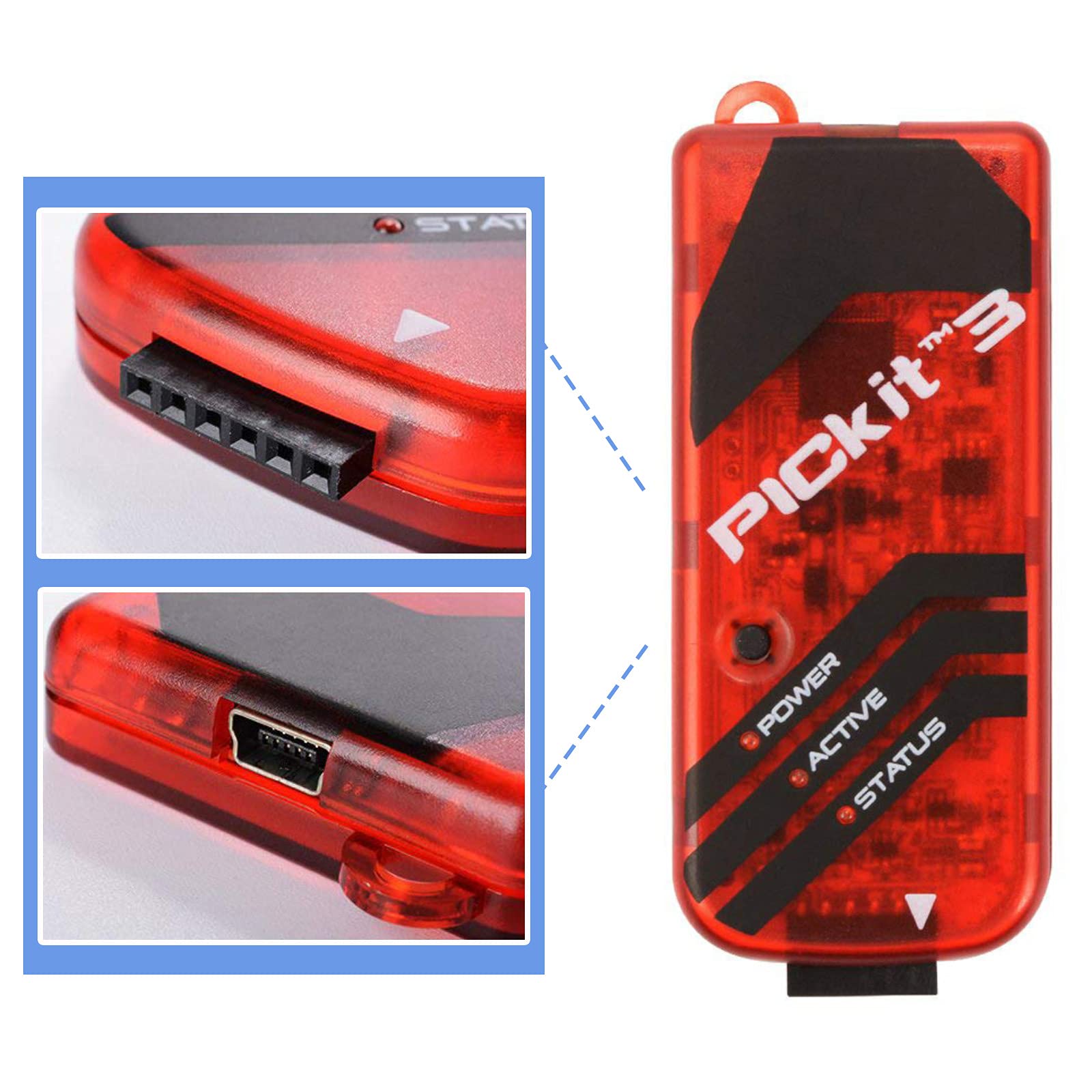

Description：Four functionsProgramming function: Can burn FLASH-ROM, EEPROM, etc.Simulation function: supports various debugging methods such as full-speed operation, single-step debugging and breakpoint debugging.Simulation performance: using the USB interface for simulation debugging, single-step debugging, breakpoint debugging, fast response!Programming performance: via USB interface, ICSP download, download speed!Tool description(1) PICkit 3 Programmer / Debugger is a simple, low-cost, in-circuit debugger controlled by a PC running MPLAB IDE (v8.20 or higher) on the Windows 0-3 platform.(2) PICkit3 is capable of in-circuit programming and debugging of Microchips PIC10 / 12/16/18/24/32, dsPIC30 / dsPIC33 and other full PIC FLASH microcontroller chips. And PICkit3 can program the chips of the KEELOQ HCS series from Microchip, the chips of the MCP250xx CAN series and the EEPROM memory chips.(3) PICkit3 is more stable than PICkit2, supports more models and faster, and can stably support the series MCU simulation and download of PIC16 PIC18 PIC24 DSPIC.Status of the LED display of the PICkit3The indicator light has the following meaning:Power: Green, lit when the power is on or connected to the target board.Active: Blue, lights up when the PICkit 3 has established communication or a send / receive command with the PC.Status:(1) Green, lights up when the debugger is working normally (standby).(2) Yellow, lights up when the business is busy.(3) Red, lights when the debugger fails.Package Included: 1 x Kit for Pic kit - 31 x USB cable1 x socket module1 x cable
