PAIDUOJI XM-18S Automatic Control System for egg incubator machine and Temperature and Humidity control machine

• fully-intelligent microcomputer humiture incubator controller

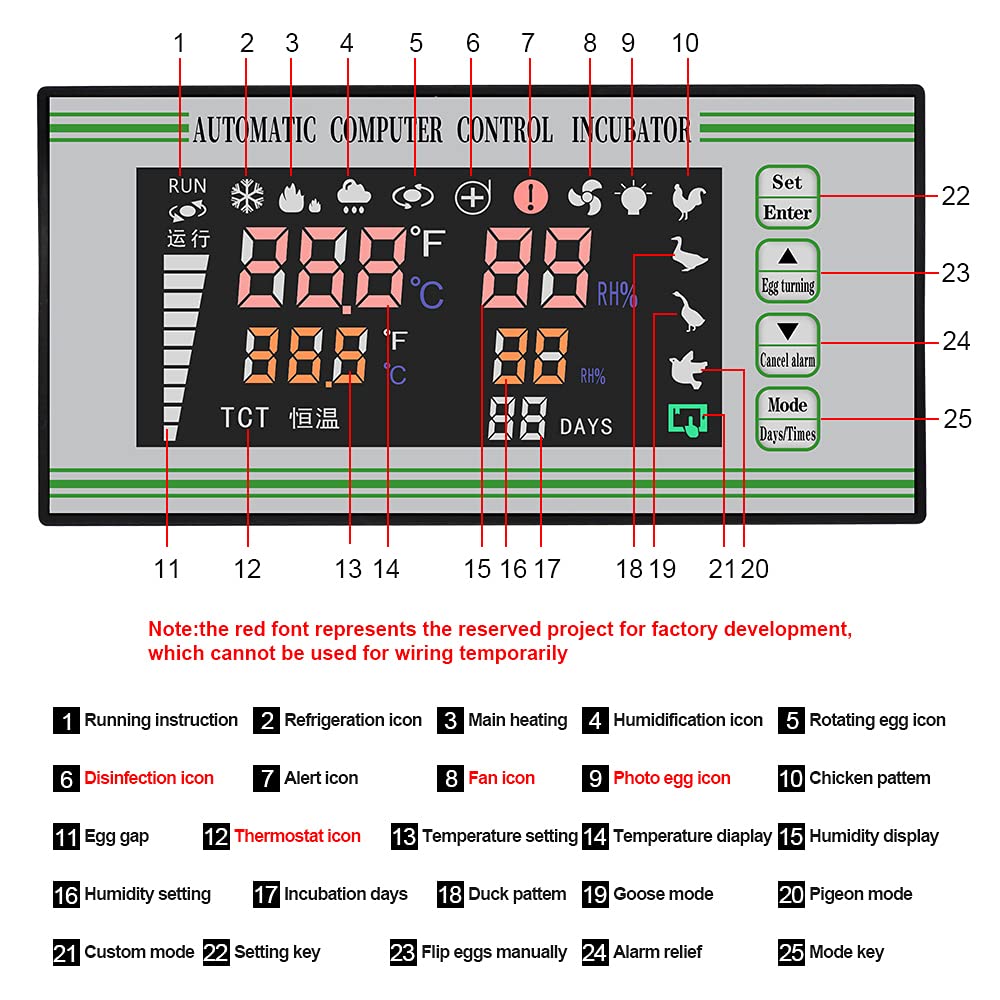

• Digital displaying of temperature, humidity and turning frequency
• Full automatically temperature and humidity controlling,with temperature and humidity sensor
• Full automatically eggs turning, full automatically alarming and full automatically cooling and ventilator
• five kinds of incubation modes for user-definition, chicken, duck, goose and pigeon are available for selection.

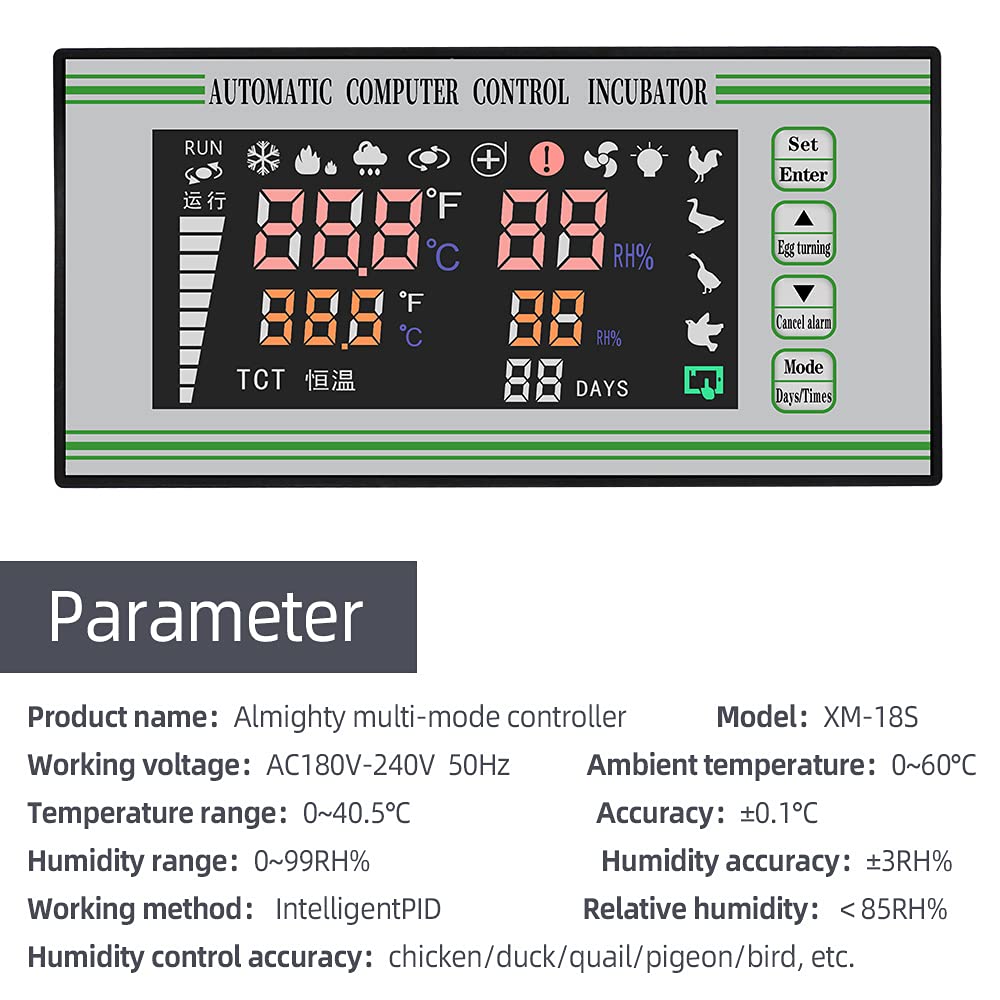

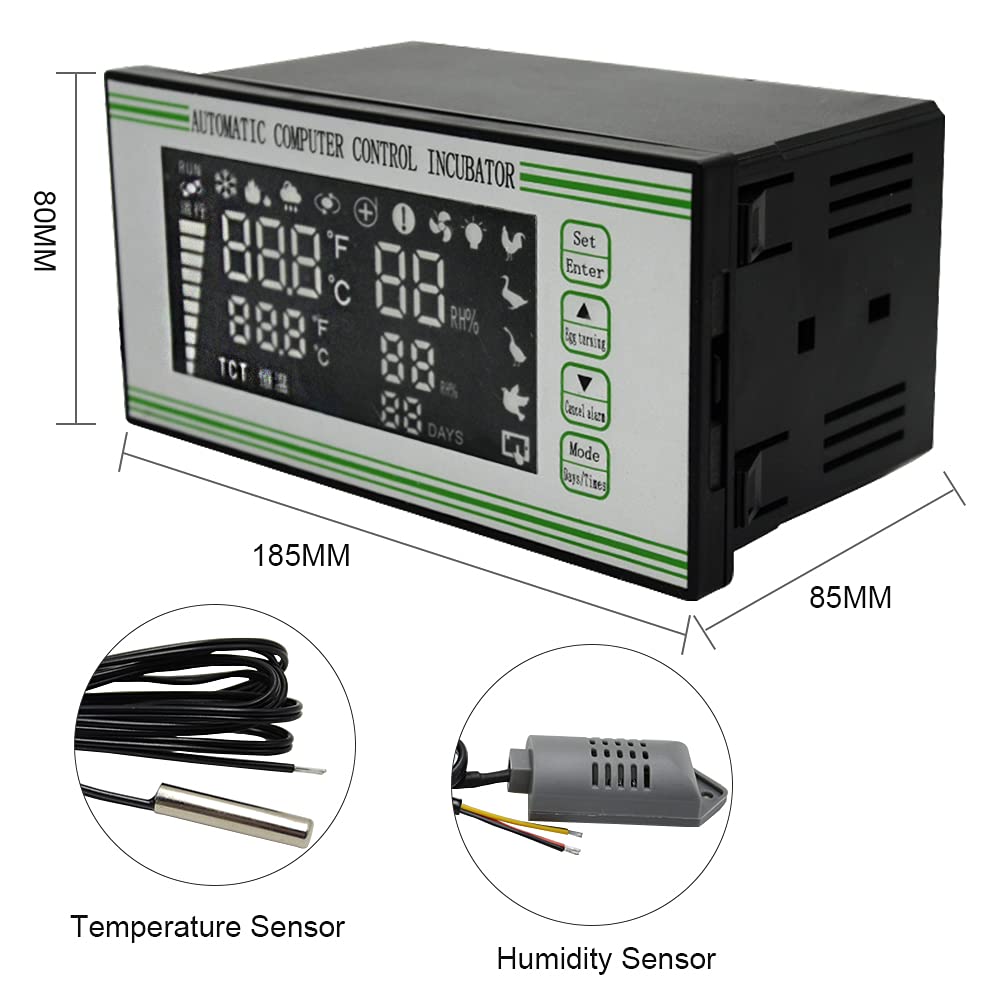

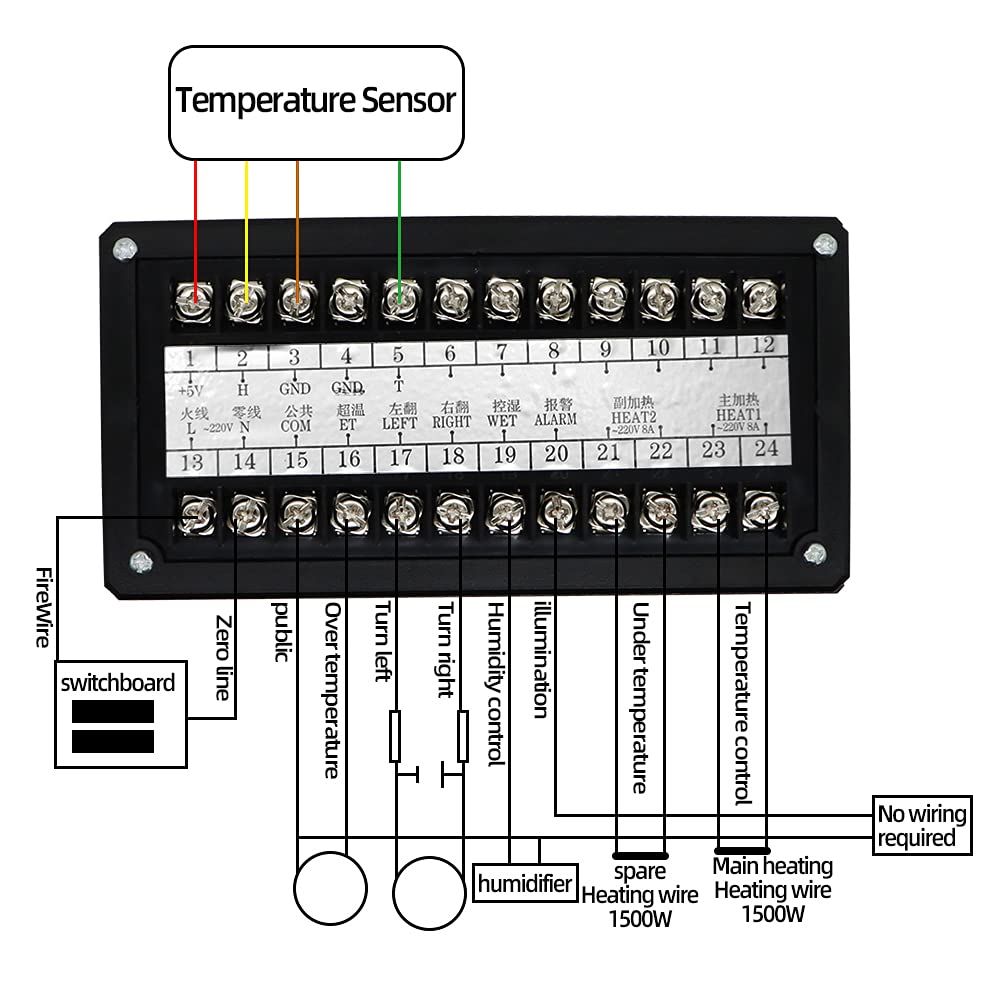

XM-18S Automatic Control System for Egg Incubator and Temperature and Humidity Control Machine Specific Specification: Model No.: xm-18s Weight: 0.75 kg Size: 15.5 x 8.5 x 8 cm. Operating mode: Intelligent PID Name: All-intelligent multi-mode controller Main Technical Index: 1.Temperature display range: 0 ~ 40.5 °C 2.Temperature measurement accuracy: ±0.1℃ 3. Humidity display range: 0 ~ 99% RH 4.Accuracy of the release control: ± 3% RH 5.Production lines: 6 lines (primary heating, auxiliary heating, exhaust (air exchange), turn left, turn right, humidifier) 6. Output current: primary and auxiliary heating 30A, other output 10A. 7. Turning time: 999 times maximum. 8.Egg rotation cycle: 0~999 minutes (default 90 minutes) 9.Egg rotation period: 0 ~ 999 seconds (180 seconds by default) 10. Air exchange cycle: 0 ~ 999 minutes (120 minutes by default) 11. Air exchange period: 0~999 seconds (default 15 seconds) 12. Length of the measuring line: approx. 1.5 m. Working conditions: 1. Working voltage: AC 180 V ~ 240 V, 50 Hz. 2. Relative humidity: less than 85% 3. Temperature 3.Ambient: -20℃~70℃ Package contents: 1 x XM-18S Incubator Controller Thermostat Hygrometer. 1 x Temperature Sensor 1 x Humidity Sensor
