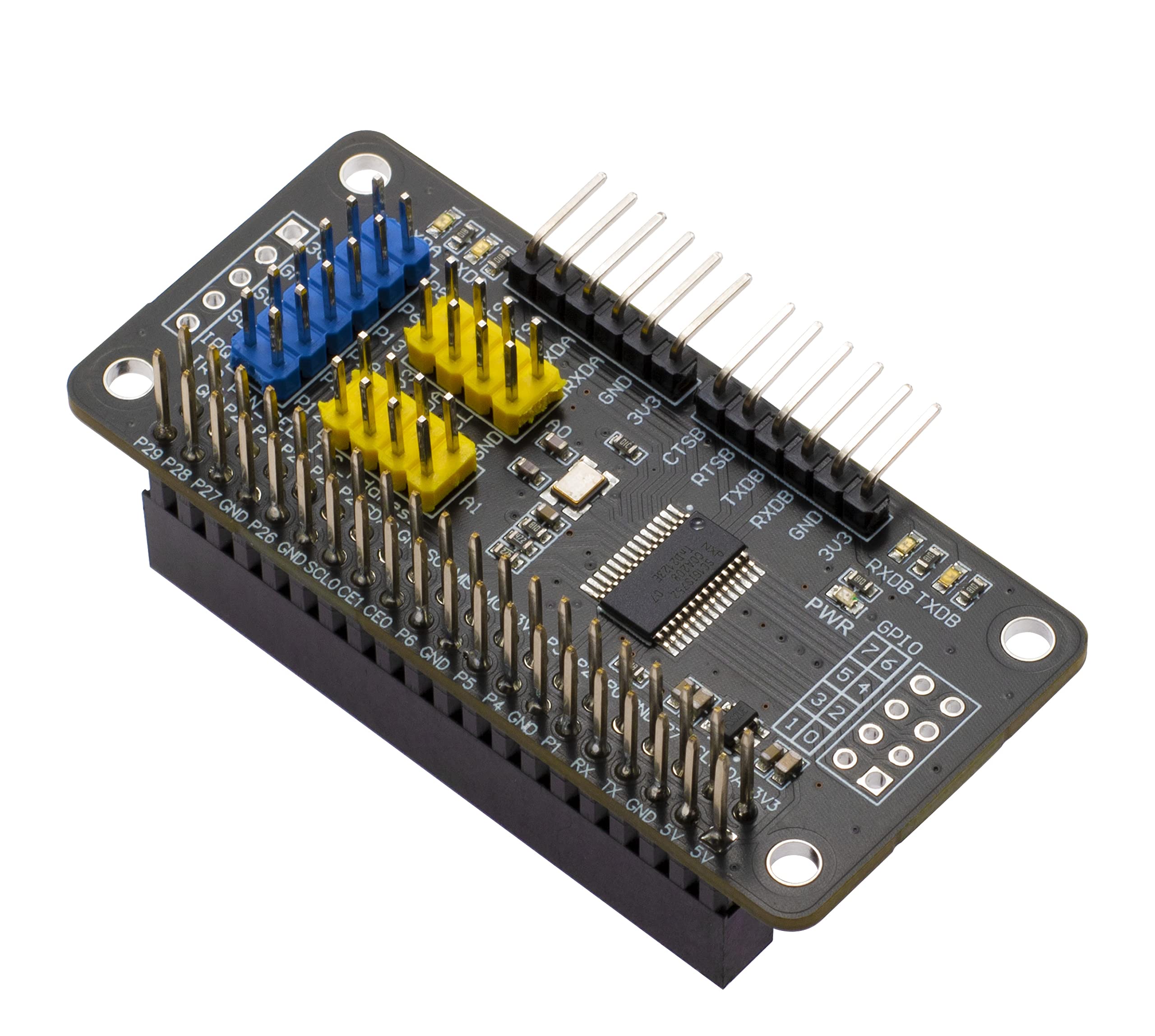

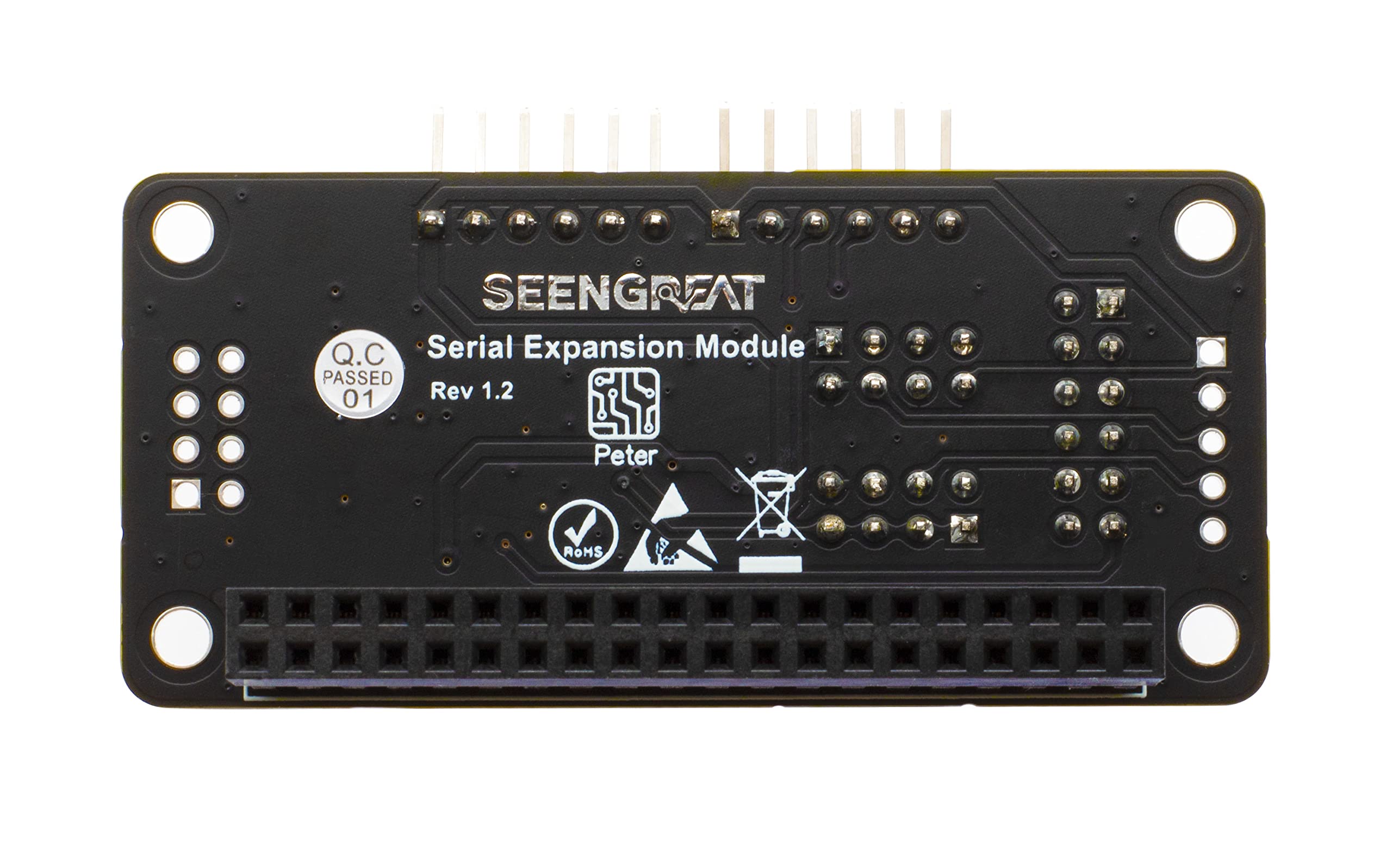

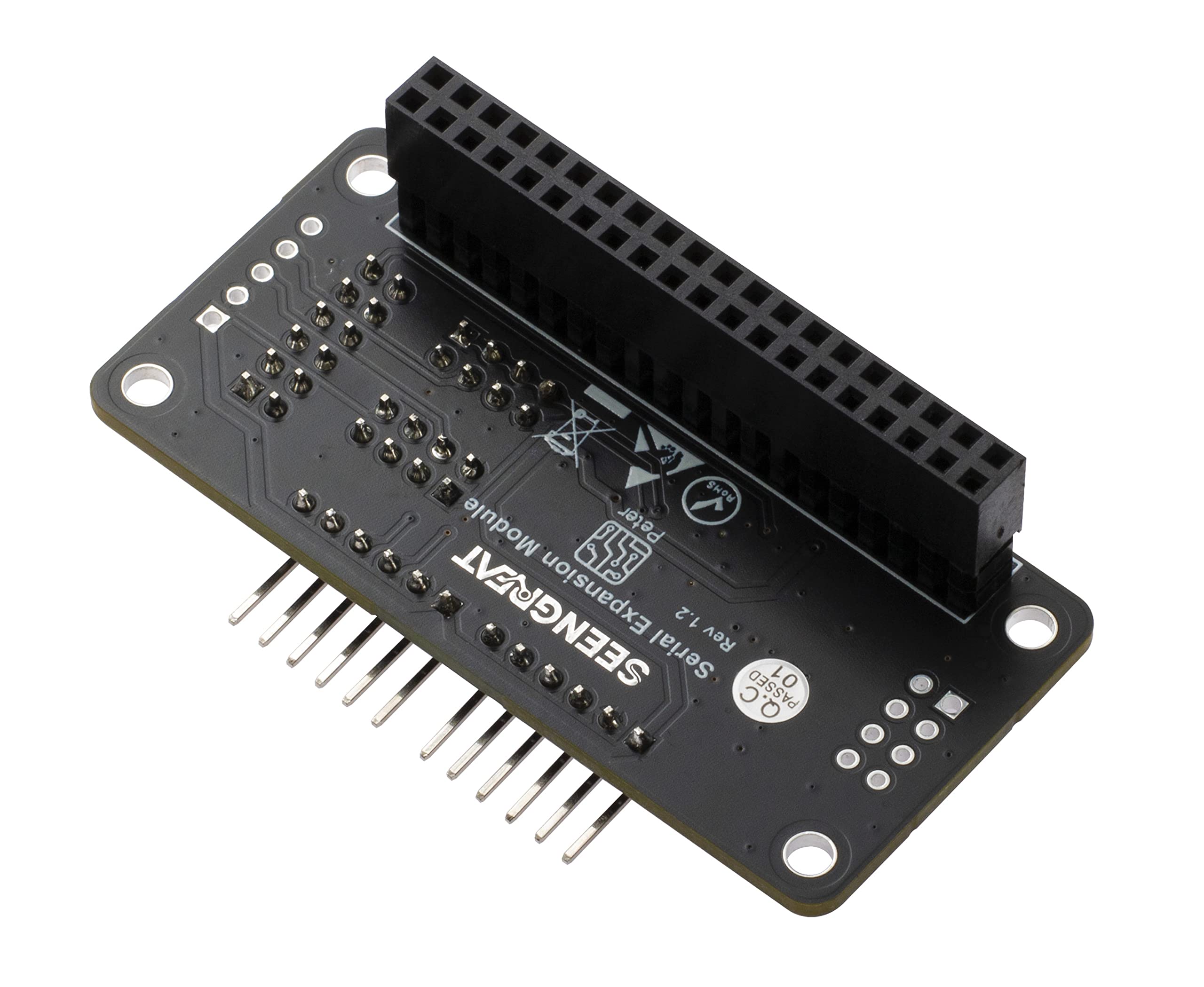

XICOOLEE Serial Expansion Module I2C Interface, Adopt SC16IS752 UART Expansion Chip, 8-bit I/O Expansion, 2-Channel UART 8 GPIOs Expansion,Suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B
About this item
- 1.Onboard SC16IS752, can expand 2 serial ports and 8 programmable IO through I2C, does not occupy extra pins
- 2.By changing the address jumper, up to 16 modules can be connected at the same time, that is, 32 serial ports can be expanded;
- 3.Multiple onboard indicators, easy to check the working status of the extended serial port;
- 4.Reserve I2C control interface for easy access to other main control boards.
- 5.Suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B
Product description

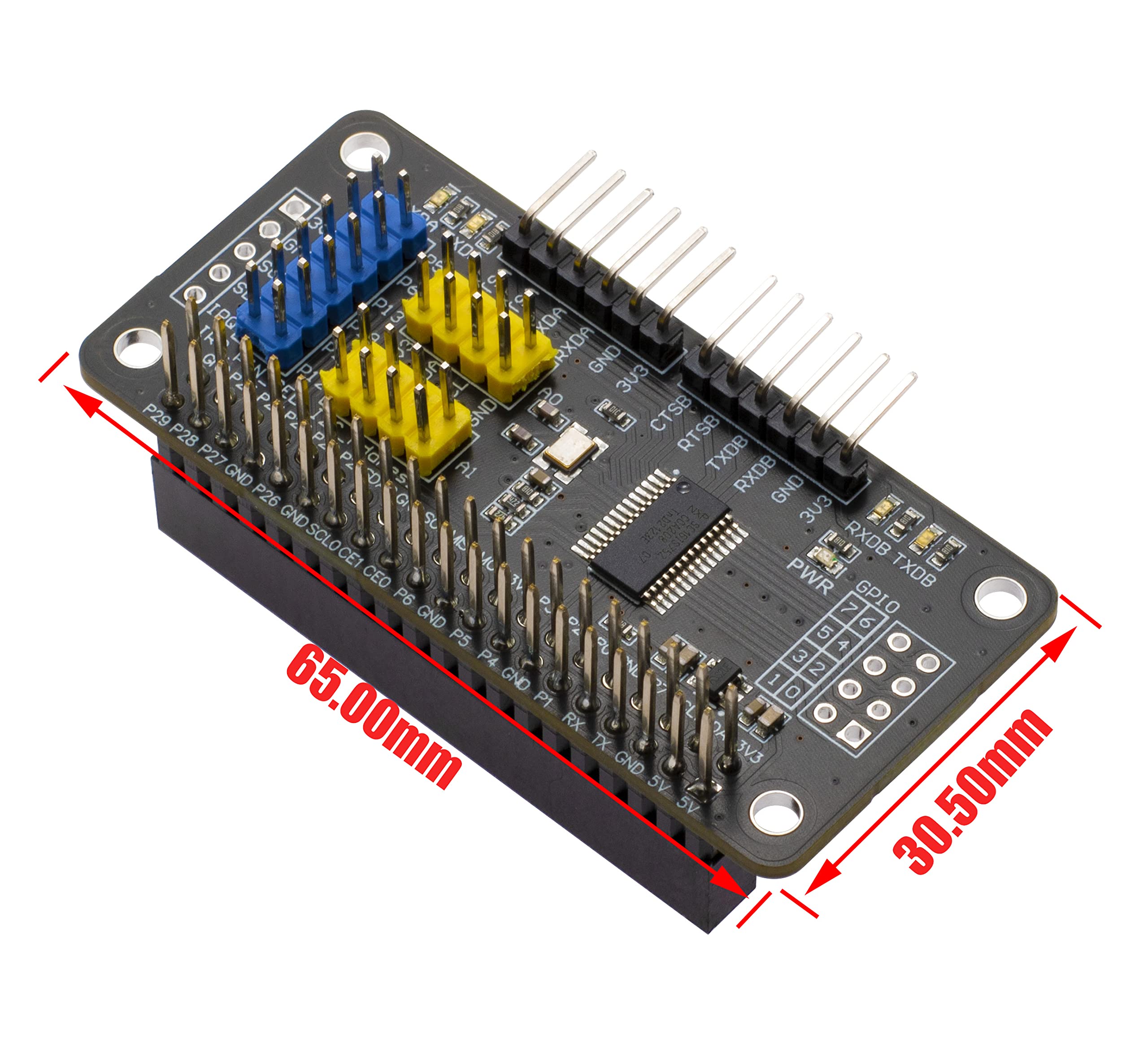

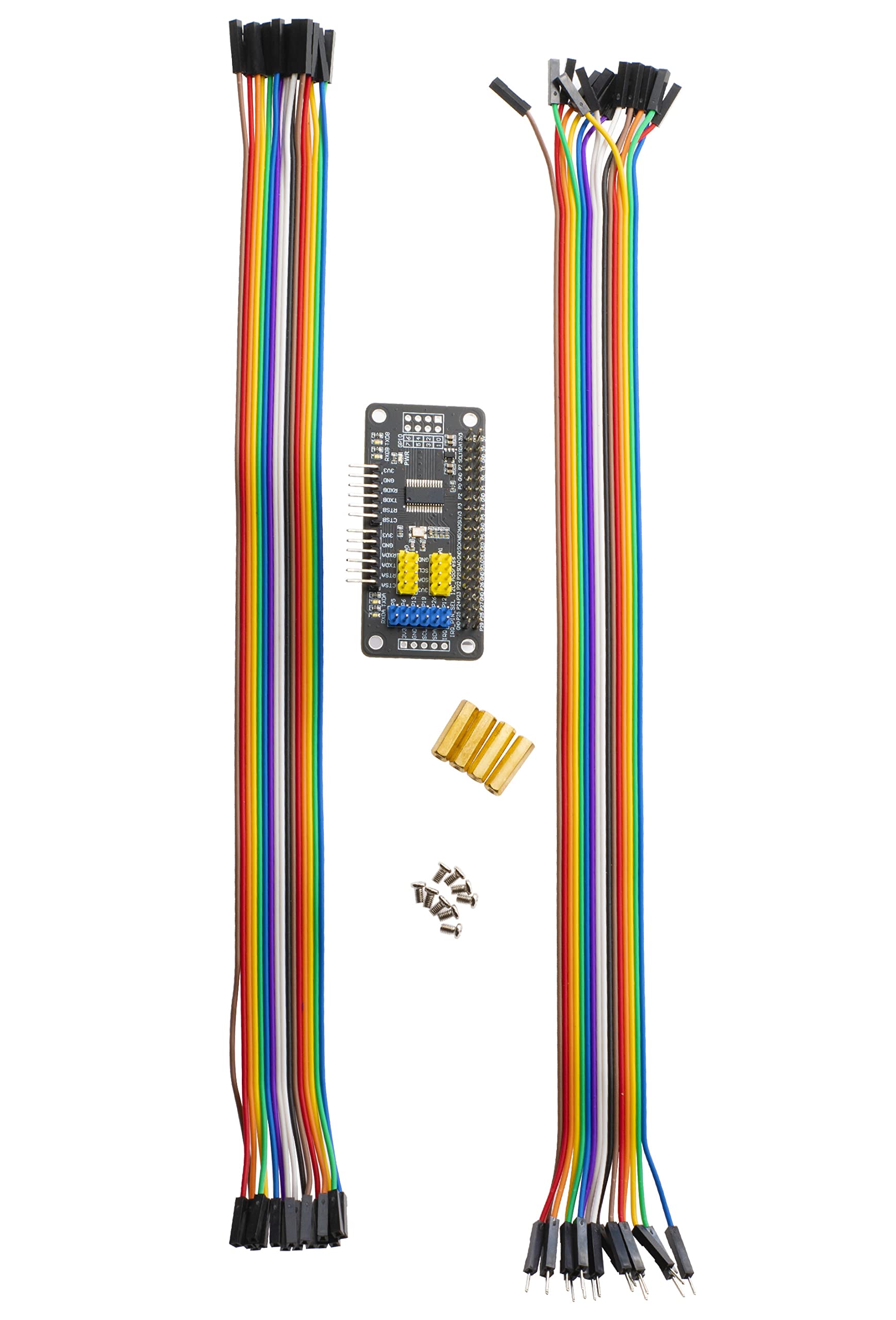

Overview: Intended for Raspberry Pi 40P connector design, suitable for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, using SC16IS752 chip solution, it can expand two serial ports and 8 GPIOs at the same time. Specifications: Dimensions: 65mm(Length)*30.5mm(Width) Supply voltage: 3.3V or 5V Logic Voltage:3.3V PWM Driver Chip: SC16IS752 Interface Protocol:I2C Package contents: 1.Serial Expansion Module×1 2.PH2.54mm 16Pin wire x2
Product details
