XICOOLEE RGB Full-Color LED Matrix Panel Display 64×32 Pixels for Raspberry Pi, 3.0mm Pitch, Onboard 2048 RGB LEDs

• 1.On-board 64 x32 ,2048 full-color display LEDs
• 2.3.0mm pitch, displaying text, animation and colorful image

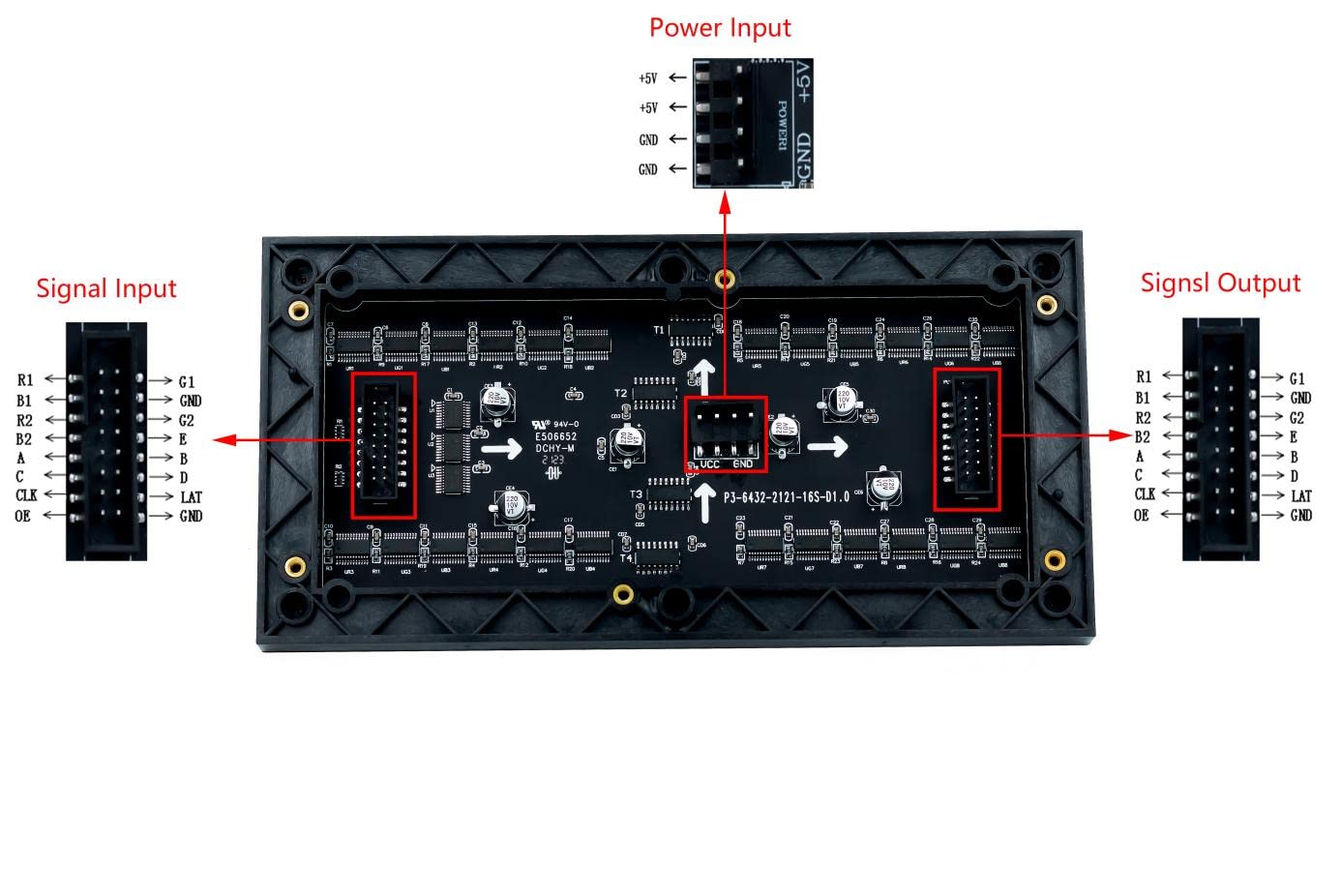

• 3.Onboard two HUB75 interfaces, respectively for input and output. It can be cascaded multi-screen
• 4.192×96mm dimensions,moderate size, suitable for DIY research and study
• 5.Providing open development resources and tutorials of using for Raspberry Pi and Ardui.

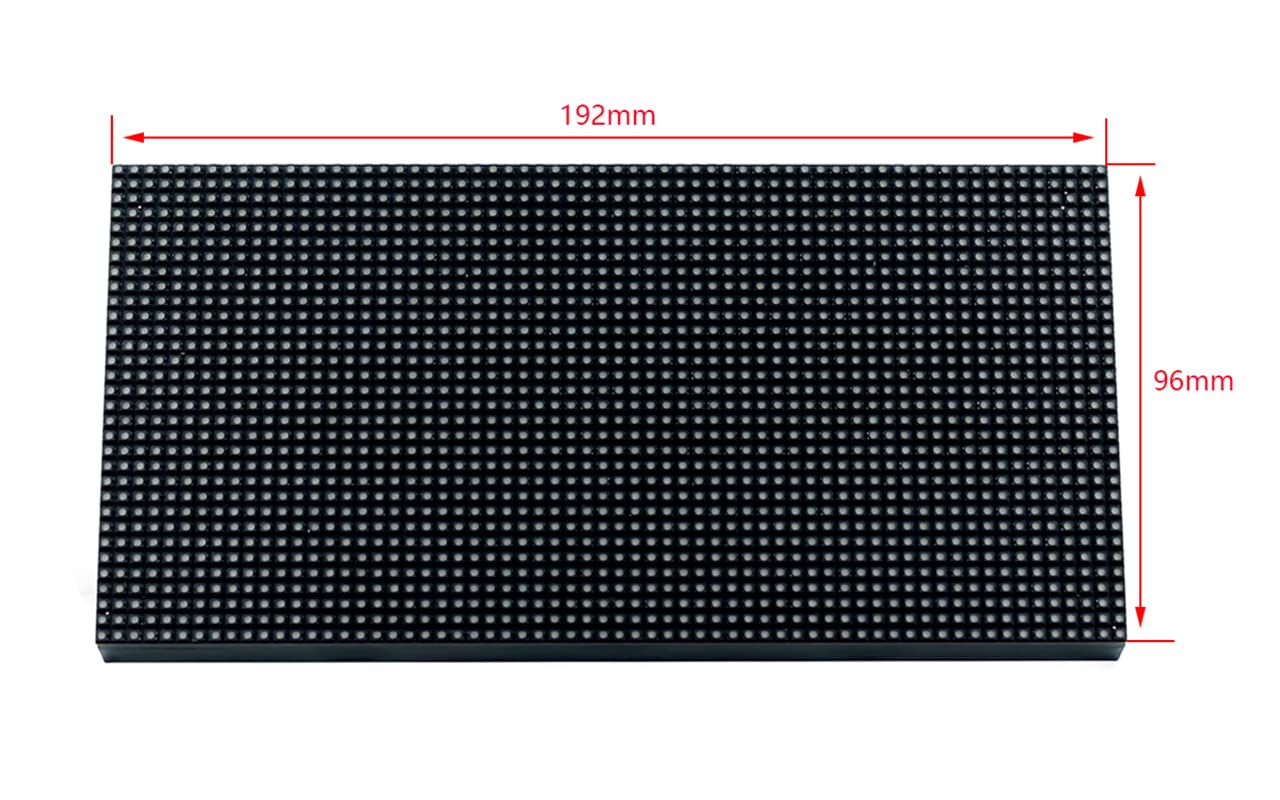

Overview: This product RGB Matrix P3.0-64x32 is on-board 2048 full-color display LEDs with 3.0mm pitch, which is intended for Raspberry Pi developing board. The product is provided with open development resources, suitable for the electronic makers and the related learners to learn or DIY. Specifications: Dimensions:192mm(Length)*96mm(Width)*15mm(Height) Pixels:64*32 Pitch:3.0mm Pixel Form:1R1G1B Viewing Angle:≥160° Signal Interface:HUB75 Control Type:synchronization Driving:1/16 scan Power Supply:5V/2A Power Port:VH4 socket Note: 1. If it is used for multi-screen cascading, please make sure that the power of each screen is 5V/2A. 2. Please feel free to contact us if you have any problem. Package contents: 1. RGB LED Matrix P3.0-64x32 panel x1 2. 16P wire ~30cm x1 3. Power supply terminal adapter x1 4. Signal cable (flat cable) x 1 5. Power cable x1 6. Dark brown acrylic front panel x1 7. Double-sided tape x1 8. Magnetic bolt x4
