xDuoo DT-01 HiFi Phone DAC Pre-Amp Player Transforms Dock, Turntable for Phone Convert Output Coaxial/Optical/Aux audio to decoder or amplifier

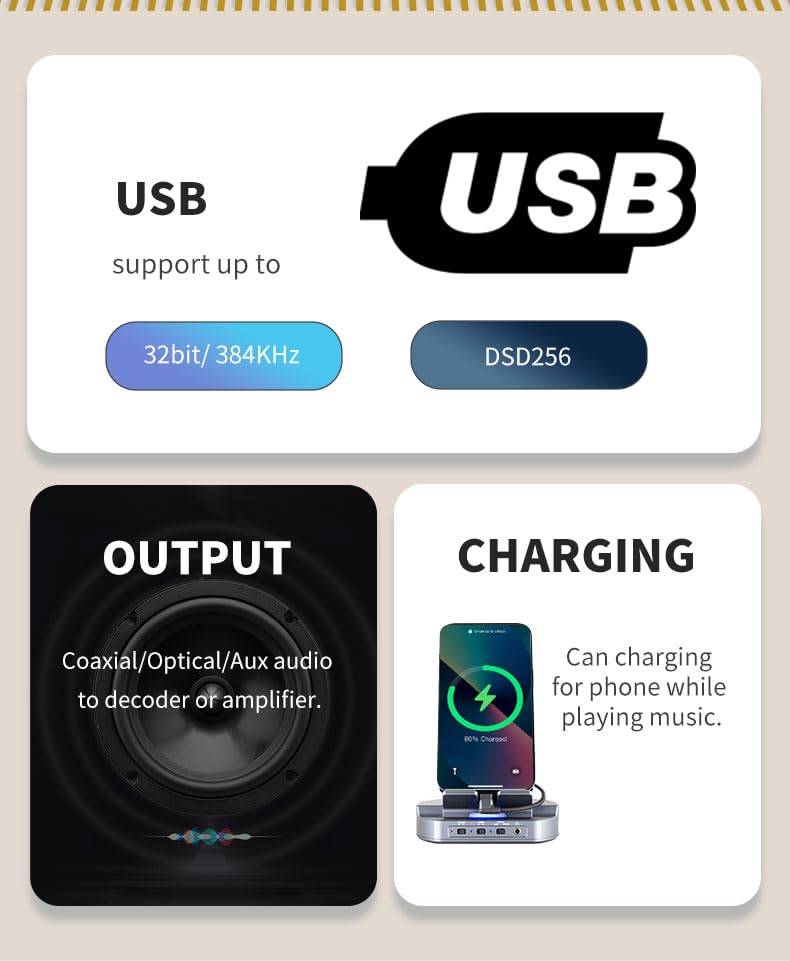

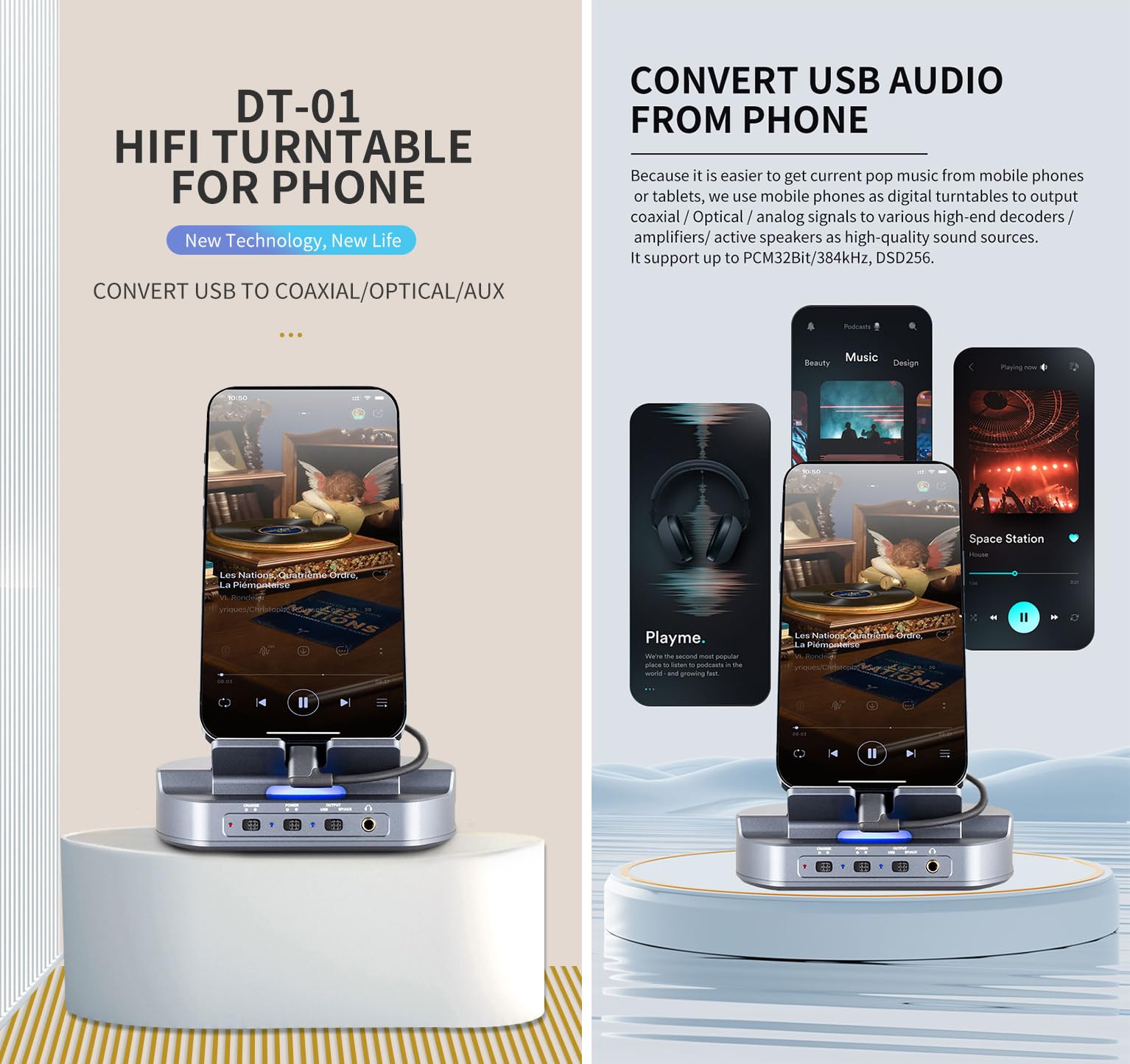

• 👍 Convert USB Audio from Phone ▶️ Because it is easier to get current pop music from mobile phones or tablets, we use mobile phones as digital turntables to output coaxial/Optical/analog signals to various high-end decoders/amplifiers/ active speakers as high-quality sound sources. It supports up to PCM32Bit/384kHz,DSD256. With a top-tier DAC chip, a smorgasbord of outputs, and even a built-in phone charger, it’s the musical upgrade your phone has been waiting for.
• 👍 Charging the Phone ▶️ It has a charging switch,and you can choose to charge your phone when it is working or turned off, to solve the problem of battery life.

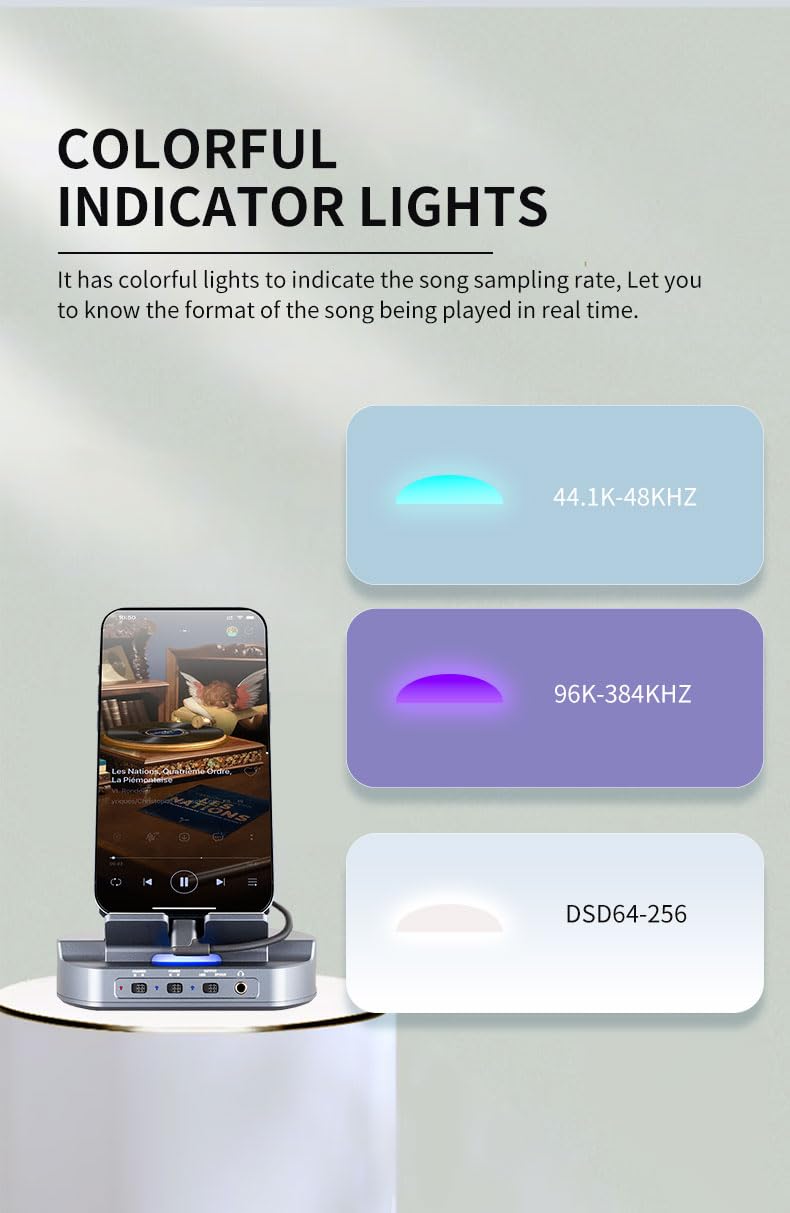

• 👍 Colorful Indicator Lights ▶️ It has colorful lights to indicate the song sampling rate, letting you know the format of the song being played in real time. Blue is 44.1-48kHz, purple is 96K-384kHz, and white is DSD64-256.

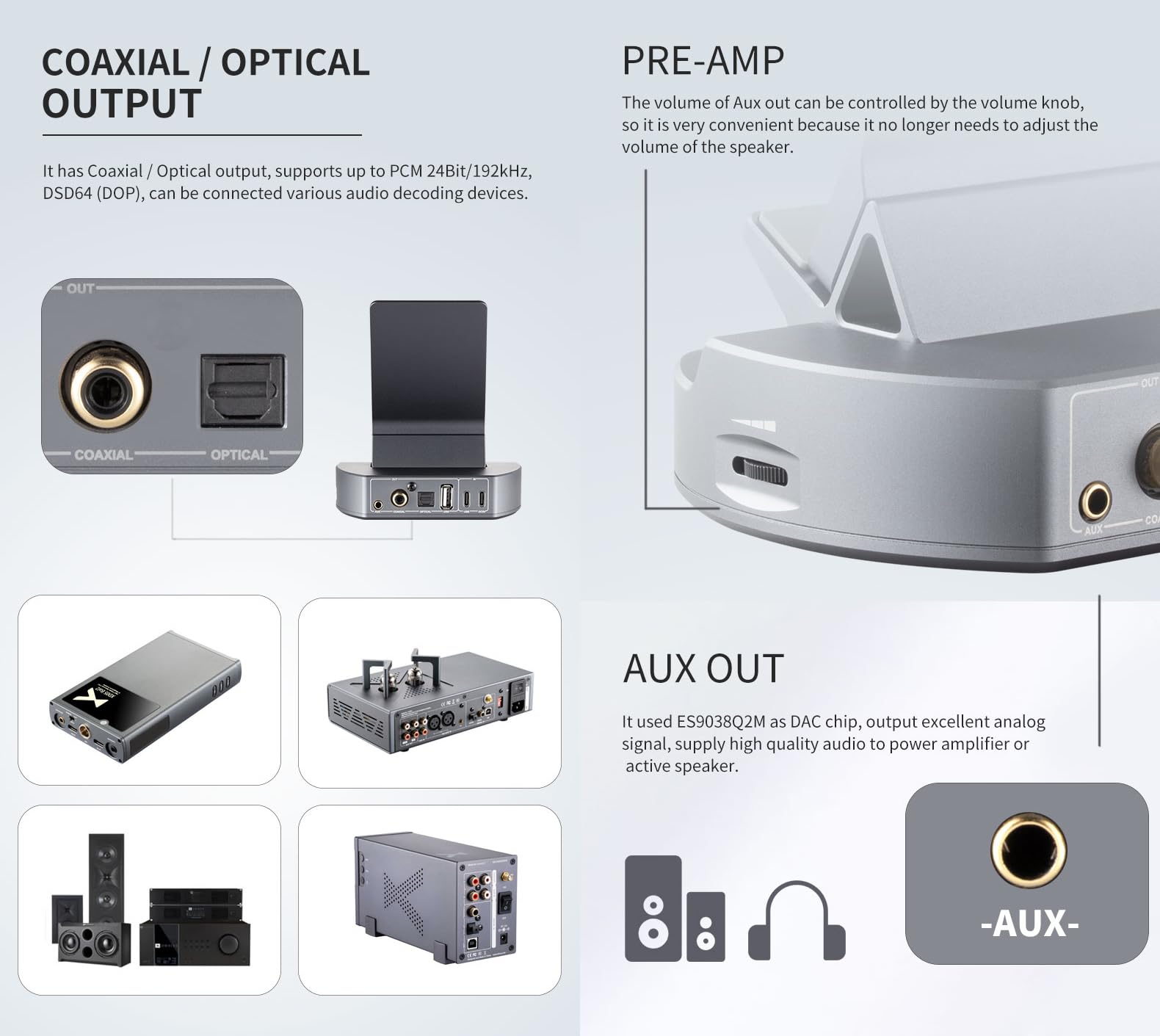

• 👍 Coaxial/optical output ▶️ With coaxial and optical outputs, the xDuoo DT-01 supports up to PCM 24bit/192kHz and DSD64 (DoP), connecting to various audio decoding devices with ease.

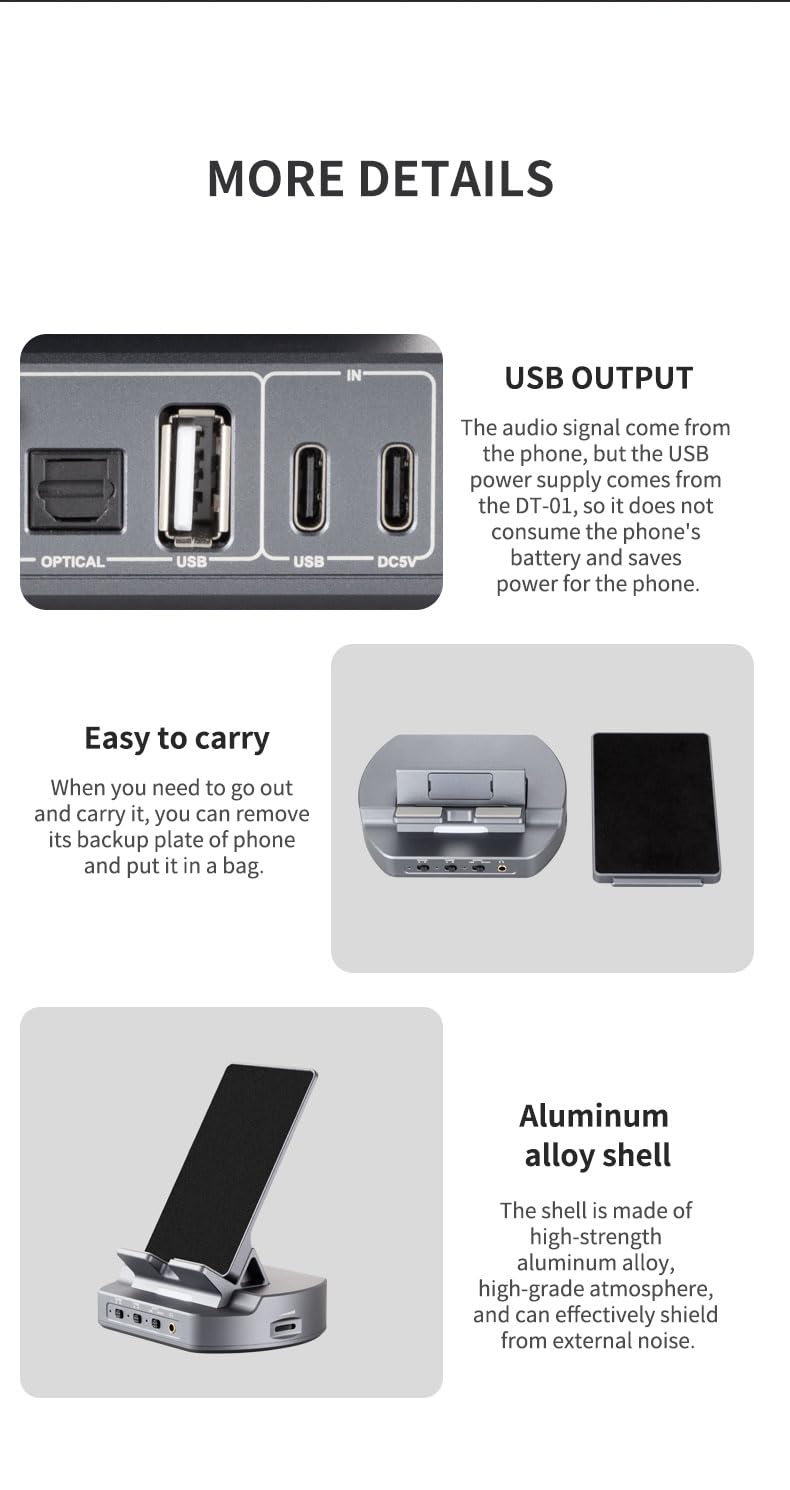

• 👍 USB Output ▶️ The audio signal come from the phone, but the USB power supply comes from the DT-01, so it does not consume the phone's battery and saves power for the phone. If you want to bypass the DAC chip, just use the USB output to send the signal straight to another DAC.

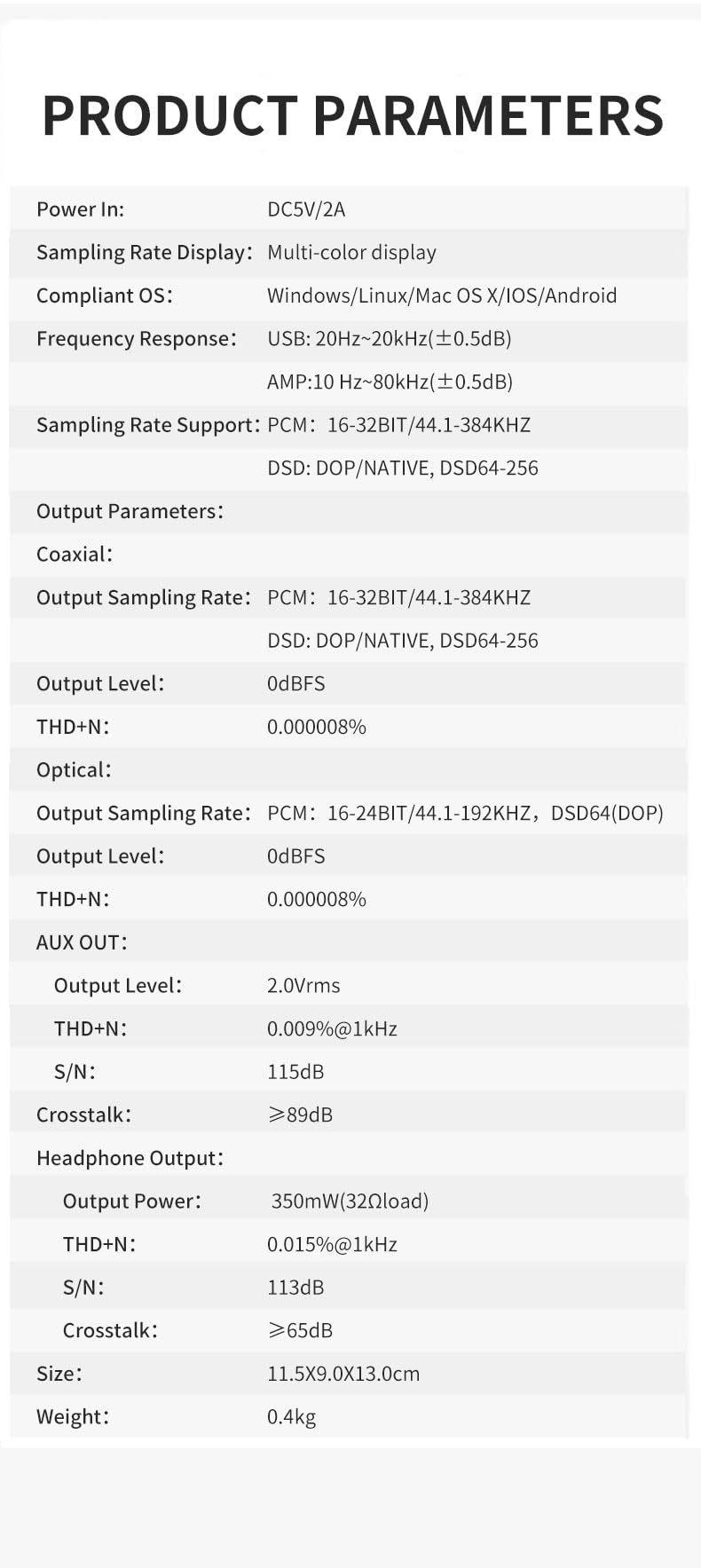

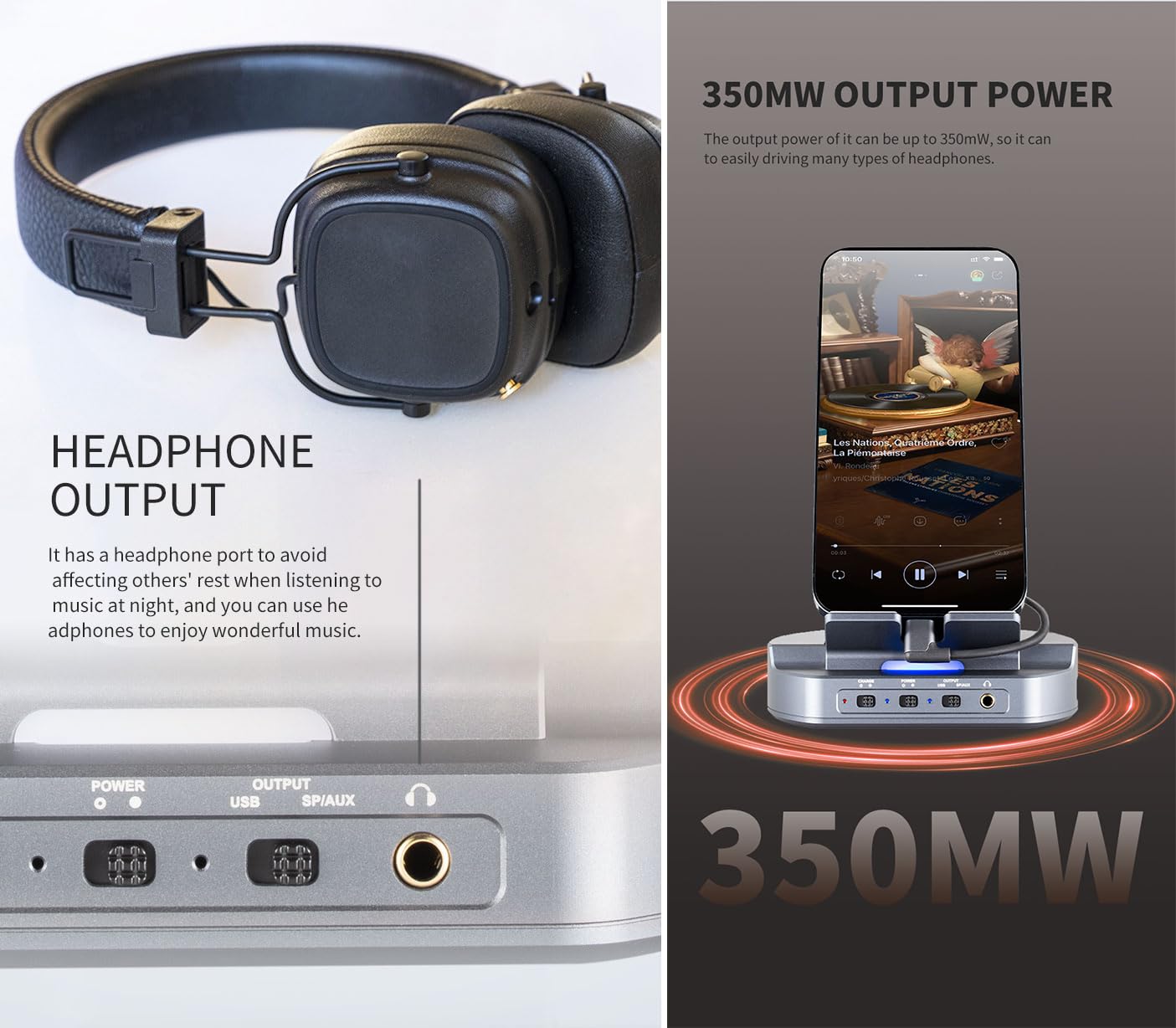

Transform your phone into a high-fidelity beast with the xDuoo DT-01 HiFi Phone DAC/Amp. This sleek device turns your mobile into a jukebox that delivers concert-quality sound to your headphones, speakers, and more. USB supports up to 32-bit/384kHz and DSD256 Coaxial, optical, and aux audio outputs Charges phone while in use ES9038Q2M DAC Chip for high-quality analog signal Colorful indicator lights for sampling rate XMOS USB chip for strong performance Coaxial/optical output supporting up to PCM 24bit/192kHz and DSD64 (DoP) USB output for bypassing the DAC chip Pre-amp with volume knob control 350mW headphone output power Aluminum alloy shell for durability and noise shielding Specs Power In: DC5V/2A Sampling Rate Display: Multi-color display Compliant OS: Windows/Linux/Mac OS X/IOS/Android Frequency Response: USB: 20Hz~20kHz (±0.5dB) AMP: 10Hz~80kHz (±0.5dB) Sampling Rate Support: PCM: 16-32BIT/44.1-384KHZ DSD: DOP/NATIVE, DSD64-256 Output Parameters: Coaxial: Output Sampling Rate: PCM: 16-32BIT/44.1-384KHZ, DSD: DOP/NATIVE, DSD64-256 Output Level: 0dBFS THD+N: 0.000008% Optical: Output Sampling Rate: PCM: 16-24BIT/44.1-192KHZ, DSD64 (DOP) Output Level: 0dBFS THD+N: 0.000008% AUX OUT: Output Level: 2.0Vrms THD+N: 0.009% @ 1kHz S/N: 115dB Crosstalk: ≥89dB Headphone Output: Output Power: 350mW (32Ω load) THD+N: 0.015% @ 1kHz S/N: 113dB Crosstalk: ≥65dB PACKAGE LIST xDuoo DT-01 USB cable User manual
