windmeile | Brushless Controller Professional, Torque Controller, Control Unit, 36V, 7A/250W, E-Bike, Electric Bike, Pedelec, Scooter

• Function: This device is a controller for controlling all functions of your e-bike. Via the controller, devices such as the motor and the lights are switched on/off, in addition, the information from the PAS sensor, brake sensors and Hall sensor is processed and transmitted to the display. The controller can be perfectly attached to the bike with the help of the controller box.
• Power: The controller for 36V batteries provides a rated power of 250W at 7A. The maximum current is 14A. The power at the light output is 3W (100mA, voltage is equal to battery voltage).
• Compatibility: The controller is also functional with all common windmeile engines with or without Hall sensor. If the Hall sensor of your engine is defective, the controller will still work, only the start-up is a little less round. The controller must be used with a display of the KT series. You can find the compatible displays in our store. The dimensions are: 31x82x52 mm.

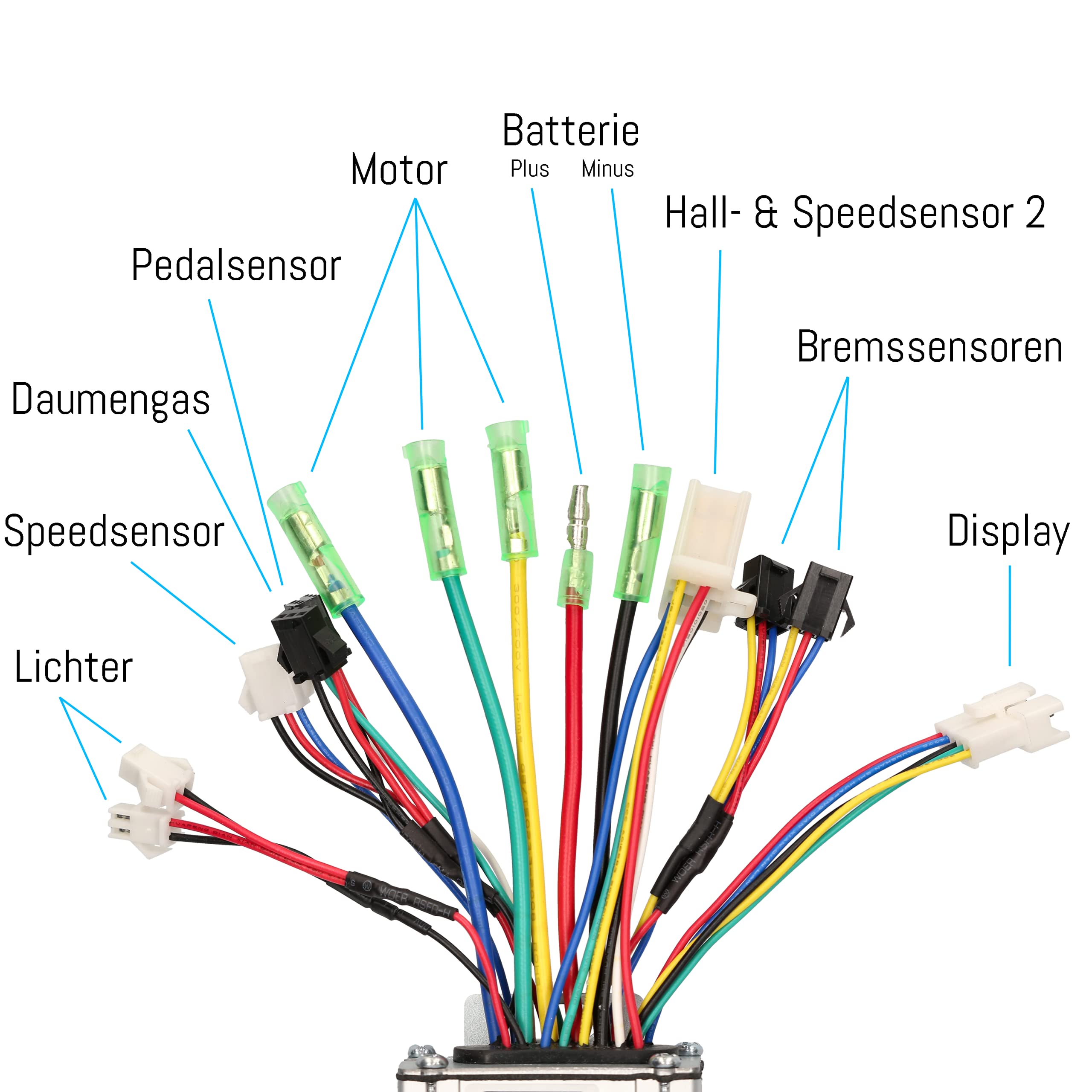

• Connections: Our Torque Professional Controller has two connectors for lights with an output voltage of 36V, three connectors for the motor, one connector for the thumb throttle, two connectors for the battery ( and -), one connector for the display, one connector for Hall sensor and speed sensor, two connectors for the brake and one connector for PAS (pedal assist systems).
• Accessories: For easy installation and best compatibility, we recommend suitable accessories, such as our controller box to protect against environmental influences and securely attach the controller to the bike, or the thumb gas from windmeile, found either in the Amazon Store or on our website with ideal advice and instructions on our products, for your special e-bike or pedelec experience.

windmeile - for your special e-bike or pedelec experience.
