Wengart Thermoelectric Actuator WGS03,AC230V M30*1,5 Thread,Normally Closed Work for Underfloor Heating (1Pack)

• The electrothermal actuator adopts a thrust of 110N, a stroke of 3mm, and an opening time of 3-5 minutes. If there are special requirements, the stroke and thrust can be customized

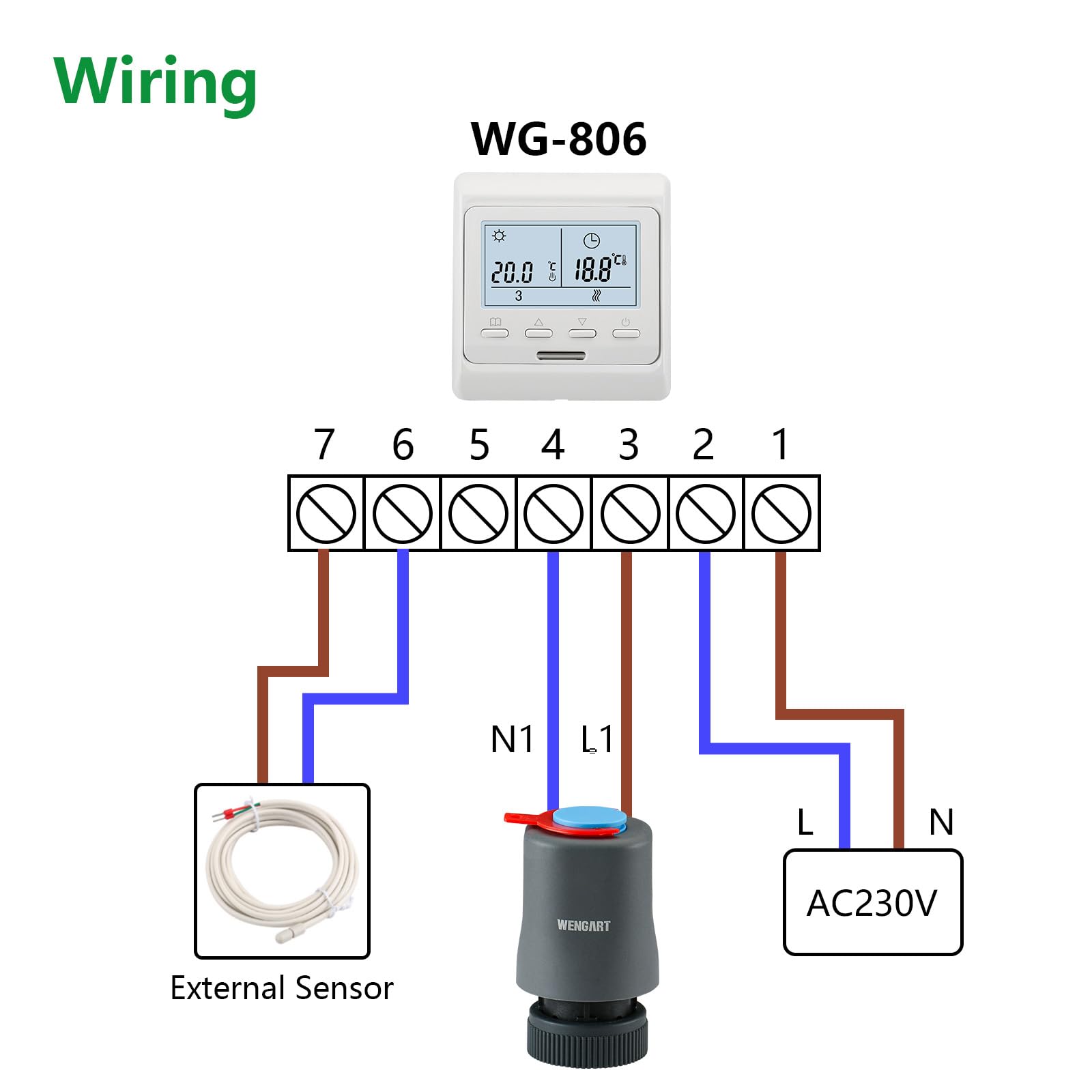

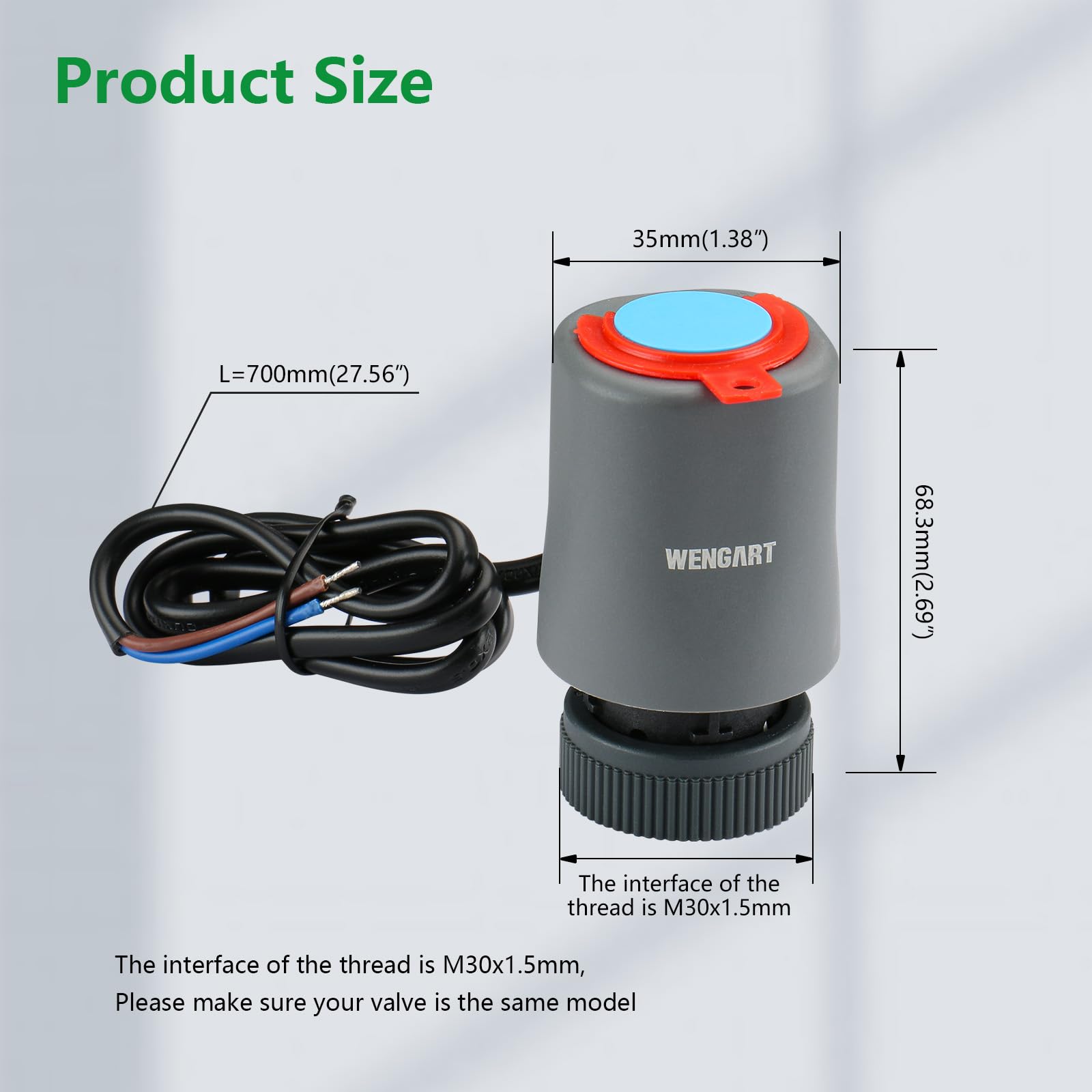

• The electrothermal actuator adopts the standard M30x1.5mm threaded interface, only 2 wires are needed, the installation is simple and quick, and the disassembly is convenient, suitable for all M30x1.5mm valve bodies

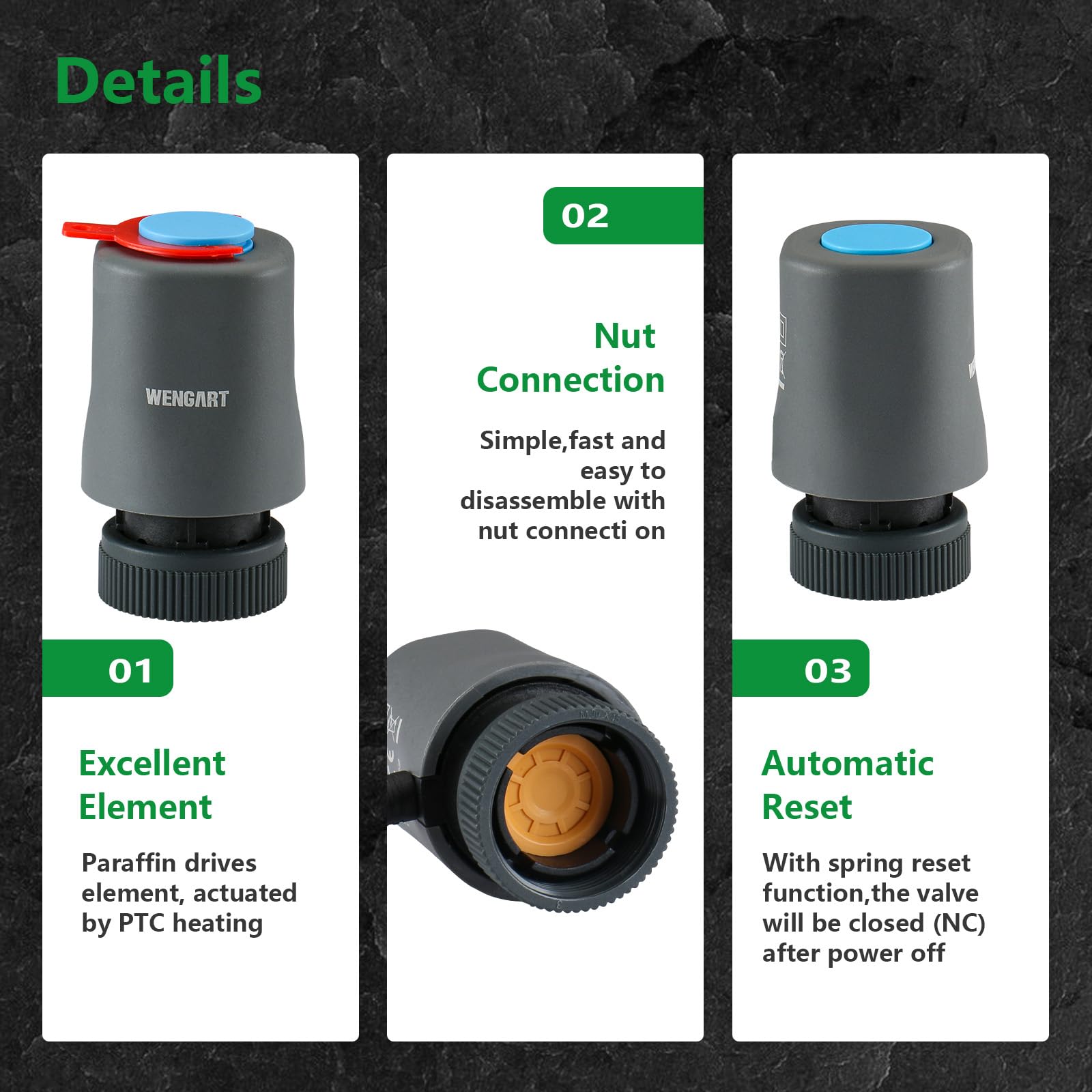

• Thermoelectric actuators rely on thermal expansion and contraction, no mechanical transmission, no component wear, paraffin propulsion elements, PTC heating drive, stable operation, low noise, maintenance-free, low power consumption, long service life
• Thermoelectric actuator is suitable for floor heating, used in conjunction with a thermostat, can open or close the valve according to the signal of the thermostat, saving your energy

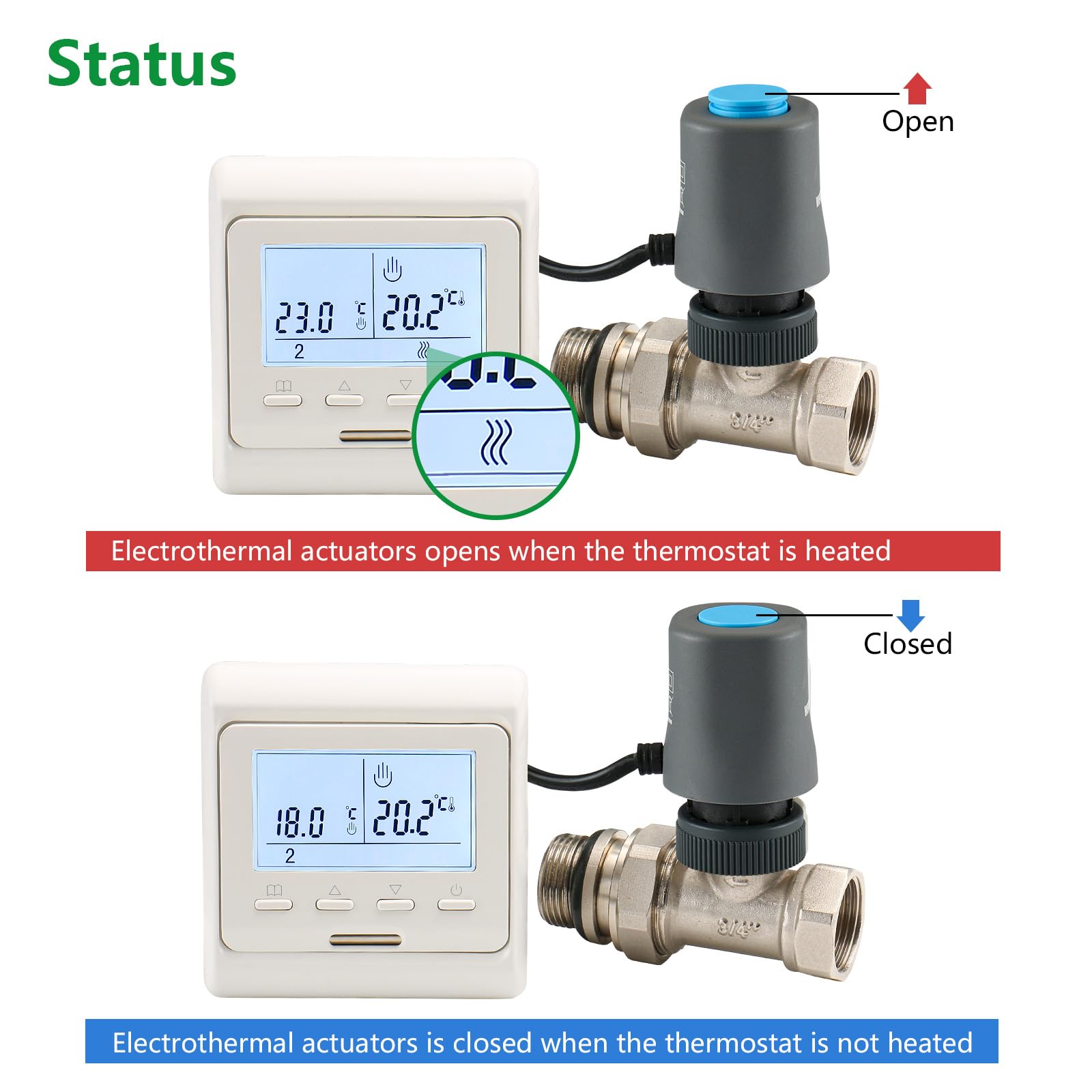

• This electrothermal actuator can directly indicate the opening and closing status, which is convenient for knowing the current valve status.
• The thermoelectric actuator has a spring return function, which can return to the original state after power failure.

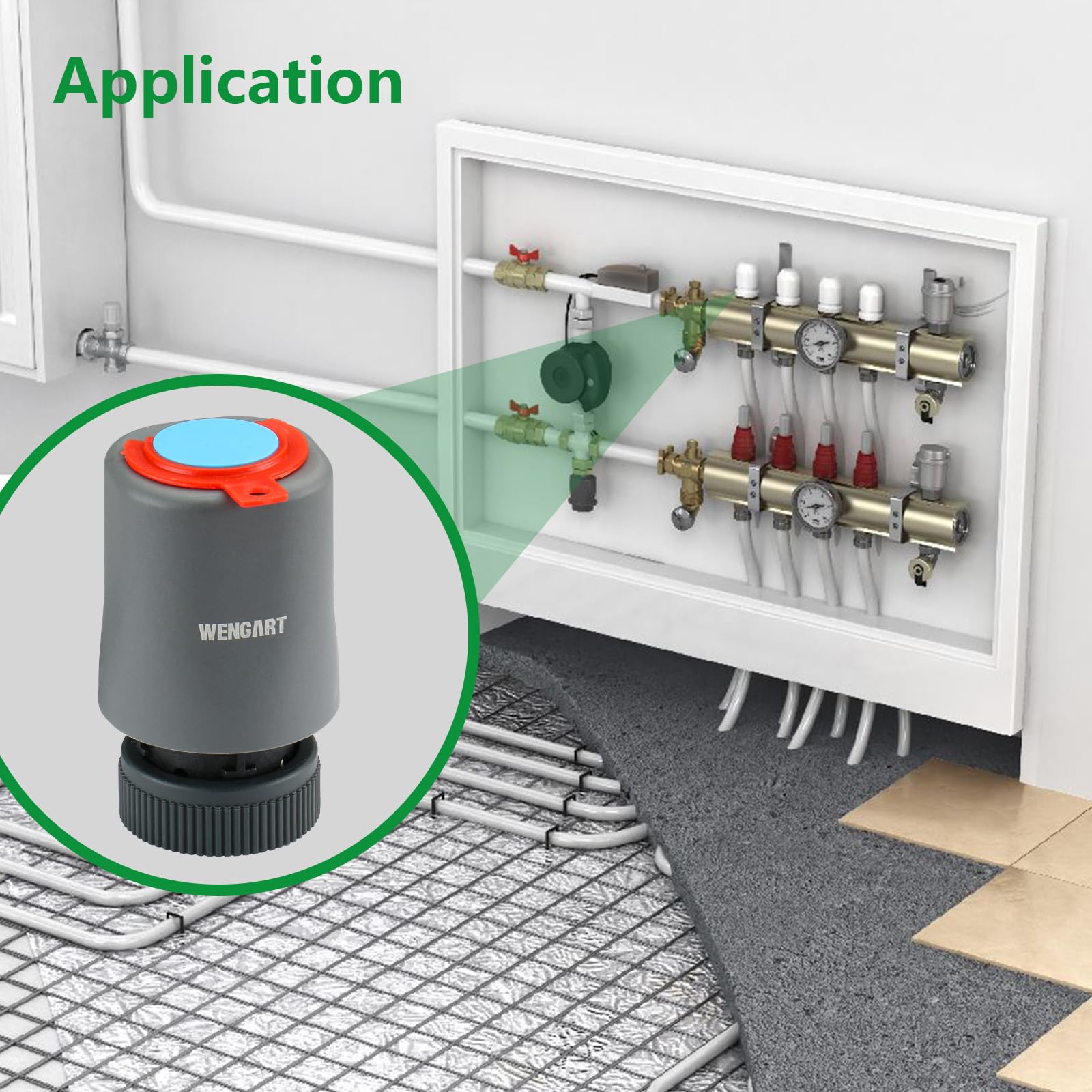

• The electrothermal actuator can be used as an accessory of the floor heating water separator for heating or cooling systems, suitable for homes, hotels, etc.
• The electric heating executive is made of high-quality fiberglass material, heat-resistant and durable, high-quality products give you a good user experience.

Wengart Thermoelectric Actuator is adapted to work with the central and underfloor heating system.The actuator is perfect for every household,Its task is to regulate and control hot water valves, which affects the functionality of the entire installation. The actuator opens and closes the valve on the underfloor manifold according to the signal required by the room thermostat or digital programmable thermostat.It has the characteristics of zero working noise, small size and low power consumption. Specification: Ambient temperature:-5-50℃ Thrust:110N 2 x0.5 mm² Wire Normally Closed M30 Thread:M30x1.5mm Stroke Lenght:Min3mm Voltage: AC230V Stable Power Comsuption: 2W Full Time:180-300s Cable Length：800mm Protection Class:IP54
