Wengart Household Miniature Circuit Breakers WGM12-63H, AC230V 16A 1P 10kA B-Char, Overload and Short Circuit Protection, Suitable for Household Circuits and Lighting Systems

• This low-voltage circuit breaker is highly effective in preventing overload and short circuit, protecting the safety of your home appliances and lines, giving you peace of mind
• This household circuit breaker has a millisecond tripping speed, which cuts off the power supply at the moment of danger and minimizes losses.

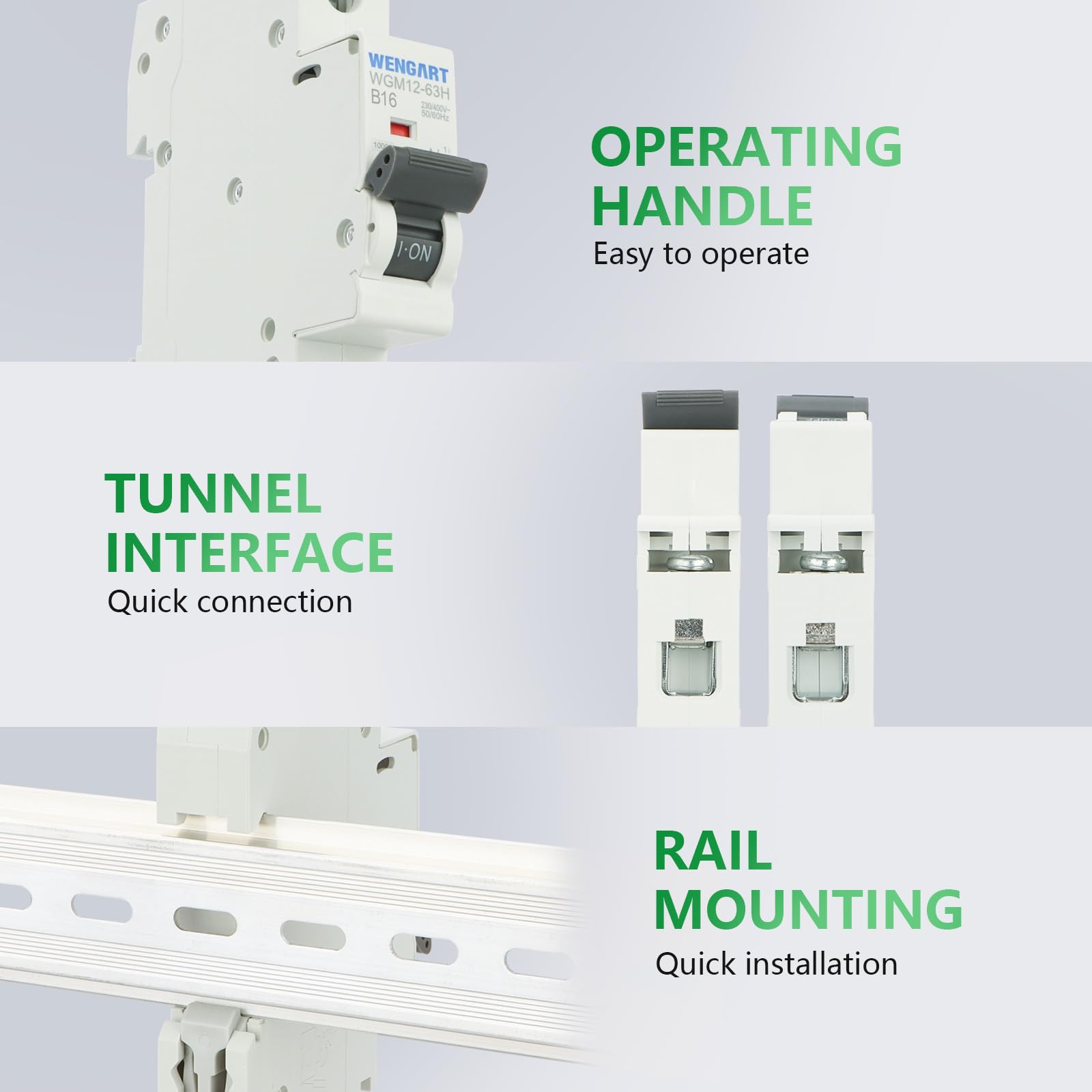

• This MCB circuit breaker is compact and easy to install, perfectly adapting to various distribution boxes, saving space without losing performance.
• This B-type small circuit breaker is made of high-quality materials, strictly controlled, and meets international safety standards to ensure long-term stable operation.

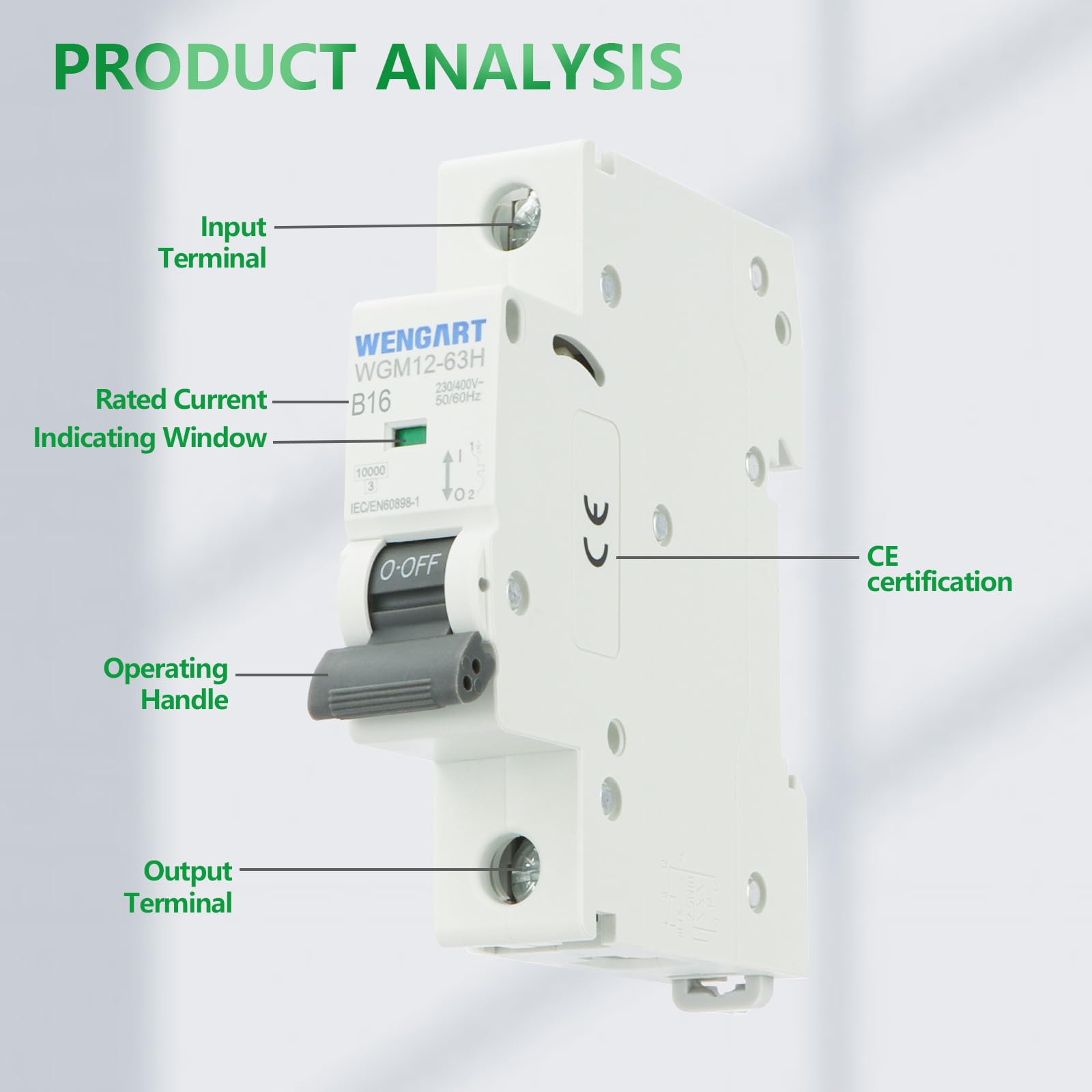

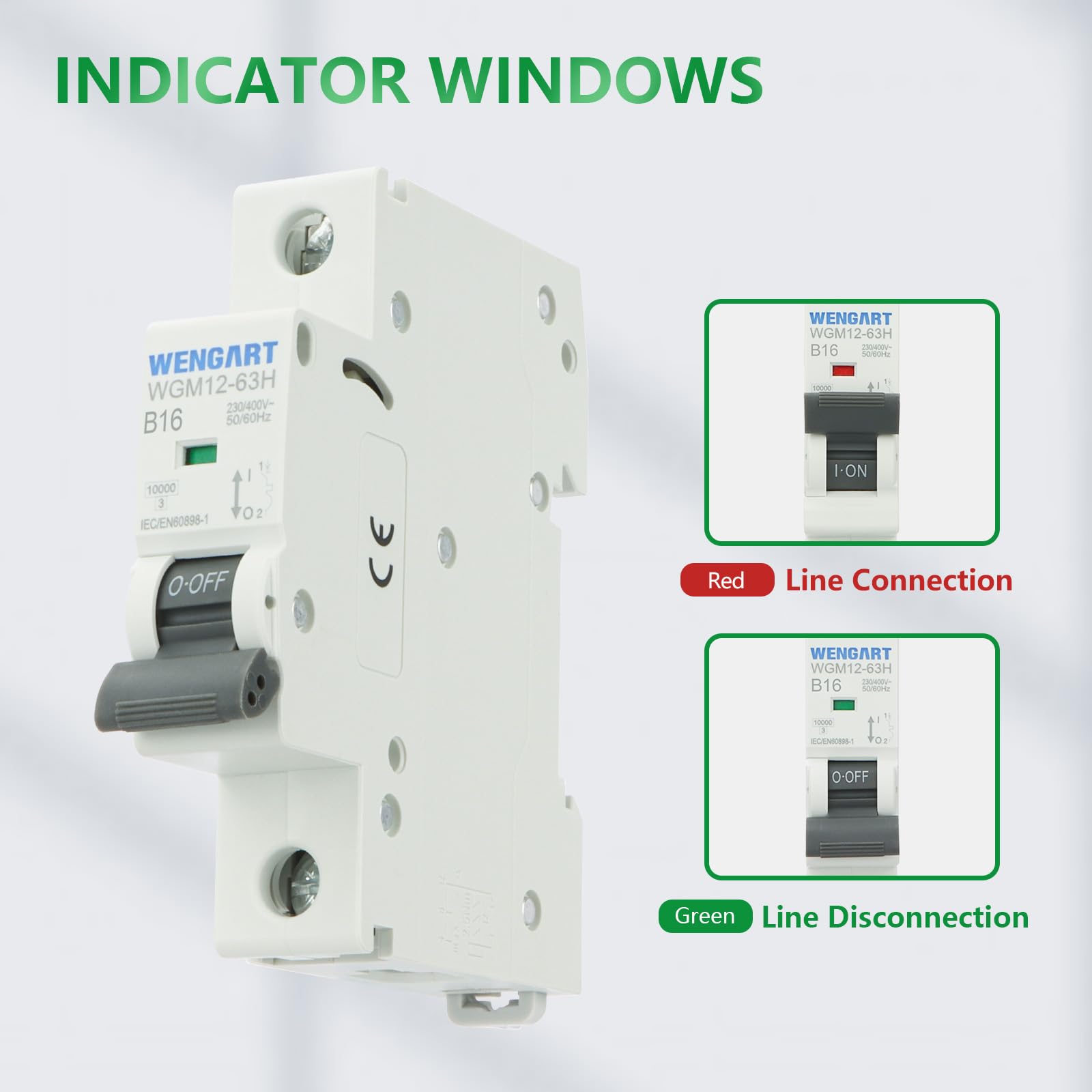

• This DIN rail circuit breaker clearly displays the operating and fault status through the tripping indication and handle position, which is convenient for monitoring and maintenance

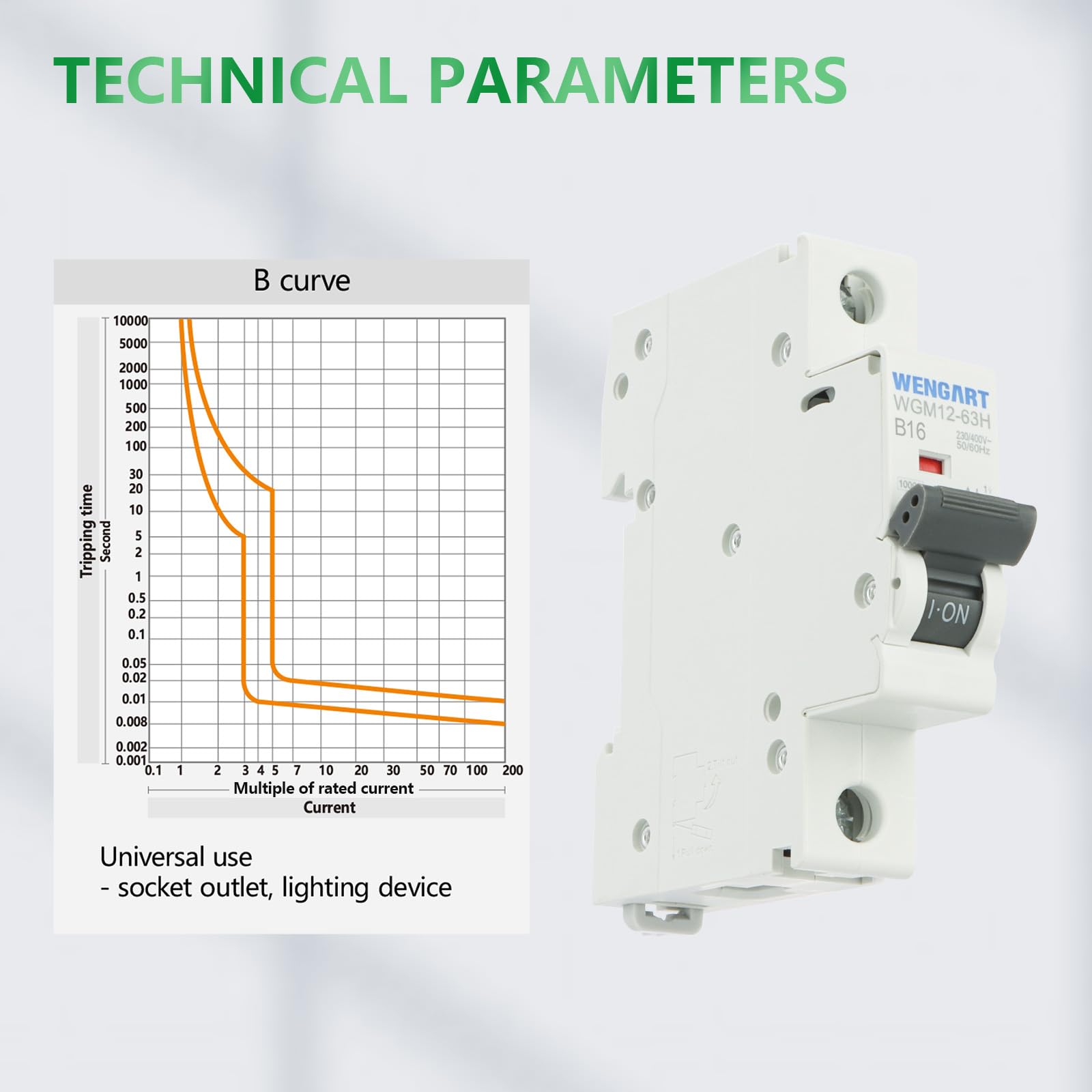

Miniature circuit breakers are an important electrical protection device, mainly used in low-voltage power distribution systems. Its main function is to automatically cut off the circuit when an overload or short circuit occurs in the circuit, protecting the safety of electrical equipment and lines. It is small in size and usually installed in a distribution box. It can be reused and can be closed again after the fault is eliminated. It has a fast reaction speed and can respond to faults within milliseconds. It is easy to install, usually using DIN rail installation. It can improve the safety of electrical systems, reduce the risk of fire, protect electrical equipment from damage, and facilitate maintenance and troubleshooting. Miniature circuit breakers are indispensable safety devices in modern electrical systems. They play a key role in protecting electrical equipment, preventing fires, and ensuring personal safety. Specification: Rated Voltage:AC240/415V~ Standard：IEC/EN60898-1 Magnetic release characteristic：B:(3-5)xIn Protection:Overcurrent and short circuit Type of trip:Thermo-magnetic Energy Limiting Class:3 Rated impulse withstand voltage(1.2/50) (Uimp):4,000V Rated Breaking Capacity:6000A Mechanical Life (Times):10,000 Electrical Life (Times):4000 Protection Degree:IP20 Maximum Wiring Capacity:25mm² Max.tightening torque:2.5N.m Installation:Mounting on 35mm DIN rail
