Weidmüller 1422030000 PV Stick PV Connector I Photovoltaic Connector Set 1,500 V DC I Secure Locking SNAP IN Technology I Standard Compliant Quality IEC 62852 I -40 °C to 85 °C Pack of 10

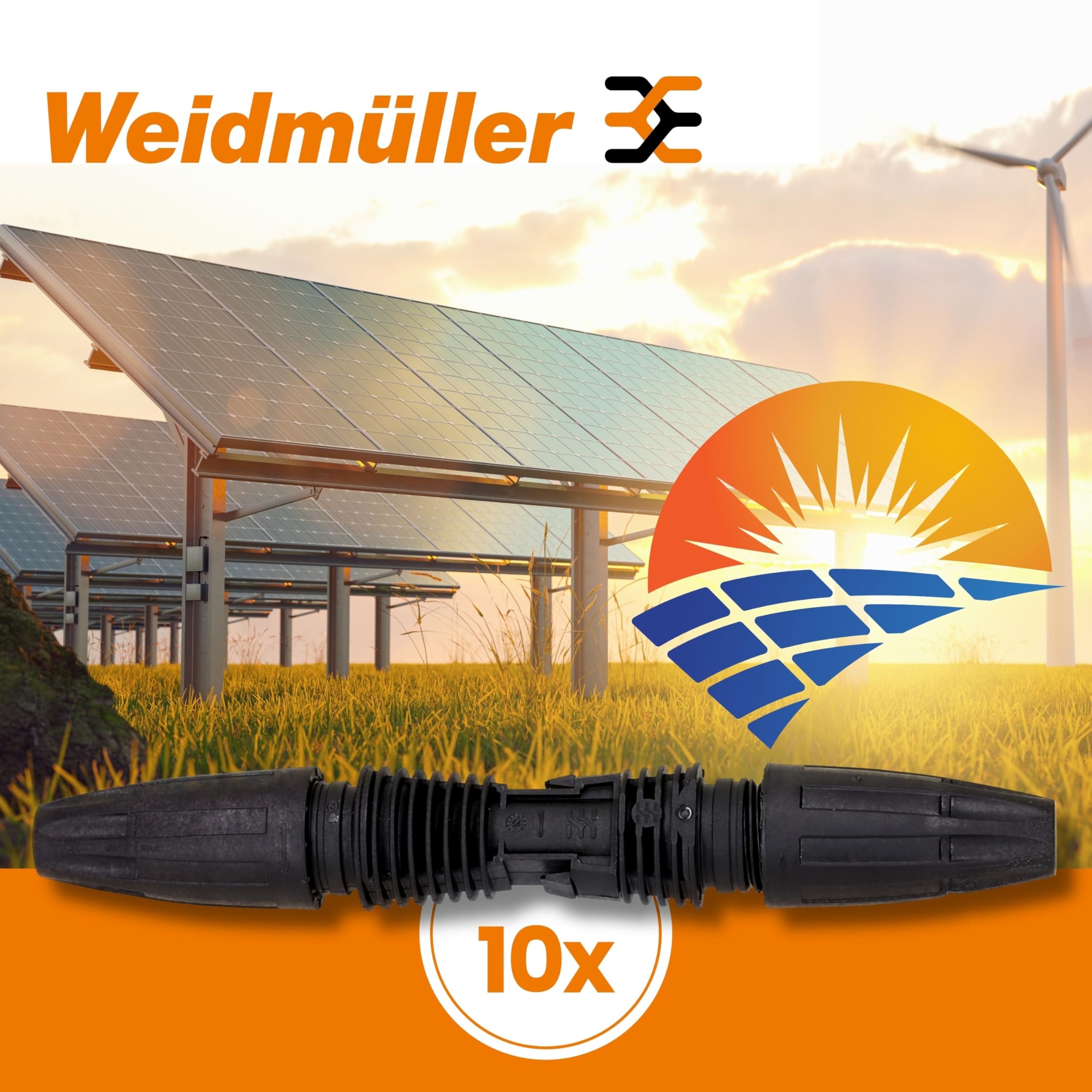

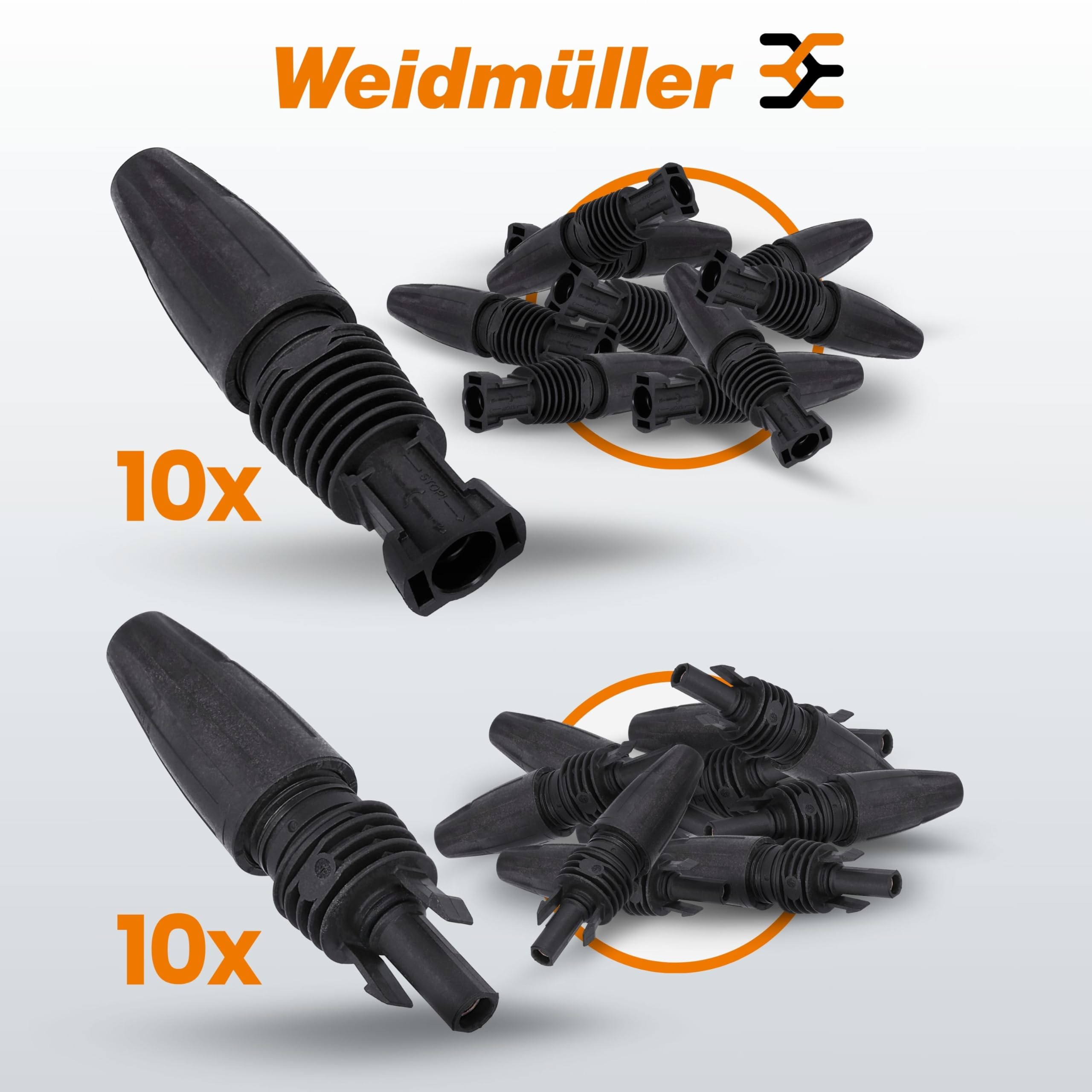

• Photovoltaic connector set of 10 with standard-compliant quality according to IEC 62852 allows safe connection at 1,500 V DC. Available with male and female connector for flexible applications.
• Suitable for cable cross sections from 4 mm² to 6 mm². SNAP-IN technology allows secure locking without crimping and makes installation much easier.

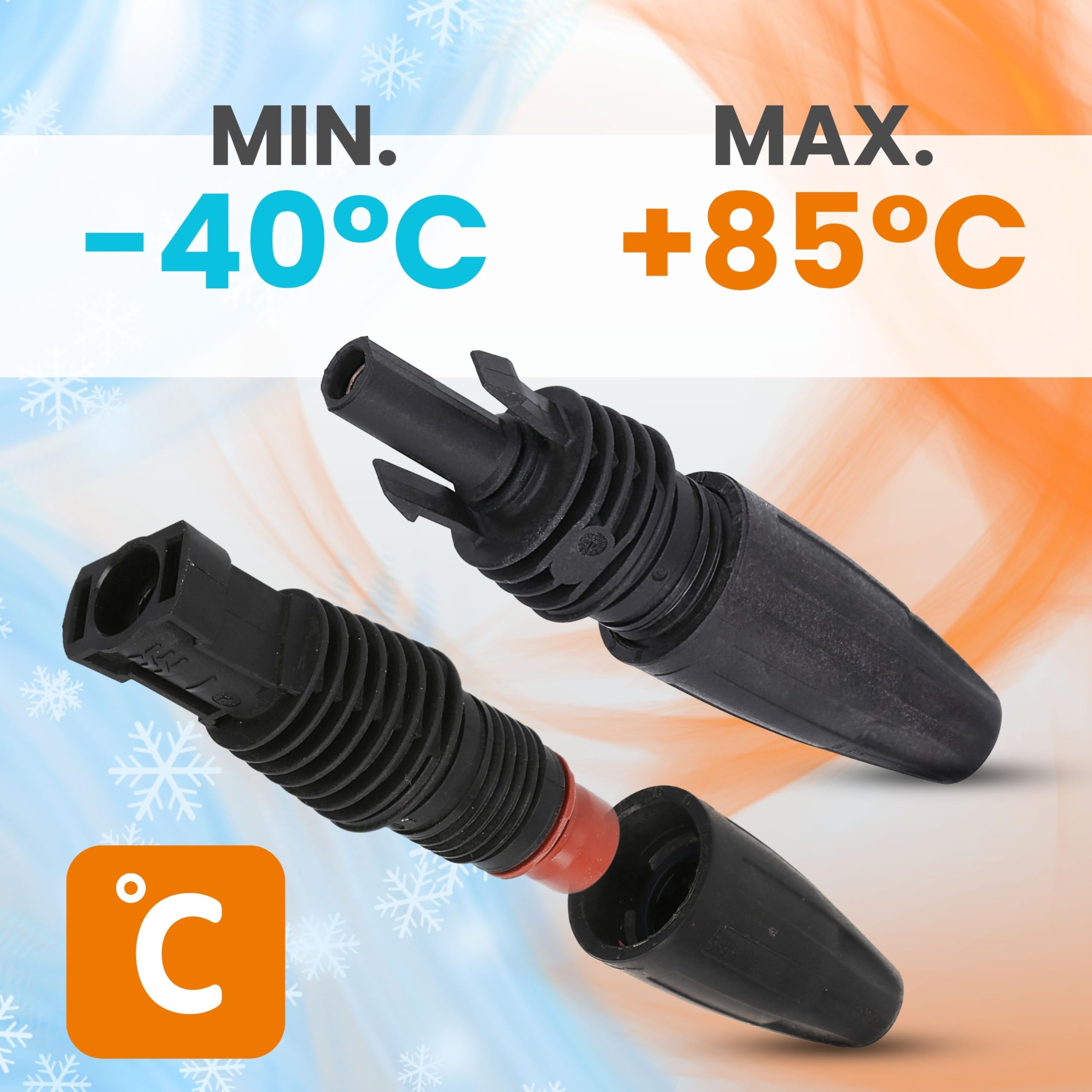

• Operating temperature range from -40°C to 85°C ensures reliable functionality in various environments. Maximum current load of 30A supports energy transfer.
• Compatible with part numbers 1303490000 and 1303450000, suitable for integration into solar power systems and multiple applications.
• Solar plug set designed for stable and durable connections in photovoltaic systems, ideal for demanding operating conditions.

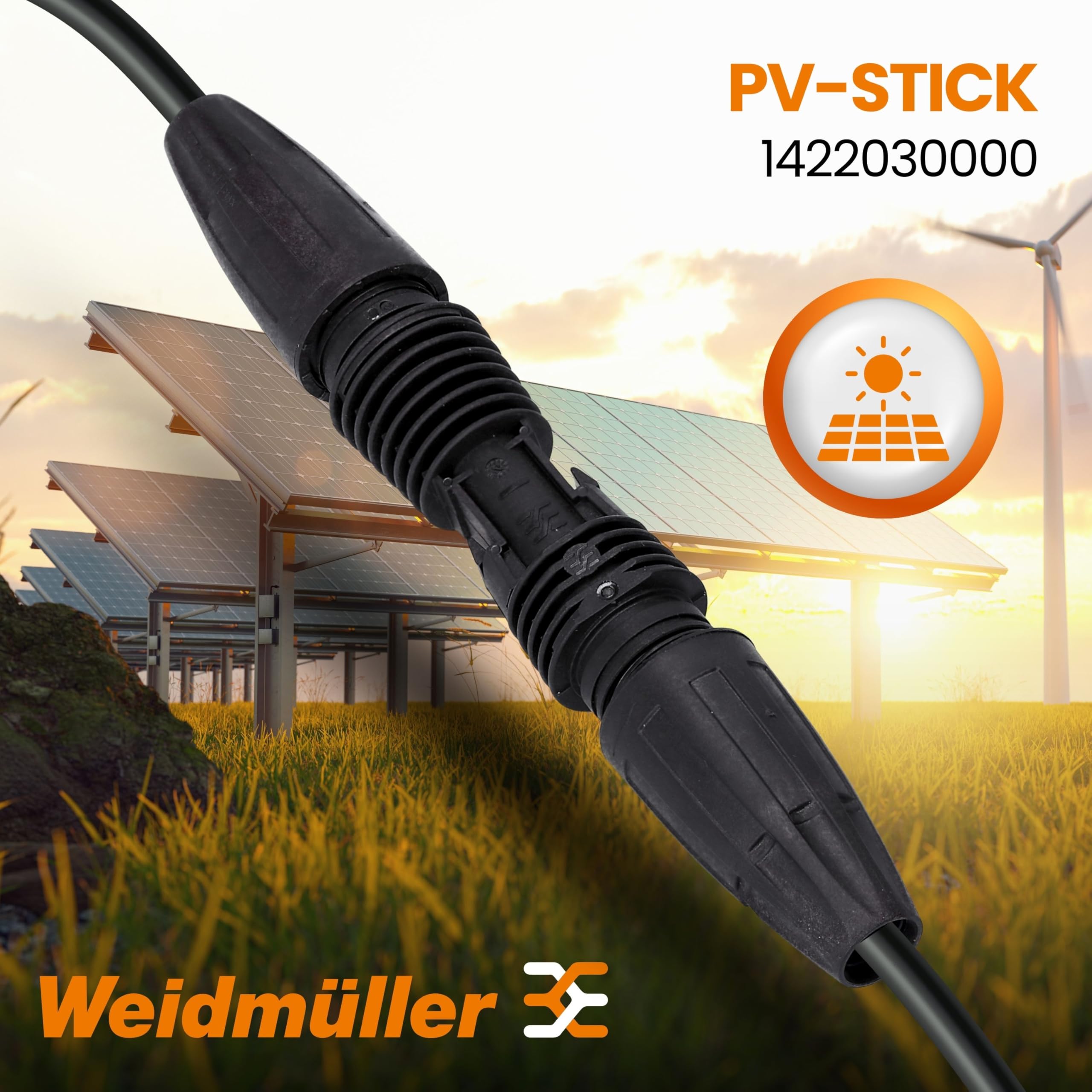

The PV stick PV connector set of 10 is a solar plug set specially developed for use in photovoltaic systems. It includes plugs and sockets with SNAP-IN technology that allows for easy and secure connection. The connectors are designed for voltages up to 1,500 V DC and comply with the IEC 62852 standard. The connection is done without crimping, which makes installation easier and saves time. The kit is compatible with cable cross sections from 4mm² to 6mm² and suitable for a temperature range of -40°C to 85°C. With a rated current of 30A, it meets the requirements of modern solar systems. Consists ofPart Numbers: 1303490000 and 1303450000 identify the components included. Technical data: Voltage: 1,500 V DC (DE) / 1,500 V DC (EN). Technology: SNAP IN Standard: IEC 62852. Operating temperature: -40°C to 85°C. Rated current: 30 A. Cable cross section: 4 mm² to 6 mm². Item numbers: 1303490000 and 1303450000. Areas of use: Installation in photovoltaic systems. Use in solar parks Use in private and commercial solar systems. Suitable for extreme temperature environments
