We Top M25 IP68 Front Shielded Industrial Panel Mount Waterproof RJ45 Ethernet Connector with Cover
About this item
- The Shielded Industrial Panel Mount is a Female connector, panel mode front mounted rj45 cable connector.
- It provides feed-through Cat6 Ethernet connectivity for data and PoE in industrial environments.

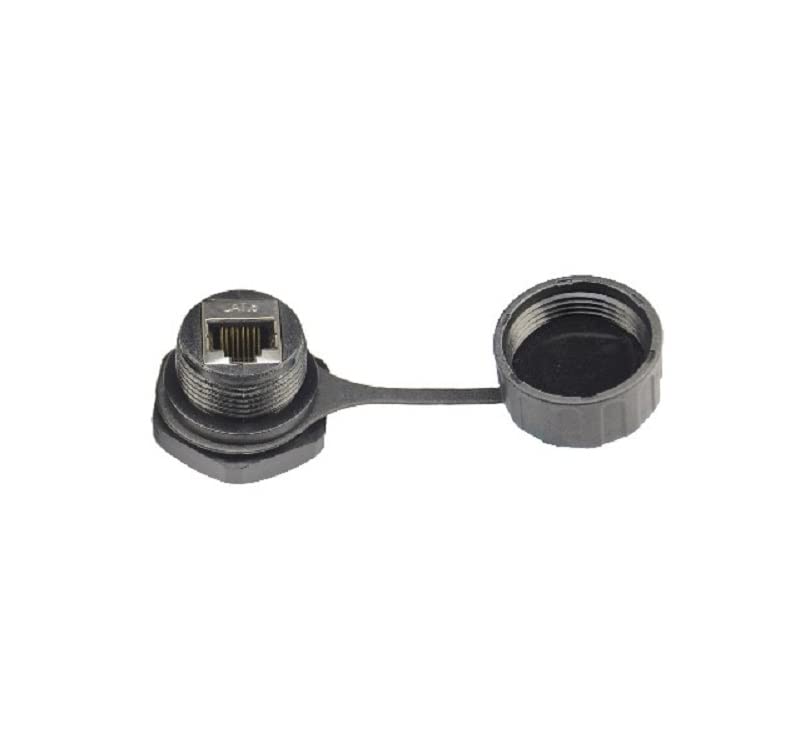

- The attached cover of RJ45 panel mount jack protects connector when not in use. This is a good solution to protecting Ethernet connections that are exposed to the weather.
- Contact Pins: 8 Pins; Contact Resistance: <10mΩ; Mating Cycles: 3000 times; Waterproof Rating: IP67; Cable Max. Diameter: 10mm; Panel Cut-out: 19.2mm-20.8mm.
- Wide Applications: it is very ideal for POE devices, switch boxes, network media players, printers, PCs, routers, computer servers etc. Can be used in the harsh industrial or outdoor environments.
Product description

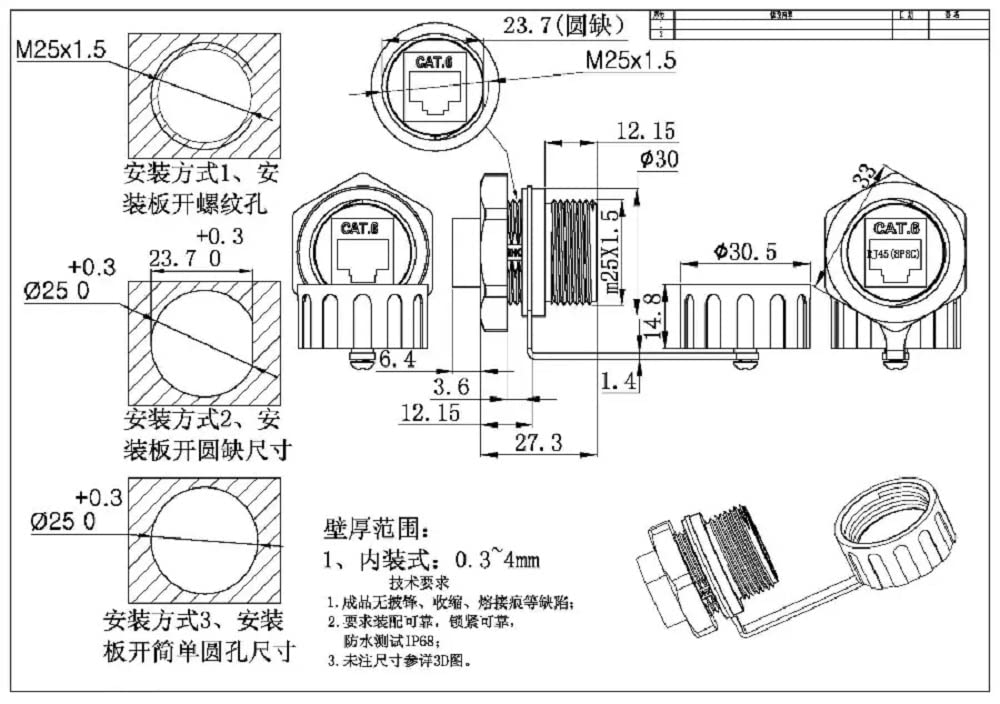

Product Specification: Type: RJ45 waterproof Connector Connector Body Material: Nylon(PA66)+GF UL94V-0 1/16'' Pins: 8 pins Connector Type: panel front mounted Connector Gender: Female Contact Resistance: <10mΩ Insulation Resistance: 1000MΩ at DC 500V Breakdown Voltage: 1.5KV/1minute Temperature Rating: -25°C~+105°C Mating Cycles: 3000 times Waterproof Rating: IP67 Cable Max. Diameter: 10mm Panel Cut-out: 19.2mm-20.8mm Package Includes: 1PC M25 RJ45 waterproof Connector
