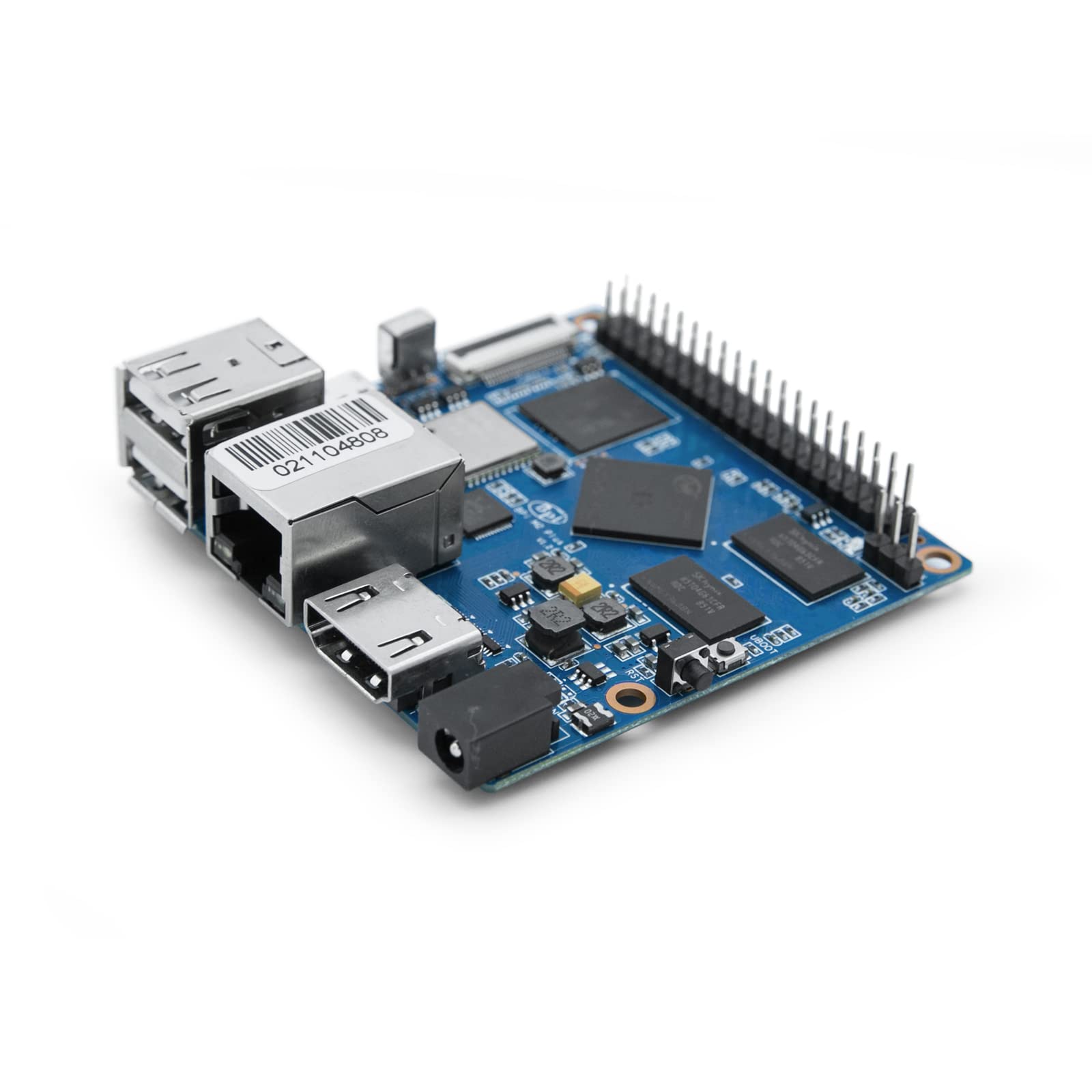

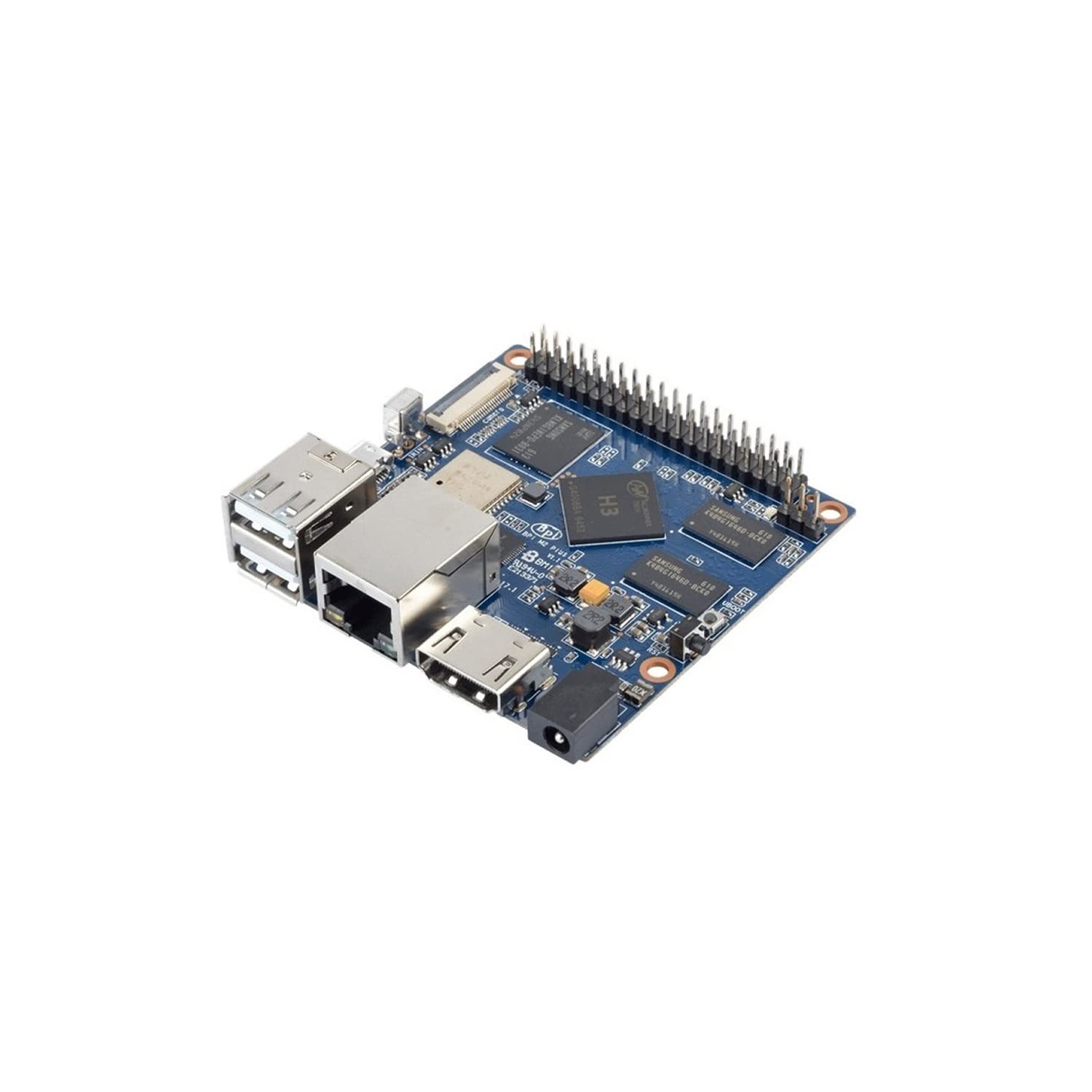

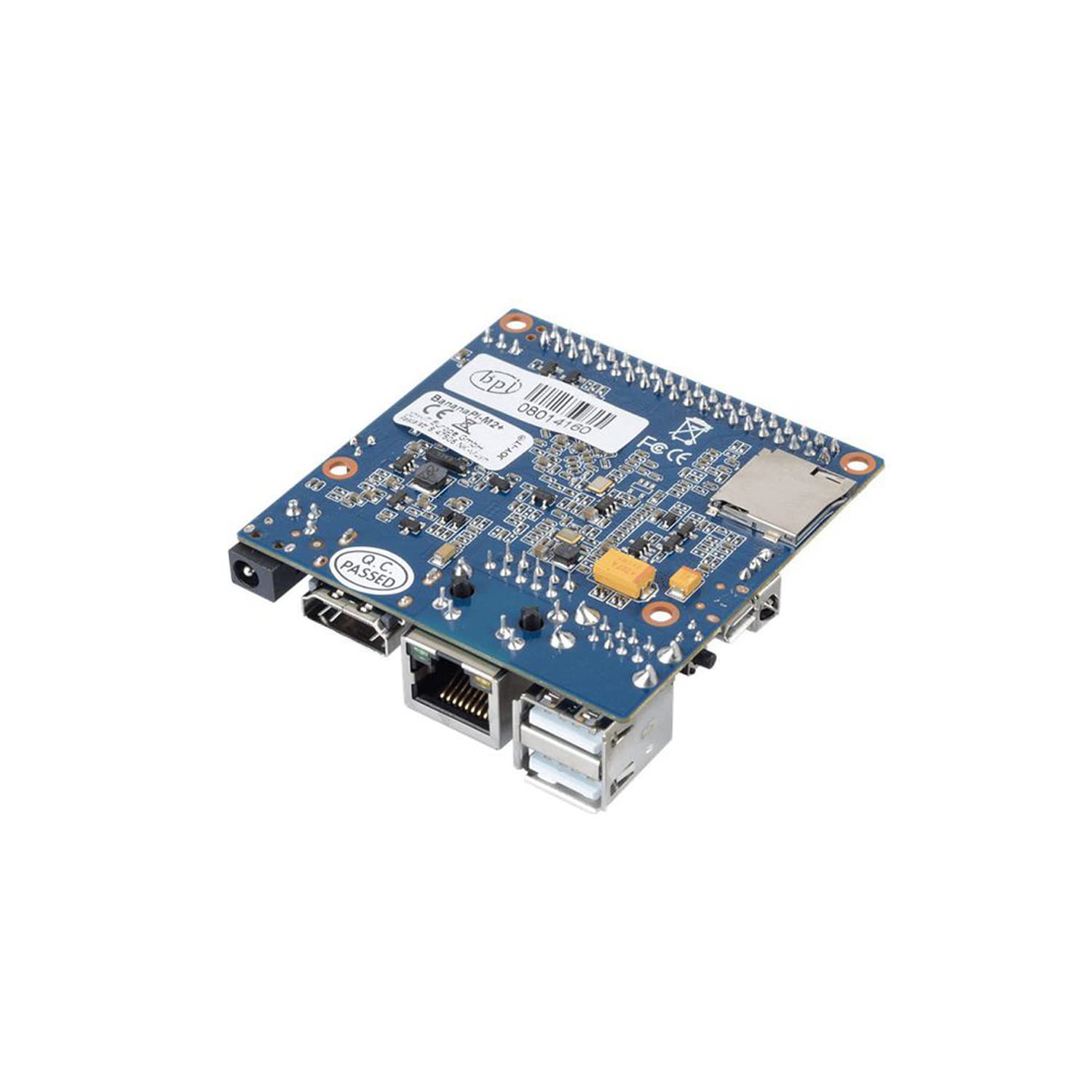

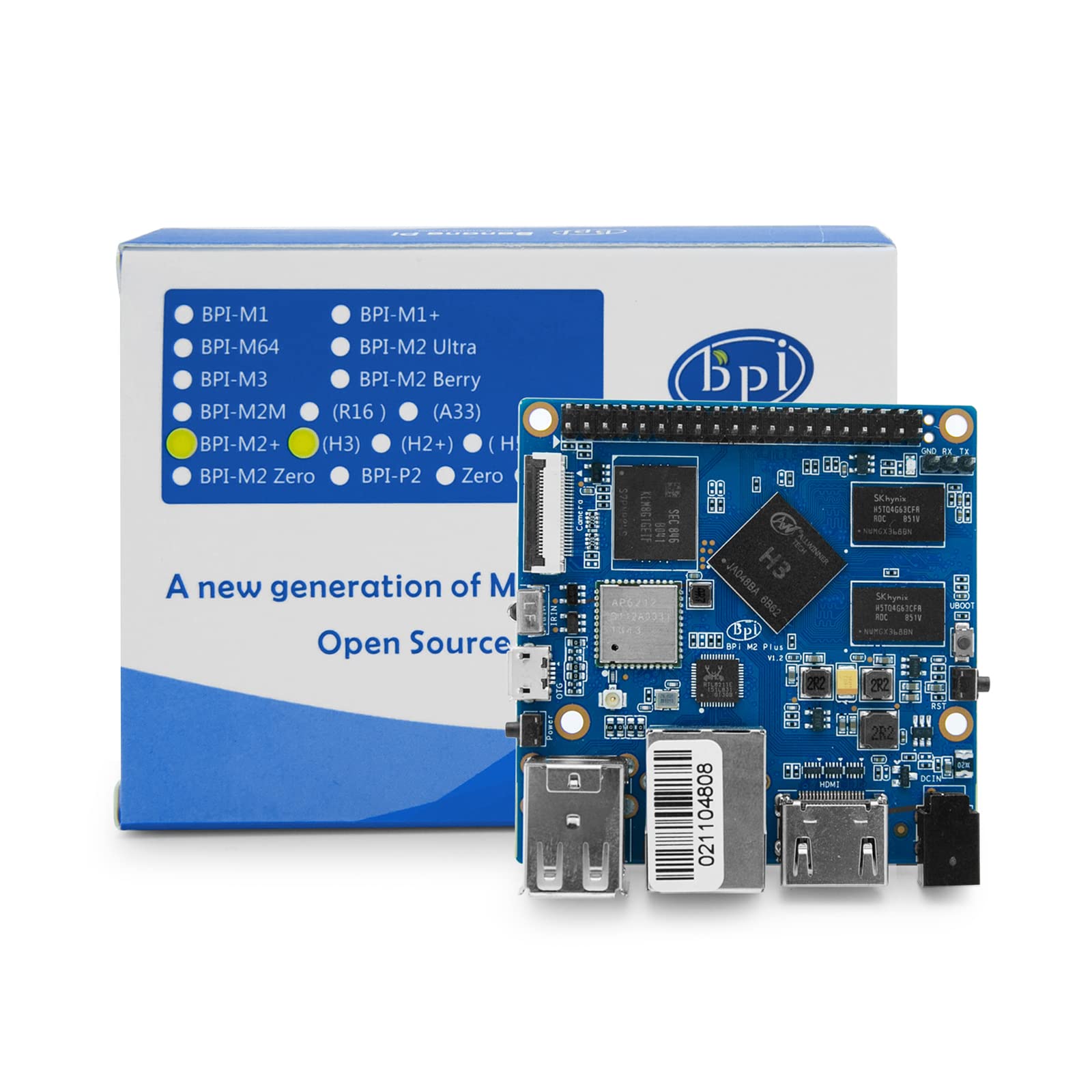

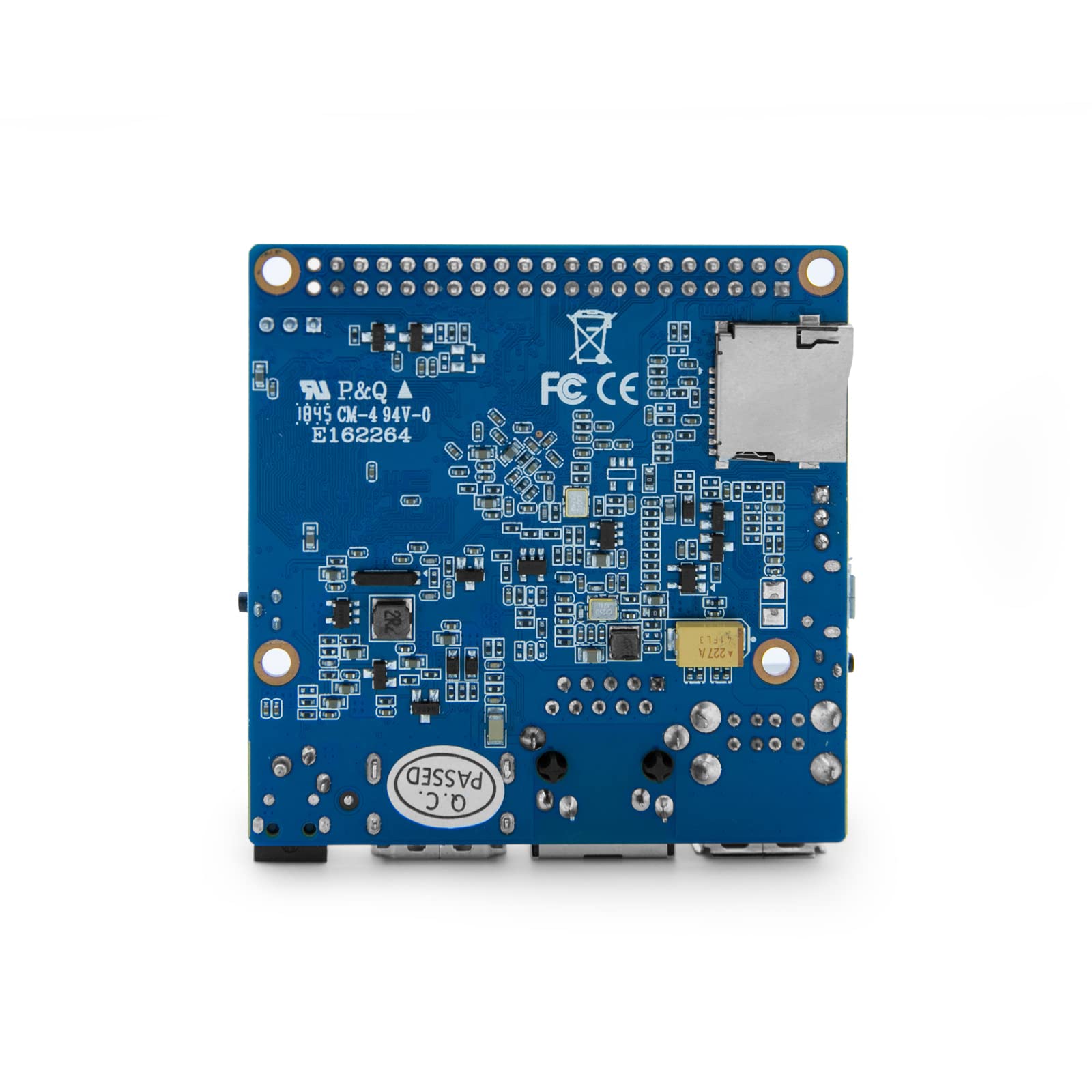

WayPonDEV Banana PI BPI M2+ (M2 Plus) Allwinner H3 Quad Core Single Board Computer Supports Raspbian and Android, Ubuntu Linux

• Open source hardware platform based on 1GHz ARM7 quad-core processor, 1GB DDR3 SDRAM, 8G eMMC flash onboard
• Connectivity: SDIO WiFi & BT4.0 module on board, also supports 10/100/1000 Ethernet
• 4K Display Support: It supports 1080P high definition video output and 4K support; Mini size only 65mm*50mm
• OS: Banana Pi BPI-M2+ runs with Android, Debian Linux, Ubuntu Linux, Raspberry Pi Image (Raspbian) and other images.
• Wiki: https://wiki.banana-pi.org/Banana_Pi_BPI-M2%2B If you have any questions, please post them in our forum: https://forum.youyeetoo.com/

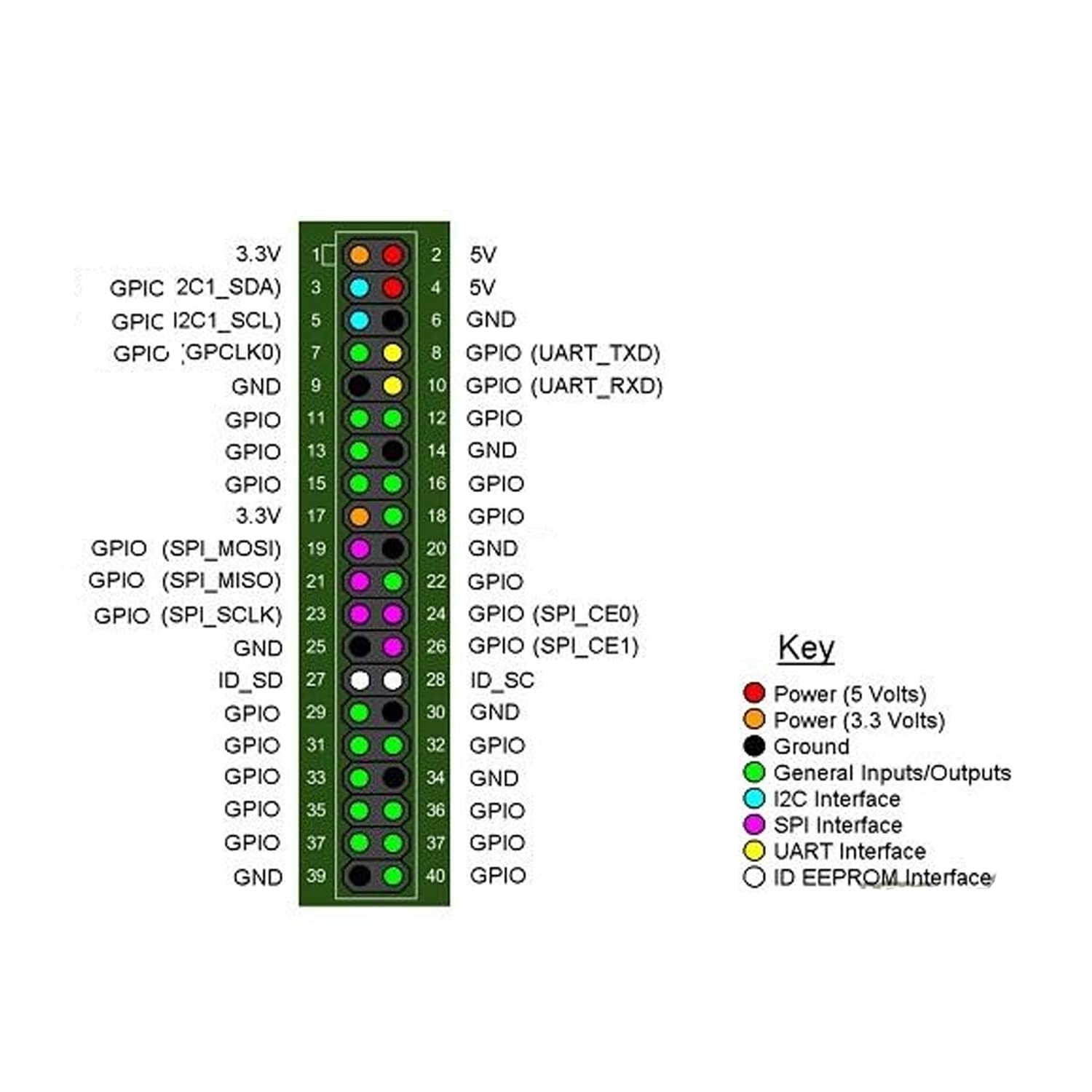

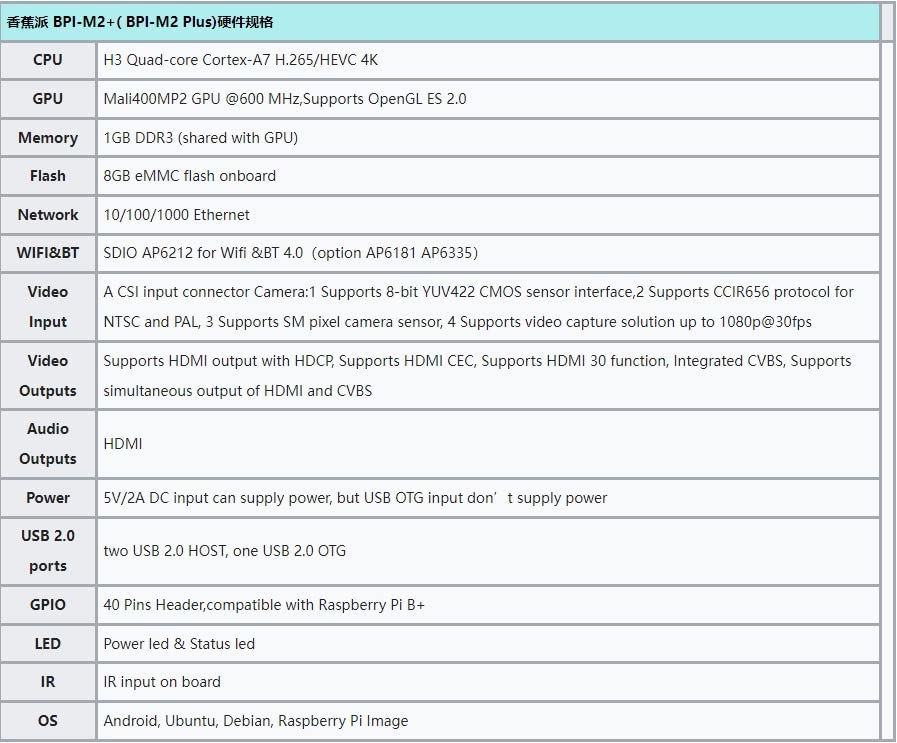

Hardware specification of the Banana Pi M2+ (Plus) CPU: H3 Quad-Core Cortex-A7 H.265/HEVC 4K GPU: Mali400MP2 GPU @ 600MHz, Support OpenGL ES 2.0 Memory: 1 GB DDR3 (with GPU) Flash: 8GB eMMC flash on board Network: 10/100/1000 Ethernet WiFi and BT: SDIO AP6212 for Wi-Fi and BT 4.0 (option AP6181 AP6335). Video input: one CSI input port camera: 1 support 8-bit YUV422 CMOS sensor interface, 2 support CCIR656 protocol for NTSC and PAL, 3 support SM pixel camera sensor, 4 support video recording solution up to 1080p at 30fps Video outputs: Supports HDMI output with HDCP, supports HDMI CEC, supports HDMI 30 function, built-in CVBS, supports simultaneous output of HDMI and CVBS Audio output: HDMI Power supply: the 5V/2A DC input can supply power, but the USB OTG input does not supply power USB 2.0 ports: two USB 2.0 host, one USB 2.0 OTG GPIO: 40 pin header, compatible with Raspberry Pi B+ LED: Power LED and status LED IR: IR input on board Operating system: Android, Ubuntu, Debian, Raspberry Pi Image/Raspbian) - In the box Banana Pi M2+(Plus) development board x1 - After Sales Team monica#smartfire.cn(#------@) Skype: monica_9122
