Waveshare SIM7000E NB-IoT/Cat-M/EDGE/GPRS Module, Compatible with Raspberry Pi Series Boards

• This telecommunication Module supports NB-IoT, Cat-M, EDGE, and GPRS, as well as GNSS positioning function for Europe, Africa, Australia, Southeast Asia. Due to its small size, low delay, and wide coverage, it's ideal for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on

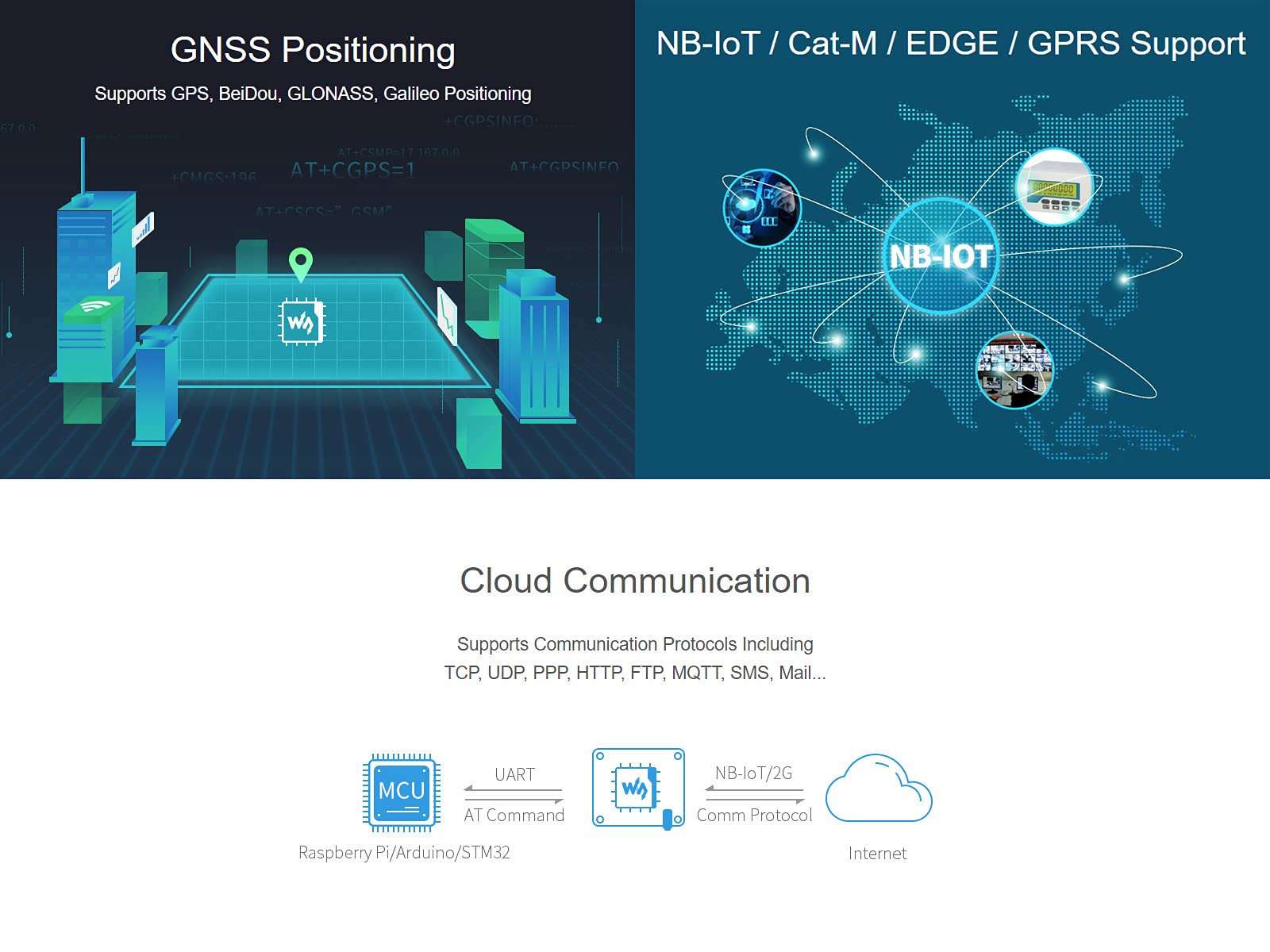

• Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc. Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo); Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT

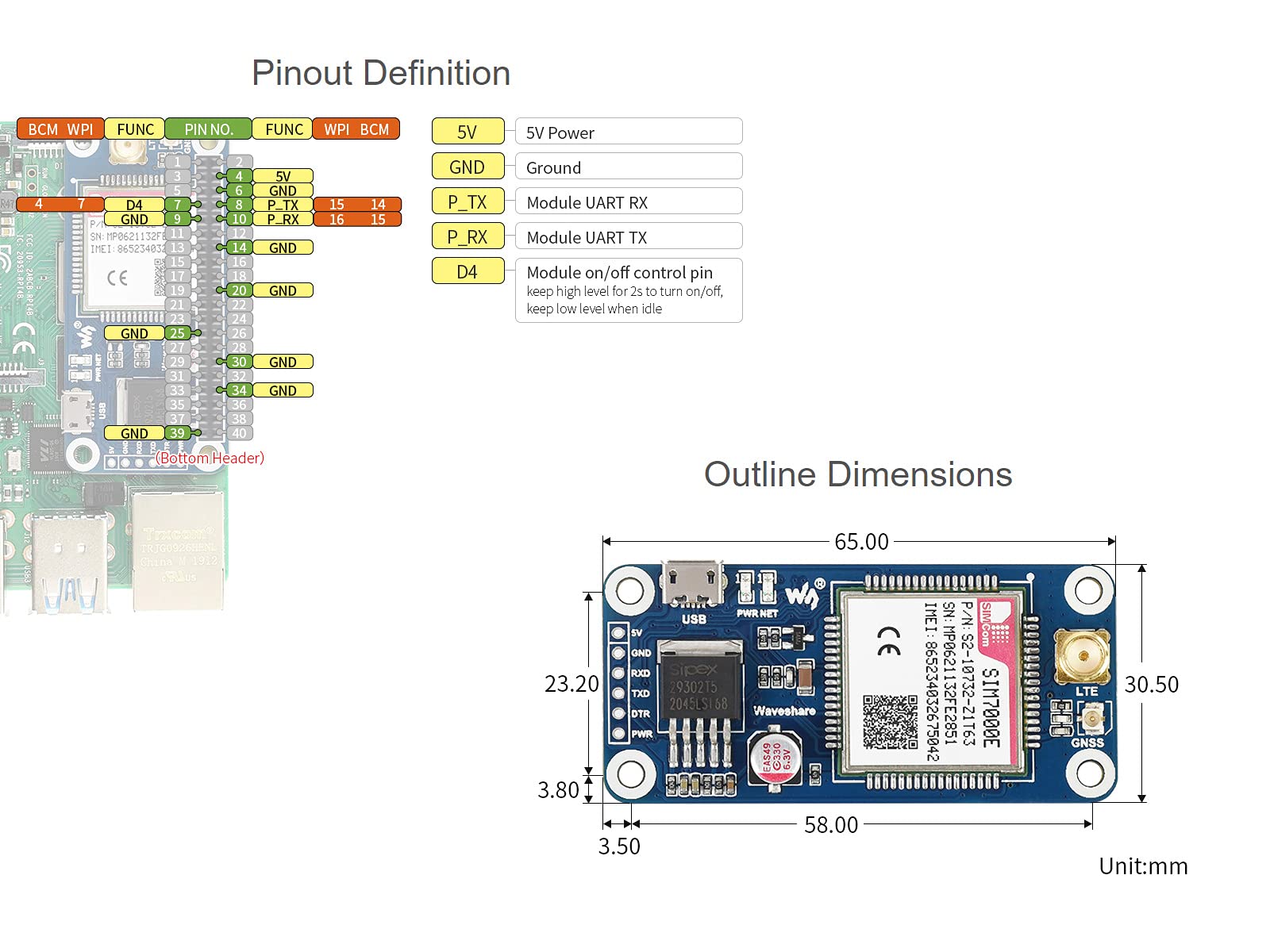

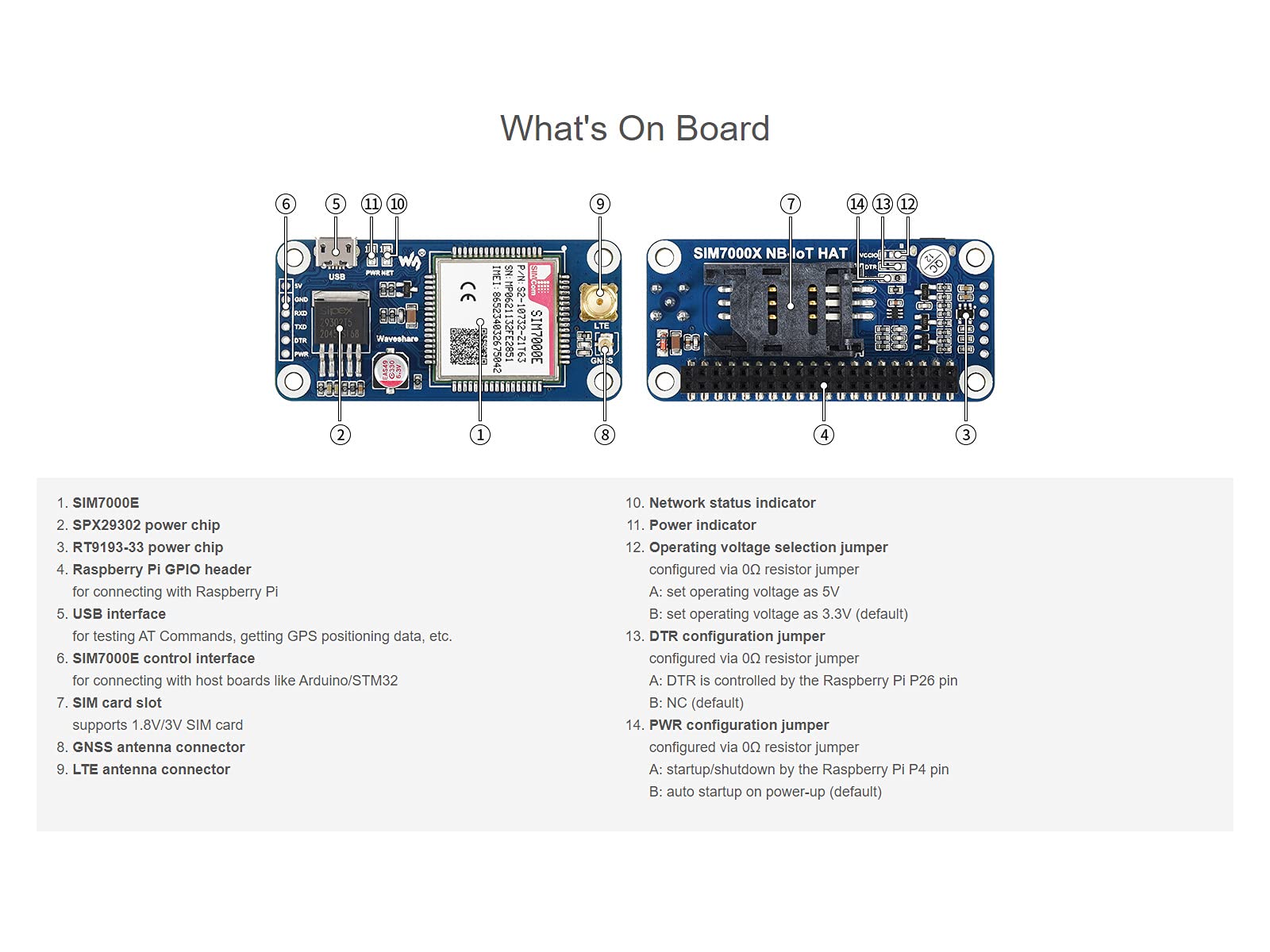

• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on; with SIM card slot, for both normal SIM card and NB-IoT specific card; 2x LED indicators to monitor the working status; Breakout UART control pins, to connect with/STM32 host boards
• Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor; Baudrate: 300bps~3686400bps; Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
• Provide development resources and manual (examples for Raspberry Pi/STM32), please refer to the online user manual while using

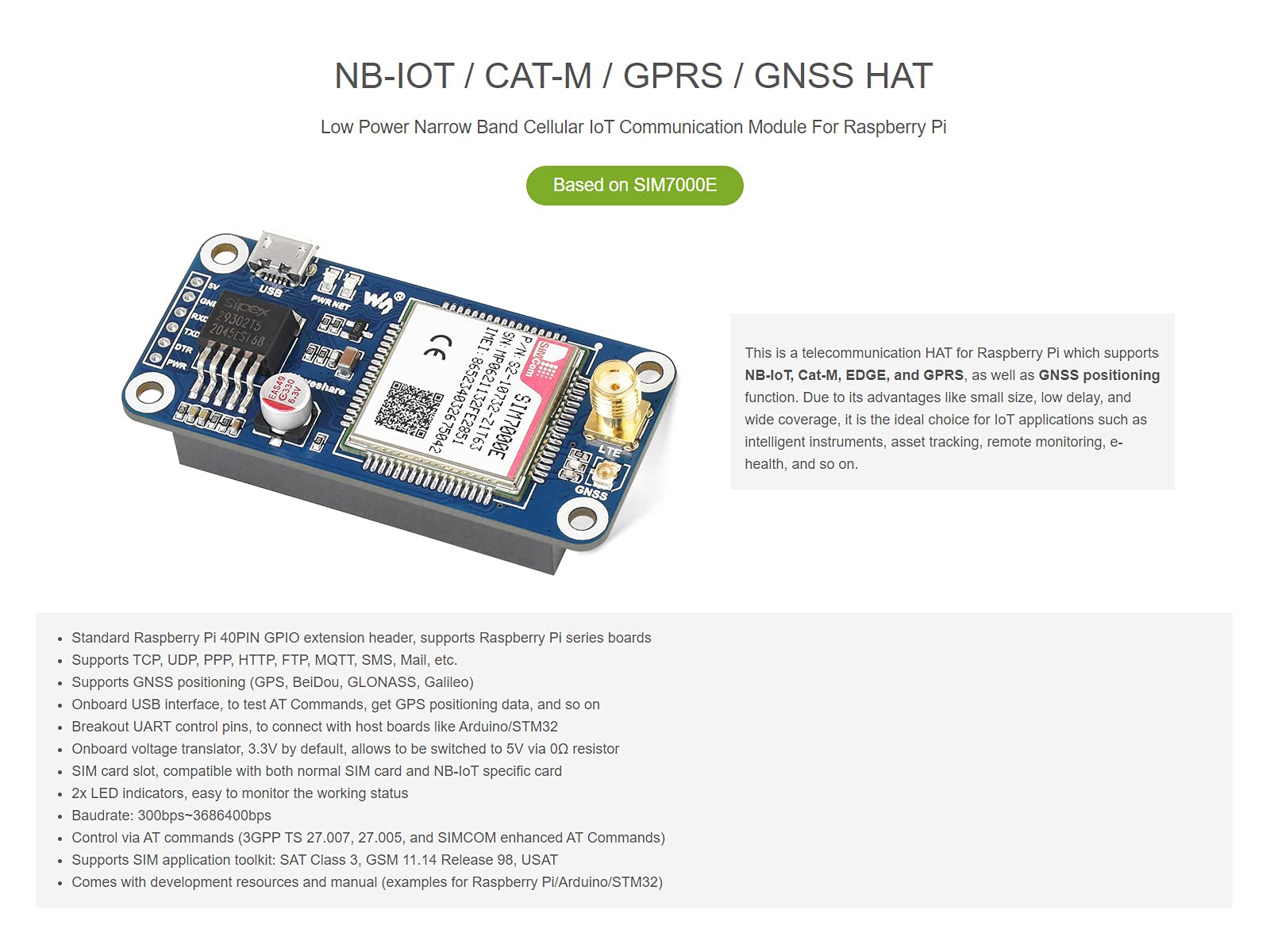

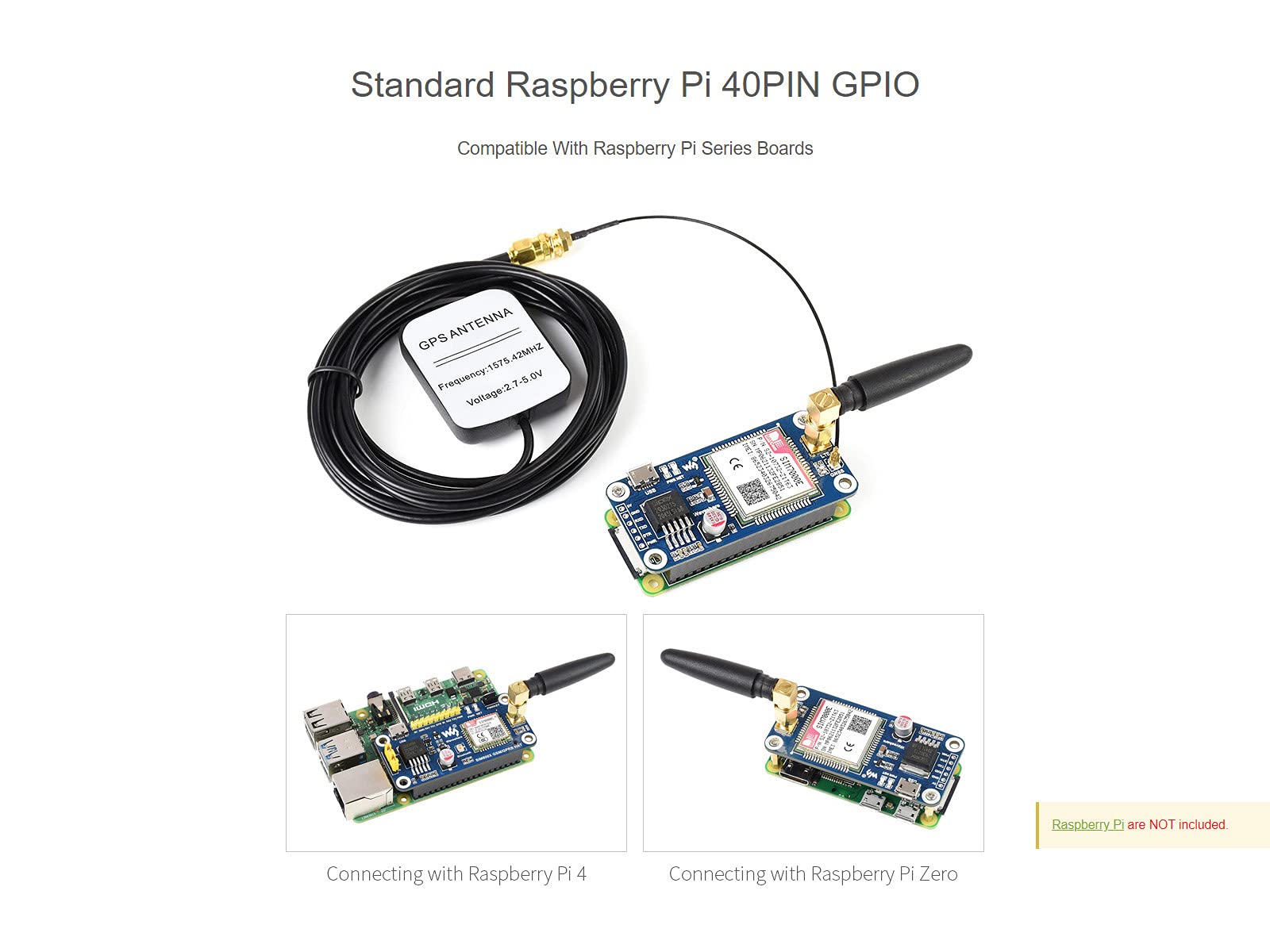

Overview This is a telecommunication HAT for Raspberry Pi which supports NB-IoT, Cat-M, EDGE, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on. Features At A Glance with Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc. Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo) Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Breakout UART control pins, to connect compatibly with/STM32 host boards Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor SIM card slot, for both normal SIM card and NB-IoT specific card 2x LED indicators, easy to monitor the working status Baudrate: 300bps~3686400bps Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT with online development resources and manual (examples for Raspberry Pi/STM32) Specifications NB-IOT/CAT-M/2G Band: NB-IoT/Cat-M: FDD-LTE B3/B8/B20/B28; GPRS/EDGE: 900/1800 MHz Data rate: NB-IoT: 34(DL)/66(UL); Cat-M: 300(DL)/375(UL); EDGE: 236.8(DL)/236.8(UL); GPRS: 85.6(DL)/85.6(UL) SIM card support: NB-IoT: NB Specific (Not Included); Cat-M/GPRS/EDGE: Normal SIM (Not Included) Applicable region: Europe, Africa, Australia, Southeast Asia GNSS Satellite systems: GPS, BeiDou, GLONASS, Galileo Receiver type: 16-channel; C/A Code Sensitivity: Tracking: -162 dBm (GPS)/-157 dBm (GLONASS)/TBD (BD); Cold starts: -148 dBm Time-To-First-Fix: Cold starts: <35s; Hot starts: <1s Accuracy: Position: <2.5m CEP
