Servo Driver HAT (B) for Raspberry Pi/Jetson Nano PCA9685 Driver 16-Channel, 12-bit, I2C Interface, Right Angle Pinheader

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• I2C controlled, using only 2 pins; Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
• Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal; Reserved I2C control pins, allows to work with other control boards
• Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
• Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control),download link: www.waveshare.com/wiki/Servo_Driver_HAT

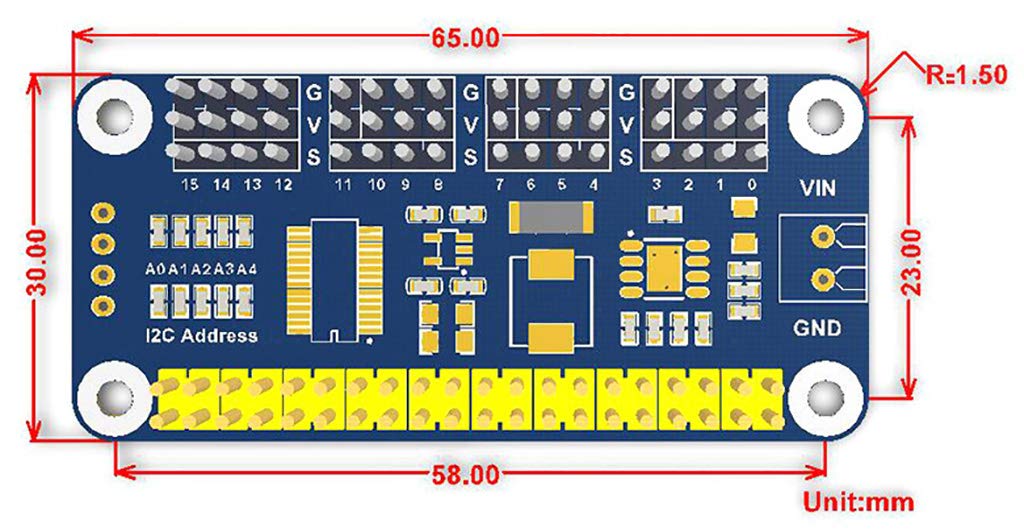

Overview Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you. Specifications Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal) Servo voltage: 5V Logic voltage: 3.3V Driver: PCA9685 Control interface: I2C Dimension: 65mm x 30mm Mounting hole size: 3.0mm Supported Servo This HAT can be used to drive servos such as: SG90 Servo MG90S Servo MG996R Servo PACKAGE CONTENT Note: Raspberry Pi and servos are NOT included. 1. Servo Driver HAT (B) x1 2. RPi screws pack (2pcs) x1
