Waveshare RS232 To RS485 Converter (B), Active Digital Isolator, Rail-Mount Support, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection

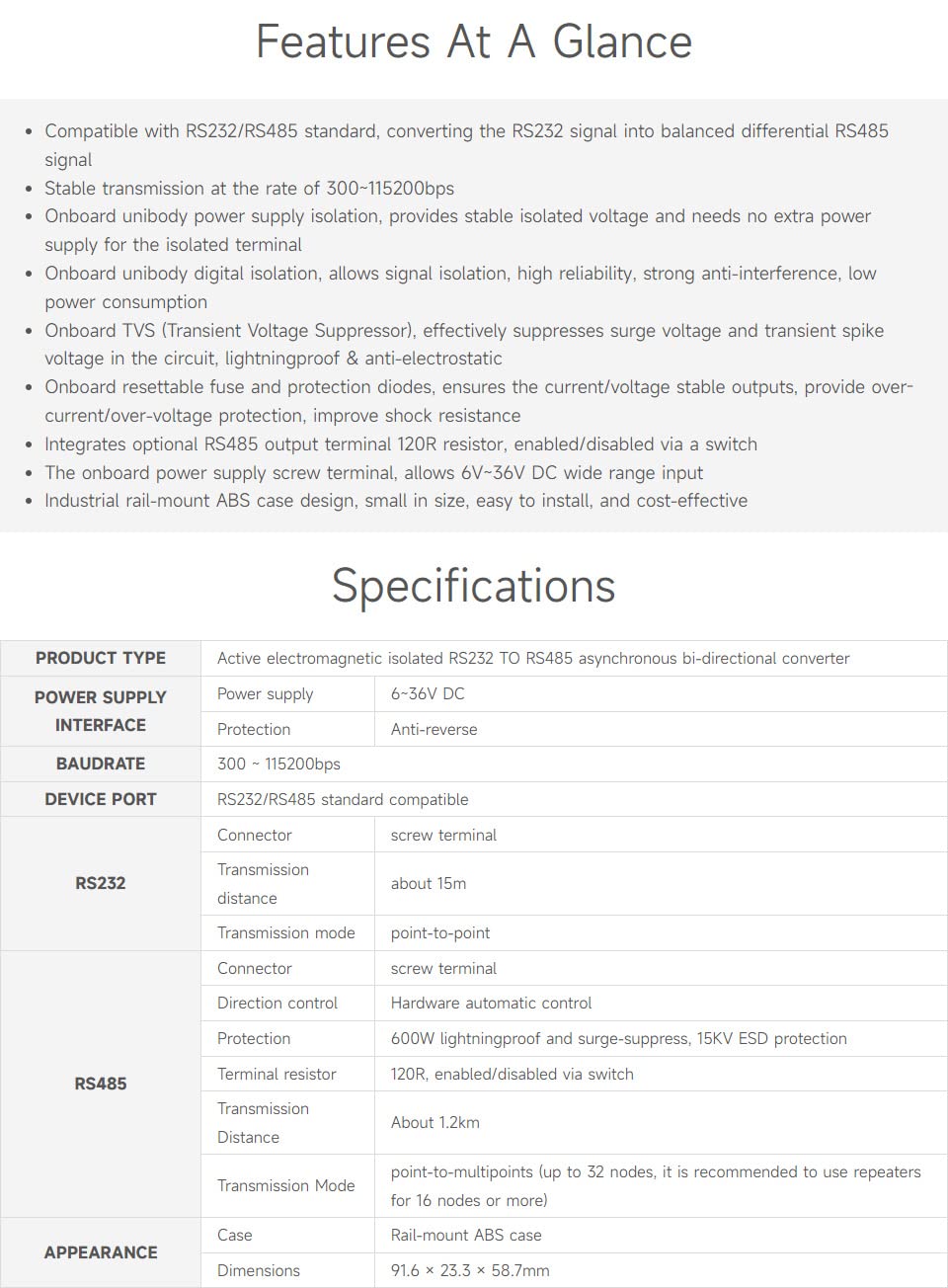

• Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal.Stable transmission at the rate of 300~115200bps
• Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal.Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
• Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch
• The onboard power supply screw terminal, allows 6V~36V DC wide range input.Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

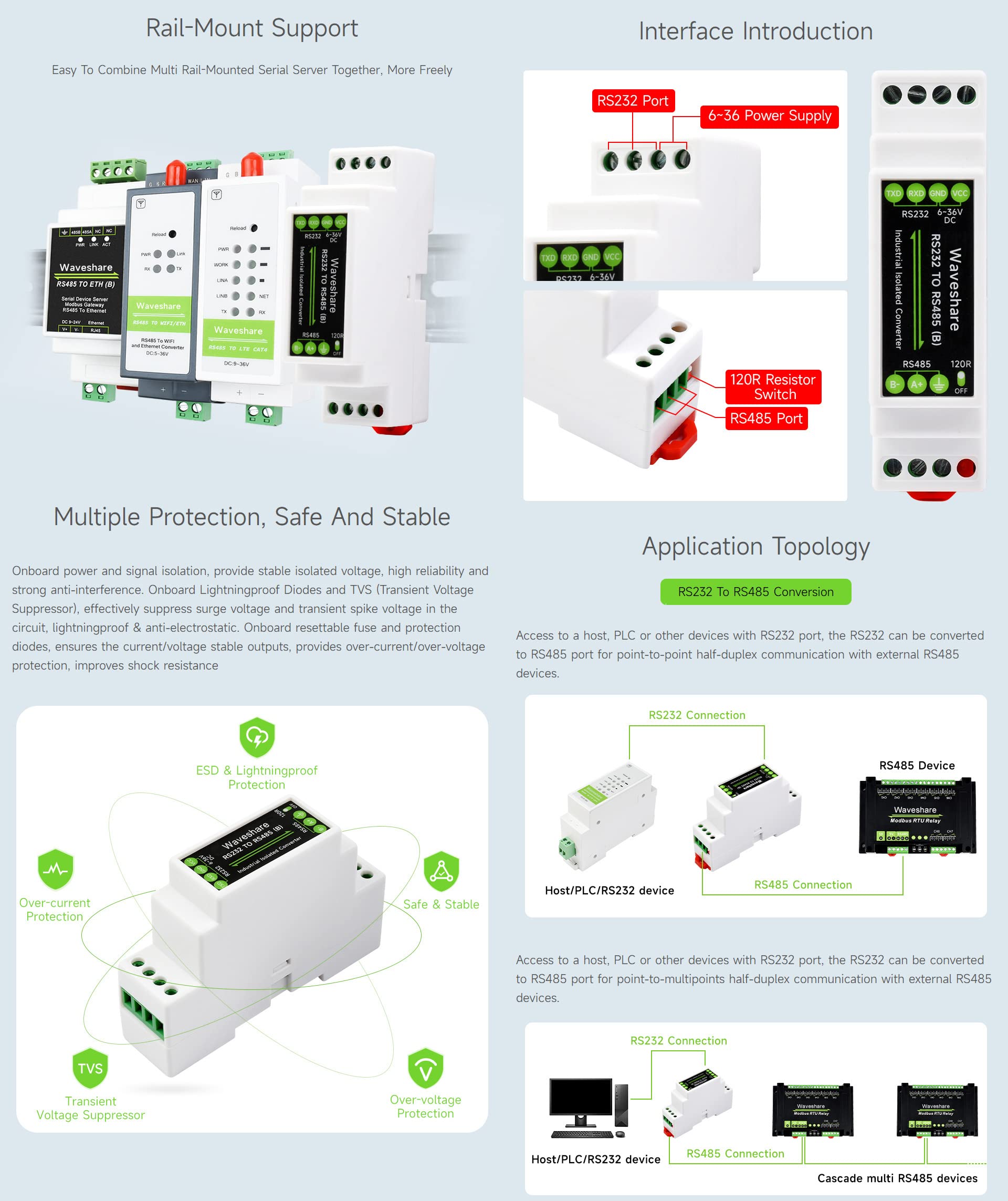

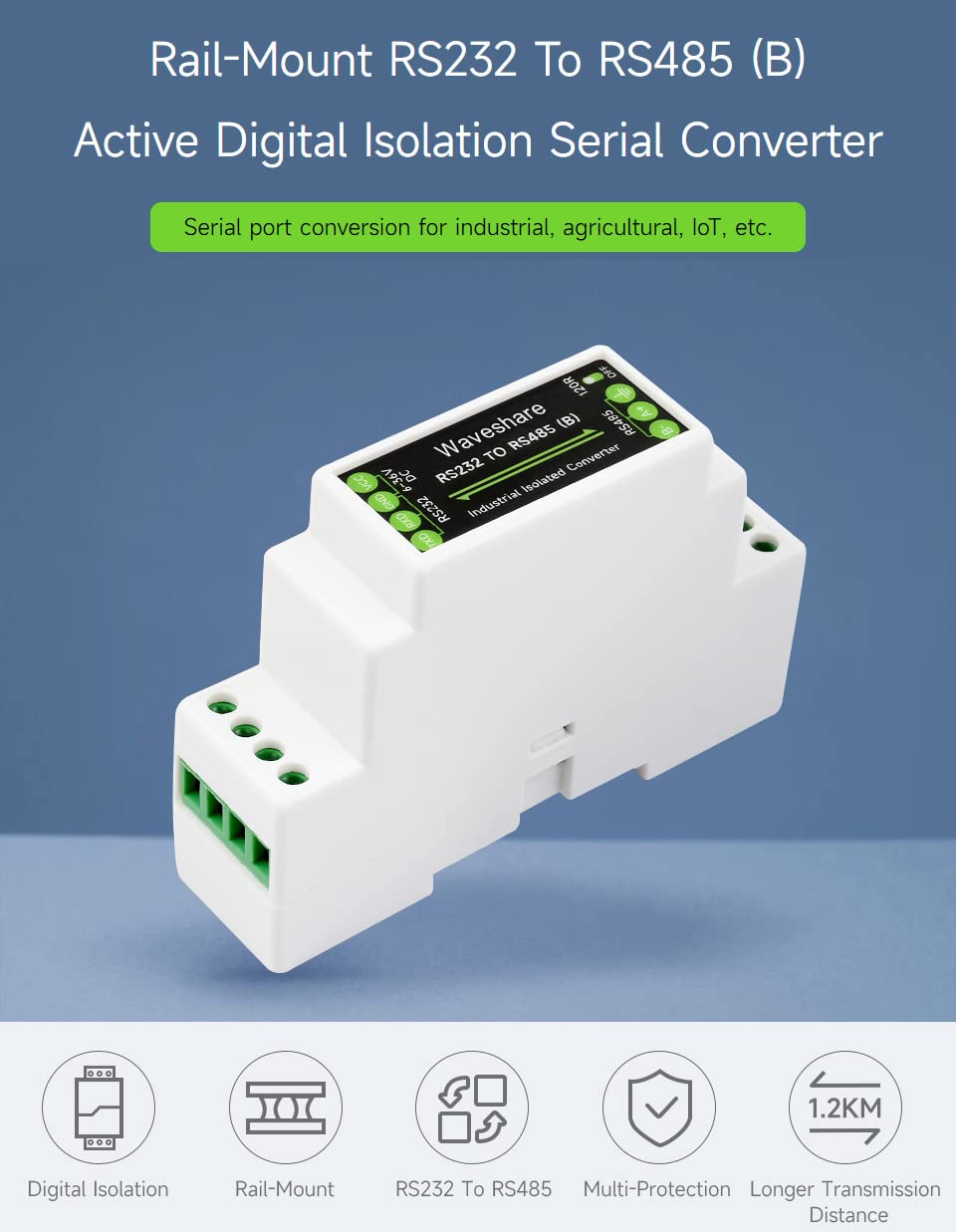

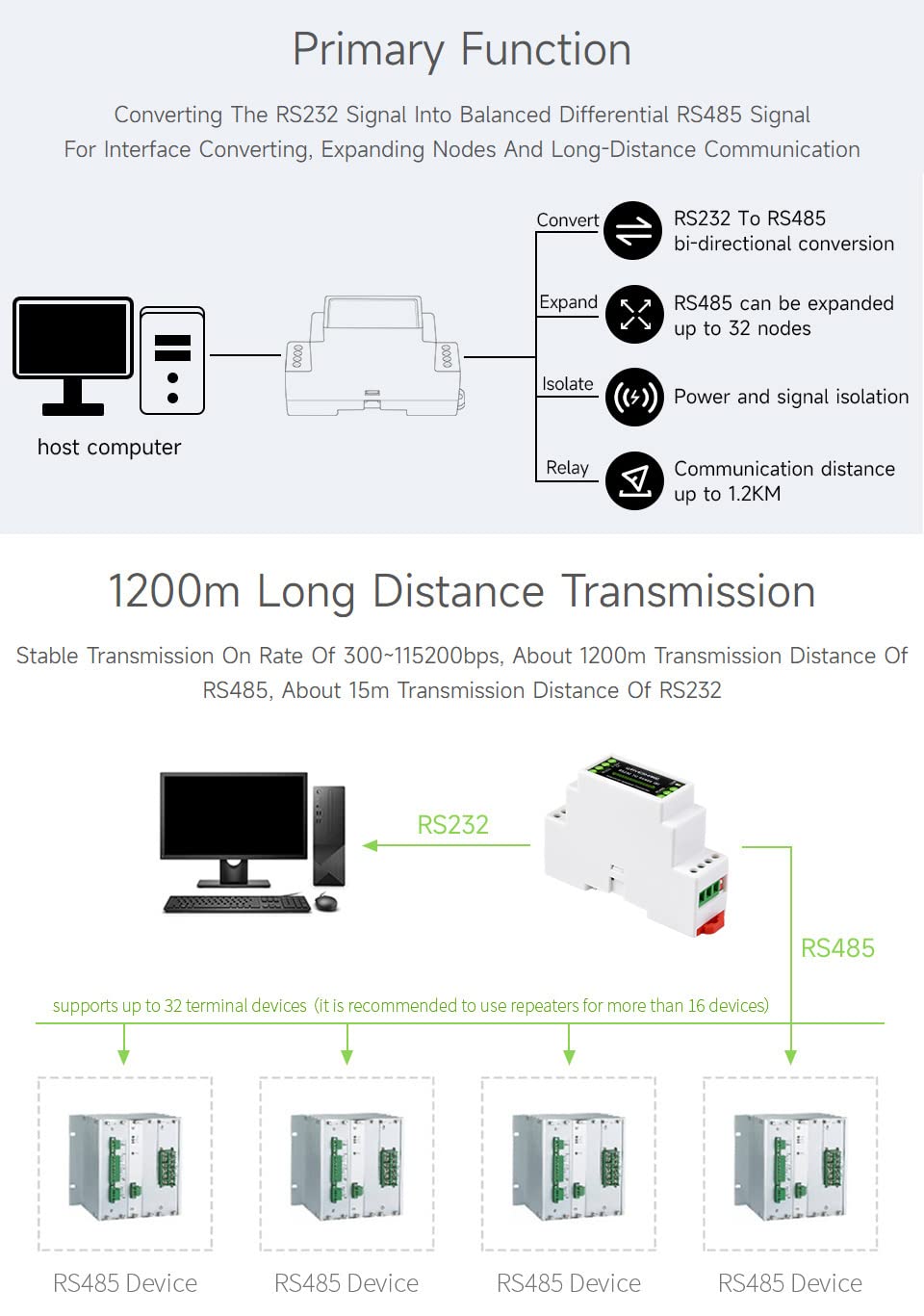

RS232 To RS485 Converter (B), Active Digital Isolator, Rail-Mount Support, 600W Lightningproof & Anti-Surge, Multi-Isolation Protection 1.Rail-Mount RS232 To RS485 (B) Active Digital Isolation Serial Converter Serial port conversion for industrial, agricultural, IoT, etc. 2.Primary Function Converting The RS232 Signal Into Balanced Differential RS485 Signal For Interface Converting, Expanding Nodes And Long-Distance Communication 3.1200m Long Distance Transmission Stable Transmission On Rate Of 300~115200bps, About 1200m Transmission Distance Of RS485, About 15m Transmission Distance Of RS232 4.Rail-Mount Support Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely 5.Multiple Protection, Safe And Stable Onboard power and signal isolation, provide stable isolated voltage, high reliability and strong anti-interference. Onboard Lightningproof Diodes and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage protection, improves shock resistance Application Examples The RS232 TO RS485 (B) can be widely used for point-to-point, point-to-multipoint, long distance cascaded communication network between two hosts, or between host and MCU/Peripheral. It also can be used in the application scenarios that require RS232 to RS485 conversion such as Industrial Automation and IoT. Development Resources https://www.waveshare.com/wiki/RS232_TO_RS485_(B)?Amazon Package Content RS232 TO RS485 (B) x1 Screwdriver x1 Note Please contact us via Amazon message if you have any problem.
