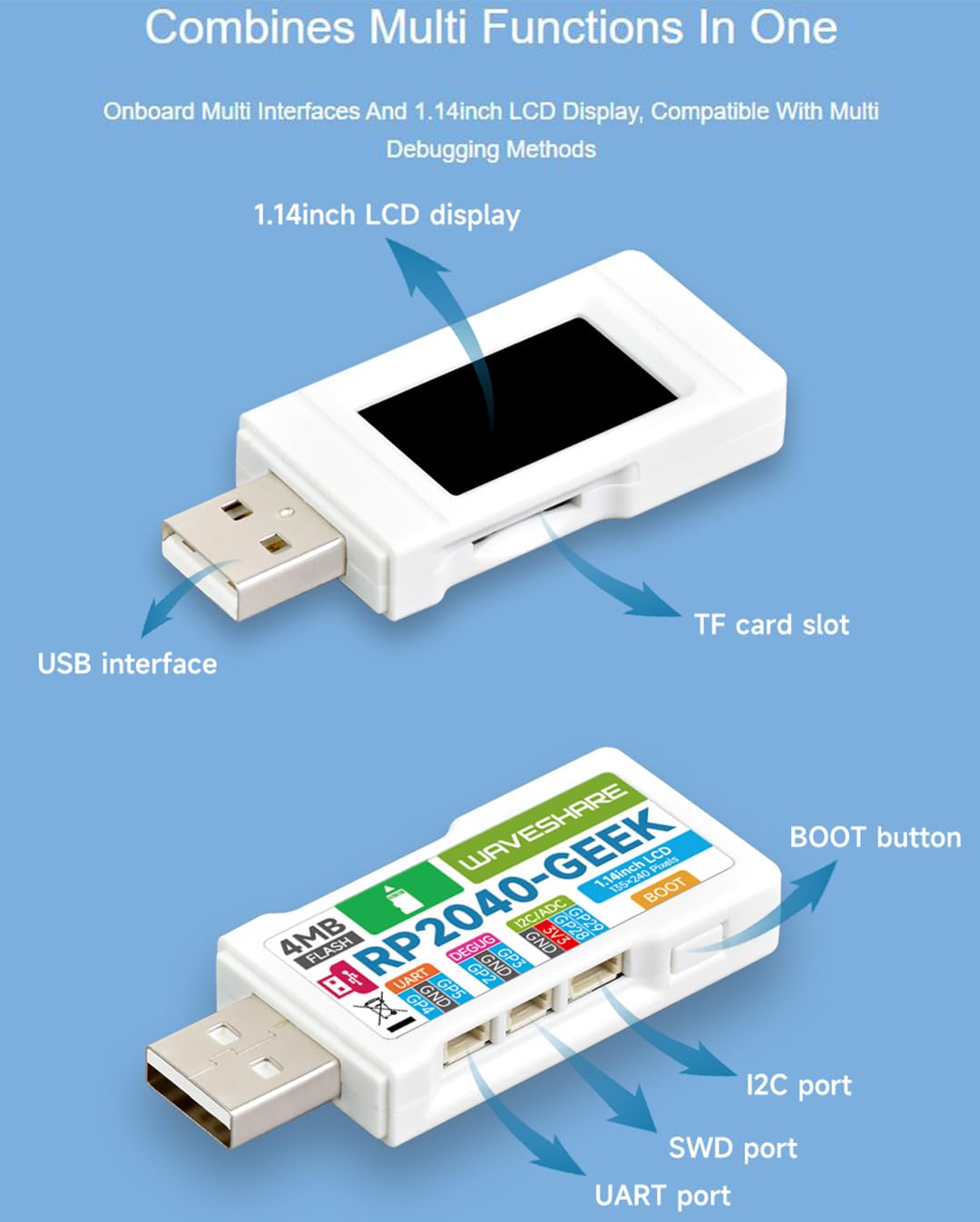

Waveshare RP2040 GEEK Development Board Based on Raspberry Pi RP2040 Microcontroller, Onboard USB-A interface, SWD/UART / I2C Port, TF Card Slot, 1.14inch 65K Color IPS LCD Display

• RP2040 GEEK Development Board based on RP2040 microcontroller, USB debugging downloader, suitable for Raspberry Pi Pico hardware debug, equipped with plastic case and cables, open-source firmware, more convenient to upgrade

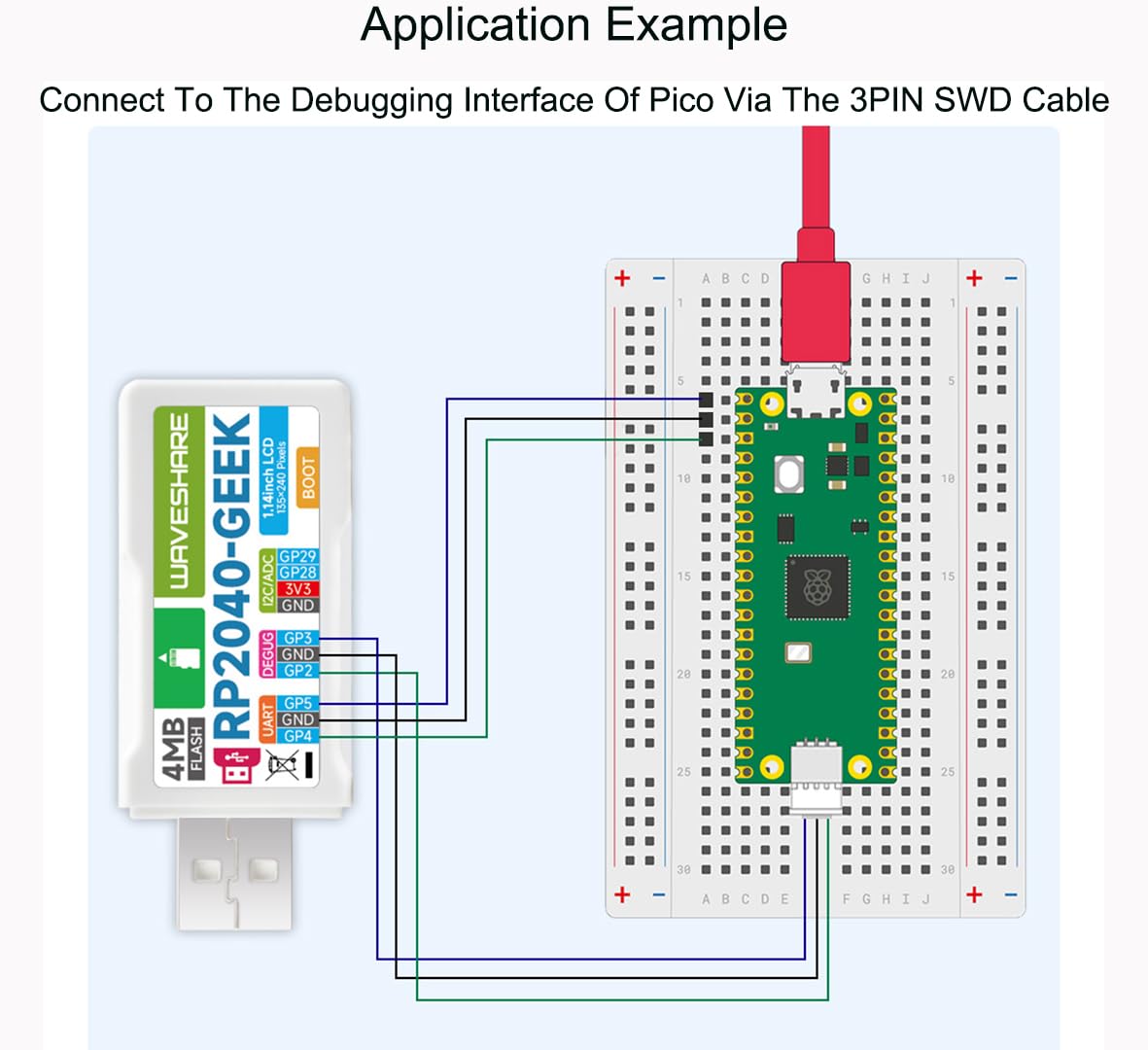

• Onboard 3PIN SWD port for connecting the debugged target board, standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers, works with OpenOCD and other tools supporting CMSIS-DAP, adopts the Raspberry Pi 3PIN Debug Connector Specification
• Onboard 3PIN USB to UART bridge
• Onboard 4PIN I2C port for the testing target board
• Onboard 1.14inch 240×135 pixels 65K color IPS LCD display, onboard TF card slot supports SDIO interface and SPI interface communication

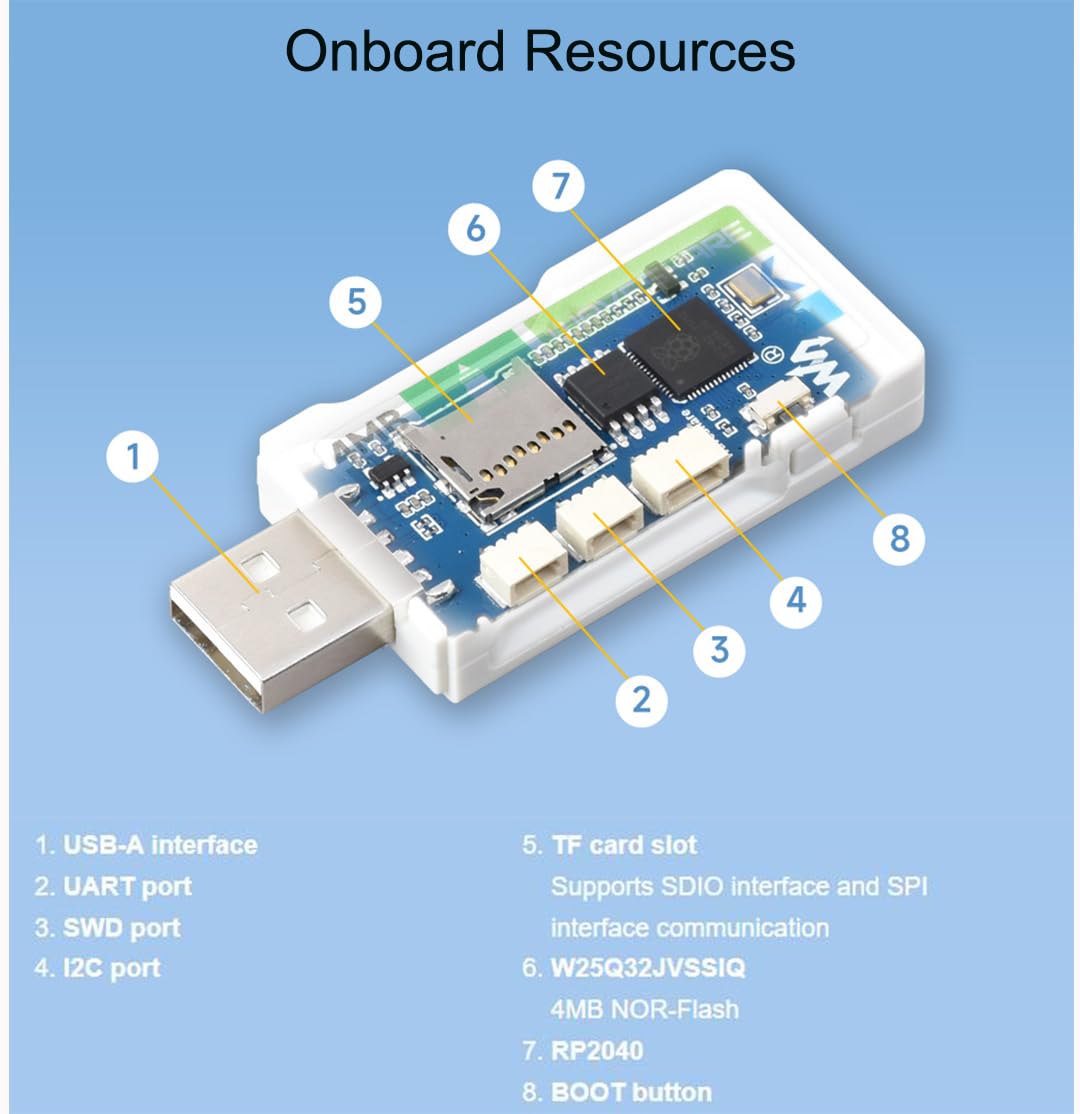

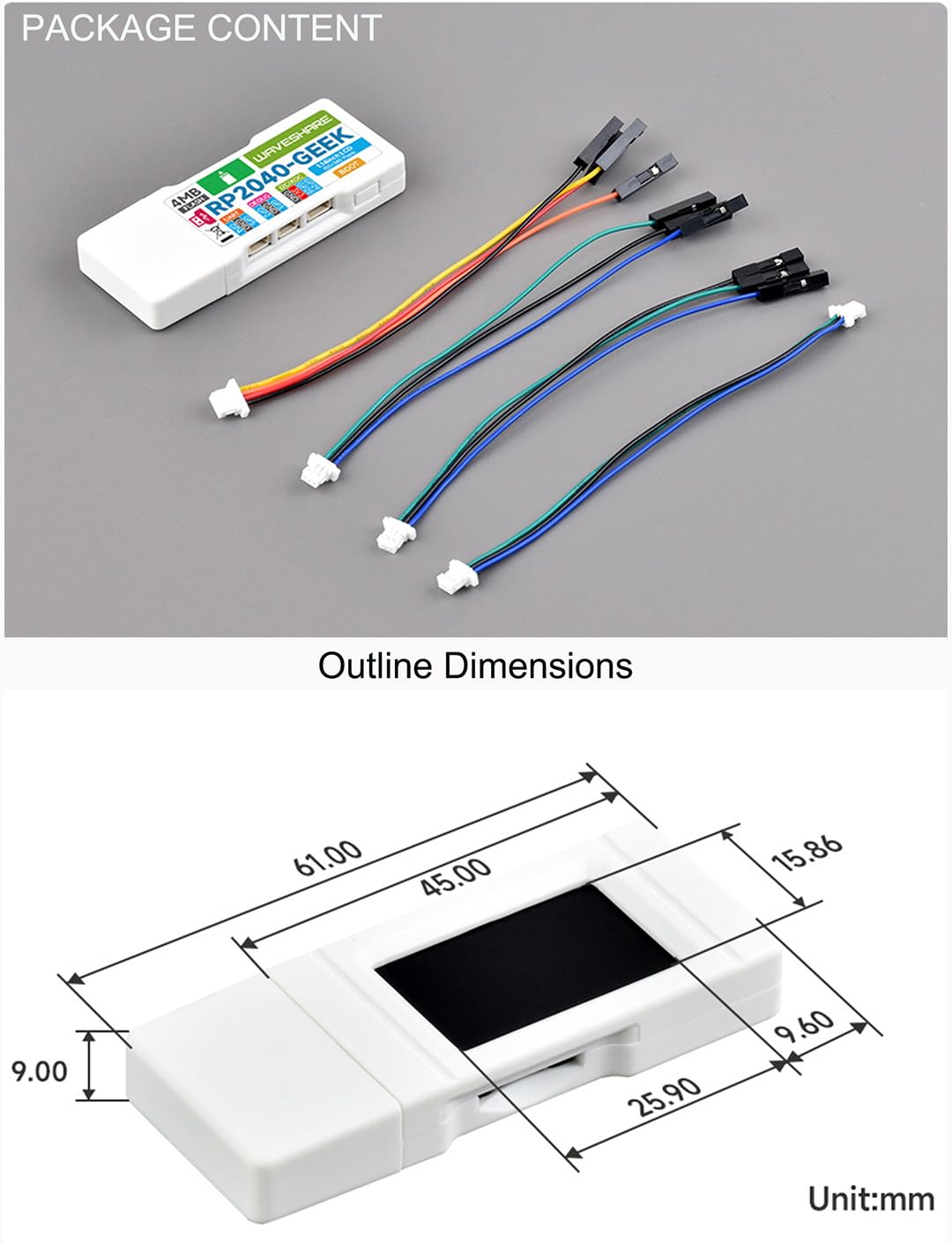

Board Specifications RP2040-GEEK is a geeks development board designed by Waveshare, onboard USB-A interface, 1.14inch LCD screen, TF card slot, and other peripherals. Provides different firmware for SWD port, UART port, and I2C port. Key features include: RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Onboard 3PIN SWD port for connecting the debugged target board --Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers --Works with OpenOCD and other tools supporting CMSIS-DAP --Adopts the Raspberry Pi 3PIN Debug Connector Specification Onboard 3PIN USB to UART bridge Onboard 4PIN I2C port for the testing target board Onboard 1.14inch 240×135 pixels 65K color IPS LCD display Equipped with plastic case and cables Open-source firmware, more convenient to upgrade PACKAGE CONTENT RP2040-GEEK and cables x1 Development Resources https://www.waveshare.com/wiki/RP2040-GEEK
