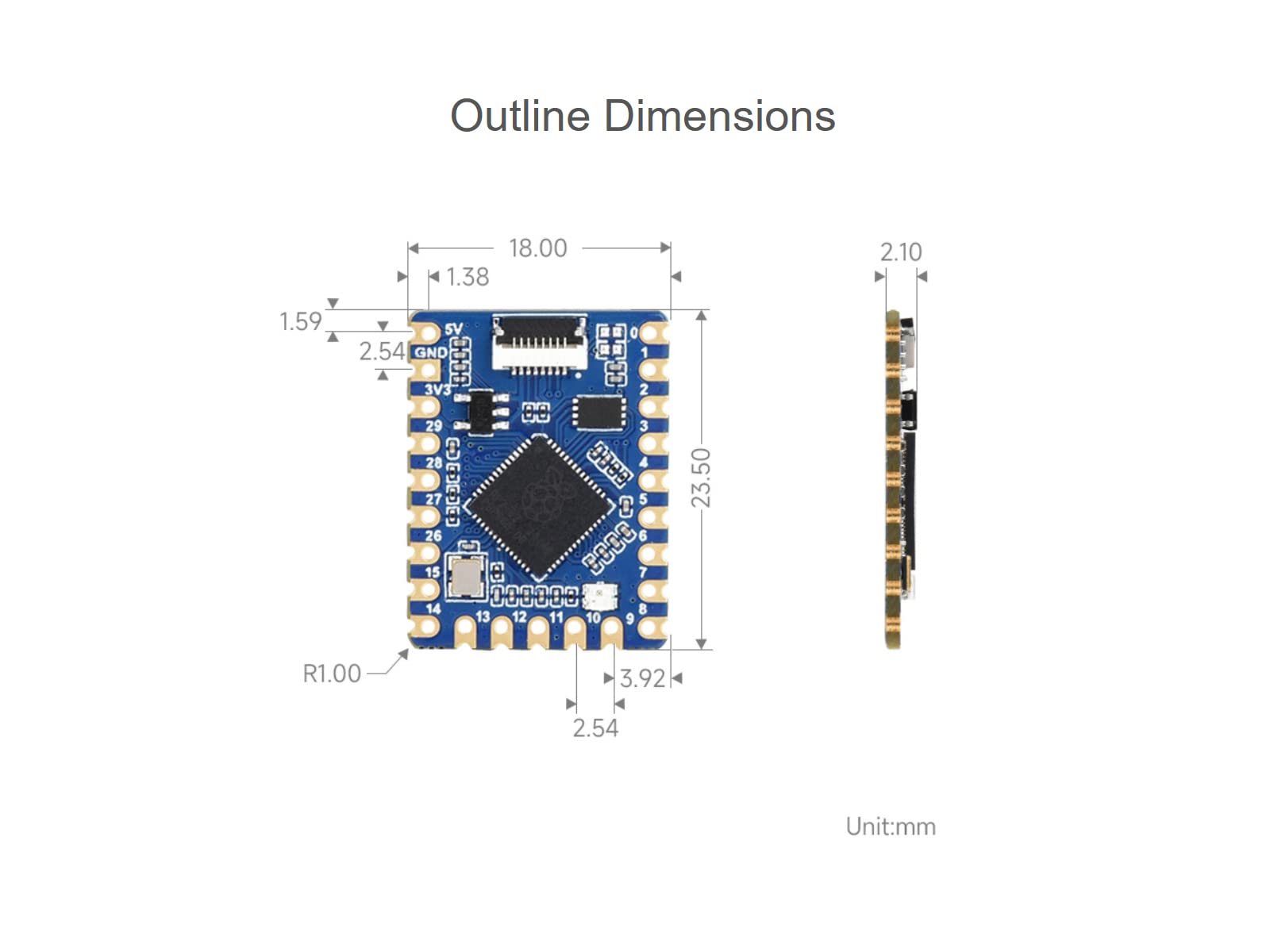

Waveshare RP2040 Development Board Based on Raspberry Pi RP2040 Microcontroller Chip Dual-Core Arm Processor, 20×multi-function GPIO Pins, Support C/C++, MicroPython, Arduino, 23.5 * 18 * 2.1 mm

• Waveshare RP2040-Tiny development board based on official RP2040, compact size, separate adapter board design, tiny size, easy integration
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz, 264KB of SRAM, and 2MB of onboard Flash memory, USB 1.1 with device and host support

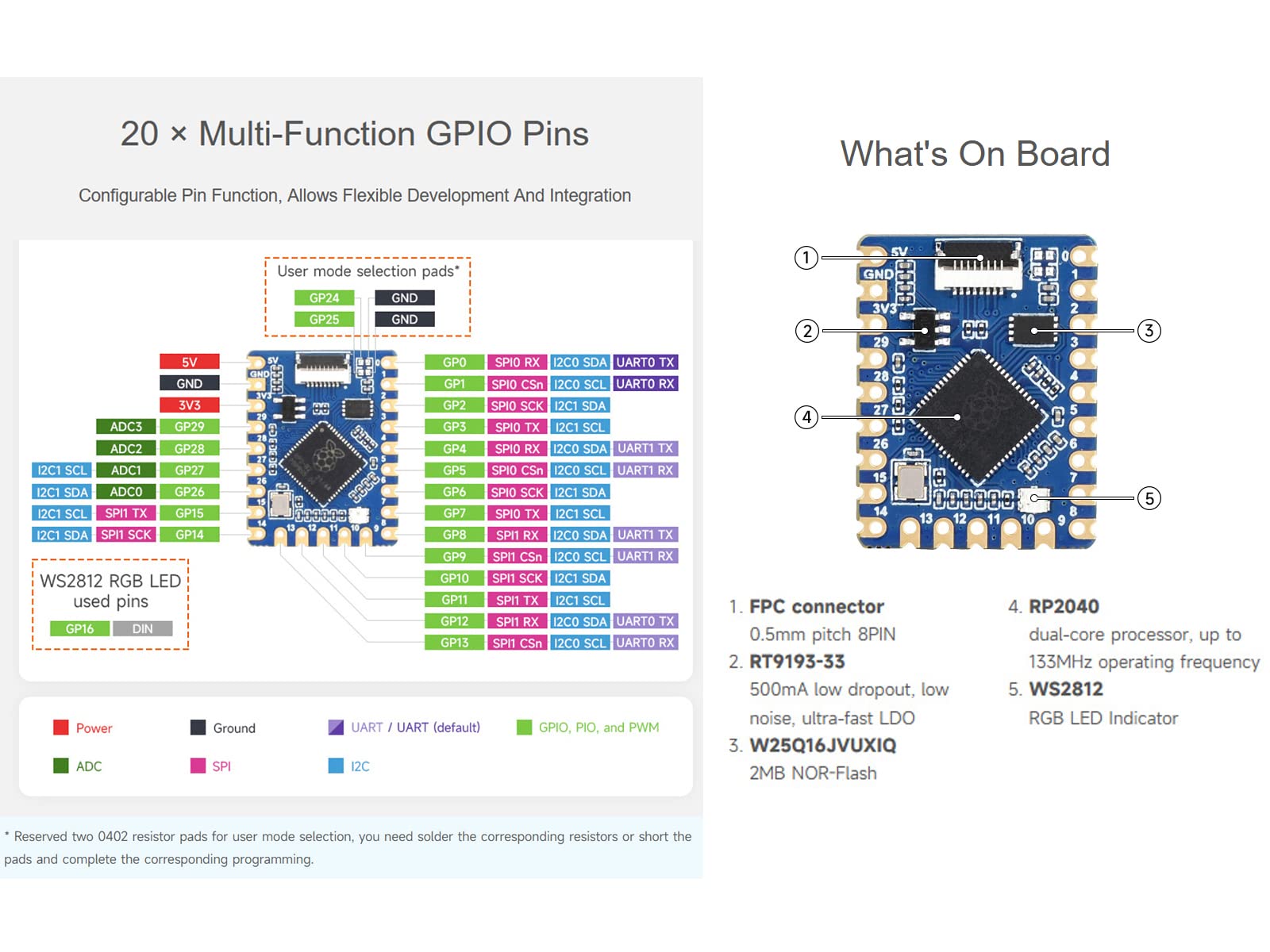

• 20 × multi-function GPIO pins, configurable pin function, allows flexible development and integration

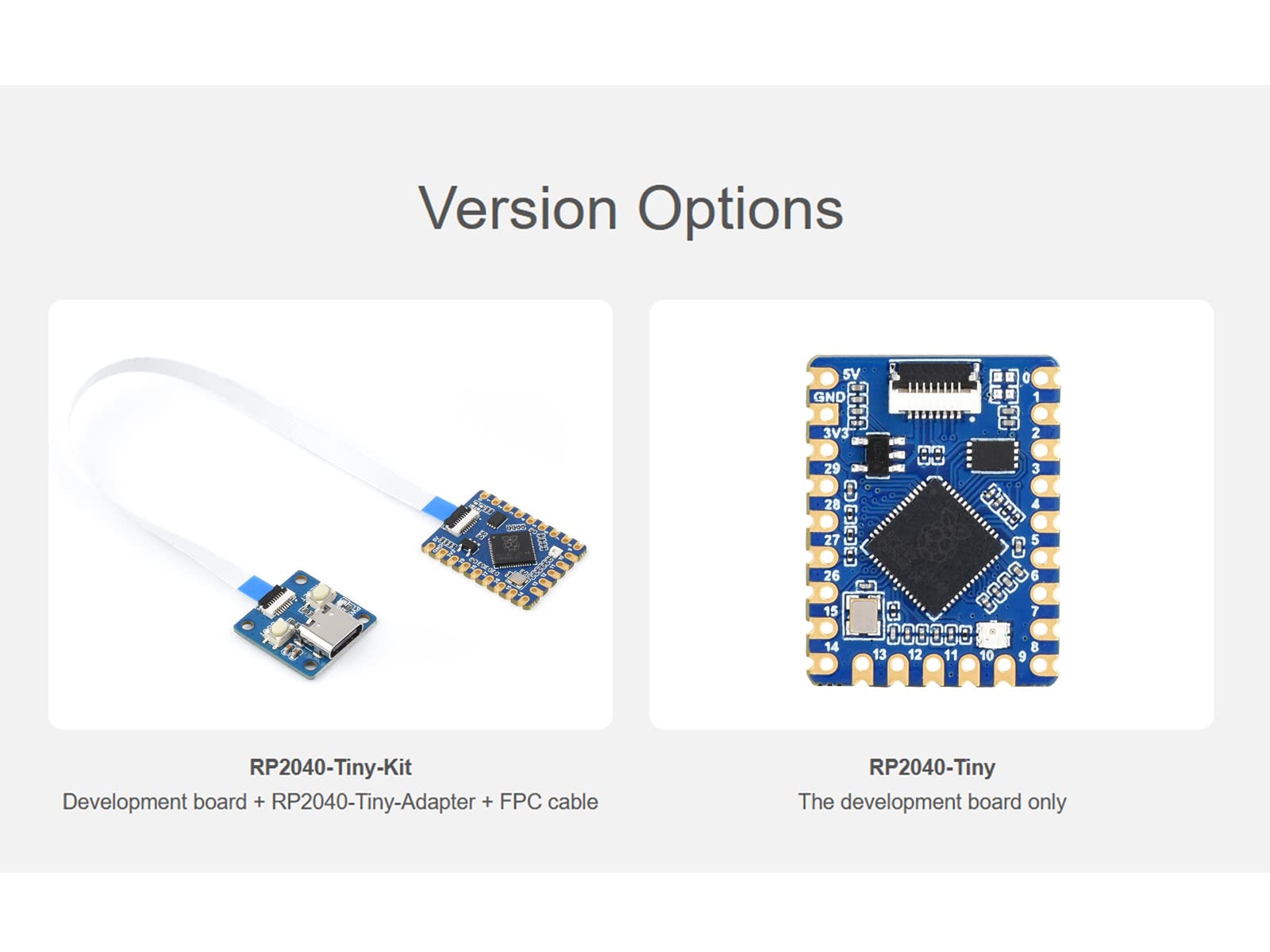

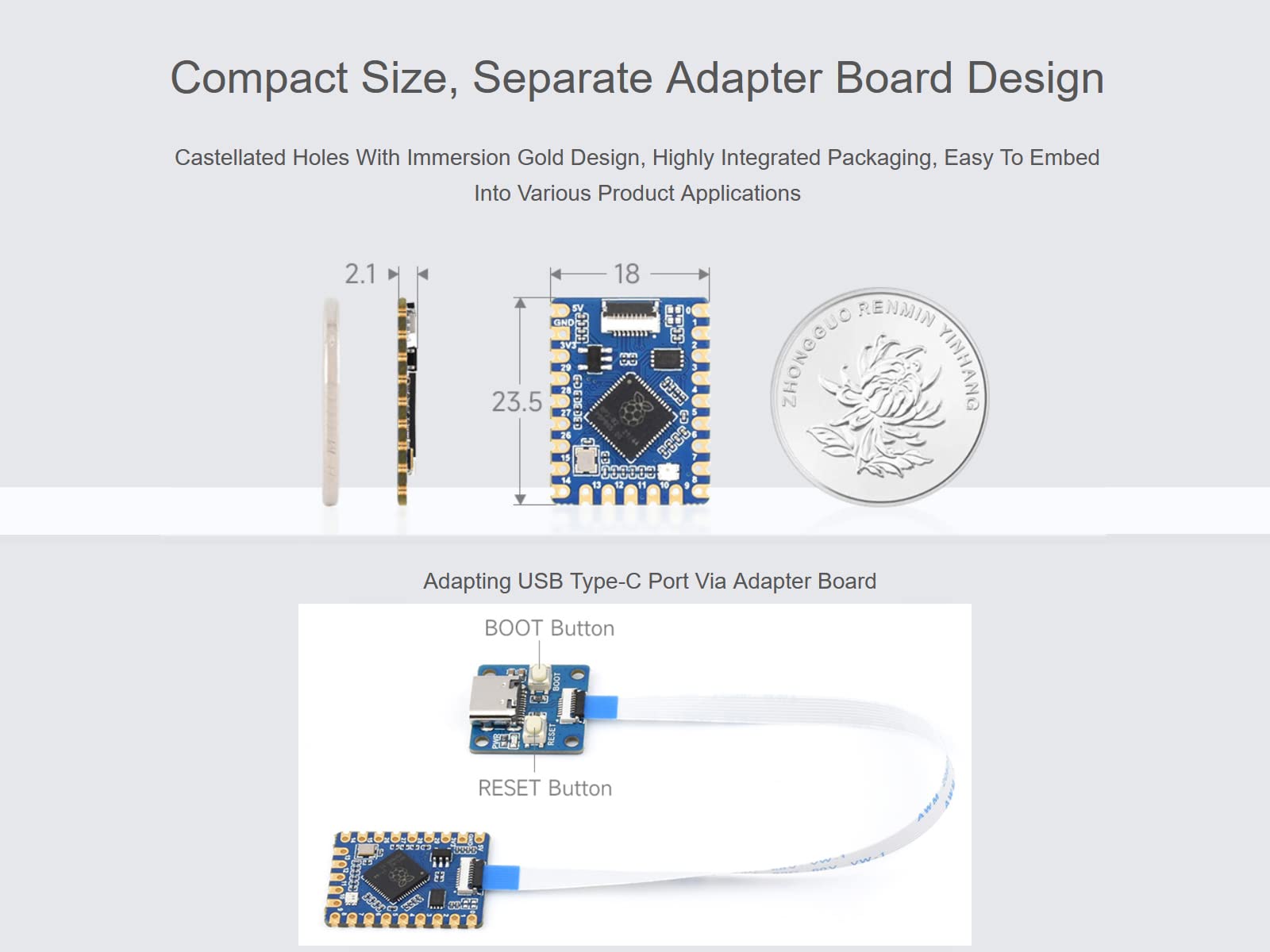

• Onboard FPC connector, adapting USB Type-C port via adapter board
• Support C/C++, MicroPython, Arduino, comprehensive SDK, dev resources, tutorials to help you easily get started

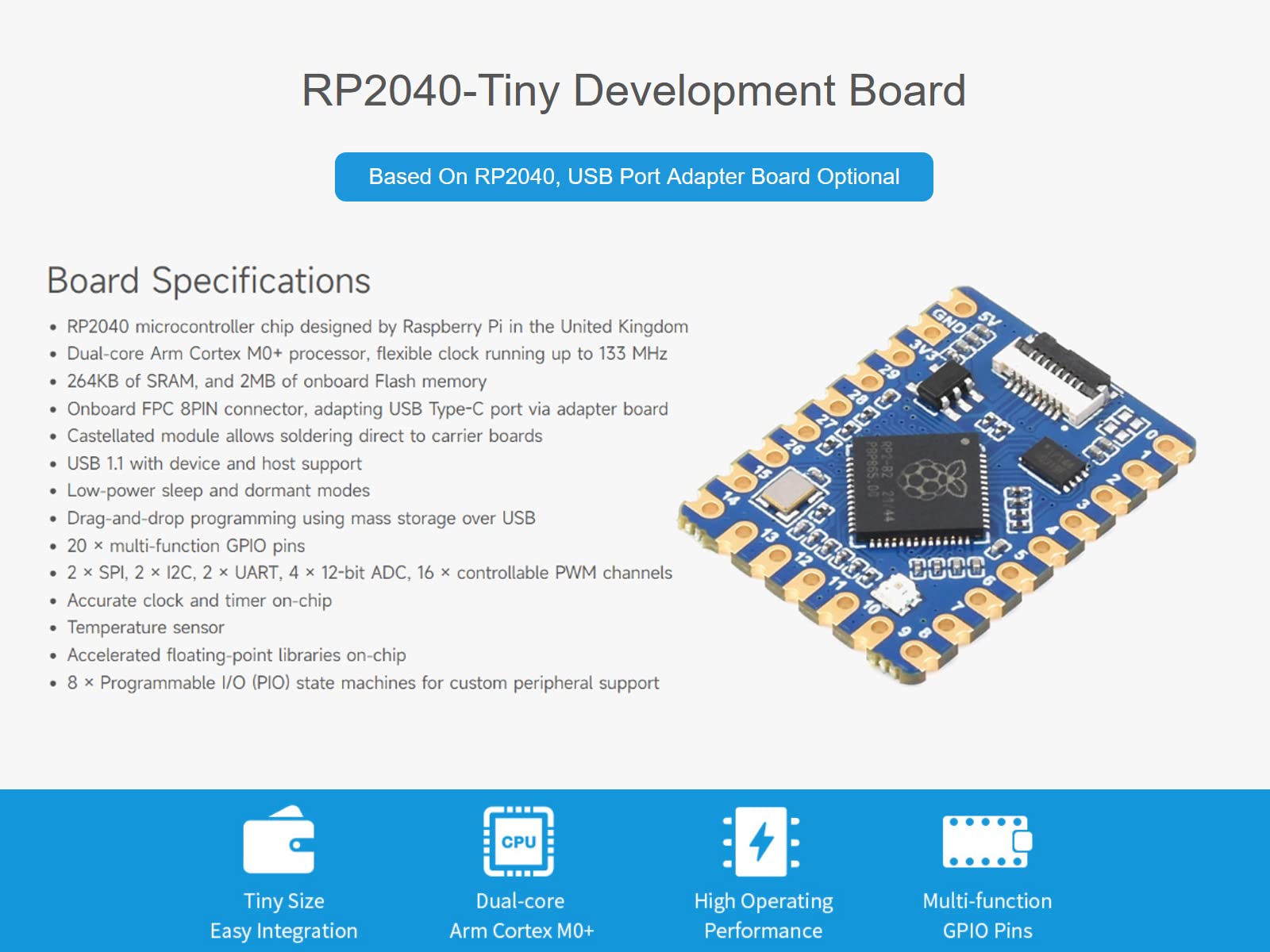

Overview Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor Board specifications RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of onboard Flash memory Onboard FPC connector, adapting USB Type-C port via adapter board Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 20 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Package Content RP2040-Tiny x1 NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
