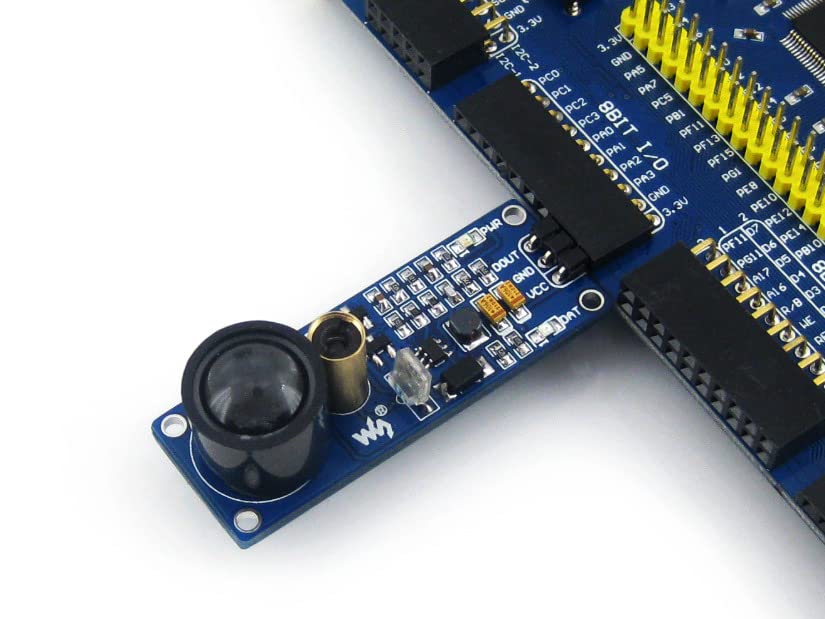

Waveshare Laser Sensor, for Obstacle Detection, Assembly Line Counting, Intelligent Robot, and Obstacle Avoidance Car, etc
About this item
- Self-contained booster circuit
- Signal output indication
- Mainly used for obstacle detection, assembly line counter, intelligent robot and obstacle avoidance car, etc.
- Since the laser sensor uses modulation processing, the receiving tube can only accept the reflected light of the same frequency, so the influence of visible light on the reflected laser can be effectively prevented
Product description
Specifications Boost chip: PT1301 Effective distance: 0.01-0.8m(typ), 1.5m(max) Power: 2.5V ~ 5.0V Dimension: 53.0mm*18.0mm Mounting holes size: 2.0mm How to Use In the case of working with a MCU: VCC โ 2.5V ~ 5.0V GND โ power supply ground DOUT โ MCU.IO (digital output) Package Contents Laser Sensor x1 3-pin custom connector jumper wire x1 User Manual:waveshare.com/wiki/Laser_Sensor?amazon
