Isolated RS485 CAN HAT (B) for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero W/Zero WH,2-CH MCP2515 RS485 and 1-CH CAN Built-in Multiple Protection Circuits,SPI communication

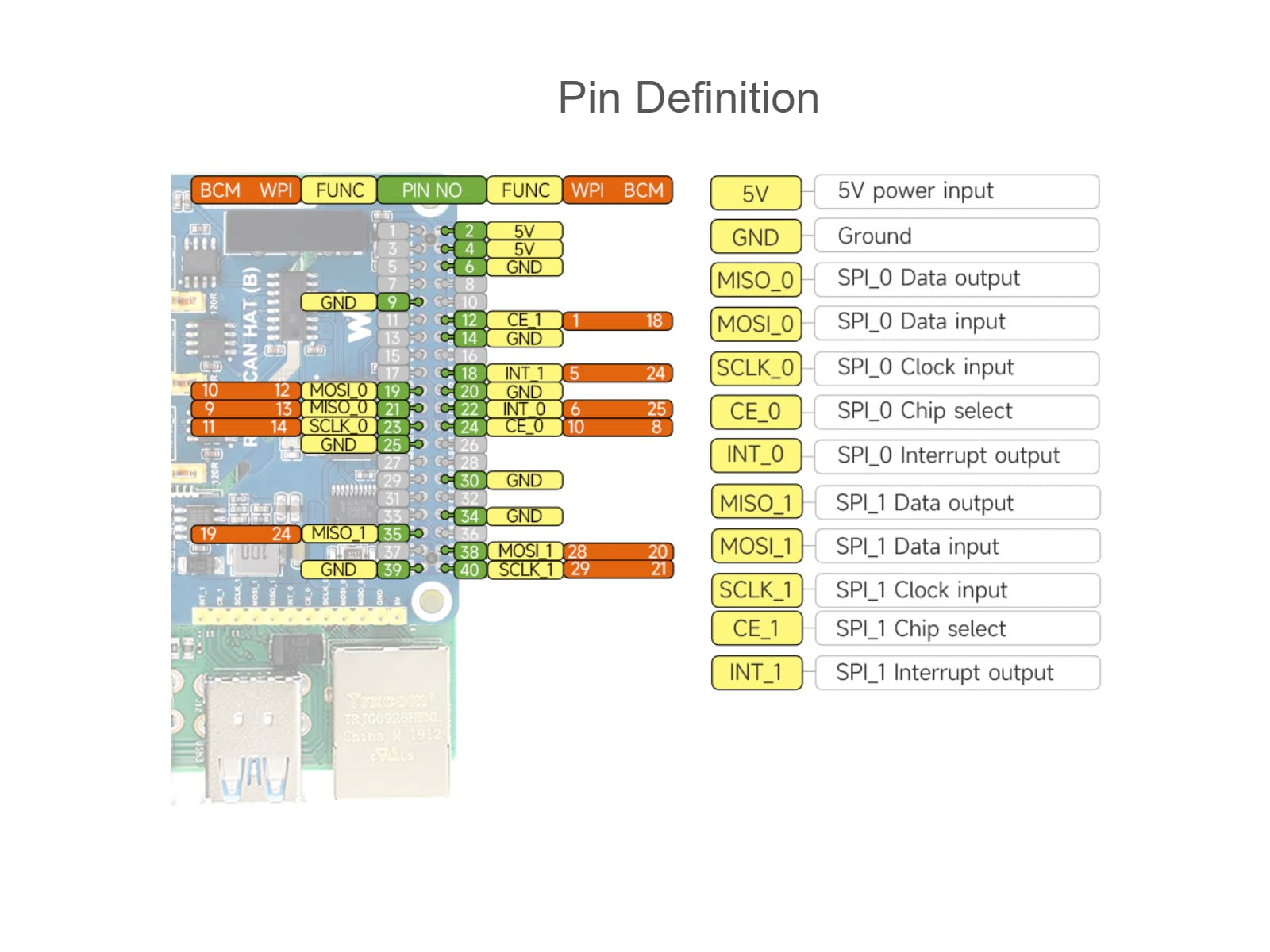

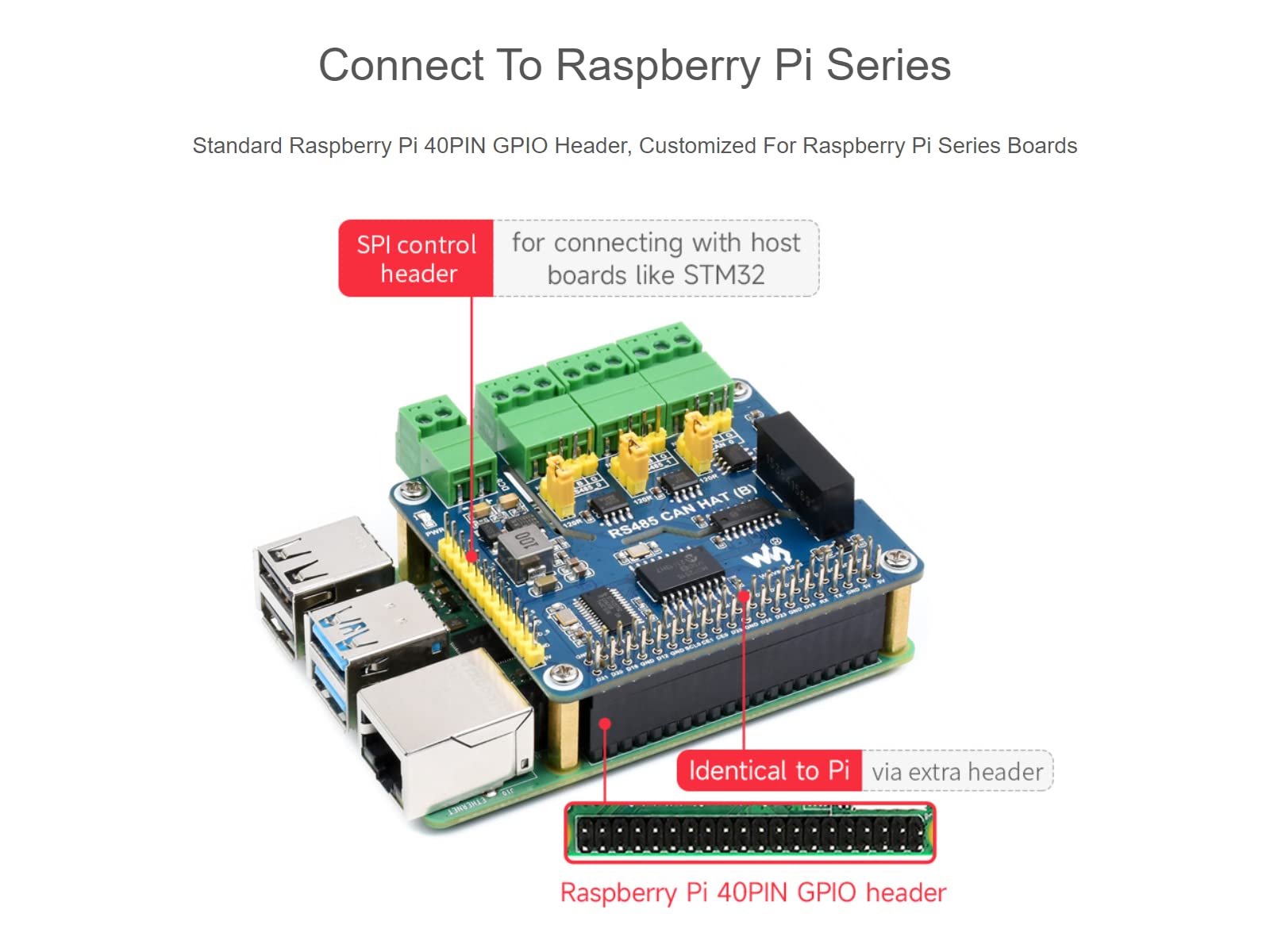

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.Breakout SPI control pins, for connecting with host control boards

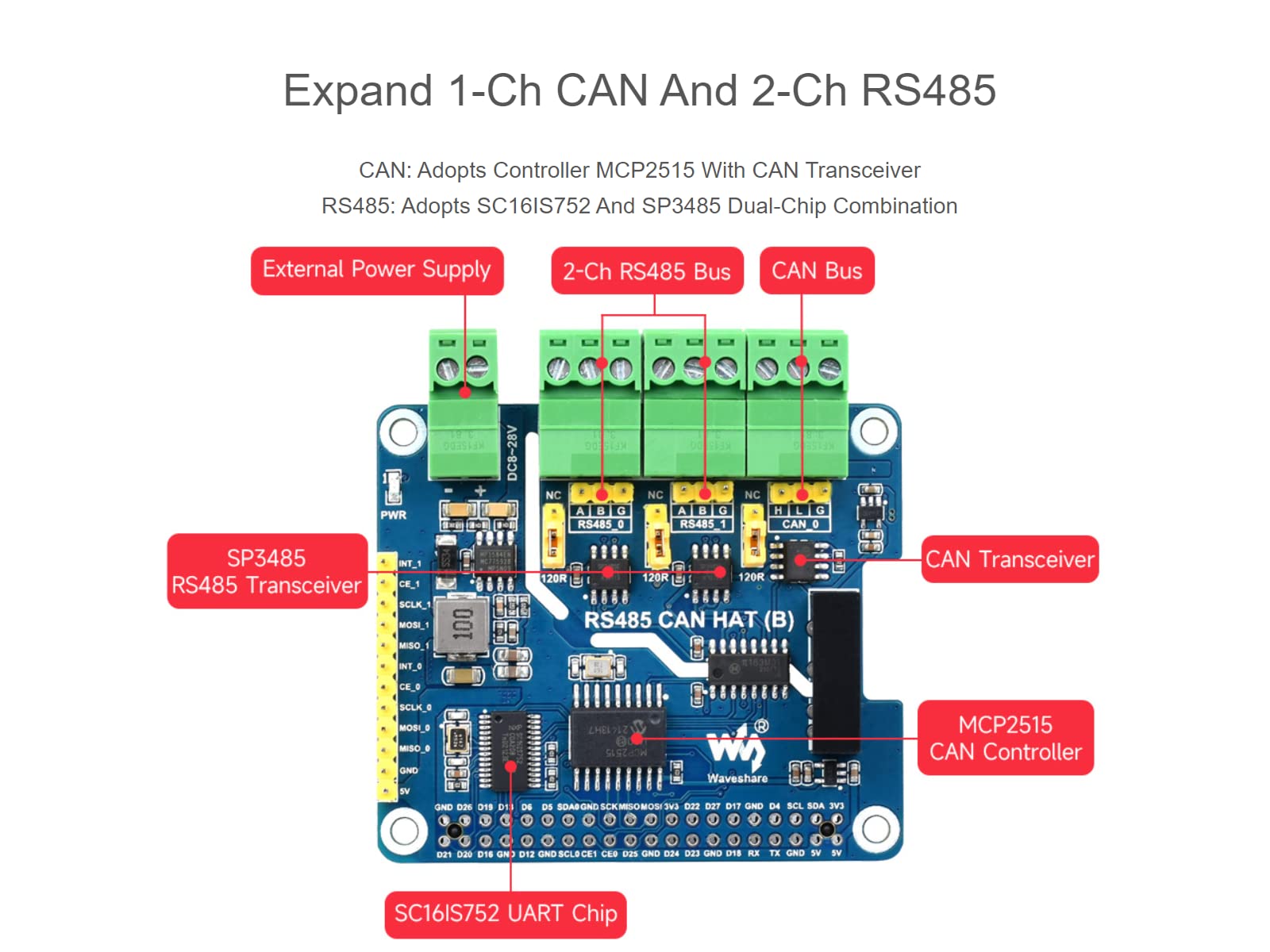

• 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN.2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485

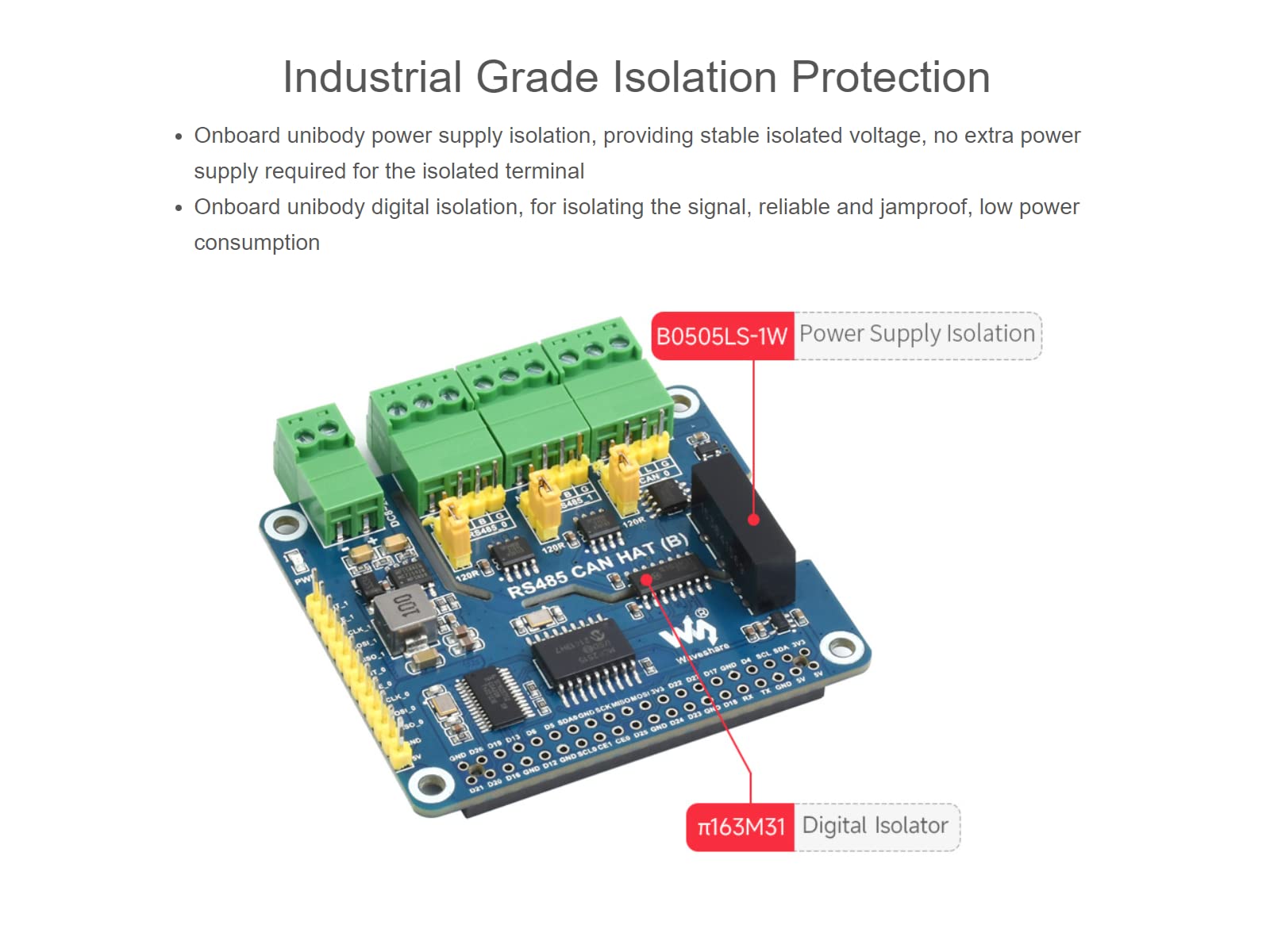

• Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time.Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.Onboard 120Ω terminal resistor, configured by jumper.Breakout SPI control pins, for connecting with host control boards

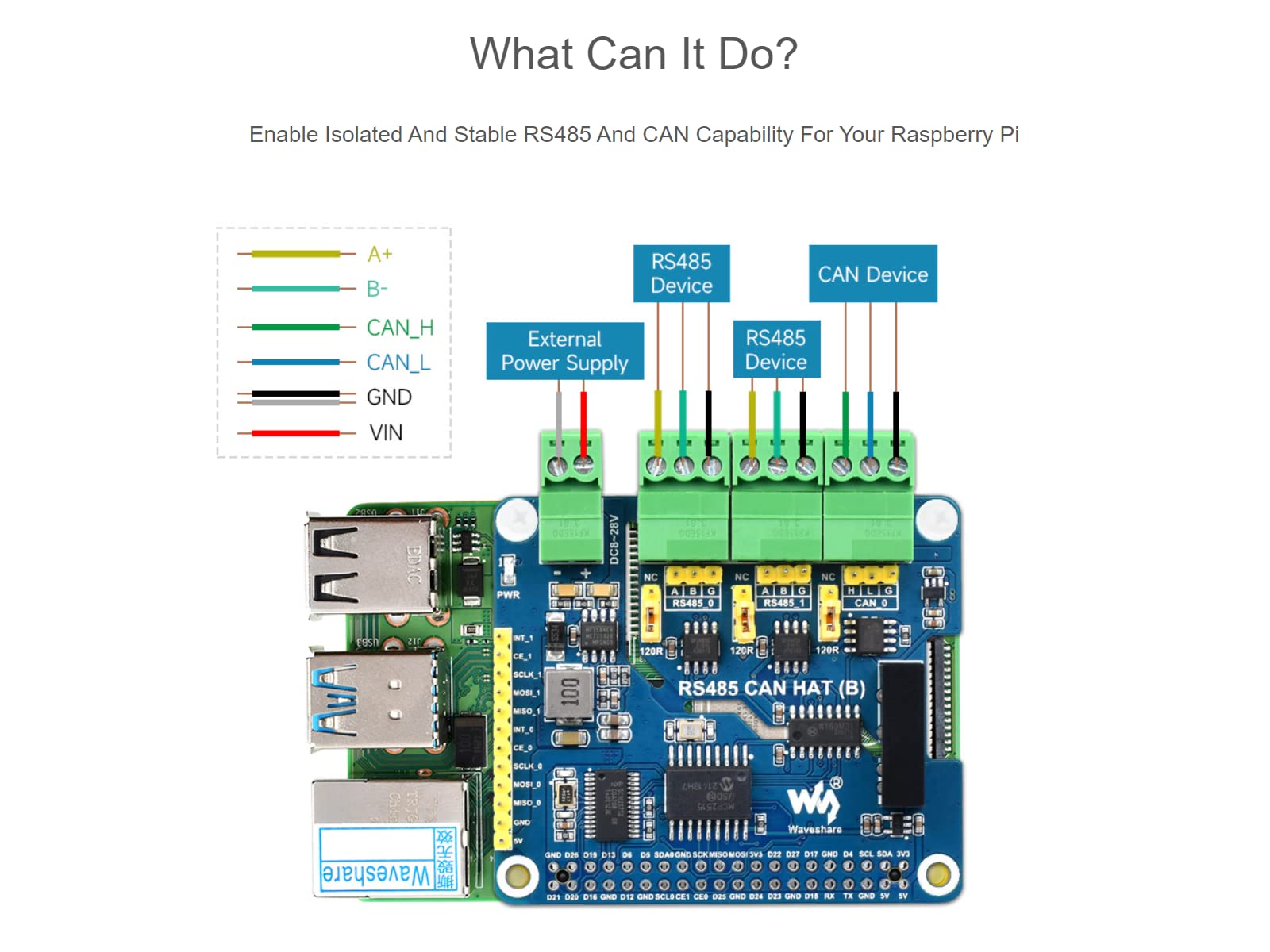

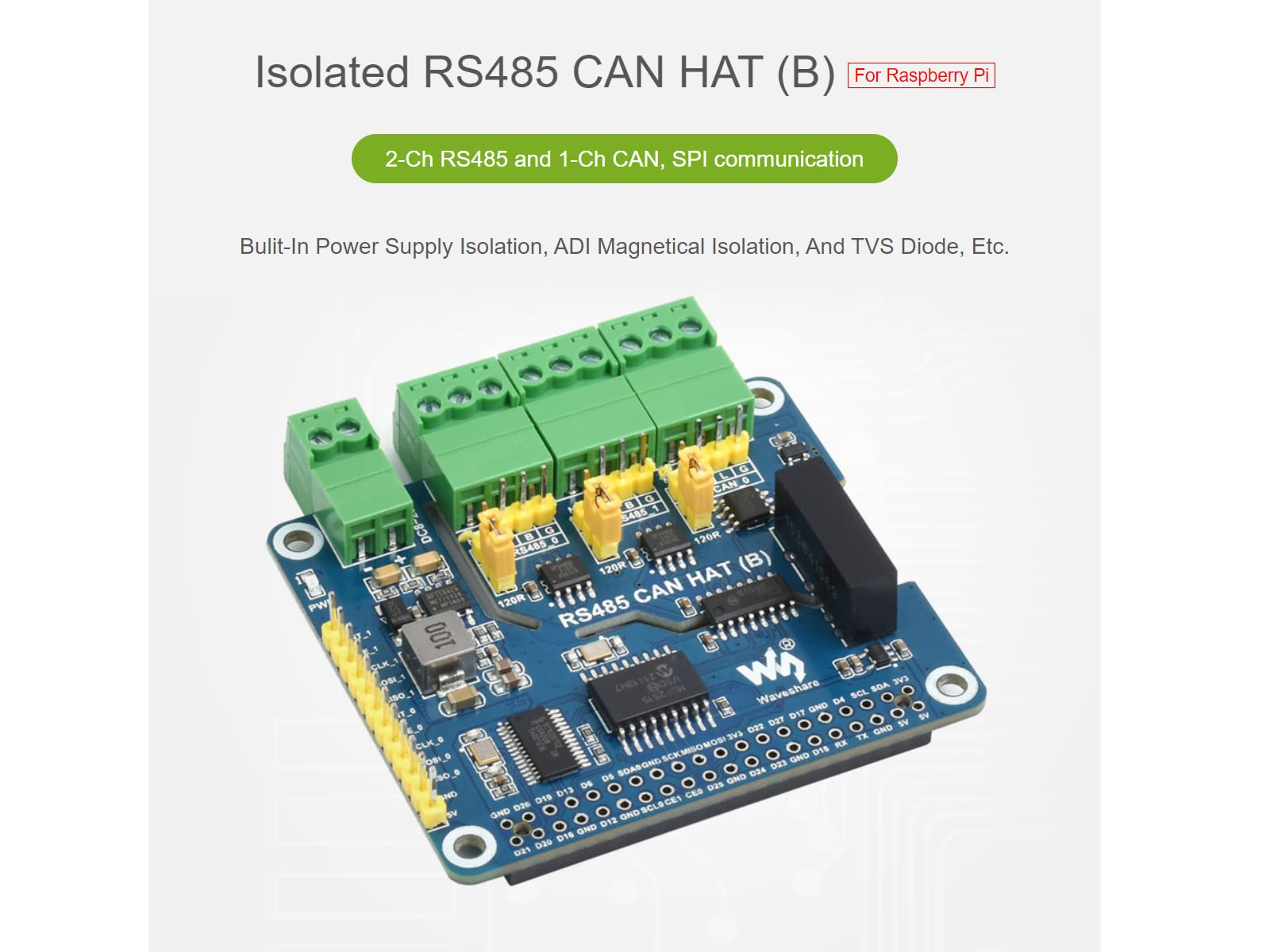

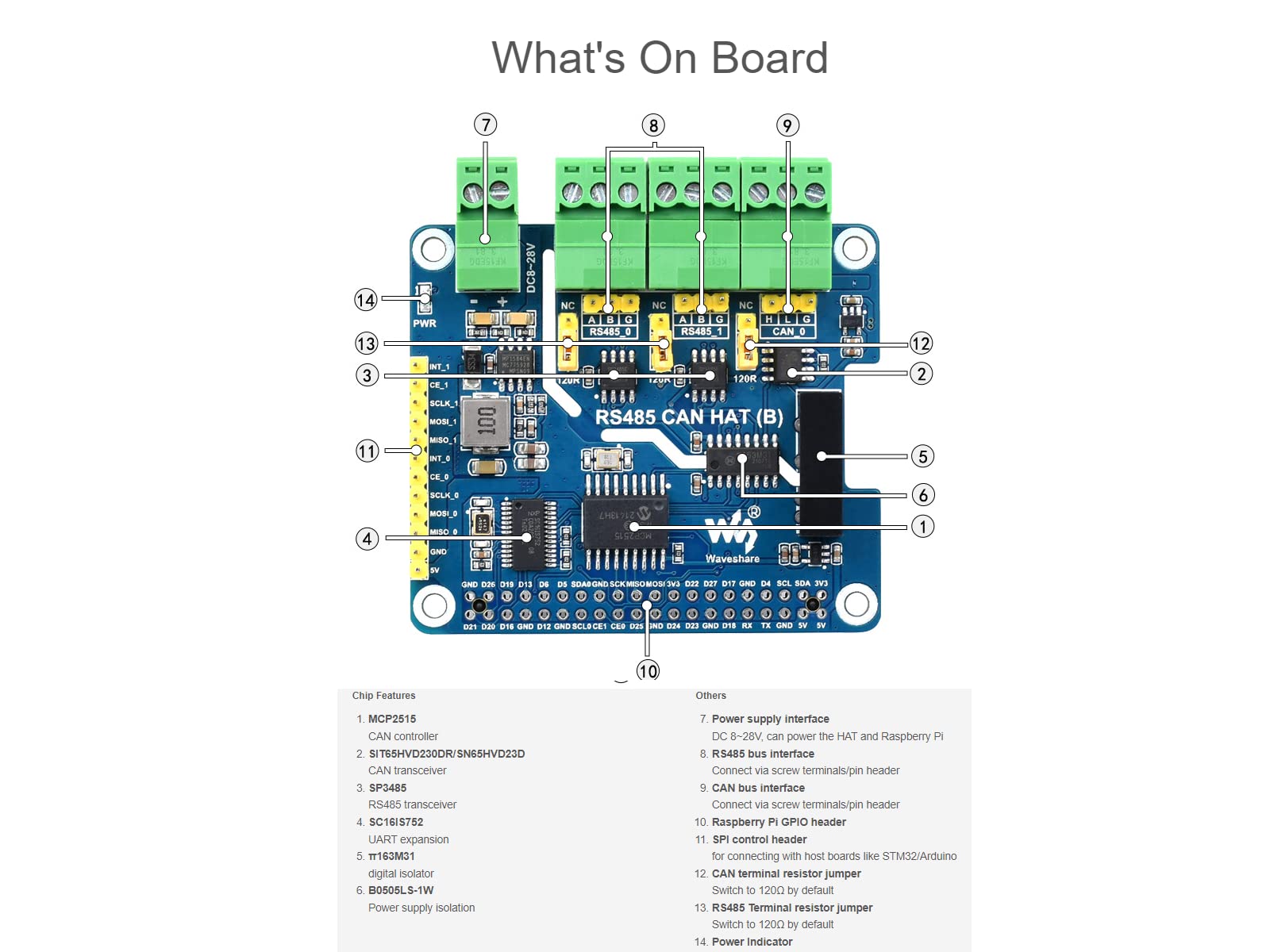

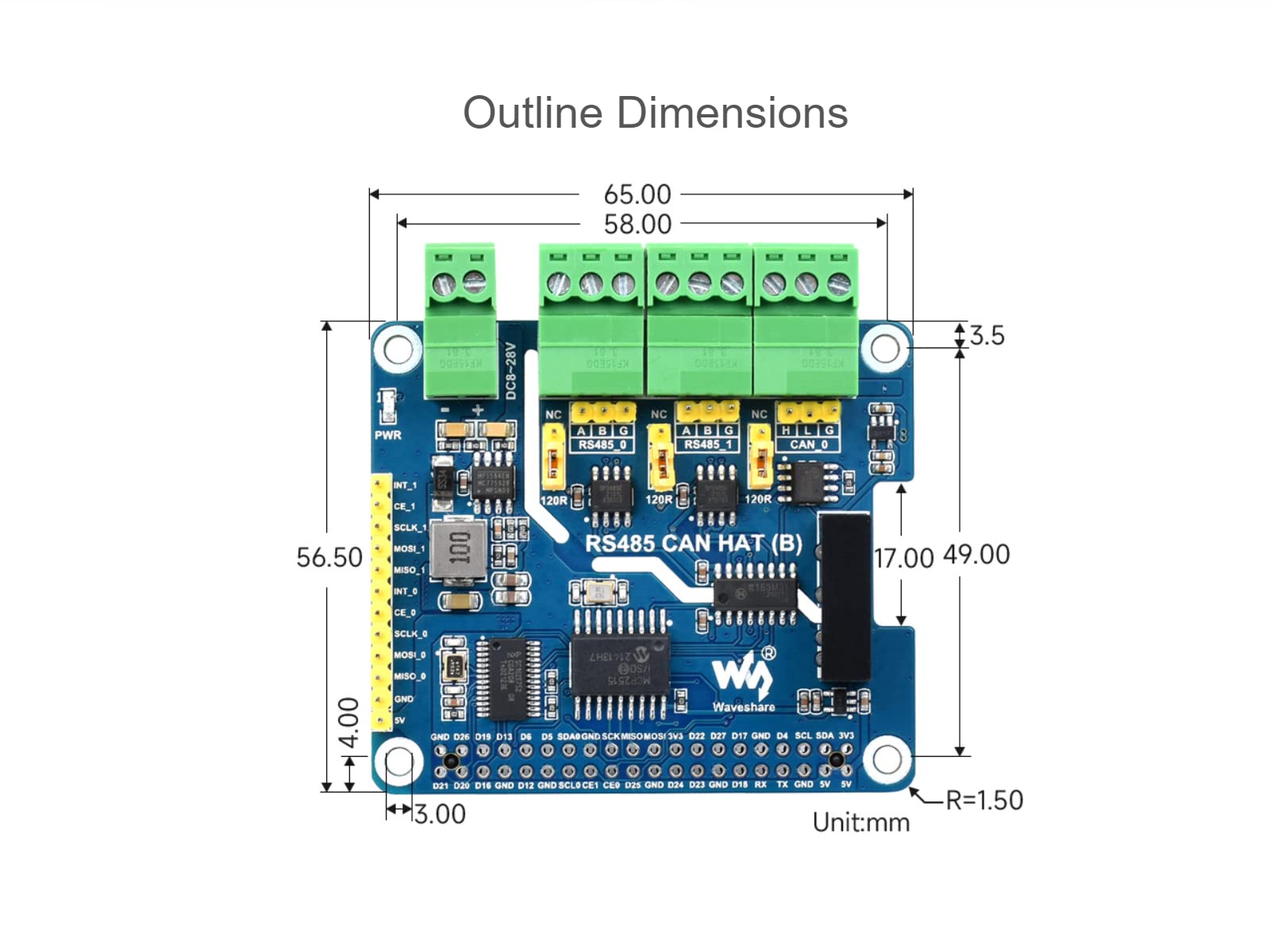

Overview RS485 CAN HAT (B) is a HAT with RS485 and CAN communication functions developed by Waveshare for Raspberry Pi, with RS485 and CAN communication functions. Features 1.Isolated RS485 CAN HAT (B) For Raspberry Pi 2-Ch RS485 and 1-Ch CAN, SPI communication Bulit-In Power Supply Isolation, ADI Magnetical Isolation, And TVS Diode, Etc. 2.What Can It Do? Enable Isolated And Stable RS485 And CAN Capability For Your Raspberry Pi 3.Connect To Raspberry Pi Series Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards 4.Expand 1-Ch CAN And 2-Ch RS485 CAN: Adopts Controller MCP2515 With CAN Transceiver RS485: Adopts SC16IS752 And SP3485 Dual-Chip Combination 5.Industrial Grade Isolation Protection Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption Specification Expanded interface--2-Ch RS485 + 1-Ch CAN Communication Bus--SPI CAN Controller--MCP2515 CAN Receiver--SIT65HVD230DR/SN65HVD23D CAN Baud Rate≦1Mbps UART Expansion Chip--SC16IS752 RS485 Receiver--SP3485 RS485 Baud Rate--300~921600 bps Power Supply--External screw terminal or Raspberry Pi External Voltage Range--DC 8~28V Operating Voltage--3.3V Dimensions--65 × 56.5 mm Package Content RS485 CAN HAT (B) x1 2x20PIN female header x1 Screws pack x1 Development Resources https://www.waveshare.com/wiki/RS485_CAN_HAT_(B)?Amazon Note Please feel free to contact us via Amazon message if you have any problem.
