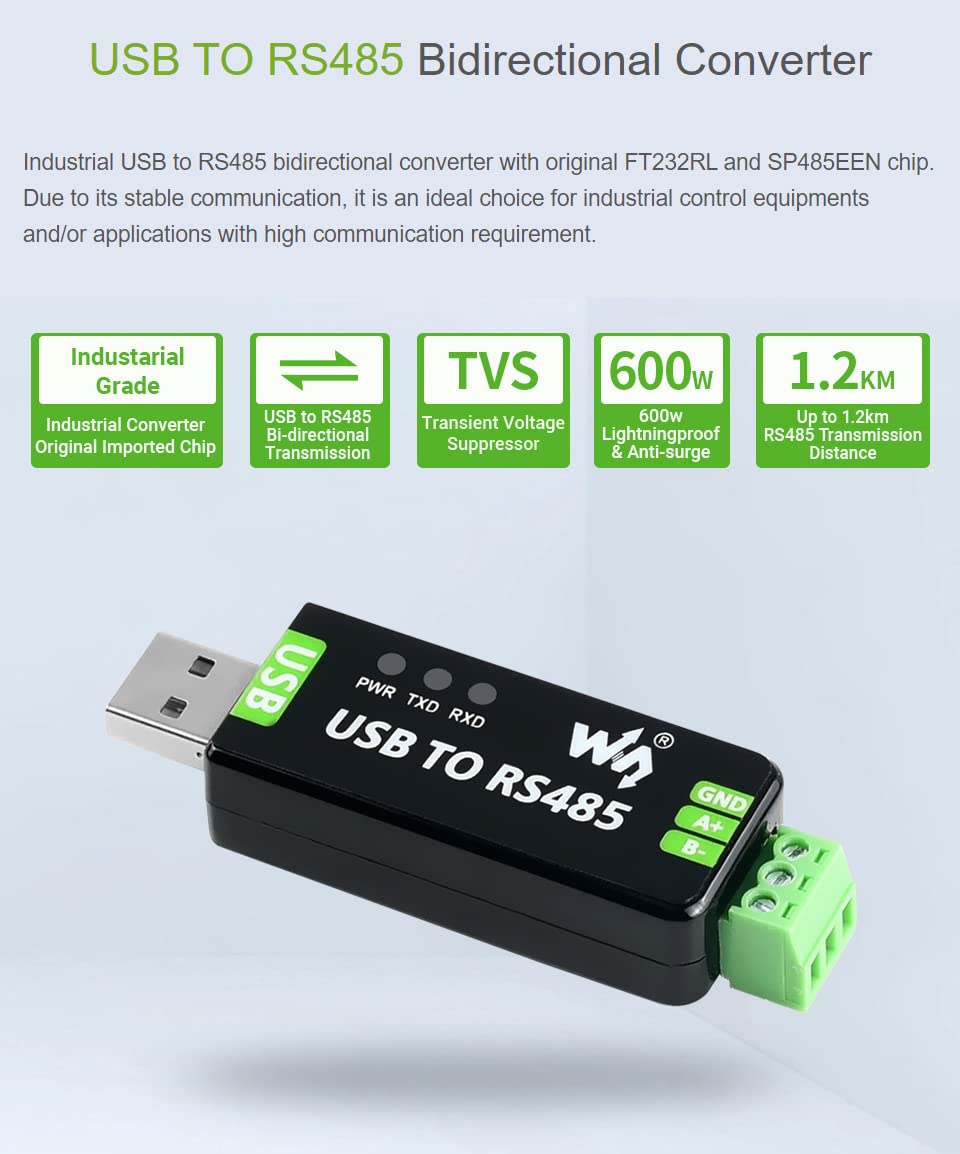

Waveshare Industrial Bidirectional Converter USB Convert To RS485 Onboard Original FT232RL

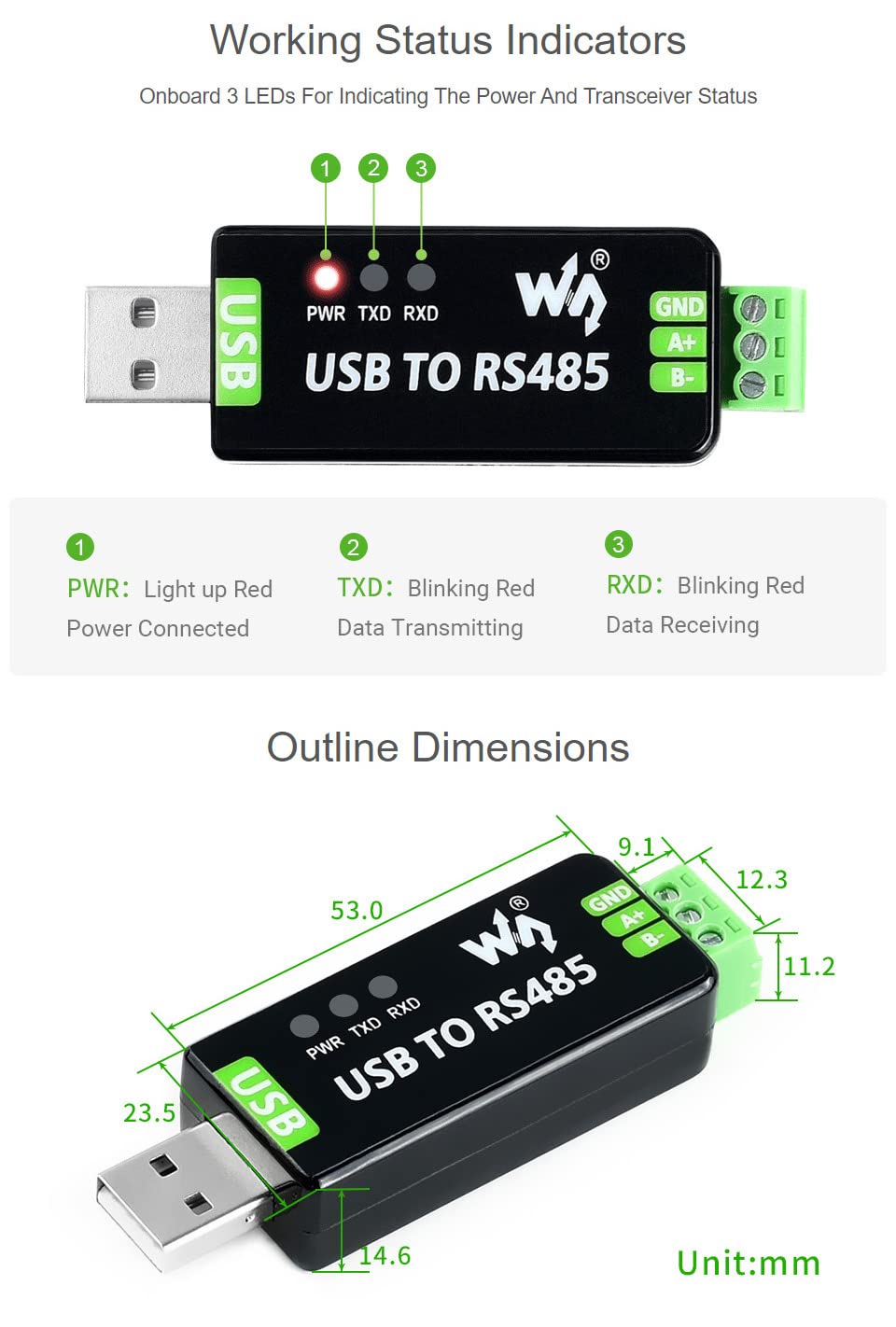

• This Converter support USB to RS485 bidirectional conversion. Due to its stable communication, it's ideal for industrial control equipments and/or applications with high communication requirement. with 3 LEDs for indicating the power and transceiver status, PWR: red power indicator, light up when there is USB connection and voltage is detected, TXD: red TX indicator, light up when the USB port sends data, RXD: red RX indicator, light up when the device ports send data back
• Baudrate: 300-921600bps; Host port: USB, Device port: RS485; Operating system: for Mac/Linux/Android/WinCE/Windows10/8.1/8/7/XP; Operating environment: Temperature: -15℃ ~ 70℃, Humidity: 5%RH ~ 95%RH

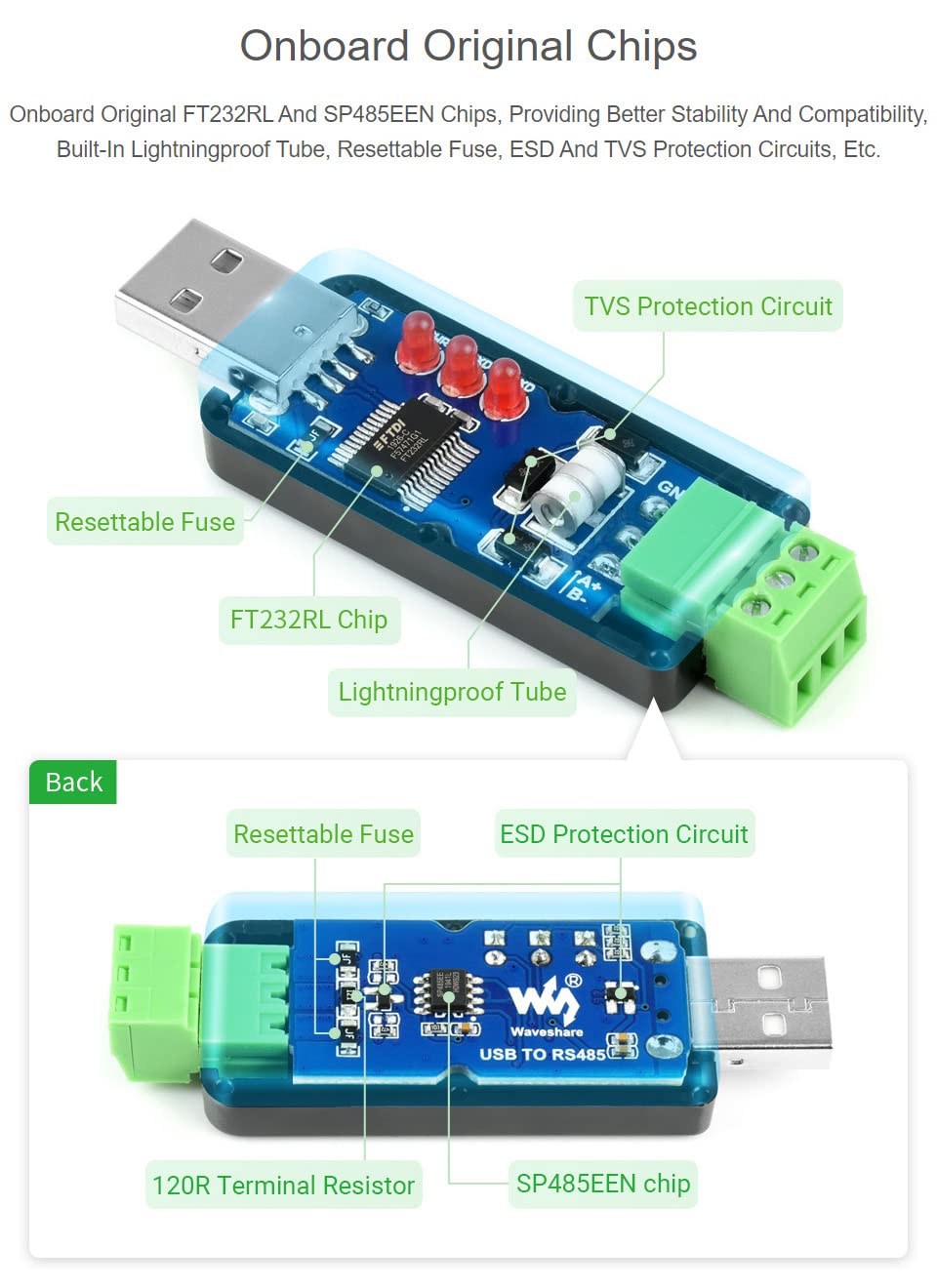

• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, Lighningproof & anti-electrostatic; Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance

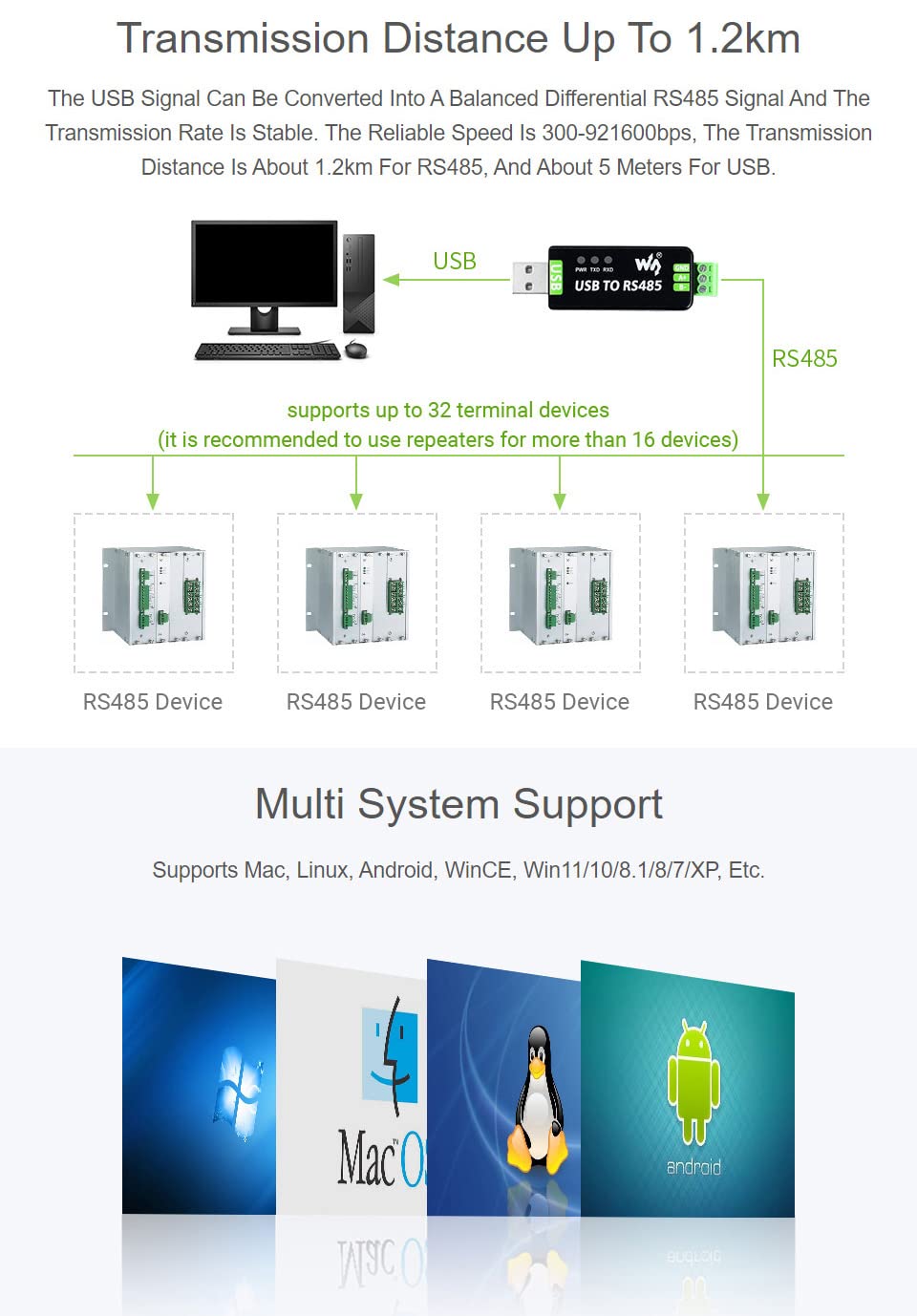

• RS485→Connector: screw terminal; Pins: A+, B-, GND; Direction control: hardware automatic control; Protection: 600W Lighning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor); Transmission distance: about 1200m (low rate); Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
• USB→Operating voltage: 5V, Connector: USB-A, Protection: 200mA self-recovery fuse, ESD protection, Transmission distance: about 5m; Provide online user manual, please refer to it while using

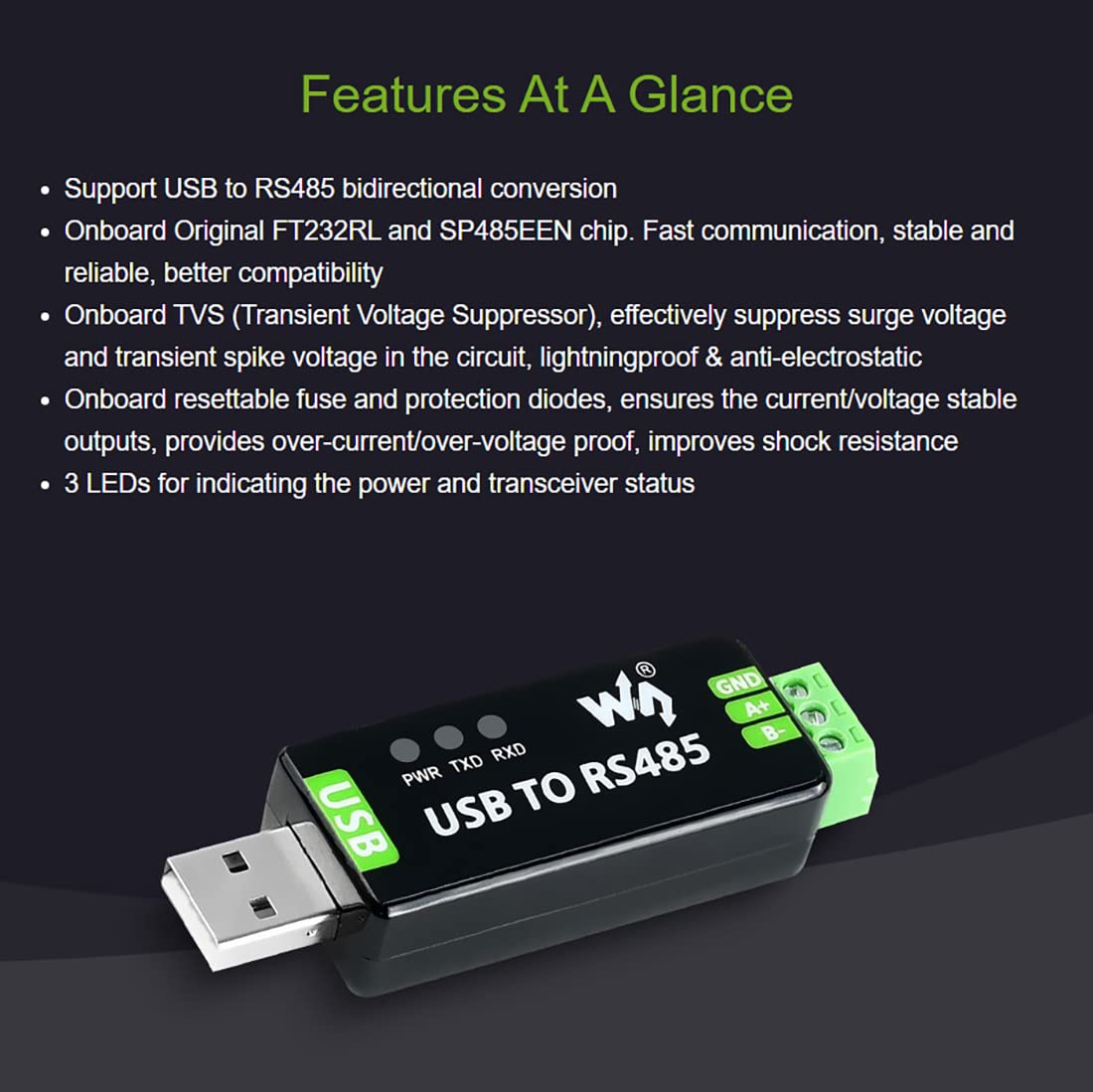

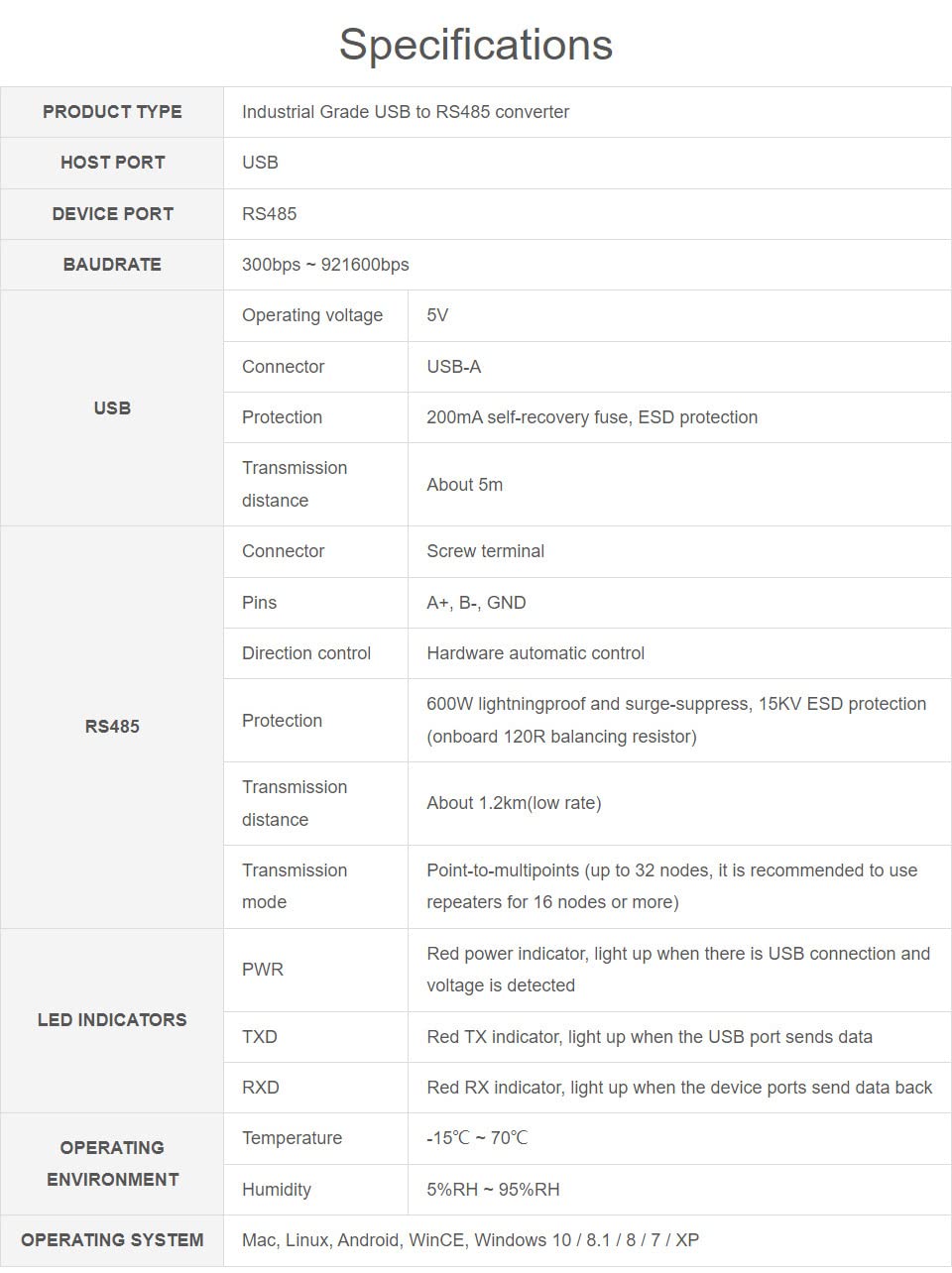

Overview This is an industrial USB to RS485 converter with original FT232RL inside. It features embedded protection circuits such as lllghtning-proof, resettable fuse, ESD protection, and TVS diode, etc. It's pretty small in size. Features USB to RS485 communication Adopt original FT232RL, fast communicating, stable and reliable, better compatibility Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, Lighning-proof & anti-electrostatic Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance 3 LEDs for indicating the power and transceiver status Specifications Product type: industrial converter Baudrate: 300-921600bps Host port: USB Device port: RS485 USB→Operating voltage: 5V, Connector: USB-A, Protection: 200mA self-recovery fuse, ESD protection, Transmission distance: about 5m RS485→Connector: screw terminal; Pins: A+, B-, GND; Direction control: hardware automatic control; Protection: 600W Lighning-proof and surge-suppress, 15KV ESD protection (onboard 120R balancing resistor); Transmission distance: about 1200m (low rate); Transmission mode: point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) LED indicators→PWR: red power indicator, light up when there is USB connection and voltage is detected, TXD: red TX indicator, light up when the USB port sends data, RXD: red RX indicator, light up when the device ports send data back User Manual waveshare.com/wiki/USB_TO_RS485?amazon PACKAGE CONTENT 1. USB TO RS485 x1 2. USB-A male to female cable x1 3. Screwdriver x1
