Waveshare E-Paper Driver HAT, Compatible with Raspberry/Nucleo Main Control Boards, for Waveshare SPI Interface E-paper Raw Panels
About this item
- Designed for Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboard/Jetson Nano
- Lead out SPI control interface, suitable for Raspberry Pi/Nucleo main control board, etc.
- Onboard level conversion chip, for 3.3V and 5V microcontroller interface
- Provide complete supporting information manual (example program for Raspberry Pi/Jetson Nano/STM32)
Product description

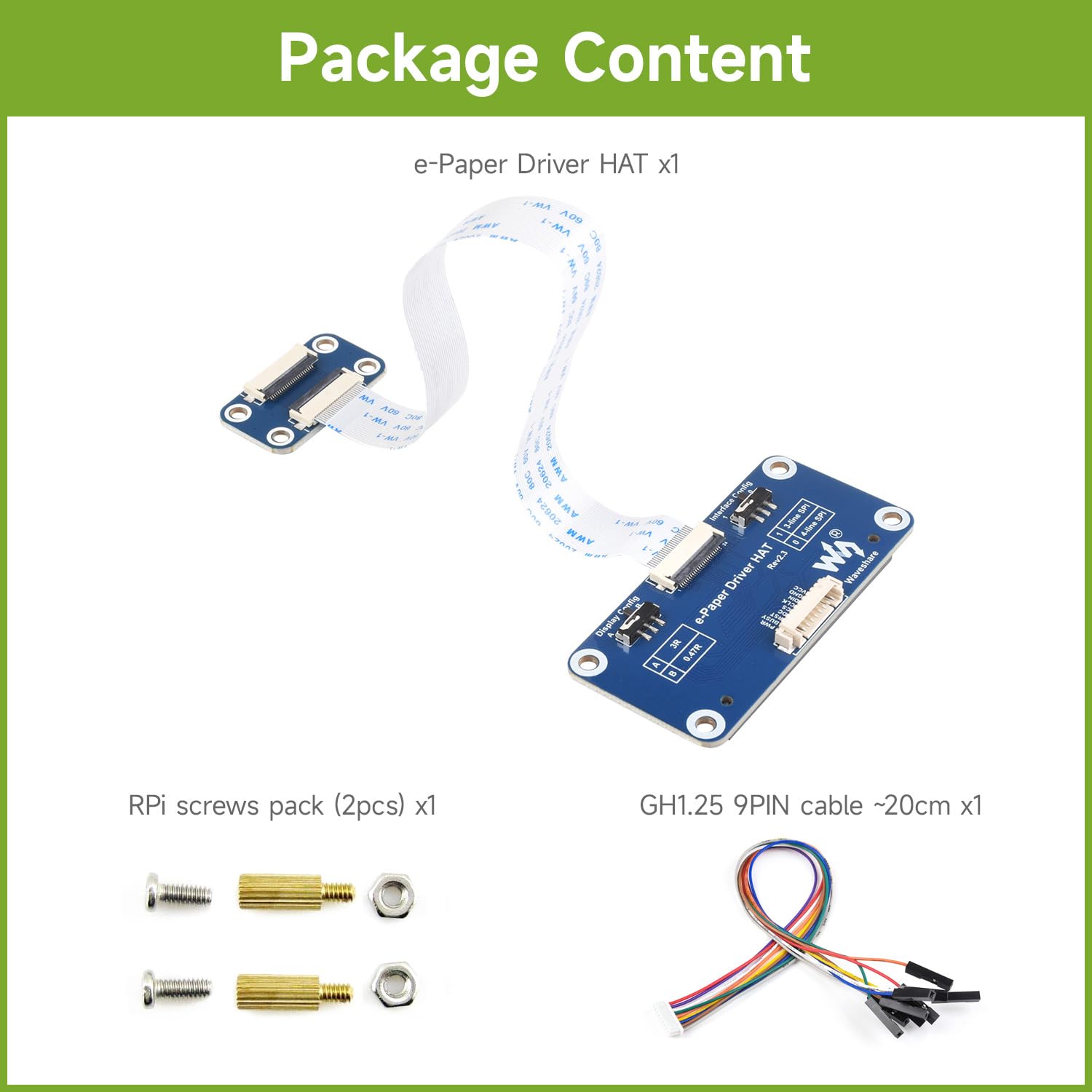

Features A universal driver board for e-Paper raw panels, can be used to drive various Waveshare SPI interface e-Paper. Specifications Operating voltage: 3.3V~5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 65mm ร 30.2mm Mounting hole size: 3.0mm Package Contents e-Paper Driver HAT x1 RPi screws pack (2pcs) x1 Cablex1 User Manual:waveshare.com/wiki/e-Paper_Driver_HAT?amazon
