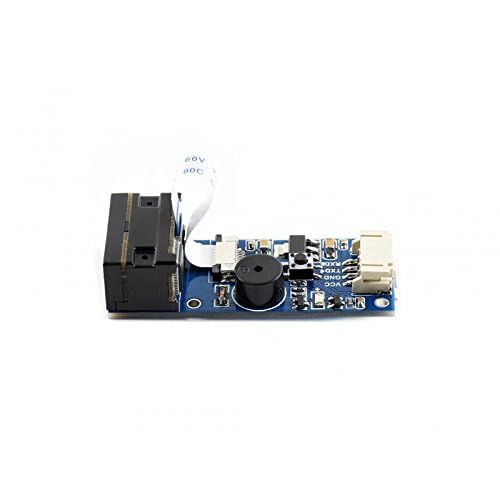

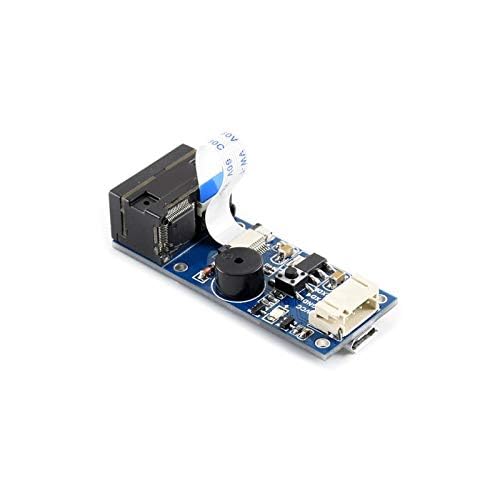

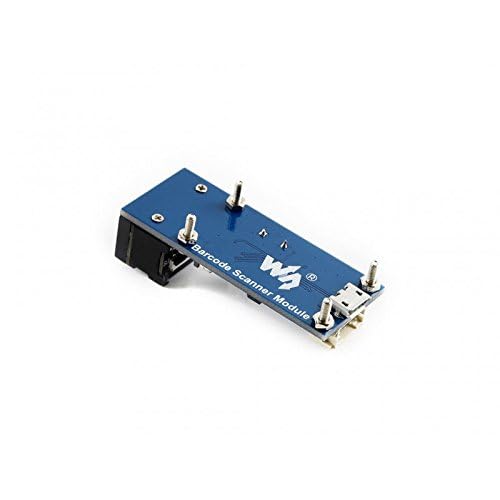

Waveshare Barcode Scanner Module 1D/2D Codes Barcode, QR Code Reader Scanning Onboard Micro USB and UART Serial Port Directly Plugged into Computer

• Easy to use, requires no knowledges of image recognition
• Decodes various common 1D/2D codes such as Barcode, QR code etc

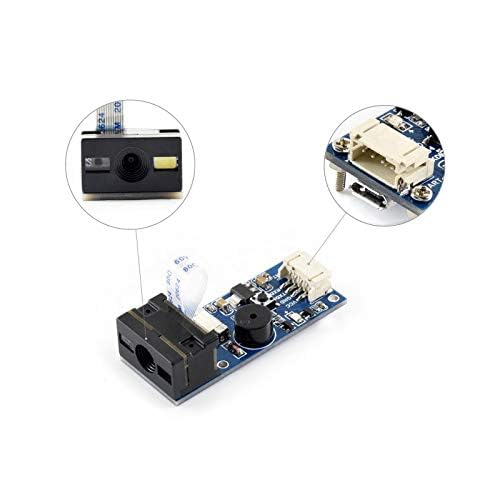

• Onboard micro USB and UART serial port, allows to connect with computers or embedded devices
• Configurable via scanning 'configuration code', onboard light source, works in the dark
• Download wiki: www.waveshare.com/wiki/Barcode_Scanner_Module

Overview This is a small 1D/2D code reader, by using the intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, fast and accurately. Through the onboard USB and UART interface, it can be directly plugged into a computer, or be easily integrated to kinds of devices due to its small form factor. Features Easy to use, requires no knowledges of image recognition. Decodes various common 1D/2D codes such as Barcode, QR code etc. Onboard micro USB and UART serial port, allows to connect with computers or embedded devices. Configurable via scanning 'configuration code' Onboard light source, works in the dark Specifications: Operating voltage: 5 V. Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep). Operating temperature: 0℃~60℃ Operating humidity: 5%~95% (non-condensing). Communication interface: UART, USB Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS) 2D code decodes: QR code, Data Matrix, PDF417 Light source: white. Scan angels: 360° roll, skew ±65°, pitch ±60°. Field of view: 28° (horizontal), 21.5° (vertical) Dimensions: 53.3 mm x 21.4 mm. PACKAGE CONTENT Barcode Scanner Module x1 USB type A plug to micro B plug cable x1 PH2.0 4Pin x1
