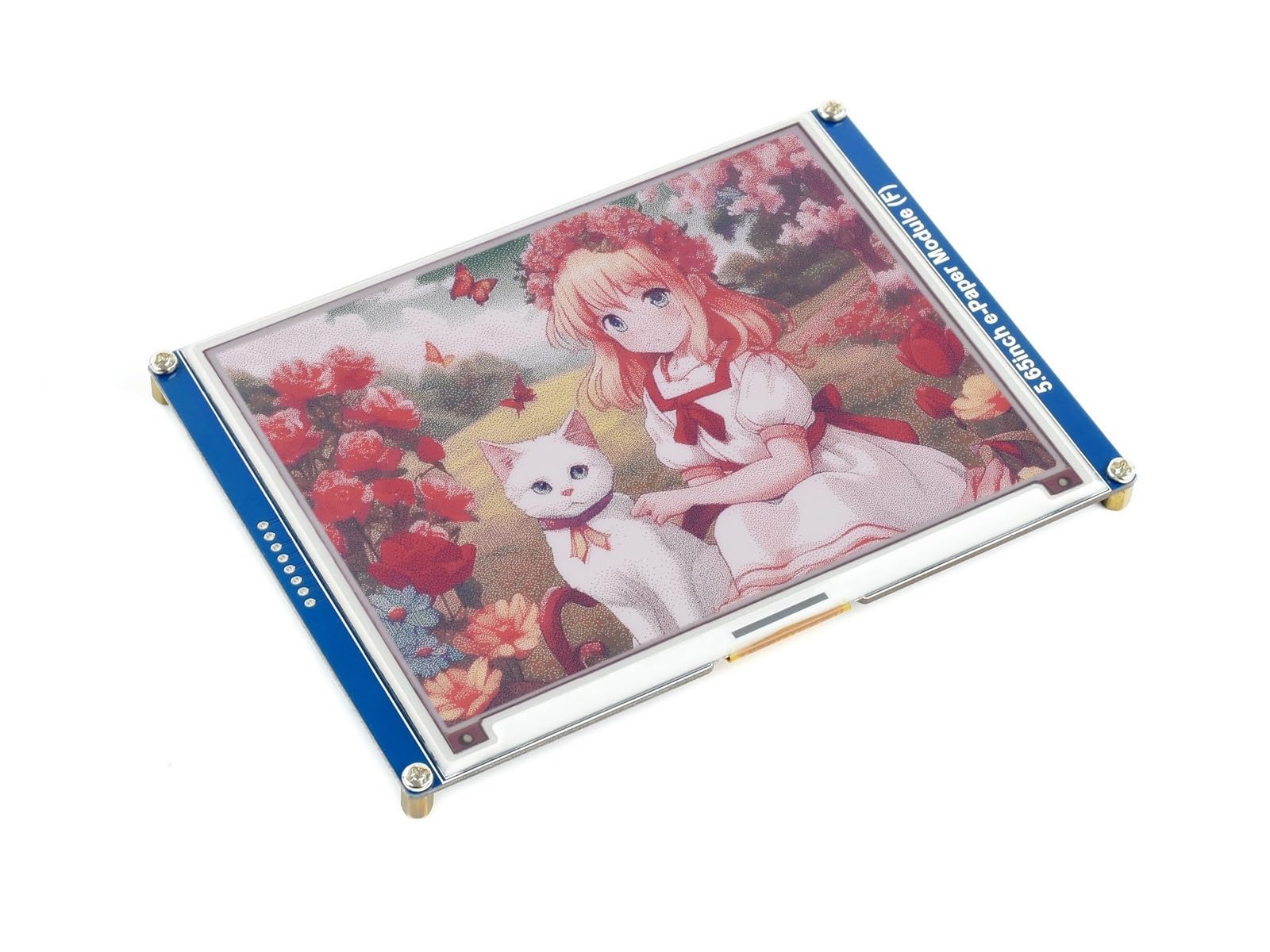

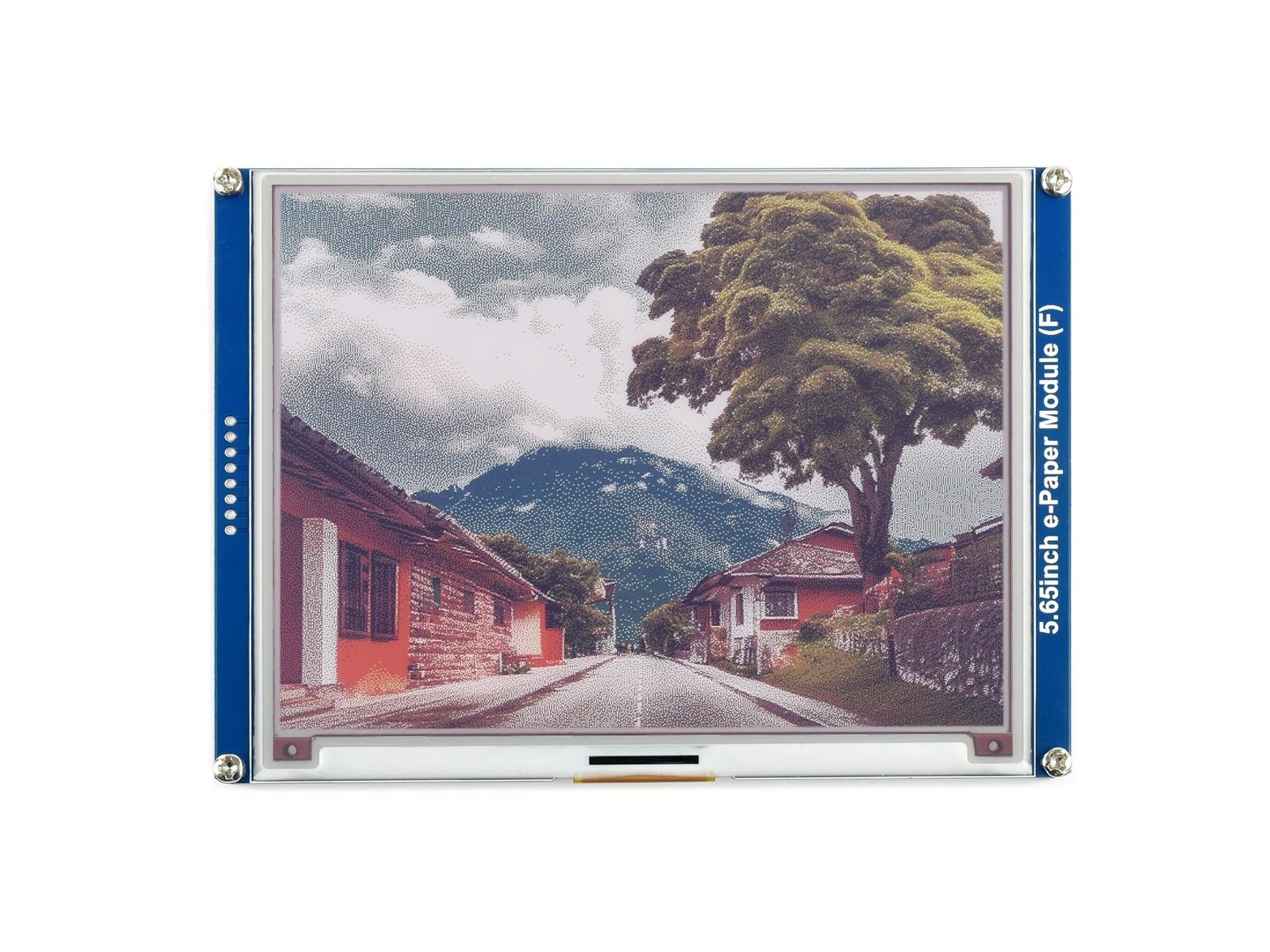

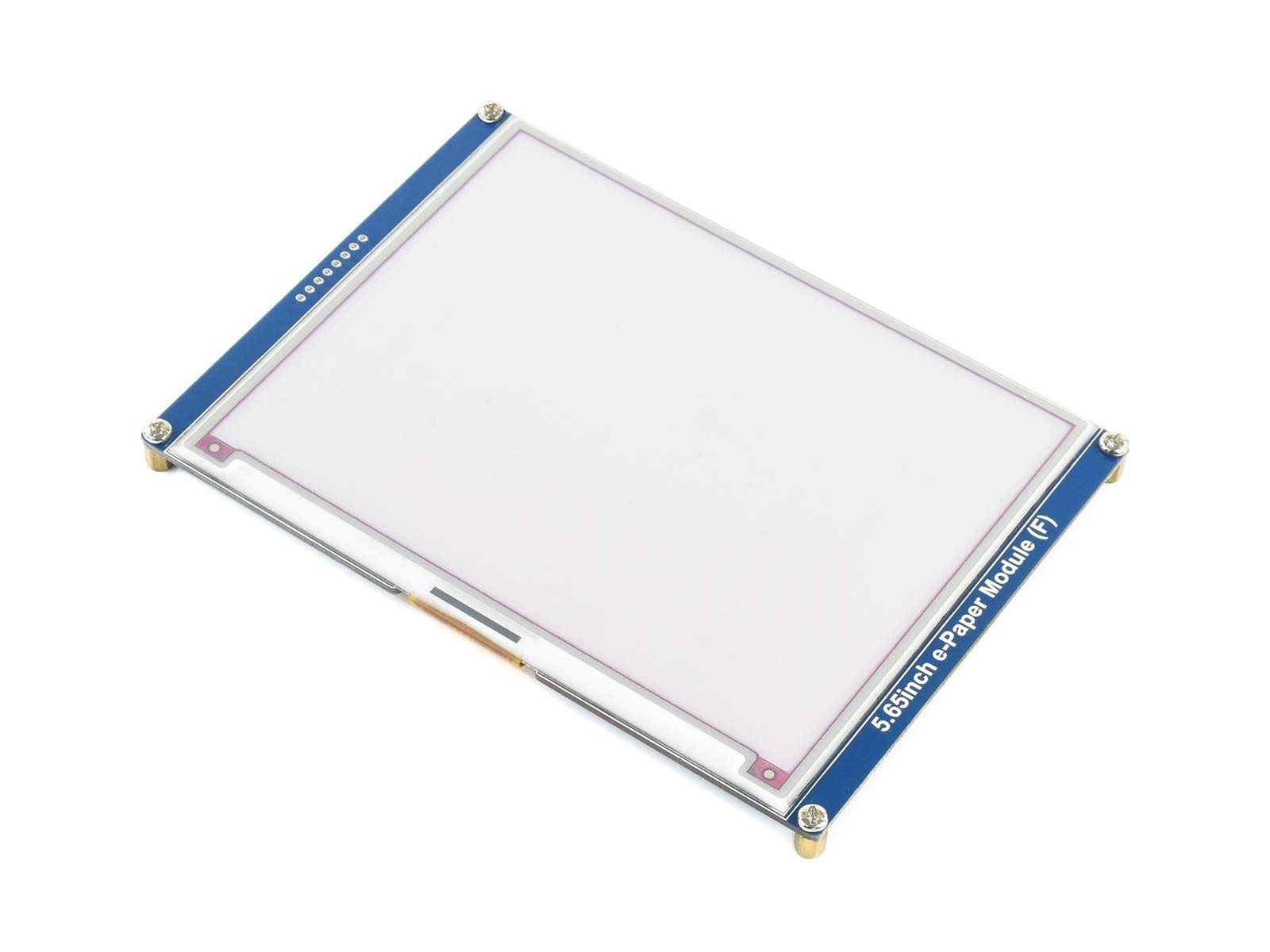

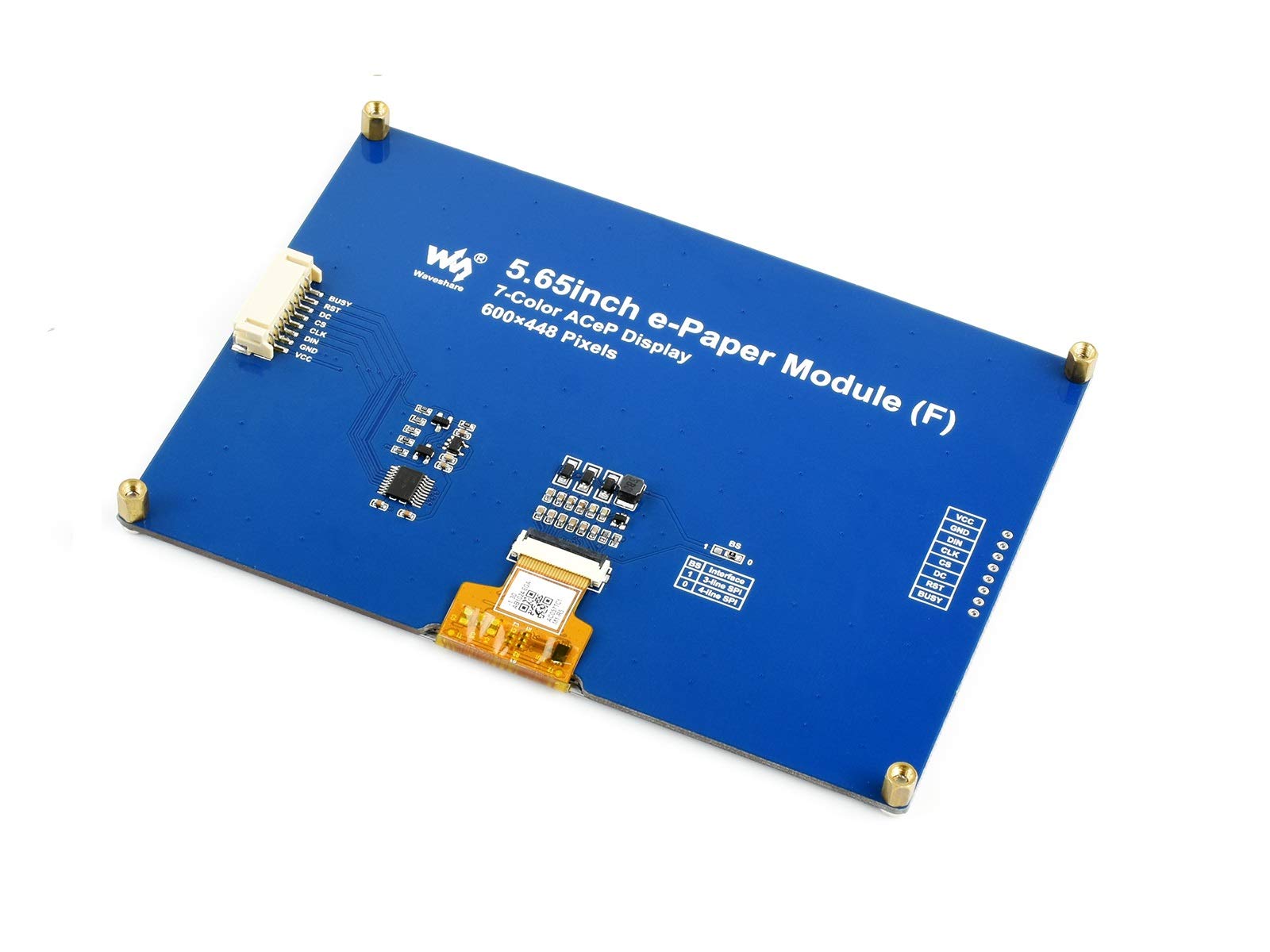

waveshare 5.65inch E-paper Display Module 600×448 Pixels Colorful ACeP 7-Color E-Ink Display eink Screen epaper for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH,Jetson Nano,STM32,Arduino

• The e-paper with advanced Color ePaper (ACeP) technology, supports 7-Color display
• Onboard SPI interface, for connecting with controller boards like Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH/Jetson Nano/Arduino/STM32, etc.
• No backlight, keeps displaying last content for a long time even when power down.Ultra low power consumption, basically power is only required for refreshing
• Onboard voltage translator, compatible with 3.3V / 5V MCUs.Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Package Content:5.65inch e-Paper Module (F) x1;PH2.0 20cm 8Pin x1

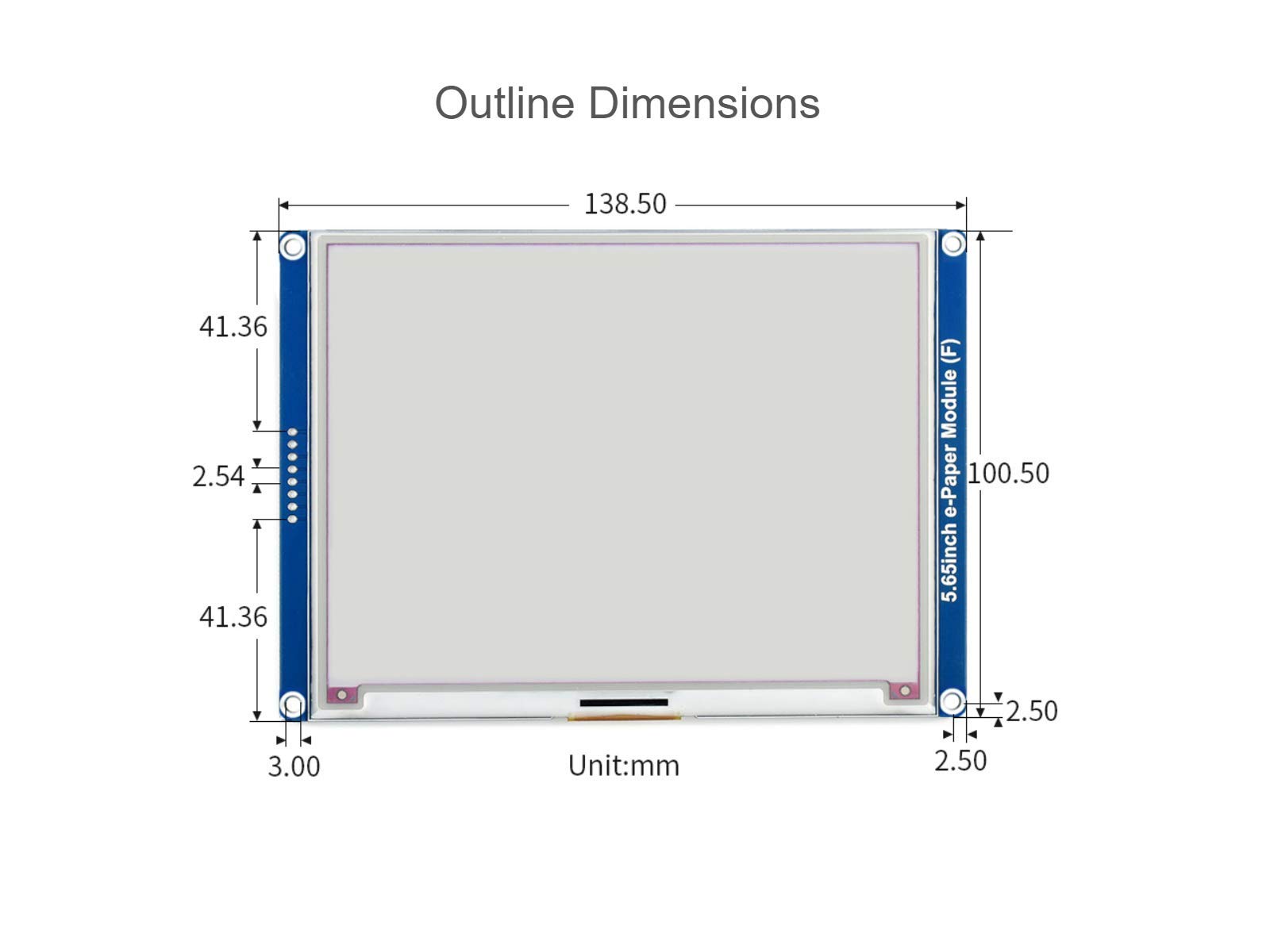

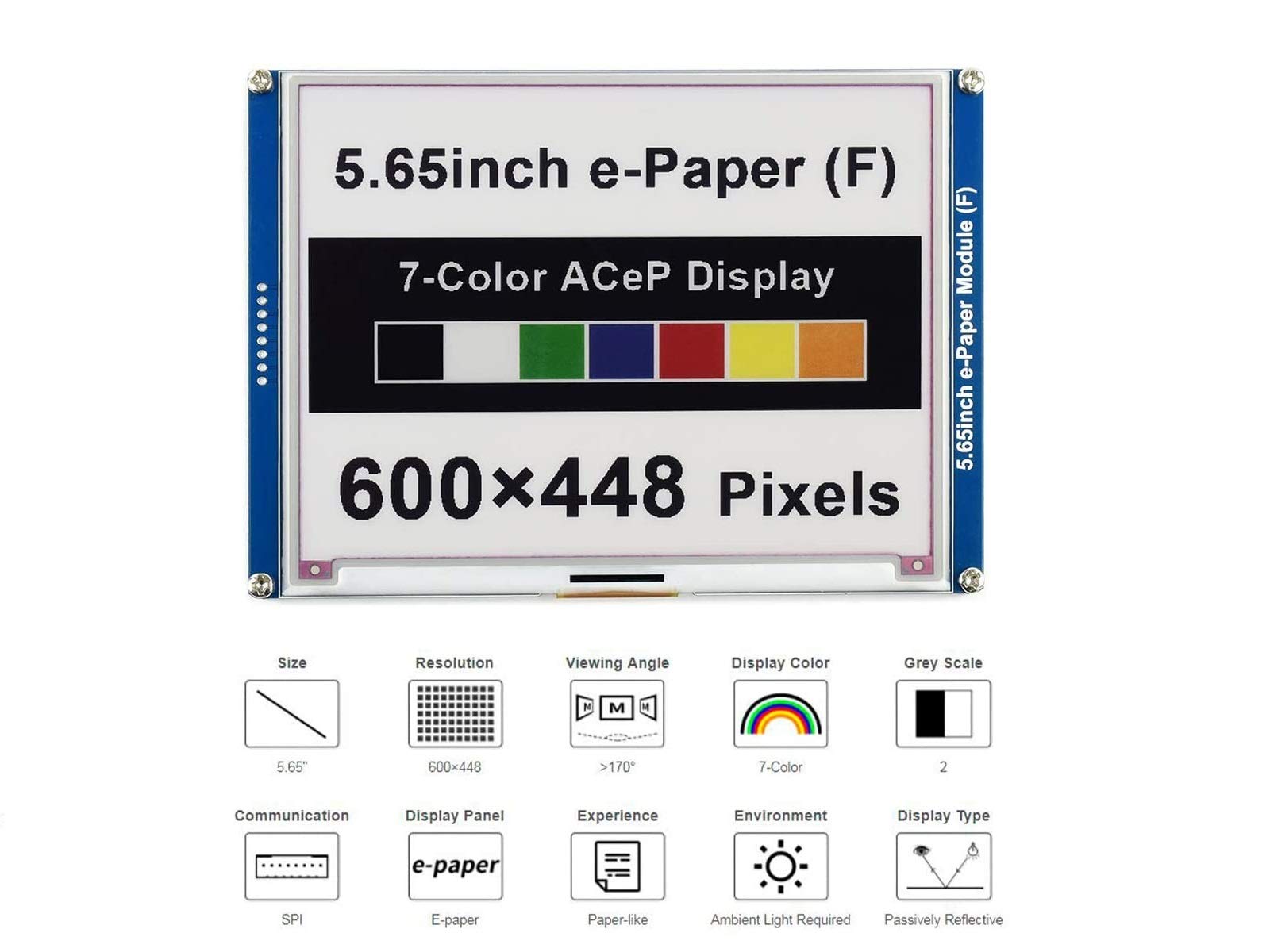

Features 1.600×448 Pixels5.65inch Colorful E-Paper E-Ink Display Module 2.Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity. Good Choice for price tags, shelf labels, industrial instruments... 3. With SPI Control Interface, compatible with Raspberry Pi Series Boards, Jetson Nano,Arduino, STM32... 4. Onboard Voltage Translator, compatible with 3.3V/5V MCUs. Specifications: 1. Operating voltage: 3.3 V/5 V. 2. Interface: 3-wire SPI, 4-wire SPI. 3. Outline dimensions: 138.5 x 100.5 mm. 4. Display size: 114.9 x 85.8 mm. 5. Dot pitch: 4.85 × 0.20 mm. 6. Resolution: 600 × 448 pixels. 7. Display colour: ACeP 7-colour. 8. Grey Scale: 2. 9. Full refresh time: 15s. 10. Refresh power: 50mW (typ.) 11.Standby Current: <0.01uA (almost none) 12. Viewing angle: >170°. Interface VCC---3.3V/5V GND---Ground DIN---SPI MOSI pin CLK---SPI SCK pin CS---SPI chip selection, low active. DC---Data / Command selection (high for data, low for command). RST---External reset, low active Busy status output Advantages of EINK E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect. Development Sesources WIKI:https://www.waveshare.com/wiki/5.65inch_e-Paper_Module_(F)?Amazon
