Waveshare 4 Port USB HUB Board, Compatible with Raspberry Pi Zero/Zero W/4B/3B/3B+, Features USB to UART Converter

• This 4 port USB hub providing more USB capability to your Pi, features USB to UART converter for easy serial communication
• USB HUB interface (bottom): for connecting the HUB to the Raspberry Pi USB port, for Zero/Zero W/Zero WH, connected via Micro USB connector; Also for Raspberry Pi B+/2B/3B/3B+/4B, connected via Micro USB cable
• With 4 USB Ports, for USB2.0/1.1; Onboard USB to UART, with enable/disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
• Operating voltage: 5V, Dimension: 65mm × 30mm, Mounting hole size: 3.0mm; Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port
• There is some usage resource and notice on the online user manual, please refer to while using

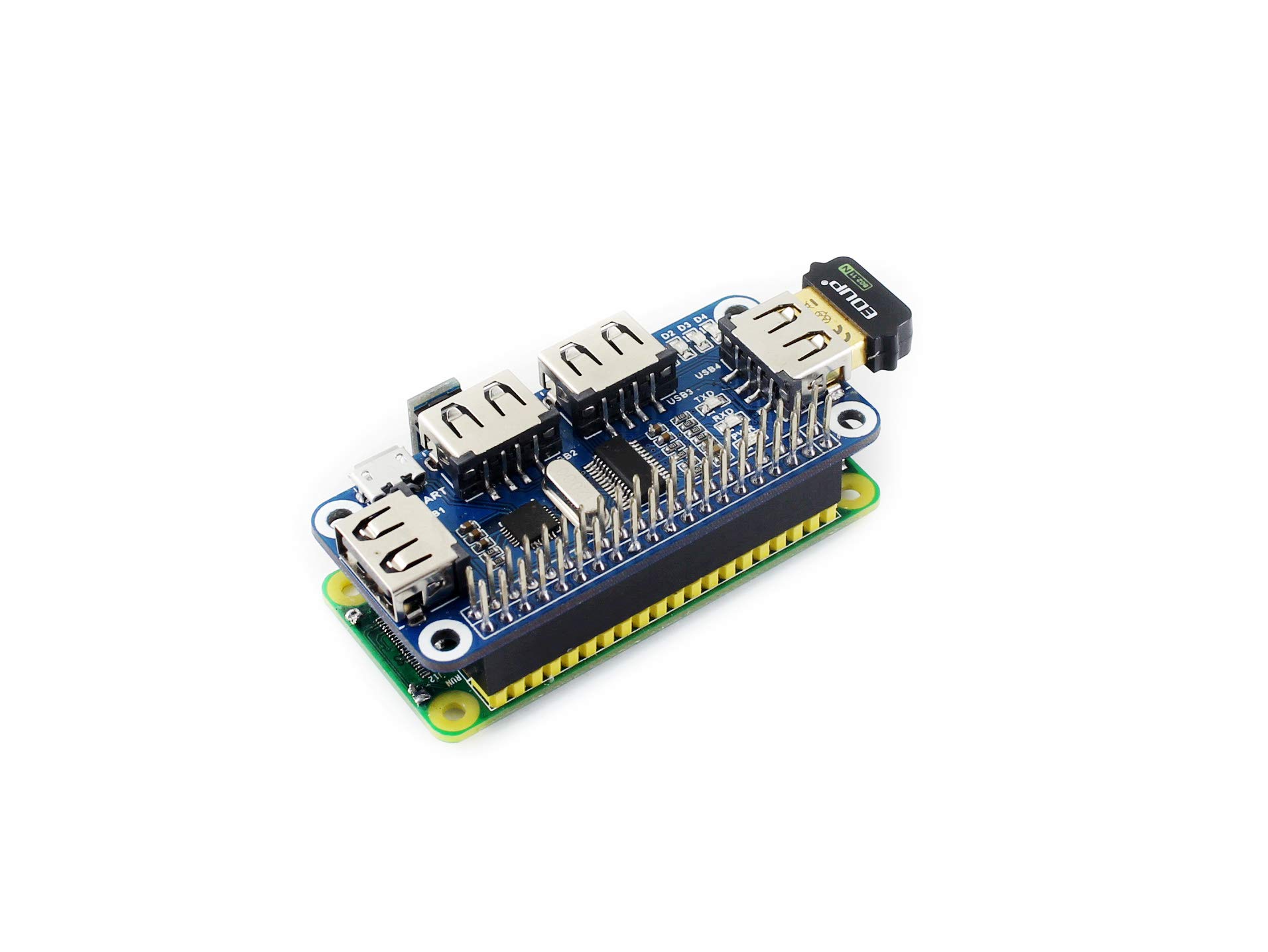

Overview This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit with Zero/Zero W/Zero WH. USB HUB HAT Features 4 USB Ports, for USB2.0/1.1 Onboard USB to UART, with enable/disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port What's on the USB HUB HAT Pi GPIO interface: for connecting Raspberry Pi USB to UART: for controlling the Raspberry Pi via serial terminal USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port; For Raspberry Pi Zero/Zero W/Zero WH: connected via Micro USB connector, for Raspberry Pi B+/2B/3B/3B+/4B: connected via Micro USB cable USB extended ports: USB1~USB4 USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively Power indicator USB to UART indicator FE1.1S: USB HUB chip 12MHz crystal USB to UART converter Specifications Operating voltage: 5V Dimension: 65mm × 30mm Mounting hole size: 3.0mm User Manual waveshare.com/wiki/USB_HUB_HAT?amazon PACKAGE CONTENT 1. USB HUB HAT x1 2. Micro USB connector x1 3. Micro USB cable x1 4. Screws pack (2pcs) for RPi x1
